2009 NISSAN 370Z Owners Manual

button on the steering
wheel to mute the receiving voice and enter
commands.

“Help” — The system announces the avail-
able commands.

“Go back/Correction” — The system an-
nounces “Go back,” ends the VR session and
returns to the call.

“Cancel/Quit” — The system announces
“Cancel,” ends the VR session and returns to
the call.

“Send/Enter/Call/Dial” — Use the Send com-
mand to enter numbers during a call. For
example, if you were directed to dial an
extension by an automated system:
Say: “Send one two three four.”
The system acknowledges the command and
sends the tones associated with the num-
bers. The system then ends the VR session
and returns to the call.

“Transfer call” — Use the Transfer Call com-
mand to transfer the call from the Bluetooth
Hands-Free Phone System to the cellular
phone when privacy is desired.
The system announces, “Transfer call. Call
transferred to privacy mode.” The system
then ends the VR session.
You can also issue the Transfer Call com-
mand again to return to a hands-free call
through the vehicle.

“Mute” — Use the Mute command to mute
your voice so the other party cannot hear it.
Use the mute command again to unmute your
voice.
NOTE:
If the other party ends the call or the
cellular phone network connection is lost
while the Mute feature is on, the Mute
feature may need to be reset to “off.”
“Phone book”
4-38
Display screen, heater, air conditioner and audio systems

communication link.

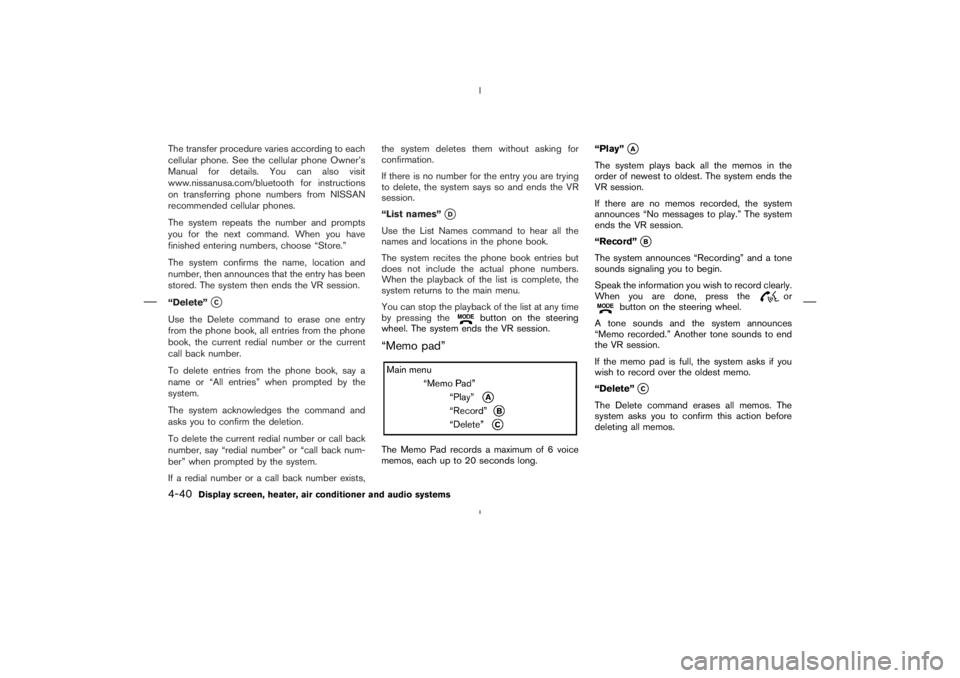

The transfer procedure varies according to each
cellular phone. See the cellular phone Owner’s
Manual for details. You can also visit
www.nissanusa.com/bluetooth for instructions
on transferring phone numbers from NISSAN
recommended cellular phones.
The system repeats the number and prompts
you for the next command. When you have
finished entering numbers, choose “Store.”
The system confirms the name, location and
number. The system then asks if you would like
to store another location for the same name. Ifyou do not wish to store another location, the
system ends the VR session.
“Edit”
B
Use the Edit command to alter an existing phone
book entry or to add a 2nd, 3rd or 4th phone
number to an existing entry.
When prompted by the system, say the name of
the entry you wish to edit.
The system acknowledges the name and asks
you for the location you would like to edit.
Say the name of the location. The system ac-
knowledges the location. The system will ask you
to say a phone number or to transfer a phone
number stored in the cellular phone’s memory.
To enter a phone number by voice command:
For example, say: “five five five one two one
two.” See “How to say numbers” earlier in
this section for more information.
To transfer a phone number stored in the cellular
phone’s memory (if so equipped):
Say: “Transfer entry.”
The system acknowledges the command and
asks you to initiate the transfer from the phone
handset. The new contact phone number will be
transferred from the cellular phone via the
Bluetooth
communication link.
Display screen, heater, air conditioner and audio systems
4-39

button on the steering
wheel. The system ends the VR session.
“Memo pad”The Memo Pad records a maximum of 6 voice
memos, each up to 20 seconds long.“Play”
A
The system plays back all the memos in the
order of newest to oldest. The system ends the
VR session.
If there are no memos recorded, the system
announces “No messages to play.” The system
ends the VR session.
“Record”
B
The system announces “Recording” and a tone
sounds signaling you to begin.
Speak the information you wish to record clearly.
When you are done, press the
or
button on the steering wheel.
A tone sounds and the system announces
“Memo recorded.” Another tone sounds to end
the VR session.
If the memo pad is full, the system asks if you
wish to record over the oldest memo.
“Delete”
C
The Delete command erases all memos. The
system asks you to confirm this action before
deleting all memos.
4-40
Display screen, heater, air conditioner and audio systems

Use the Setup command to change options
associated with the Bluetooth
Hands-Free
Phone System.
“Pair phone”
A
Use the Pair Phone command to pair a phone to
the Bluetooth
Hands-Free Phone System.
When you are asked to enter a PIN code for
pairing your Bluetooth
cellular phone, operate it
to enter the code “1234”.
The code is always “1234” regardless of the
number of phones paired.
Up to 5 phones can be paired. If you try to pair
a sixth phone, the system announces that youmust first delete one phone or replace an exist-
ing phone.
If you try to pair a phone that has already been
paired to your vehicle’s system, the system
announces the name the phone is already using.
The pairing procedure will then be cancelled.
When prompted by the system, choose from the
following commands:

“New phone” — Refer to “Pairing a phone”
earlier in this section.

“Replace phone” — The system announces
the names of the phones already paired and
asks which you would like to replace.
Once you say the name of the phone you
wish to replace, the paring procedure will
begin. Refer to “Pairing procedure” earlier in
this section.

“List phones” — See the description below.
“List phones”
B
Use the List Phones command to hear the
names of the phones currently paired. If no
phones are paired, the system announces, “No
paired phones to list.” The system then ends the
VR session.
“Select phone”
C
Use the Select Phone command to select aphone of lesser priority when two or more
phones paired with Bluetooth
Hands-Free
Phone System are in the vehicle at the same
time.
The system asks you to name the phone and
confirm the selection.
Once the selection is confirmed, the selected
phone remains active until the ignition switch is
turned OFF or you select a new phone.
“Change priority”
D
Use the Change Priority command to change the
priority level of the active phone.
The priority level determines which phone is
active when more than one paired Bluetoothphone is in the vehicle.
The system states the priority level of the active
phone and asks for a new priority level (1, 2, 3,
4, 5).
If the new priority level is already being used for
another phone, the two phones will swap priority
levels.
For example, if the current priority levels are:
Priority Level 1 = Phone A
Priority Level 2 = Phone B
Priority Level 3 = Phone C
Display screen, heater, air conditioner and audio systems
4-41

Hands-Free Phone System.The system announces the names of the phones
already paired with the system and their priority
level. The system then gives you the option to
delete a specific phone, all phones or listen to the
list again.Once you chose to delete a phone or all phones,
the system asks you to confirm this action.
NOTE:
When you delete a phone, the associated
phone book for that phone will also be
deleted.
“Select ringtone”
F
Use the Select Ringtone command to select the
tone heard in the vehicle when an incoming call
is received.
The system announces the name of the activephone and asks you to choose from the follow-
ing commands:

“Ringtone” — The system plays a ringtone
and asks if you would like to select that tone.
If you say no, the system plays the next
ringtone available and continues to cycle
through the ringtones until you select one or
quit.

“Silent” — The system asks you to confirm
your wish to disable the ringtone.
“Bluetooth off”
G
Use the Bluetooth Off command to turn off the
Bluetooth
Hands-Free Phone System.
When Bluetooth
Hands-Free Phone System is
off, you will not be able to make or receive calls
using NISSAN Voice Recognition. Also, you will
not have access to the Phone Book.
You can still use the Memo Pad and access
Setup.
To turn on the system again, choose the Blue-
tooth On command from the Setup command.
SPEAKER ADAPTATION (SA) MODESpeaker Adaptation allows up to two out-of dia-
lect users to train the system to improve recogni-
tion accuracy. By repeating a number of com-
mands, the users can create a voice model of theirown voice that is stored in the system. The system
is capable of storing a different speaker adapta-
tion model for memory A and memory B.
If memory A is available, the system will use
memory A to store the model. If memory A is in
use and memory B is available, the system will
use memory B to store the model. If both of the
memory locations are in use, the system will ask
the user to select which memory location should
be overwritten.Training procedureThe procedure for training a voice is as follows.
1. Position the vehicle in a reasonably quiet
outdoor location.
2. Sit in the driver’s seat with the engine run-
ning, the parking brake on, and the transmis-
sion in Park.
3. Press and hold the
button for more
than 5 seconds.
4. The system announces: “Press the PHONE
SEND (
) button for the hands-free
phone system to enter the speaker adapta-
tion mode or press the PHONE END
(
) button to select a different lan-
guage.”
5. Press the
button.
4-42
Display screen, heater, air conditioner and audio systems

button.
8. The SA mode will be explained. Follow the
instructions provided by the system.
9. When training is finished, the system will tell
you an adequate number of phrases have
been recorded.
10.The system will ask you to say your name.
Follow the instructions to register your name.
11.The system will announce that speaker adap-
tation has been completed and the system is
ready.
The SA mode will stop if:

The
button is pressed for more than 5
seconds in SA mode.

The vehicle is driven during SA mode.

The ignition switch is turned to the OFF or
LOCK position.
Training phrasesDuring the SA mode, the system instructs you to
say the following phrases.
(The system will prompt you for each phrase.)

phone book new entry

dial three oh four two nine

delete call back number

setup pair phone

memo pad play

eight pause nine three two pause seven

delete all entries

call seven two four zero nine

phone book delete entry

memo pad record

dial star two one seven oh

Yes

No

select ring tone

dial eight five six nine two

Bluetooth on

setup change priority
call three one nine oh two

nine seven pause pause three oh eight

Cancel

call back number

call star two zero nine five

delete phone

dial eight three zero five one

Home

four three pause two nine pause zero

delete redial number

phone book list names

call eight oh five four one

Correction

setup change ring tone

dial seven four oh one eight

setup main menu

Delete

dial nine seven two six six

memo pad delete

call seven six three oh one

go back
Display screen, heater, air conditioner and audio systems
4-43

Symptom Solution
System fails to interpret the command correctly.1. Ensure that the command is valid. See “List of voice commands” earlier in this section.
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on). NOTE: If it is
too noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
6. If the system consistently fails to recognize commands, the voice training procedure should be carried out to im-
prove the recognition response for the speaker. See “Speaker adaptation (SA) mode” earlier in this section.
The system consistently selects the wrong entry
from the phone book.1. Ensure that the phone book entry name requested matches what was originally stored. This can be confirmed by
using the “List Names” command. See “Phone book” earlier in this section.
2. Replace one of the names being confused with a new name.
Display screen, heater, air conditioner and audio systems
4-45
