Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
+–+–
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Roadside Emergencies
314

For vehicles with overflow coolant systems with a non-pressurized cap
on the coolant recovery system, add coolant to the coolant recovery
reservoir when the engine is cool. Add the proper mixture of coolant and
water to the “FULL COLD” level. For all other vehicles which have a
coolant degas system with a pressurized cap, or if it is necessary to
remove the coolant pressure relief cap on the radiator of a vehicle with
an overflow system, follow these steps to add engine coolant.
WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
Add the proper mixture of coolant and water to the cooling system by
following these steps:
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture, to
within the “COLD FILL RANGE” or the “FULL COLD” level on the
reservoir. If you removed the radiator cap in an overflow system, fill the
radiator until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. Cap must be tightly
installed to prevent coolant loss.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50
(protection to –34°F/–36°C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
352

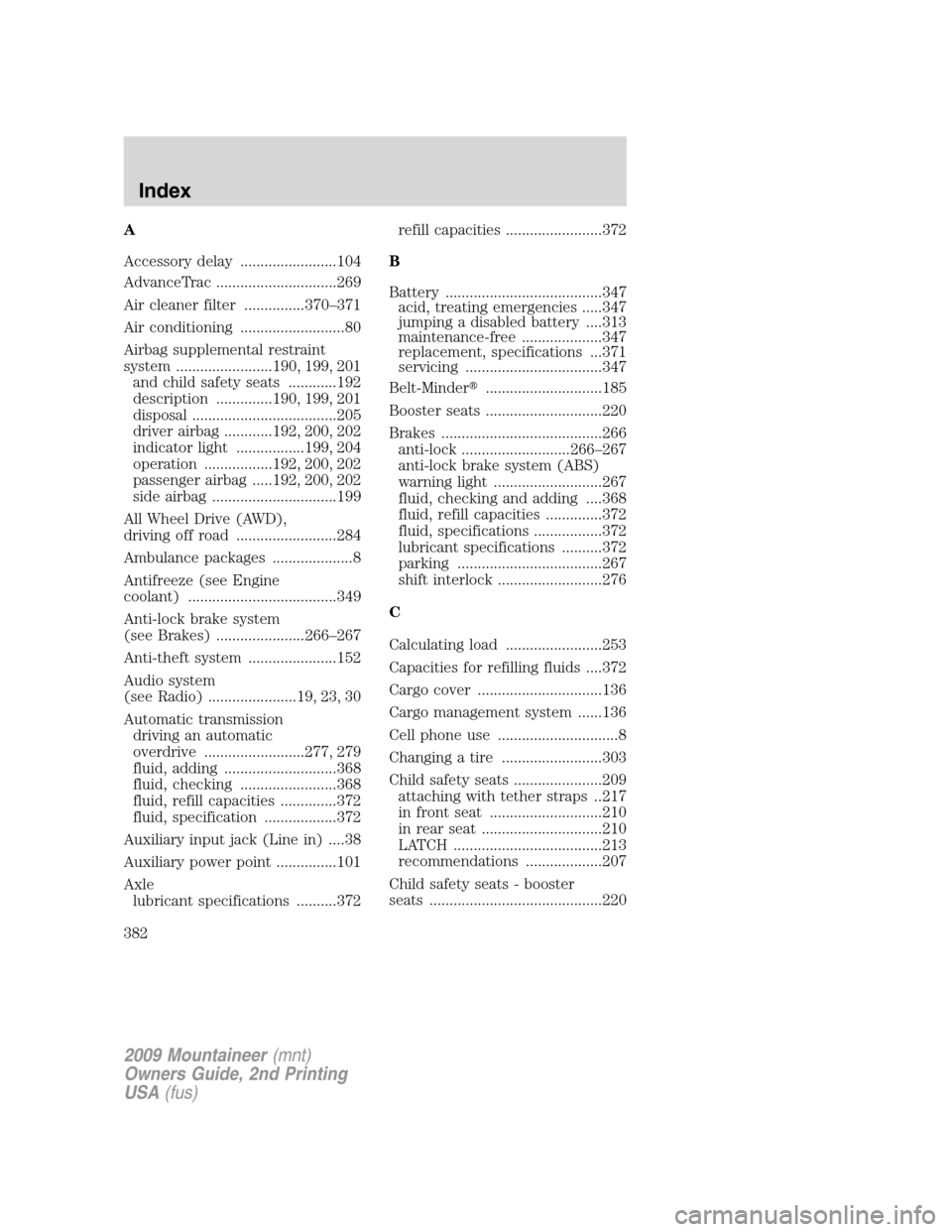

A
Accessory delay ........................104
AdvanceTrac ..............................269
Air cleaner filter ...............370–371
Air conditioning ..........................80
Airbag supplemental restraint
system ........................190, 199, 201
and child safety seats ............192
description ..............190, 199, 201
disposal ....................................205
driver airbag ............192, 200, 202
indicator light .................199, 204
operation .................192, 200, 202
passenger airbag .....192, 200, 202
side airbag ...............................199
All Wheel Drive (AWD),
driving off road .........................284
Ambulance packages ....................8
Antifreeze (see Engine
coolant) .....................................349
Anti-lock brake system
(see Brakes) ......................266–267
Anti-theft system ......................152
Audio system
(see Radio) ......................19, 23, 30
Automatic transmission
driving an automatic
overdrive .........................277, 279
fluid, adding ............................368
fluid, checking ........................368
fluid, refill capacities ..............372
fluid, specification ..................372
Auxiliary input jack (Line in) ....38
Auxiliary power point ...............101
Axle
lubricant specifications ..........372refill capacities ........................372
B
Battery .......................................347
acid, treating emergencies .....347
jumping a disabled battery ....313
maintenance-free ....................347
replacement, specifications ...371
servicing ..................................347
Belt-Minder
.............................185
Booster seats .............................220
Brakes ........................................266
anti-lock ...........................266–267
anti-lock brake system (ABS)
warning light ...........................267
fluid, checking and adding ....368
fluid, refill capacities ..............372
fluid, specifications .................372
lubricant specifications ..........372
parking ....................................267
shift interlock ..........................276
C
Calculating load ........................253
Capacities for refilling fluids ....372
Cargo cover ...............................136
Cargo management system ......136
Cell phone use ..............................8
Changing a tire .........................303
Child safety seats ......................209
attaching with tether straps ..217
in front seat ............................210
in rear seat ..............................210
LATCH .....................................213
recommendations ...................207
Child safety seats - booster
seats ...........................................220
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Index
382

refill capacities ........................372
service points ..................338–339
starting after a collision .........294
Engine block heater .................264
Engine oil ..................................342
checking and adding ..............342
dipstick ....................................342
filter, specifications ........345, 371
recommendations ...................345
refill capacities ........................372
specifications ..........................372
Event data recording ....................7
Exhaust fumes ..........................264
F
Fail safe cooling ........................354
Family entertainment system ....46
Floor mats .................................135
Fluid capacities .........................372
Fog lamps ....................................86
Four-Wheel Drive vehicles
driving off road .......................285
preparing to drive your
vehicle .....................................275
Fuel ............................................355
calculating fuel
economy ..........................122, 361
cap ...........................................357
capacity ...................................372
choosing the right fuel ...........359
comparisons with EPA fuel
economy estimates .................364
detergent in fuel .....................360
filler funnel .............................360
filling your vehicle
with fuel ..................355, 357, 361
filter, specifications ........355, 371
fuel pump shut-off switch .....294improving fuel economy ........361
octane rating ...................359, 377
quality ......................................359
running out of fuel .........313, 360
safety information relating to
automotive fuels .....................355
Fuses ..................................295–296
G
Garage door opener ..................100
Gas cap (see Fuel cap) ............357
Gas mileage
(see Fuel economy) .................361
Gauges .........................................17
GAWR (Gross Axle Weight
Rating)
calculating ...............................253
GVWR (Gross Vehicle Weight
Rating)
calculating ...............................253
H
Hazard flashers .........................293
Headlamps ...................................85
aiming ........................................87
bulb specifications ....................90
daytime running lights .............86
flash to pass ..............................87
high beam .................................86
turning on and off ....................85
Heating
heating and air conditioning
system .................................78, 80
Homelink wireless control
system ........................................114
Hood ..........................................337
How to get going ........................19
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Index
384

O
Octane rating ............................359
Oil (see Engine oil) ..................342
P
Parking brake ............................267
Parts (see Motorcraft parts) ....371
Passenger Occupant
Classification Sensor .................176
Pedals (see Power adjustable
foot pedals) ...............................106
Power adjustable foot pedals ...106
Power deployable running
boards ........................................107
Power distribution box
(see Fuses) ...............................299
Power door locks ......................140
Power mirrors ...........................105
Power point ...............................101
Power steering ..........................274
fluid, checking and adding ....367
fluid, refill capacity ................372
fluid, specifications .................372
Power Windows .........................102
Preparing to drive your
vehicle ........................................275
R
Radio ................................19, 23, 30
Rear seat entertainment
system ..........................................46
Rear window defroster ...............84Recommendations for
attaching safety restraints for
children ......................................207
Relays ........................................295
Remote entry system .......145–146
illuminated entry ....................150
locking/unlocking
doors ................................146–147
panic alarm .............................147
replacing the batteries ...........148
Reverse sensing system ...........282
Roadside assistance ..................292
Roof rack ...................................138
S
Safety belts (see Safety
restraints) ..........174, 178–181, 183
Safety Canopy ...........199, 201–202
Safety defects, reporting ..........327
Safety restraints ........174, 178–183
Belt-Minder
...........................185
extension assembly ................184
for adults .........................179–181
for children .............................205
Occupant Classification
Sensor ......................................176
warning light and
chime ...............................184–185
Safety restraints - LATCH
anchors ......................................213
Safety seats for children ..........209
Safety Compliance
Certification Label ....................378
Satellite Radio Information ........43
Seats ..........................................156
child safety seats ....................209
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Index
386
