2009 Mercury Mountaineer Owner's Manuals

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 17
Entertainment Systems 19
How to get going 19
AM/FM stereo with CD 23
AM/FM stereo with in-dash six CD 30
Auxiliary input jack (Line in) 38
USB port 40
Satellite radio information 43
Family entertainment system 46
Navigation system 77
SYNC
77
Climate Controls 78
Manual heating and air conditioning 78
Automatic temperature control 80
Auxiliary passenger climate control 83
Rear window defroster 84
Lights 85
Headlamps 85
Turn signal control 89
Bulb replacement 90
Driver Controls 97
Windshield wiper/washer control 97
Steering wheel adjustment 98

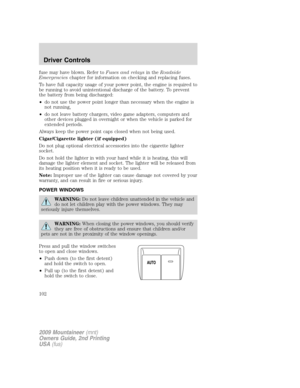

Power windows 102
Mirrors 104
Speed control 108

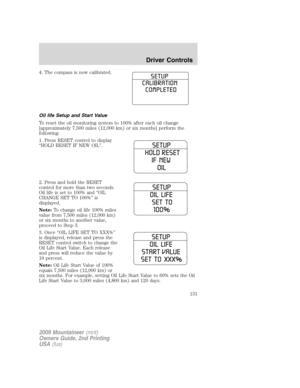

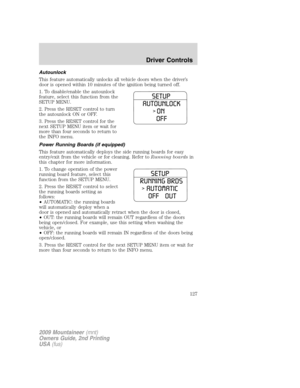

Message center 120
Table of Contents
1
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)

Locks and Security 140
Keys 140
Locks 140
Anti-theft system 146
Seating and Safety Restraints 156
Seating 156
Safety restraints 174

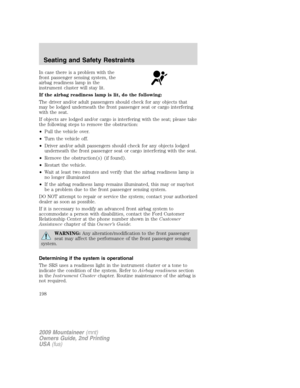

Airbags 190
Child restraints 205
Tires, Wheels and Loading 224
Tire information 226
Tire inflation 229

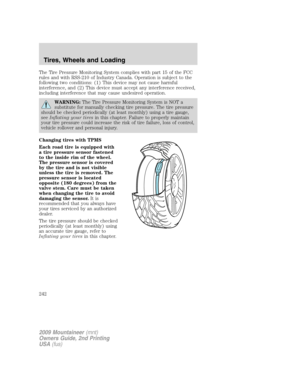

Tire Pressure Monitoring System (TPMS) 241
Vehicle loading 247
Trailer towing 254
Recreational towing 259
Driving 261
Starting 261
Brakes 266
AdvanceTrac
269
Transmission operation 276
Reverse sensing system 282
Roadside Emergencies 292
Getting roadside assistance 292
Hazard flasher control 293
Fuel pump shut-off switch 294

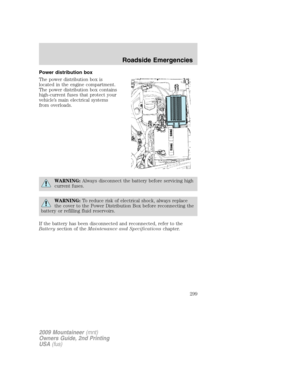

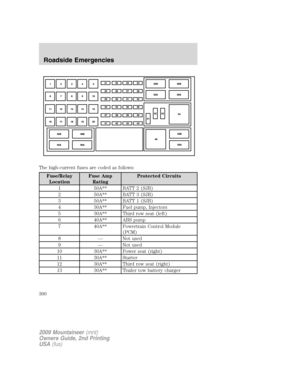

Fuses and relays 295
Changing tires 303
Wheel lug nut torque 312
Jump starting 313
Wrecker towing 319
Table of Contents
2
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)

Customer Assistance 321
Reporting safety defects (U.S. only) 327
Reporting safety defects (Canada only) 327
Cleaning 328
Maintenance and Specifications 336
Engine compartment 338
Engine oil 342
Battery 347
Engine coolant 349
Fuel information 355
Air filter(s) 370
Part numbers 371
Maintenance product specifications and capacities 372
Engine data 377
Accessories 380
Index 382
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2009 Ford Motor Company
Table of Contents
3
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)

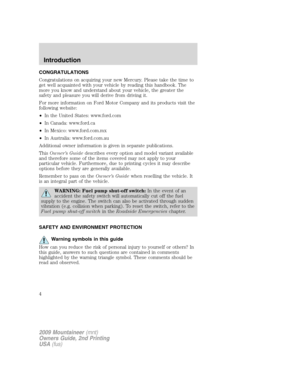

CONGRATULATIONS
Congratulations on acquiring your new Mercury. Please take the time to
get well acquainted with your vehicle by reading this handbook. The
more you know and understand about your vehicle, the greater the
safety and pleasure you will derive from driving it.
For more information on Ford Motor Company and its products visit the
following website:
•In the United States: www.ford.com
•In Canada: www.ford.ca
•In Mexico: www.ford.com.mx
•In Australia: www.ford.com.au
Additional owner information is given in separate publications.
ThisOwner’s Guidedescribes every option and model variant available
and therefore some of the items covered may not apply to your
particular vehicle. Furthermore, due to printing cycles it may describe
options before they are generally available.
Remember to pass on theOwner’s Guidewhen reselling the vehicle. It
is an integral part of the vehicle.
WARNING: Fuel pump shut-off switch:In the event of an
accident the safety switch will automatically cut off the fuel
supply to the engine. The switch can also be activated through sudden
vibration (e.g. collision when parking). To reset the switch, refer to the
Fuel pump shut-off switchin theRoadside Emergencieschapter.
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In
this guide, answers to such questions are contained in comments
highlighted by the warning triangle symbol. These comments should be
read and observed.
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Introduction
4

Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the environment
We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste, cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.
CALIFORNIA Proposition 65 Warning
WARNING:Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other
reproductive harm. In addition, certain fluids contained in vehicles and
certain products of component wear contain or emit chemicals known
to the State of California to cause cancer and birth defects or other
reproductive harm.
PERCHLORATE MATERIAL
Certain components of this vehicle such as airbag modules, seat belt
pretensioners, and button cell batteries may contain Perchlorate Material
– Special handling may apply for service or vehicle end of life disposal.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,000 miles (1,600 km) of
new vehicle operation. Vary your speed frequently in order to give the
moving parts a chance to break in.
Drive your new vehicle at least 1,000 miles (1,600 km) before towing a
trailer. For more detailed information about towing a trailer, refer to
Trailer towingin theTires, Wheels and Loadingchapter.
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Introduction
5

Do not add friction modifier compounds or special break-in oils since
these additives may prevent piston ring seating. SeeEngine oilin the
Maintenance and Specificationschapter for more information on oil
usage.
SPECIAL NOTICES
New Vehicle Limited Warranty
For a detailed description of what is covered and what is not covered by
your vehicle’s New Vehicle Limited Warranty, refer to theWarranty
Guide/Customer Information Guidethat is provided to you along with
yourOwner’s Guide.
Special instructions
For your added safety, your vehicle is fitted with sophisticated electronic
controls.
WARNING:Please read the sectionAirbag Supplemental
Restraint System (SRS)in theSeating and Safety Restraints
chapter. Failure to follow the specific warnings and instructions could
result in personal injury.
WARNING:Front seat mounted rear-facing child or infant seats
shouldNEVERbe placed in front of an active passenger airbag.
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, and service and repair facilities may
access vehicle diagnostic information through a direct connection to your
vehicle when diagnosing or servicing your vehicle. For U.S. only (if
equipped), if you choose to use the SYNC
Vehicle Health Report, you
consent that certain diagnostic information may also be accessed
electronically by Ford Motor Company and Ford authorized service
facilities, and that the diagnostic information may be used for any
purpose. See yourSYNC
supplement for more information.
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Introduction
6

Event Data Recording
Other modules in your vehicle — event data recorders — are capable of
collecting and storing data during a crash or near crash event. The
recorded information may assist in the investigation of such an event.
The modules may record information about both the vehicle and the
occupants, potentially including information such as:
•how various systems in your vehicle were operating;
•whether or not the driver and passenger seatbelts were buckled;
•how far (if at all) the driver was depressing the accelerator and/or the
brake pedal;
•how fast the vehicle was traveling; and
•where the driver was positioning the steering wheel.
To access this information, special equipment must be directly connected
to the recording modules. Ford Motor Company and Ford of Canada do
not access event data recorder information without obtaining consent,
unless pursuant to court order or where required by law enforcement,
other government authorities or other third parties acting with lawful
authority. Other parties may seek to access the information
independently of Ford Motor Company and Ford of Canada. Please note
that once 911 Assist (if equipped) is enabled (set ON), 911 Assist may,
through any paired and connected cell phone, disclose to emergency
services that the vehicle has been in a crash involving the deployment of
an airbag or, in certain vehicles, the activation of the fuel pump shut-off.
Certain versions or updates to 911 Assist may also be capable of
electronically or verbally disclosing to 911 operators the vehicle location,
and/or other details about the vehicle or crash to assist 911 operators to
provide the most appropriate emergency services. If you do not want to
disclose this information, do not activate the feature. See yourSYNC

supplement for more information.
Notice to owners of pickup trucks and utility type vehicles
WARNING:Utility vehicles have a significantly higher rollover
rate than other types of vehicles.
Before you drive your vehicle, please read thisOwner’s Guidecarefully.
Your vehicle is not a passenger car. As with other vehicles of this type,
failure to operate this vehicle correctly may result in loss of vehicle
control, vehicle rollover, personal injury or death.
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Introduction
7

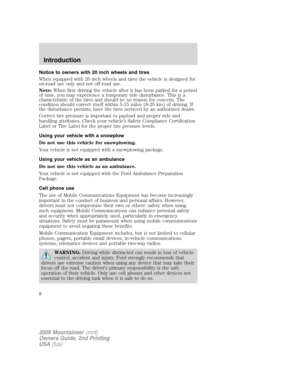

Notice to owners with 20 inch wheels and tires
When equipped with 20 inch wheels and tires the vehicle is designed for
on-road use only and not off-road use.
Note:When first driving the vehicle after it has been parked for a period
of time, you may experience a temporary ride disturbance. This is a
characteristic of the tires and should be no reason for concern. The
condition should correct itself within 5-15 miles (8-25 km) of driving. If
the disturbance persists, have the tires serviced by an authorized dealer.
Correct tire pressure is important to payload and proper ride and
handling attributes. Check your vehicle’s Safety Compliance Certification
Label or Tire Label for the proper tire pressure levels.
Using your vehicle with a snowplow
Do not use this vehicle for snowplowing.
Your vehicle is not equipped with a snowplowing package.
Using your vehicle as an ambulance
Do not use this vehicle as an ambulance.
Your vehicle is not equipped with the Ford Ambulance Preparation
Package.
Cell phone use
The use of Mobile Communications Equipment has become increasingly
important in the conduct of business and personal affairs. However,
drivers must not compromise their own or others’ safety when using
such equipment. Mobile Communications can enhance personal safety
and security when appropriately used, particularly in emergency
situations. Safety must be paramount when using mobile communications
equipment to avoid negating these benefits.
Mobile Communication Equipment includes, but is not limited to cellular
phones, pagers, portable email devices, in-vehicle communications
systems, telematics devices and portable two-way radios.
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Introduction
8
