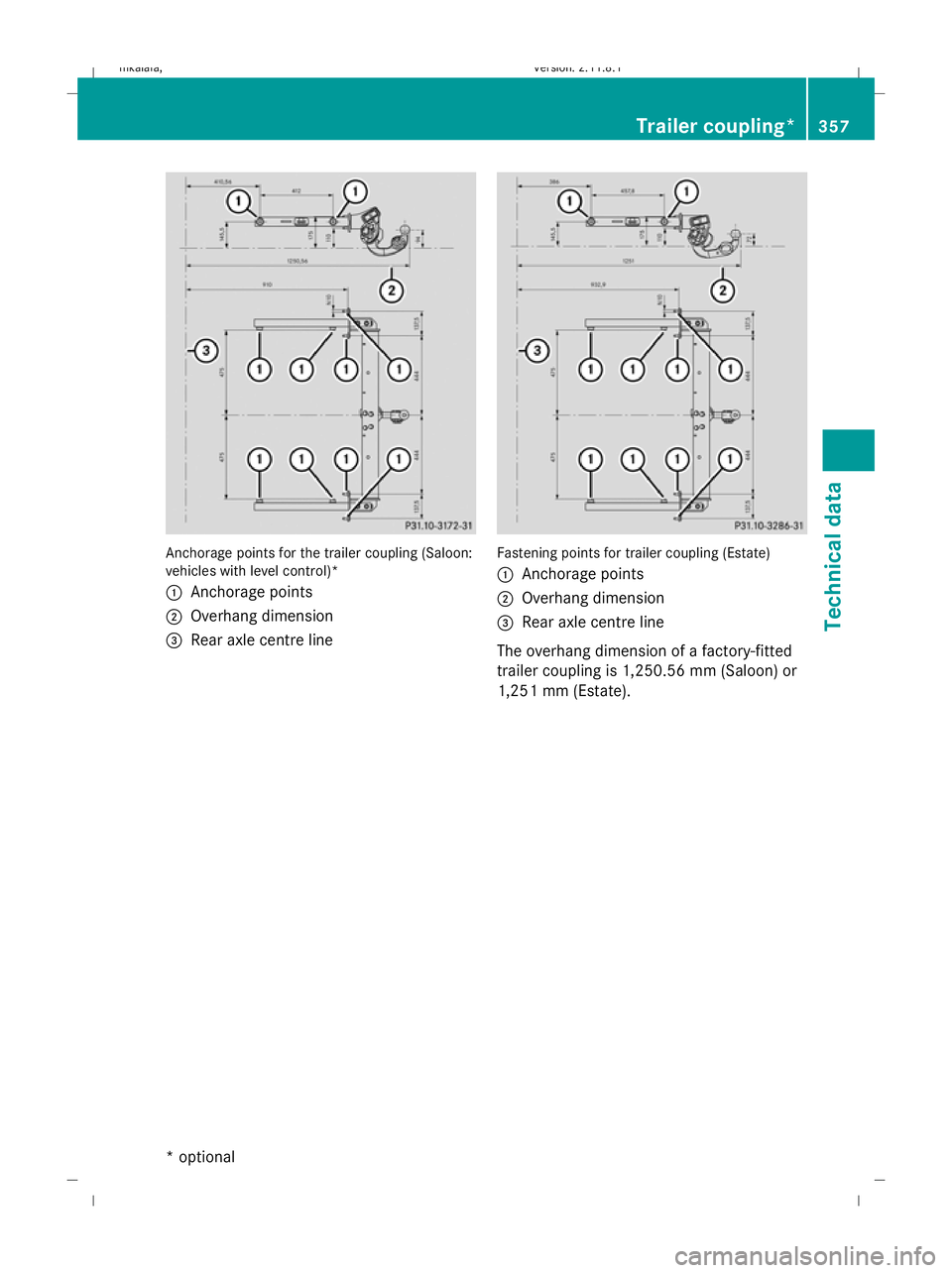

Anchorage points for the trailer coupling (Saloon:
vehicles with level control)*
:
Anchorage points
; Overhang dimension
= Rear axle centre line Fastening points for trailer coupling (Estate)
:
Anchorage points
; Overhang dimension
= Rear axle centre line
The overhang dimension of a factory-fitted
trailer coupling is 1,250.56 mm (Saloon) or
1,251 mm (Estate). Trailer coupling*
357Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 357 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:37; WK
Trailer loads (Saloon)
77
,78 E 200 CGI BlueEFFICIENCY
E 250 CGI BlueEFFICIENCY
E 200 CDI BlueEFFICIENCY
E 220 CDI BlueEFFICIENCY (manual transmission)
E 220 CDI BlueEFFICIENCY
(Belgium) (manual transmis- sion)
E 250 CDI BlueEFFICIENCY (manual transmission) E 300
79
E 350 79
E 350 CGI BlueEFFICIENCY
E 220 CDI BlueEFFICIENCY (automatic transmission)
E 220 CDI BlueEFFICIENCY
(Belgium) (automatic trans- mission)
E 250 CDI BlueEFFICIENCY (automatic transmission) Permissible trailer
load, unbraked 750 kg 750 kg
Permissible trailer
load, braked 80 1900 kg
81 2000 kg
Maximum drawbar
noseweight
82 84 kg 84 kg
Permissible rear
axle load when tow-
ing a trailer
1265 kg 1265 kg
E 350 4MATIC
E 350 CDI BlueEFFICIENCY
E 350 CDI 4MATIC BlueEFFI- CIENCY
E 350 BlueTEC E 500
E 500 4MATIC Permissible trailer
load, unbraked 750 kg 750 kg
Permissible trailer
load, braked 83 2100 kg 2100 kg
77
Values for the Estate were not available at time of going to print.
78 The E 63 AMG model cannot be used to tow a trailer.
79 Only available in certain countries.
80 At a minimum gradient climbing ability of 12% from a standstill.
81 E 200 CGI BlueEFFICIENCY with manual transmission: 1700 kg.
82 The drawbar noseweight is not included in the trailer load.
83 At a minimum gradient climbing ability of 12% from a standstill. 358
Trailer coupling*Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 358
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:37; WK
E 350 4MATIC
E 350 CDI BlueEFFICIENCY
E 350 CDI 4MATIC BlueEFFI- CIENCY
E 350 BlueTEC E 500
E 500 4MATIC Maximum drawbar
noseweight
84 84 kg 84 kg
Permissible rear
axle load when tow-
ing a trailer
1265 kg 1385 kg
Frequencies for garage door openers*
Country Radio type approval number MHz frequency
range
Egypt W-KLE-17 / 08 March 06 27, 30, 40, 418, 433,
868
Andorra 20 July 27, 30, 40, 433, 868
Australia 28 June 27, 30, 40, 433, 868
Barbados Registration not required 27, 40, 433, 868
Belgium Article 6 of Directive 1999/5/EC R&TTE18 May
05 27, 40, 433, 868
Bulgaria Article 6 of Directive 1999/5/EC R&TTE 12 April
07 27, 40, 433, 868
Chile 38447/F-23 No.3.3634 40, 433
Denmark Article 6 of Directive 1999/5/EC R&TTE20 April
05 27, 40, 433, 868
Germany Article 6 of Directive 1999/5/EC R&TTE7519301
29 April 05 27, 40, 433, 868
Estonia Article 6 of Directive 1999/5/EC R&TTE11 May
05 27, 40, 433, 868
Finland Article 6 of Directive 1999/5/EC R&TTE10668
13 May 05 27, 40, 433, 868
France Article 6 of Directive 1999/5/EC R&TTE10668
13 May 05 27, 30, 40, 433, 868
84
The drawbar noseweight is not included in the trailer load. Frequencies for garage door openers*
