2009 MERCEDES-BENZ CLK-Class navigation

119 Navigation
Navigation main menu

Destination
memory
You can select destinations from the Destination Memory
( page
163)
.

Enter destinationActivates the
Enter street
menu
( page
122)
.

Last
destinations
You can select last destinations from
the
Last destinations
memory
( page
161)
.

Points of interest
:
Brings you to the
Select point
category
menu
( page
165)
.
POIs are e.g. gas stations, parking
facilities or airports.

Phone number
:
You can select a POI by phone number.
Brings you to the
Enter POI phone
number
menu
( page
169)
.

Today’s Plan
:
You can select destinations from the
Today’s Plan list one after the other or
sort destinations as Bestway or Round
trip
( page
171)
.
Available soft keys
Home
soft key:
You can edit the home address and
start route guidance
( page
135)
.

Mode
soft key:
You can edit the routing mode for the
next route guidance
( page
120)
.
209_MY09_A_US.book Seite 119 Montag, 26. Mai 2008 6:12 18

120 NavigationNavigation main menuThe COMAND calculates the route as
Fastest route.Minimizing traffic routes
Press the
Mode
soft key

in the Navigation main menu ( page
118)

in the Start route guidance menu

( page
137)

in the Info menu
( page
149)
.
The
Edit routing mode
menu will
appear.
Selectable traffic routes
Minimize freeways
:
The system calculates the route with/
without minimizing freeways.

Minimize toll roads
:
The system calculates the route with/
without minimizing toll roads.

Minimize ferries
:
The system calculates the route with/
without minimizing ferry connections.

Minimize tunnels
:
The system calculates the route with/
without minimizing tunnels.

Push the joystick to g or G to
select a routing mode.

Press E.Switches the option on or off. You can
switch on more than one option.

Press the
Back
soft key to confirm.
The setting is saved. The previous
navigation screen will appear.
Setting the routing mode
Option
Symbol
On
Q
Off
q
209_MY09_A_US.book Seite 120 Montag, 26. Mai 2008 6:12 18

121 Navigation
Navigation main menu

Press c.The full view of the map appears. You
will see the vehicle’s current position.

Press any soft key.The soft key displays will appear.

Press the
Memory
soft key.
The system saves the current position
as a destination in the
Last
destinations
memory
( page
161)
.
Saving current location
iSuch destinations are marked in

the
Last destinations
memory
with _.
For permanent storage you can save
the destination in the regular
Destination memory
( page
162)
.
209_MY09_A_US.book Seite 121 Montag, 26. Mai 2008 6:12 18

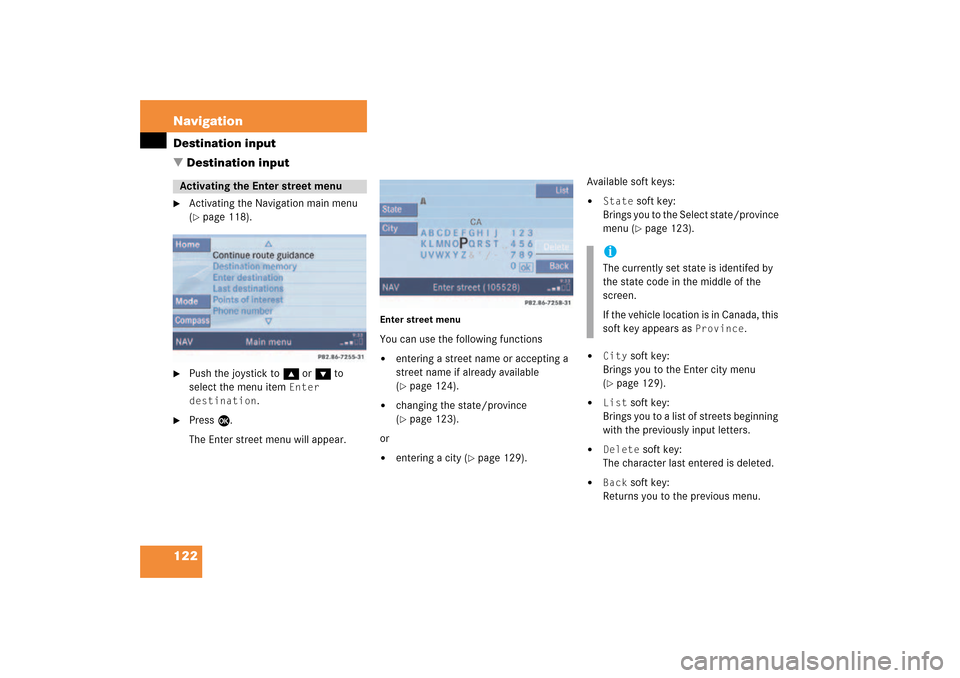

122 NavigationDestination input

Destination input

Activating the Navigation main menu ( page
118)
.

Push the joystick to g or G to
select the menu item
Enter
destination
.

Press E.The Enter street menu will appear.
Enter street menuYou can use the following functions
entering a street name or accepting a
street name if already available ( page
124)
.

changing the state/province ( page
123)
.
or
entering a city
( page
129)
.
Available soft keys:
State
soft key:
Brings you to the Select state/province
menu
( page
123)
.

City
soft key:
Brings you to the Enter city menu ( page
129)
.

List
soft key:
Brings you to a list of streets beginning
with the previously input letters.

Delete
soft key:
The character last entered is deleted.

Back
soft key:
Returns you to the previous menu.
Activating the Enter street menu
iThe currently set state is identifed by
the state code in the middle of the
screen.If the vehicle location is in Canada, this
soft key appears as
Province
.
209_MY09_A_US.book Seite 122 Montag, 26. Mai 2008 6:12 18

123 Navigation
Destination input

Press the
State
soft key

in the Enter street menu ( page
122)

in the Enter city menu
( page
129)
.
The Select state/province menu will
appear.
Select state/province menu

Push the joystick to g or G to
select a state.

Press E.The Enter street menu will reappear
and shows the new state code in the
middle of the screen.
Toggling between State and Province
listYou can toggle between states in the USA
and provinces in Canada.
Push the joystick to H or h.
State of HawaiiWhen on the mainland, you cannot choose
destinations in Hawaii, because these are
in a database separate from the USA/
Canada. Similarly, when in Hawaii, you cannot choose mainland destinations. The
message
You must change the state
or province in order to use that
destination
will appear in this case, if
such a destination is selected from the last
destinations memory
( page
161)
, the
destination memory
( page
163)
or as
home address
( page
135)
.

Choose another state or province. The warning message
This selec-
tion will restart the system.
Last destinations may not be
available, and today’s plan
will be erased. Do you wish to
continue?
will appear.

Push the joystick to H to select
Yes
.

Press E to restart.
Selecting the state/provinceiUse the State list for selecting states in
the USA and the Province list for
selecting provinces in Canada.
iIf you have already calculated a route,
you can toggle to the Last list, which
contains up to 5 last selected states or
provinces.
iAfter such a restart, Today’s Plan
entries are all deleted. Destinations in
the previous area (for example in Last
Destinations) are kept so that you can
access and delete them.
209_MY09_A_US.book Seite 123 Montag, 26. Mai 2008 6:12 18

124 NavigationDestination inputEntering a street
In the Enter street menu
( page
122)

push the joystick to h, H, g or
G to select the characters. After each
selection, press E.

Push the joystick to F or f to
select characters diagonally.
or
Press one of the number keys 1 to
9 and 0 to enter digits.

Press the
Delete
soft key if
necessary.
The character last entered by the
system is deleted.
Back to the previous menu
Press the
Back
soft key.
Confirming a street (menu)
Press E longer than 2 seconds.
or
Select the ( symbol. Push the
joystick to h, H, g or G to do
so.

Press E.
Entering destination addressiIf you enter the first character, the State
and
City
soft keys disappear.
The status bar shows the number of
current matches.
iFor quicker input, COMAND offers
available characters from the character
set based on your selections and the
names of the streets stored on the
navigation DVD. The character
selected appears magnified.Greyed out characters are not available
and cannot be selected.
iIf there is only one match for the
entered street name, the ( symbol is
highlighted automatically.
209_MY09_A_US.book Seite 124 Montag, 26. Mai 2008 6:12 18

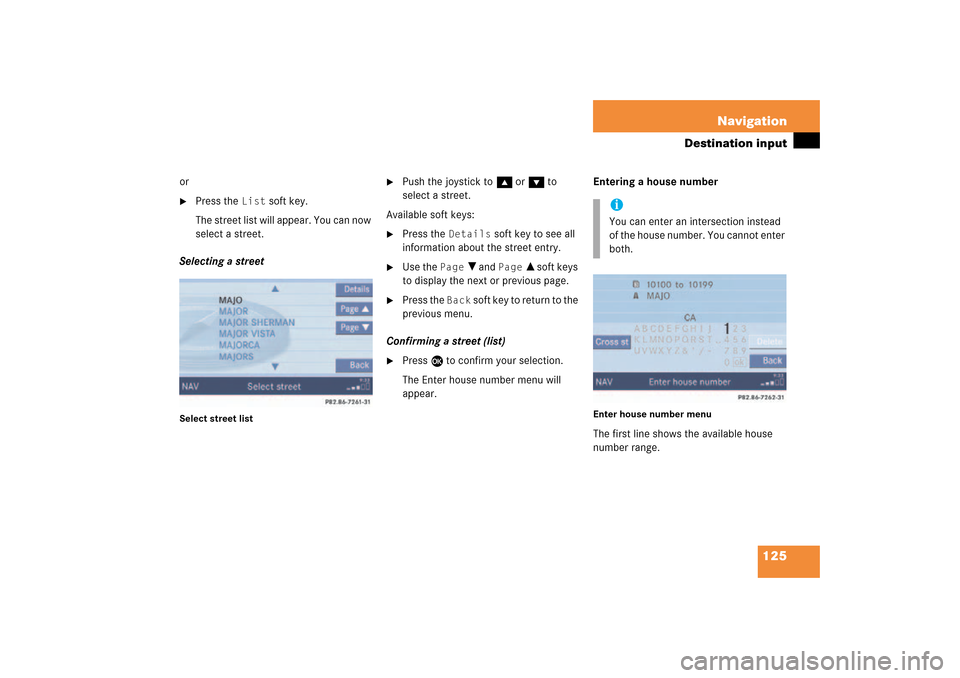

125 Navigation
Destination input
or
Press the
List
soft key.
The street list will appear. You can now
select a street.
Selecting a streetSelect street list

Push the joystick to g or G to
select a street.
Available soft keys:
Press the
Details
soft key to see all
information about the street entry.

Use the
Page
V and
Page
v soft keys
to display the next or previous page.

Press the
Back
s o f t k e y t o r e t u r n t o t h e
previous menu.
Confirming a street (list)
Press E to confirm your selection.The Enter house number menu will
appear.
Entering a house numberEnter house number menuThe first line shows the available house
number range.
iYou can enter an intersection instead
of the house number. You cannot enter
both.
209_MY09_A_US.book Seite 125 Montag, 26. Mai 2008 6:12 18

126 NavigationDestination inputYou can use the following functions
entering the house number

entering any house number by pressing
the
Any #
soft key

selecting an intersection to that street ( page
128)
.

Press the appropriate number keys
0, 1 to 9.
or
Push the joystick to h, H, g or
G to select the numbers. After each
selection, press E.

Push the joystick to F or f to
select numbers diagonally.
or
Press the
Any #
soft key to select the
available address range of the chosen
street.
Confirming a house number
Press E longer than 2 seconds.
or
Select the ( symbol. Push the
joystick to h, H, g or G to do
so.

Press E.The Select city list (
 page
127) will
appear.or
iFor quicker input, COMAND offers
available numbers from the number

set based on your selections and the
house numbers stored on the
navigation DVD. The number

selected appears magnified.Greyed out numbers are not available
and cannot be selected.
iEach option is possible as long as the
entered house number is available
from the information stored on the
DVD. iIf there is only one match for the
entered house number, the ( symbol
is highlighted automatically.
