2009 MAZDA MODEL TRIBUTE sensor

•and the electrical wiring which connects the components.
• Side curtain airbag system. Refer to Side curtain airbag systemlater
in this chapter.
• Front passenger sensing system. Refer to Front passenger sensing
system later in this chapter.
• “Passenger airbag off” or “pass airbag off” indicator lamp. Refer to
Front passenger sensing system later in this chapter.
• Seat belt pretensioners
The diagnostic module monitors its own internal circuits and the
supplemental airbag electrical system wiring (including the impact
sensors), the system wiring, the airbag system readiness light, the airbag
back up power and the airbag ignitors.
Front passenger sensing system
The front passenger sensing system is designed to meet the regulatory
requirements of Federal Motor Vehicle Safety Standard (FMVSS) 208
and is designed to disable (will not inflate) the front passenger’s frontal
airbag under certain conditions.
The front passenger sensing system works with sensors that are part of
the front passenger’s seat and seat belt. The sensors are designed to
detect the presence of a properly seated occupant and determine if the
front passenger’s frontal airbag should be enabled (may inflate) or
disabled (will not inflate).
The front passenger sensing system will disable (will not inflate) the
front passenger’s frontal airbag if:
• the front passenger seat is unoccupied, or has small/medium objects in
the front seat,
• the system determines that an infant is present in a rear-facing infant
seat that is installed according to the manufacturer’s instructions,
• the system determines that a small child is present in a forward-facing
child restraint that is installed according to the manufacturer’s
instructions,
• the system determines that a small child is present in a booster seat,
• a front passenger takes his/her weight off of the seat for a period of
time,
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
112

How does the side airbag system (if equipped) work?
The design and development of the
side airbag system included
recommended testing procedures
that were developed by a group of
automotive safety experts known as
the Side Airbag Technical Working
Group. These recommended testing
procedures help reduce the risk of
injuries related to the deployment of
side airbags.
The side airbag system consists of
the following:
•An inflatable nylon bag (airbag)
with a gas generator concealed
behind the outboard bolster of
the driver and front passenger
seatbacks.
• A special seat cover designed to allow airbag deployment.
• The same warning light, electronic control and diagnostic unit as used
for the front airbags.
• Two crash sensors located on the lower portion of the b-pillar (one on
each side of the vehicle).
Side airbags, in combination with seat belts, can help reduce the risk of
severe injuries in the event of a significant side impact collision.
The side airbags are fitted on the outboard side of the seatbacks of the
front seats. In certain lateral collisions, the airbag on the side affected by
the collision will be inflated. If the front passenger sensing system
detects an empty seat, the front passenger seat-mounted side airbag will
be deactivated. The airbag was designed to inflate between the door
panel and occupant to further enhance the protection provided
occupants in side impact collisions.
The airbag SRS is designed to activate when the vehicle sustains lateral
deceleration sufficient to cause the sensors to close an electrical circuit
that initiates airbag inflation.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
118

How do the side-curtain airbags (if equipped) work?
The design and development of the
side air curtain system included
recommended testing procedures
that were developed by a group of
automotive safety experts known as
the Side Airbag Technical Working
Group. These recommended testing
procedures help reduce the risk of
injuries related to the deployment of
side airbags (including side air
curtain systems).
The side-curtain airbags (if
equipped) consists of the following:
•An inflatable nylon curtain with a
gas generator concealed behind
the headliner and above the doors
(one on each side of vehicle).
• A headliner designed to flex open
above the side doors to allow side-curtain airbag deployment.
• The same warning light, electronic control and diagnostic unit as used
for the front airbags.
• Two crash sensors mounted at lower B-Pillar (one on each side).
• Two crash sensors located at the c-pillar behind the rear doors (one
on each side).
• Rollover sensor in the restraints control module (RCM).
The side-curtain airbags (if equipped), in combination with seat belts,
can help reduce the risk of severe injuries in the event of a significant
side impact collision or rollover event.
Children 12 years old and under should always be properly restrained in
the rear seats. The side-curtain airbags (if equipped) will not interfere
with children restrained using a properly installed child or booster seat
because it is designed to inflate downward from the headliner above the
doors along the side window opening.
The side-curtain airbags (if equipped) are designed to activate when the
vehicle sustains lateral deceleration sufficient to cause the RCM to
initiate side-curtain airbag (if equipped) inflation or when a certain
likelihood of a rollover event is detected by the rollover sensor.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
121

The tire pressure sensors mounted in the wheels (originally installed on
your vehicle) are not designed to be used in aftermarket wheels.
The use of wheels or tires not recommended by Mazda Motor
Corporation may affect the operation of your Tire Pressure Monitoring
System.
If the TPMS indicator is flashing, your TPMS is malfunctioning. Your
replacement tire might be incompatible with your TPMS, or some
component of the TPMS may be damaged.
Safety practices
Driving habits have a great deal to do with your tire mileage and safety.
•Observe posted speed limits
• Avoid fast starts, stops and turns
• Avoid potholes and objects on the road
• Do not run over curbs or hit the tire against a curb when parking
WARNING: If your vehicle is stuck in snow, mud, sand, etc., do
not rapidly spin the tires; spinning the tires can tear the tire and
cause an explosion. A tire can explode in as little as three to five
seconds.
WARNING: Do not spin the wheels at over 35 mph (56 km/h).
The tires may fail and injure a passenger or bystander.
Highway hazards
No matter how carefully you drive there’s always the possibility that you
may eventually have a flat tire on the highway. Drive slowly to the
closest safe area out of traffic. This may further damage the flat tire, but
your safety is more important.
If you feel a sudden vibration or ride disturbance while driving, or you
suspect your tire or vehicle has been damaged, immediately reduce your
speed. Drive with caution until you can safely pull off the road. Stop and
inspect the tires for damage. If a tire is under-inflated or damaged,
deflate it, remove wheel and replace it with your spare tire and wheel. If
you cannot detect a cause, have the vehicle towed to the nearest repair
facility or tire dealer to have the vehicle inspected.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Tires, Wheels and Loading
151

The Tire Pressure Monitoring System complies with part 15 of the FCC
rules and with RSS-210 of Industry Canada. Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
WARNING:The Tire Pressure Monitoring System is NOT a
substitute for manually checking tire pressure. The tire pressure
should be checked periodically (at least monthly) using a tire gauge,
see Inflating your tires in this chapter. Failure to properly
maintain your tire pressure could increase the risk of tire
failure, loss of control, vehicle rollover and personal injury.
Changing tires with TPMS
Each road tire is equipped with
a tire pressure sensor located
inside the tire/wheel cavity. The
pressure sensor is attached to
the valve stem. The pressure
sensor is covered by the tire and
is not visible unless the tire is
removed. Care must be taken
when changing the tire to avoid
damaging the sensor. It is
recommended that you always have your tires serviced by an authorized
dealer.
The tire pressure should be checked periodically (at least monthly) using
an accurate tire gauge, refer to Inflating your tiresin this chapter.
2009 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)
Tires, Wheels and Loading
160

ELECTRONIC STABILITY CONTROL (ESC) SYSTEM
WARNING:Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the the
performance of the Electronic Stability Control system. In addition,
installing any stereo loudspeakers may interfere with and adversely
affect the Electronic Stability Control system. Install any aftermarket
stereo loudspeaker as far as possible from the front center console, the
tunnel, and the front seats in order to minimize the risk of interfering
with the Electronic Stability Control sensors. Reducing the
effectiveness of the Electronic Stability Control system could lead to an
increased risk of loss of vehicle control, vehicle rollover, personal injury
and death.
WARNING: Remember that even advanced technology cannot
defy the laws of physics. It’s always possible to lose control of a
vehicle due to inappropriate driver input for the conditions. Aggressive
driving on any road condition can cause you to lose control of your
vehicle increasing the risk of personal injury or property damage.
Activation of the Electronic Stability Control system is an indication
that at least some of the tires have exceeded their ability to grip the
road; this could reduce the operator’s ability to control the vehicle,
potentially resulting in a loss of vehicle control, vehicle rollover,
personal injury and death. If your Electronic Stability Control system
activates, SLOW DOWN.
WARNING: If a failure has been detected within the Electronic
Stability Control system, the sliding caricon
will illuminate
steadily. Verify that the Electronic Stability Control system is not
manually disabled (push the Electronic Stability Control “Off “ button
located on the center of the instrument panel). If the sliding car
icon
still illuminates steadily, have the system service by an
authorized dealer immediately. Operating your vehicle with Electronic
Stability Control disabled could lead to an increased risk of loss of
vehicle control, vehicle rollover, personal injury and death.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Driving
187

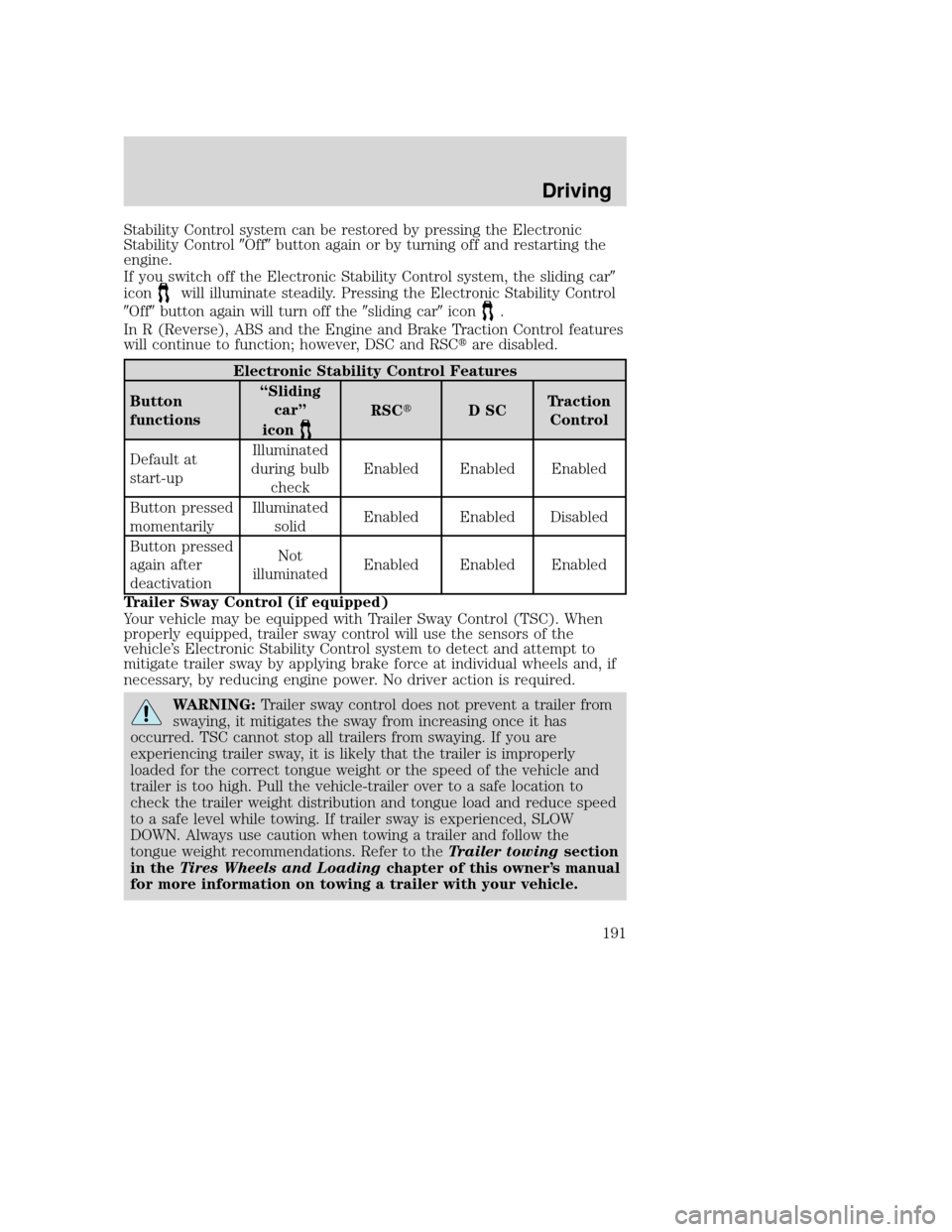

Stability Control system can be restored by pressing the Electronic
Stability ControlOffbutton again or by turning off and restarting the
engine.
If you switch off the Electronic Stability Control system, the sliding car
icon
will illuminate steadily. Pressing the Electronic Stability Control
Off button again will turn off the sliding caricon
.
In R (Reverse), ABS and the Engine and Brake Traction Control features
will continue to function; however, DSC and RSC are disabled.
Electronic Stability Control Features
Button
functions “Sliding
car”
icon
RSC DSCTraction
Control
Default at
start-up Illuminated
during bulb check Enabled Enabled Enabled
Button pressed
momentarily Illuminated
solid Enabled Enabled Disabled
Button pressed
again after
deactivation Not
illuminated Enabled Enabled Enabled
Trailer Sway Control (if equipped)
Your vehicle may be equipped with Trailer Sway Control (TSC). When
properly equipped, trailer sway control will use the sensors of the
vehicle’s Electronic Stability Control system to detect and attempt to
mitigate trailer sway by applying brake force at individual wheels and, if
necessary, by reducing engine power. No driver action is required.
WARNING: Trailer sway control does not prevent a trailer from
swaying, it mitigates the sway from increasing once it has
occurred. TSC cannot stop all trailers from swaying. If you are
experiencing trailer sway, it is likely that the trailer is improperly
loaded for the correct tongue weight or the speed of the vehicle and
trailer is too high. Pull the vehicle-trailer over to a safe location to
check the trailer weight distribution and tongue load and reduce speed
to a safe level while towing. If trailer sway is experienced, SLOW
DOWN. Always use caution when towing a trailer and follow the
tongue weight recommendations. Refer to the Trailer towingsection
in the Tires Wheels and Loading chapter of this owner’s manual
for more information on towing a trailer with your vehicle.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Driving
191

Fuse/RelayLocation Fuse Amp
Rating Protected Circuits
33 — PCM diode
34 — Start diode
35 10A* Run/start, Reverse lamps, Rear defrost relay
36 — Not used
37 — Not used
* Mini fuse ** Cartridge fuse
CHANGING A FLAT TIRE
If you get a flat tire while driving:
• do not brake heavily.
• gradually decrease the vehicle’s speed.
• hold the steering wheel firmly.
• slowly move to a safe place on the side of the road.
Your vehicle may be equipped with a conventional spare tire that is
different in one or more of the following: type, brand, size, speed rating
and tread design. If this is the case, this dissimilar spare tire is still rated
for your vehicle loads (GAWR and GVWR). This temporary spare tire is
not equipped with a Tire Pressure Monitor System (TPMS) sensor.
Note: The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare is in use. To restore the full functionality of
the TPMS system, all road wheels equipped with the tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat tire serviced by an authorized dealer in order to prevent
damage to the TPMS sensor, refer to Tire Pressure Monitoring System
(TPMS) in theTires, Wheels, and Loading chapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING: The use of tire sealants may damage your Tire
Pressure Monitoring System and should not be used.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Roadside Emergencies
215
