2009 MAZDA MODEL 6 Owners Manual (in English)

Black plate (65,1)

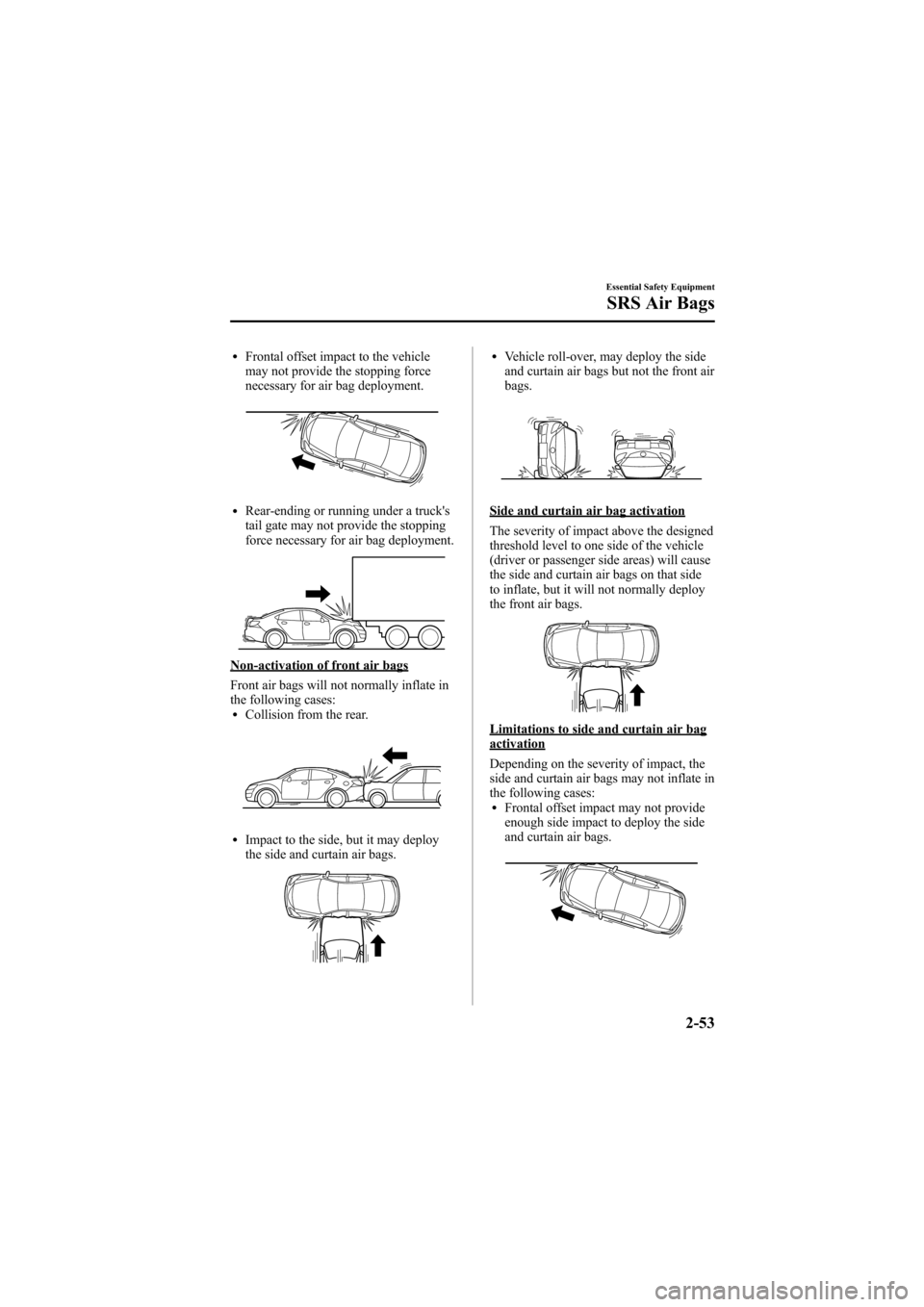

lFrontal offset impact to the vehicle
may not provide the stopping force
necessary for air bag deployment.
lRear-ending or running under a truck's
tail gate may not provide the stopping
force necessary for air bag deployment.
Non-activation of front air bags
Front air bags will not normally inflate in
the following cases:
lCollision from the rear.
lImpact to the side, but it may deploy
the side and curtain air bags.
lVehicle roll-over, may deploy the side
and curtain air bags but not the front air
bags.
Side and curtain air bag activation
The severity of impact above the designed
threshold level to one side of the vehicle
(driver or passenger side areas) will cause
the side and curtain air bags on that side
to inflate, but it will not normally deploy
the front air bags.
Limitations to side and curtain air bagactivation
Depending on the severity of impact, the
side and curtain air bags may not inflate in
the following cases:
lFrontal offset impact may not provide
enough side impact to deploy the side
and curtain air bags.
Essential Safety Equipment
SRS Air Bags
2-53
Mazda6_8Z64-EA-08H_Edition1 Page65
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (66,1)
lSide impacts involving trees or poles
can cause severe cosmetic damage but
may not have enough impact force to
activate the side and curtain air bags.
lVehicle roll-over may not provide
enough side force to deploy the side
and curtain air bags.
lSide impacts with two-wheeled
vehicles may not provide enough force
to deploy the side and curtain air bags.
Non-activation of side and curtain airbag
The side and curtain air bags will not
normally inflate in the following cases:
lCollision from the rear.
lCollision from the front, but it may
deploy the front air bags.
qConstant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
lSAS unitlFront air bag sensorlAir bag moduleslSide crash sensorslAir bag/Front seat belt pretensioner
system warning light
lFront seat belt pretensionerslFront passenger air bag deactivation
indicator light
lRelated wiringlDriver seat slide position sensorlFront passenger seat weight sensors
2-54
Essential Safety Equipment
SRS Air Bags
Mazda6_8Z64-EA-08H_Edition1 Page66
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (67,1)
The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition is switched ON
and continues while the vehicle is being
driven.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition is
switched ON or after the engine is
cranked. The warning light turns off after
a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
work in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qAir Bag/Front Seat Belt
Pretensioner System Warning Beep
If a malfunction is detected in both the air
bag/front seat belt pretensioner system
and the warning light, a warning beep
sound will be heard for about 1 minute.
After that, the one-minute beep will be
repeated every 30 minutes.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive the vehicle with the air
bag/front seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the
front seat belt pretensioner system
will not deploy and this could result
in death or serious injury.
Contact an Authorized Mazda Dealer
to have the vehicle inspected as soon
as possible.
qMaintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light does
not illuminate when the ignition is
switched ON.
lThe air bag system warning beep
sound will be heard.
Essential Safety Equipment
SRS Air Bags
2-55
Mazda6_8Z64-EA-08H_Edition1 Page67
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (68,1)
lThe air bags have deployed.lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition is switched ON or
does not illuminate as indicated in the
chart. For more details about this
indicator light and this chart, refer to
“Front passenger seat weight sensors ”
(page 2-47).WARNING
Do not operate a vehicle with damaged
air bag/seat belt pretensioner system
components: Expended or damaged air bag/seat
belt pretensioner system components
must be replaced after any collision
which caused them to deploy or
damage them. Only a trained
Authorized Mazda Dealer can fully
evaluate these systems to see that
they will work in any subsequent
accident. Driving with an expended
or damaged air bag or pretensioner
unit will not afford you the necessary
protection in the event of any
subsequent accident which could
result in serious injury or death.
Do not remove interior air bag parts: Removing any components such as
the front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along
the roof edge, containing air bag
parts or sensors is dangerous. These
parts contain essential air bag
components. The air bag could
accidentally activate and cause
serious injuries. Always have an
Authorized Mazda Dealer remove
these parts.
Dispose of the air bag properly: Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
2-56
Essential Safety Equipment
SRS Air Bags
Mazda6_8Z64-EA-08H_Edition1 Page68
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (69,1)
NOTEIf it becomes necessary to have the components
or wiring system for the supplementary
restraint system modified to accommodate a
person with certain medical conditions in
accordance with a certified physician, contact
an Authorized Mazda Dealer, refer to
“Customer Assistance (U.S.A.) ”(page 9-2).
Essential Safety Equipment
SRS Air Bags
2-57
Mazda6_8Z64-EA-08H_Edition1 Page69
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (70,1)
2-58
Mazda6_8Z64-EA-08H_Edition1 Page70
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (71,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Advanced Keyless Entry and Start System ................................ 3-2Advanced Keysí...................................................................... 3-2
Operation Using Advanced Keyless Functions ......................... 3-7
Operation Using Advanced Key Functions ............................. 3-16
Advanced Key Suspend Function ........................................... 3-19
Warning Lights and Beep Sounds ........................................... 3-19
When Warning Indicator/Beep is Activated ............................ 3-22
Doors and Locks ......................................................................... 3-23 Keys ........................................................................................ 3-23
Keyless Entry System
í.......................................................... 3-24
Door Locks ............................................................................. 3-29
Trunk Lid ................................................................................ 3-33
Inside Trunk Release Lever ..................................................... 3-36
Power Windows ...................................................................... 3-37
Fuel-Filler Lid and Cap ........................................................... 3-44
Hood ....................................................................................... 3-46
Moonroof
í............................................................................. 3-47
Security System ........................................................................... 3-50 Immobilizer System (with Advanced Key) ............................. 3-50
Immobilizer System (without Advanced Key) ........................ 3-53
Theft-Deterrent System
í........................................................ 3-55
Steering Wheel and Mirrors ...................................................... 3-59 Steering Wheel ........................................................................ 3-59
Mirrors .................................................................................... 3-59
3-1íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page71
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (72,1)
Advanced Keysí
The advanced keyless functions (advanced keyless entry and start system) enables the
following operations while the advanced key is being carried (page 3-7).
lLocking/unlocking the doors, and opening the trunk lid, without operating the key.lStarting the engine without operating the key.
Additional functions are available using the buttons on the advanced key.
Refer to Operation Using Advanced Key Functions on page 3-16.
lThe following operations are possible using the transmitter of the keyless entry system
from a distance (Lock/Unlock/Trunk/Panic button):
lLocking/unlocking the doors.lOpening the trunk lid.lOpening the power windows and the moonroofí.lOperating the theft-deterrent systemí.lTurning on the alarm.lLocking/unlocking the doors or starting the engine using the auxiliary key.
WARNING
Do not leave the key in your vehicle with children and keep them in a place where
your children will not find or play with them: Leaving children in a vehicle with the key is dangerous. This could result in someone
being badly injured or even killed. Children may find these new kinds of keys to be
an interesting toy to play with and could cause the power windows or other controls
to operate, or even make the vehicle move.
Radio waves from the advanced key may affect medical equipment such as
pacemakers: Before using the advanced key near people who use medical equipment, ask the
medical equipment manufacturer or your physician if radio waves from the
advanced key will affect the equipment.
NOTE
lThe driver must carry the advanced key to ensure the system functions properly.lRefer to Immobilizer System (page 3-50) for information regarding keys and engine starting.l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-55) for information regarding keys and the prevention of
vehicle and vehicle contents theft.
lThe advanced keyless functions can be turned off.
Refer to Personalization Features on page 10-8.
