2009 MAZDA MODEL 6 Owners Manual (in English)

Black plate (105,1)
4. Slide the inside trunk release lever inthe direction of the arrow.
After performing this emergency measure,
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTETo prevent the battery from being discharged,
do not leave the trunk open for a long period
when the engine is not running.
Knowing Your Mazda
Doors and Locks
3-35
Mazda6_8Z64-EA-08H_Edition1 Page105
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (106,1)

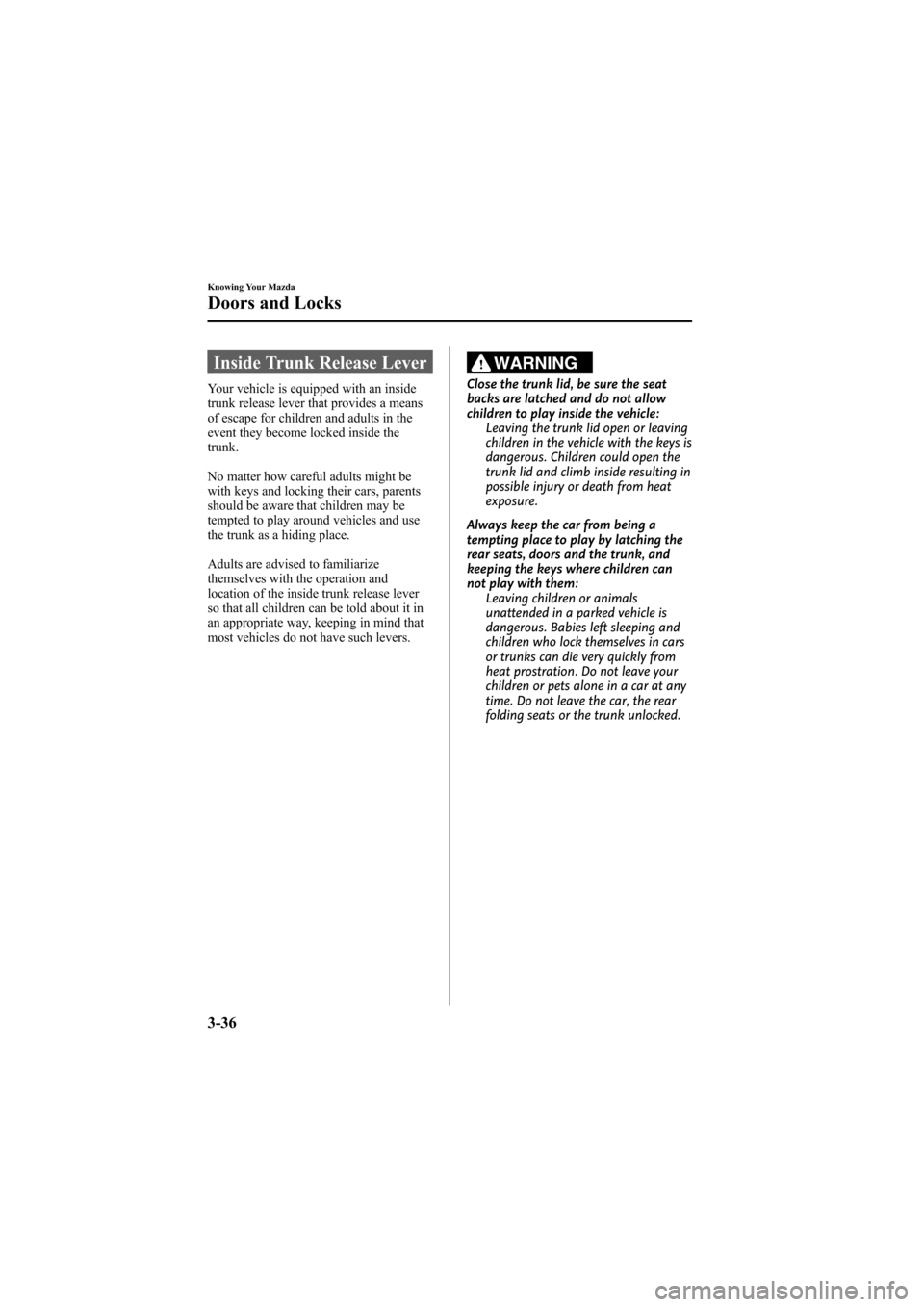

Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles do not have such levers.
WARNING
Close the trunk lid, be sure the seat
backs are latched and do not allow
children to play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by latching the
rear seats, doors and the trunk, and
keeping the keys where children can
not play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
3-36
Knowing Your Mazda
Doors and Locks
Mazda6_8Z64-EA-08H_Edition1 Page106
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (107,1)
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk lid.
Power Windows
The ignition must be ON for the power
windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches, the advanced key or
the keyless entry system: Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
Letting children play with advanced
keys or keyless entry systems are just
as dangerous.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
Knowing Your Mazda
Doors and Locks
3-37
Mazda6_8Z64-EA-08H_Edition1 Page107
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (108,1)
qOperating the Front Power Windows
NOTElEach passenger power window can be
operated with each door switch when the
power window lock switch on the driver's
door is in the unlocked position (page
3-40).
lEach passenger power window can also be
operated by the power window master
control switches on the driver's door.
Owner master control switchDriver's window
Left rear window
Front passenger's
window
Right rear window
Power window lock switch
lThe following functions can be performed
for the front power windows using the
power window master control switches on
the driver's door or front passenger's door
switch.
lManual opening/closinglAuto-opening/closing
Manual opening/closing
To open a power window to the desired
position, lightly hold down the switch.
To close the power window to the desired
position, lightly pull up the switch.
Open
Close
Owner master control switch
Driver's
window
Front passenger's
window
Open
Close
Front passenger switch
Auto-opening/closing
To fully open a power window
automatically, press the switch completely
down.
To fully close the power window
automatically, pull the switch completely
up.
To stop the power window partway, pull
or press the switch in the opposite
direction and then release it.
3-38
Knowing Your Mazda
Doors and Locks
Mazda6_8Z64-EA-08H_Edition1 Page108
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (109,1)
NOTE(POWER WINDOW RESET PROCEDURE)
If the battery was disconnected during vehicle
maintenance, or for other reasons such as a
switch continues to be operated after the
window is fully open/close, the power windows
will not fully open and close automatically.
Resetting of the automatic function can be
performed using the driver's master control
switch or the front passenger door switch.
The power window auto function reset
procedure can be done on one or both door
switches. The power window auto function will
only resume on the side that has been reset.
1. Switch the ignition ON.
2. Make sure that the power window lockswitch located on the driver's door is not
depressed.
3. Press the switch and fully open the power window.
4. Pull up the switch to fully close the power window and continue holding the switch for
about 2 seconds after the window fully
closes.
5. Repeat Steps 3-4 for the passenger power window.
6. Make sure that the power windows operate correctly using the door switches.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch: Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
NOTE
lDepending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is
similar to something blocking it.
In the event the jam-safe function activates
and the power window cannot be closed
automatically, pull and hold the switch fully
and the window will close.
lThe jam-safe window function does not
operate until the system is re-initialized.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or off with all
doors closed. If either front door is
opened, the power window will be
inoperable.
NOTE
For engine-off operation of the power window,
the switch must be held up firmly throughout
window closure because the auto-closing
function will be inoperable.
Knowing Your Mazda
Doors and Locks
3-39
Mazda6_8Z64-EA-08H_Edition1 Page109
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (110,1)
qOperating the Rear Power Windows
The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The rear power windows may be opened
or closed using the power window master
control switches on the driver's door.
Left rear windowPower window lock switch Right rear window
To open the power window to the desired
position, hold down the switch.
To close the power window to the desired
position, pull up the switch.
Close
Open
q Power Window Lock Switch
With the lock switch in the unlocked
position (button not depressed), all power
windows on each door can be operated.
With the lock switch in the locked
position (button depressed), only the
driver's side power window can be
operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position: Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
NOTE
When the power window lock switch is in the
locked position, the light on front passenger's
power window switch turns off. The light may
be difficult to see depending on the
surrounding brightness.
3-40
Knowing Your Mazda
Doors and Locks
Mazda6_8Z64-EA-08H_Edition1 Page110
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (111,1)
qOpening/Closing the Power Windows
and the Moonroof from Outside
The front power windows and the
moonroof can be opened or closed from
outside the vehicle after the doors and the
trunk lid are closed.
The front power windows may be
operated remotely when the power
window lock switch on the driver's door is
in the lock or unlocked position.
WARNING
Make sure the opening is clear before
closing a window and the moonroof:Closing power windows and the
moonroof are dangerous. A person's
hands, head, or even neck could be
caught by the window or the
moonroof and result in serious injury
or even death.
This warning applies especially to
children. NOTE
lThe power windows and the moonroof
cannot be opened or closed from outside
the vehicle under the following condition:
lA door or the trunk lid is opened.lThe key is inserted into the ignition
switch.
lThe auxiliary key is inserted into the key
slot. (With advanced key)
lThe push button start is in any position
except off. (With advanced key)
lThe power windows and the moonroof may
not close completely. Make sure all the
windows and the moonroof are closed.
If the power windows and the moonroof
cannot be closed completely, operate each
power window switch or the tilt/slide switch
from inside the vehicle. After closing the
windows and the moonroof from outside the
vehicle, verify that they are completely
closed.
Opening
Because nobody likes getting into a very
hot car, Mazda has introduced a way to
open the two front windows and the
moonroof as you approach the vehicle to
get the air moving before you get in.
Knowing Your Mazda
Doors and Locks
3-41
Mazda6_8Z64-EA-08H_Edition1 Page111
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (112,1)
WARNING
Use the remote auto-window and the
auto-moonroof function only when you
can see the vehicle and it is in a secure
area:Do not let children play with your
keys. If they open the window and
moonroof without your knowing, the
open windows and moonroof are an
even bigger invitation to a thief than
leaving the doors unlocked.
Children playing with cars can get
themselves jammed in windows and
moonroof, and killed without making
a sound.
The windows and moonroof can be
opened for ventilating the cabin before
getting in the vehicle.
With unlock button
Press the unlock button on the transmitter
once, then press again within 1.5 seconds
and hold.
After the doors are unlocked, both
windows and the moonroof open while
the unlock button is pressed.
To stop the windows and the moonroof
while opening, release the button.
If the operation is performed from the
beginning again, the windows and the
moonroof open. Advanced key
Lock button
Unlock button
Trunk button
Panic button
Operation
indicator light
Retractable type key
Lock buttonUnlock button
Trunk button Panic button
Operation
indicator light
NOTElThe unlock button does not operate unless
it is pressed twice sequentially.
lThe lock button cannot be used to close the
power windows and the moonroof.
However, you can insert the key in the door
and lock the doors again and put up all the
windows if you do not want to climb back in
the car to operate the windows.
(With advanced key)
However, you can use the request switch on
either front door or insert the Auxiliary key
in the door and lock the doors again and
put up the windows if you do not want to
climb back in the car to operate the
windows.
3-42
Knowing Your Mazda
Doors and Locks
Mazda6_8Z64-EA-08H_Edition1 Page112
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H
