2009 LINCOLN NAVIGATOR Navigation Manual

ACCESSING YOUR STANDARD DESTINATION OPTIONS
1. Press the DEST hard button on the navigation system.
2. Select the ‘Standard’ tab on the
touchscreen to access the following
options:
Address Book: Select to access
your ‘Address Book Entries List’.
The navigation system can store up
to 25 entries which can be used as
destinations, waypoints, and areas to
avoid.
Entries can be sorted alphabetically
(A-Z), by date or icon. Press the
ADD button to add entries to the
address book and select the desired
destination entry method.
Once address book entries are
input, they can be selected for
display. Once displayed on the
map/information split screen, you
can choose to ‘Set as Dest’, ‘Set as
Waypoint’, ‘Delete’ or ‘Edit’ the
address book entry.
2009 Centerstack (ng1)
Supplement
USA (fus)
Setting a destination
87

Edit allows you to name/change the
entry, add/edit a phone number,
add/edit the icon or set the entry as
a favorite destination. (These are
destination presets which work
similarly to the audio presets. Once
set, the favorite destinations appear
at the bottom of the Quick
destination entry screen for
one-touch fast entry.)
Previous Destination: Select to access your ’Previous Destination List’.
The navigation system can store up to 20 recently used destinations and
waypoints. Destinations already present in the list will not be duplicated.
When a new entry is added to the list, the oldest one will be removed.
• Set as Dest: Select this feature to set the current entry as your
destination. The screen will display the destination map screen
showing the selected destination. You can then select to set it as a
final destination or a waypoint.
• Delete: Select to delete individual entries.
• Delete all: Select to delete all entries.
Phone Number: This feature allows
you to search for a destination using
the phone number of a saved POI or
Address Book entry by entering the
phone number on the keypad on the
screen. After the number is entered,
the system will ask you to confirm
the name under which the phone
number is registered.
Map: You can select any point on
the map to set as a destination or
waypoint by using the map cursor.
2009 Centerstack (ng1)
Supplement
USA (fus)
Setting a destination
88

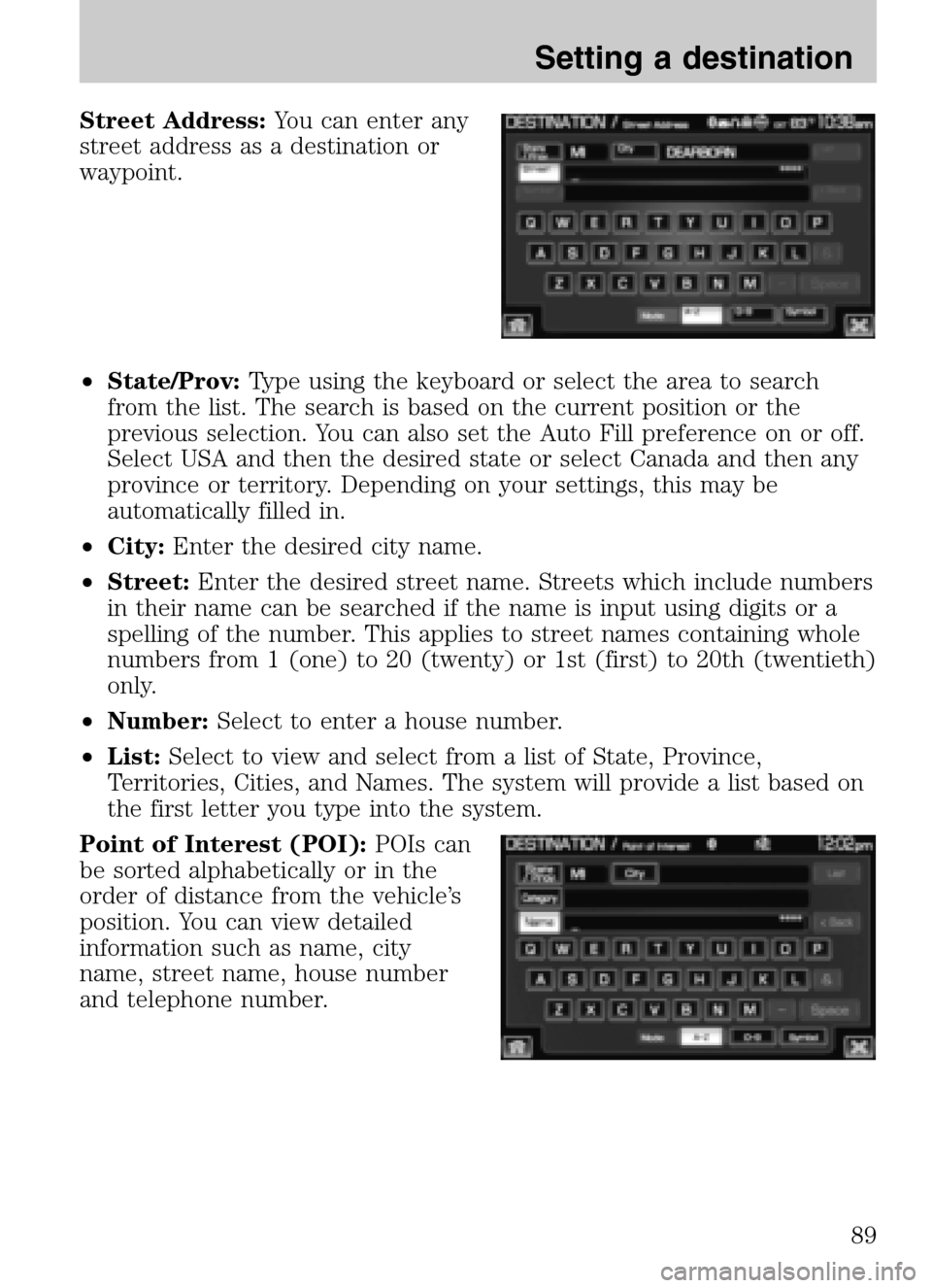

Street Address:You can enter any
street address as a destination or
waypoint.
• State/Prov: Type using the keyboard or select the area to search
from the list. The search is based on the current position or the
previous selection. You can also set the Auto Fill preference on or off.
Select USA and then the desired state or select Canada and then any
province or territory. Depending on your settings, this may be
automatically filled in.
• City: Enter the desired city name.
• Street: Enter the desired street name. Streets which include numbers
in their name can be searched if the name is input using digits or a
spelling of the number. This applies to street names containing whole
numbers from 1 (one) to 20 (twenty) or 1st (first) to 20th (twentieth)
only.
• Number: Select to enter a house number.
• List: Select to view and select from a list of State, Province,
Territories, Cities, and Names. The system will provide a list based on
the first letter you type into the system.
Point of Interest (POI): POIs can
be sorted alphabetically or in the
order of distance from the vehicle’s
position. You can view detailed
information such as name, city
name, street name, house number
and telephone number.
2009 Centerstack (ng1)
Supplement
USA (fus)
Setting a destination
89

•State/Prov: Type using the keyboard or select the area to search
from the list. The search is based on the current position or the
previous selection. You can also set the Auto Fill preference on or off.
Select USA and then the desired state or select Canada and then any
province or territory. Depending on your settings, this may be
automatically filled in.
• City: Enter the desired city name.
• Category: Select the desired POI category or subcategory.
• Name: Select to search for a POI using a full or partial name.
• List: Select to view and select from a list of State, Province,
Territories, Cities, and Names. The system will provide a list based on
the first letter you type into the system.
Freeway Exit/Entrance: Your
navigation system allows you to
enter a freeway name and then you
can select an entrance or exit to
that freeway. The entrance/exit can
be sorted alphabetically or in the
order of distance from the vehicle’s
position. The selected entrance/exit
can then be selected as a final
destination or waypoint.
• State/Prov: Type using the keyboard or select the area to search
from the list. The search is based on the current position or the
previous selection. You can also set the Auto Fill preference on or off.
Select USA and then the desired state or select Canada and then any
province or territory. Depending on your settings, this may be
automatically filled in.
• Freeway: The Smart Speller will help enter a valid freeway in the
area specified.
• List: Select to view and select from a list of State, Province,
Territories, Cities, and Names. The system will provide a list based on
the first letter you type into the system.
2009 Centerstack (ng1)
Supplement
USA (fus)
Setting a destination
90

Intersection:You can set an
intersection as a destination. Enter
the name of the first street and then
the first letter of the second. The
system will pull up a list of possible
matches based on that letter. Select
the desired street. You can sort the
list alphabetically or in order of
distance from the vehicle.
• State/Prov: Type using the keyboard or select the area to search
from the list. The search is based on the current position or the
previous selection. You can also set the Auto Fill preference on or off.
Select USA and then the desired state or select Canada and then any
province or territory. Depending on your settings, this may be
automatically filled in.
• City: Enter the desired city name.
• Street #1: Enter the desired street name. Streets which include
numbers in their name can be searched if the name is input using
digits or a spelling of the number. This applies to street names
containing whole numbers from 1 (one) to 20 (twenty) or 1st (first)
to 20th (twentieth) only.
• Street #2: Enter the name of the second street or simply the first
letter of the second street for a list of possible matches.
• List: Select to view and select from a list of State, Province,
Territories, Cities, and Names. The system will provide a list based on
the first letter you type into the system.
POI CATEGORIES
Your system offers a variety of POI (Points of Interest) categories.
Note: Some entries are present in multiple categories.
The main categories are as follows:
• Food / drink & dining •Automotive
• Travel & transportation •Shopping
• Financial •Entertainment & arts
• Emergency •Recreation & sports
• Community •Government
• Health & medicine •Domestic services
2009 Centerstack (ng1)
Supplement
USA (fus)
Setting a destination
91

These main categories contain entries and also sometimes have
subcategories. The following are listings within the main POI categories.
Note: Italic listings denote a subcategory of entries.
The Food / drink & dining category contains:
• All restaurants •Banquet hall
• Coffee house & cafe •Convenience stores
• Drinking establishments •Grocery
• Ice cream parlor •Speciality foods
• Wine & liquor •Winery
The All restaurants sub-category contains:
• All •American
• Barbeque •Bistro
• Brew Pub •British Isles
• Cafeteria •Cajun/Caribbean
• Canadian •Chinese
• Deli/Sandwich •Fast food
• French •German
• Greek •Grill
• Jewish/Kosher •Korean
• Indian •Italian
• Japanese •Mexican
• Middle Eastern •Other
• Pizza •Polish
• Russian •Seafood
• Soul food •Spanish
• Steak house •Thai
• Vegetarian •Vietnamese
The Automotive category contains:
• Auto parts
•Automobile dealership
• Car wash •Gas / petrol stations
• Oil change info. •Parking
• Rental car •Towing
2009 Centerstack (ng1)
Supplement
USA (fus)
Setting a destination
92

TheAutomobile dealership sub-category contains:
• All •Ford
• Lincoln/Mercury
The Parking sub-category contains:
• Park and ride •Parking garage
• Parking lot
The Travel & transportation category contains:
• Accommodations •Gas / Petrol stations
• Historical monument •International border crossing
• Marina •Parking
• Public transit •Rental car
• Rest area •RV Park/Campground
• Tourist attraction •Tourist info.
The Public transit sub-category contains:
• Airport •Bus station
• Commuter •Ferry terminal
• Railway station
The Shopping category contains:
• Book store •Clothing stores
• Computer & software •Convenience store
• Cosmetics/Beauty •Department stores
• Discount stores •Electronics
• Grocery •Home & Garden
• Office supply •Shoe store
• Shopping center / mall •Speciality food
• Sporting goods •Used merchandise
• Wholesale clubs •Wine & Liquor
The Home & Garden sub-category contains:
• Floor covering
•Furniture store
• Florist •Garden center
• Glass & window •Hardware store
• Home center •Paint
• Major appliances
2009 Centerstack (ng1)
Supplement
USA (fus)
Setting a destination
93

TheFinancial category contains:
• AT M •Banking
The Entertainment & Arts category contains:
• Amusement / Theme Park •Night Club
• Casino •Exhibition / Conference Center
• Movie Theater •Museum
• Performing arts •Video & DVD rentals
• Zoo & Botanical gardens
The Emergency category contains:
• Hospital •Police
The Recreation & Sports category contains:
• Bowling •Fitness center
• Golf course •Ice arena
• Marina •Ski resort
• Parks •Race Track
• Recreation facility
The Community category contains:
• Business facility •Community center
• Education •Fire department
• Library •Parks
• Police •Religious facility
The Education sub-category contains:
• Higher education •K-12 schools
The Government category contains:
• City hall •Court house
• Embassy •Government offices
• International border crossing •Post office
The Health & Medicine category contains:
• Hospital
•Pharmacy
• Retirement / Nursing Homes •Urgent care center
2009 Centerstack (ng1)
Supplement
USA (fus)
Setting a destination
94
