2009 Lexus ES350 head rest

95
1-7. Safety information
1
Before driving
ES350_U_(L/O_0808)
CAUTION
■Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a child in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the wind-
shield, or between you and the vehicle's interior.
●Lexus strongly urges the use of a proper child restraint system that conforms to
the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.
●Never install a rear-facing child restraint system on the front passenger seat even
if AIR BAG OFF indicator light is illuminated. In the event of an accident, the
force of the rapid inflation of the front passenger airbag can cause death or seri-
ous injury to the child if the rear-facing child restraint system is installed on the
front passenger seat.
●A forward-facing child restraint system may be allowed to be installed on the
front passenger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat since
there is no top tether strap anchor for the front passenger seat. Adjust the seat-
back as upright as possible and always move the seat as far back as possible even
if AIR BAG OFF indicator light is illuminated, because the front passenger airbag
could inflate with considerable speed and force. Otherwise, the child may be
killed or seriously injured.
●Do not use the seat belt extender when installing a child restraint system on the
front or rear passenger seat. If installing a child restraint system with the seat belt
extender connected to the seat belt, the seat belt will not securely hold the child
restraint system, which could cause death or serious injury to the child or other
passengers in the event of a sudden stop, sudden swerve or accident.
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front pillar or roof side rail from which the side air-
bags or curtain shield airbags deploy even if the child is seated in the child
restraint system. It is dangerous if the side airbags and curtain shield airbags
inflate, and the impact could cause death or serious injury to the child.

103
1-7. Safety information
1
Before driving
ES350_U_(L/O_0808)

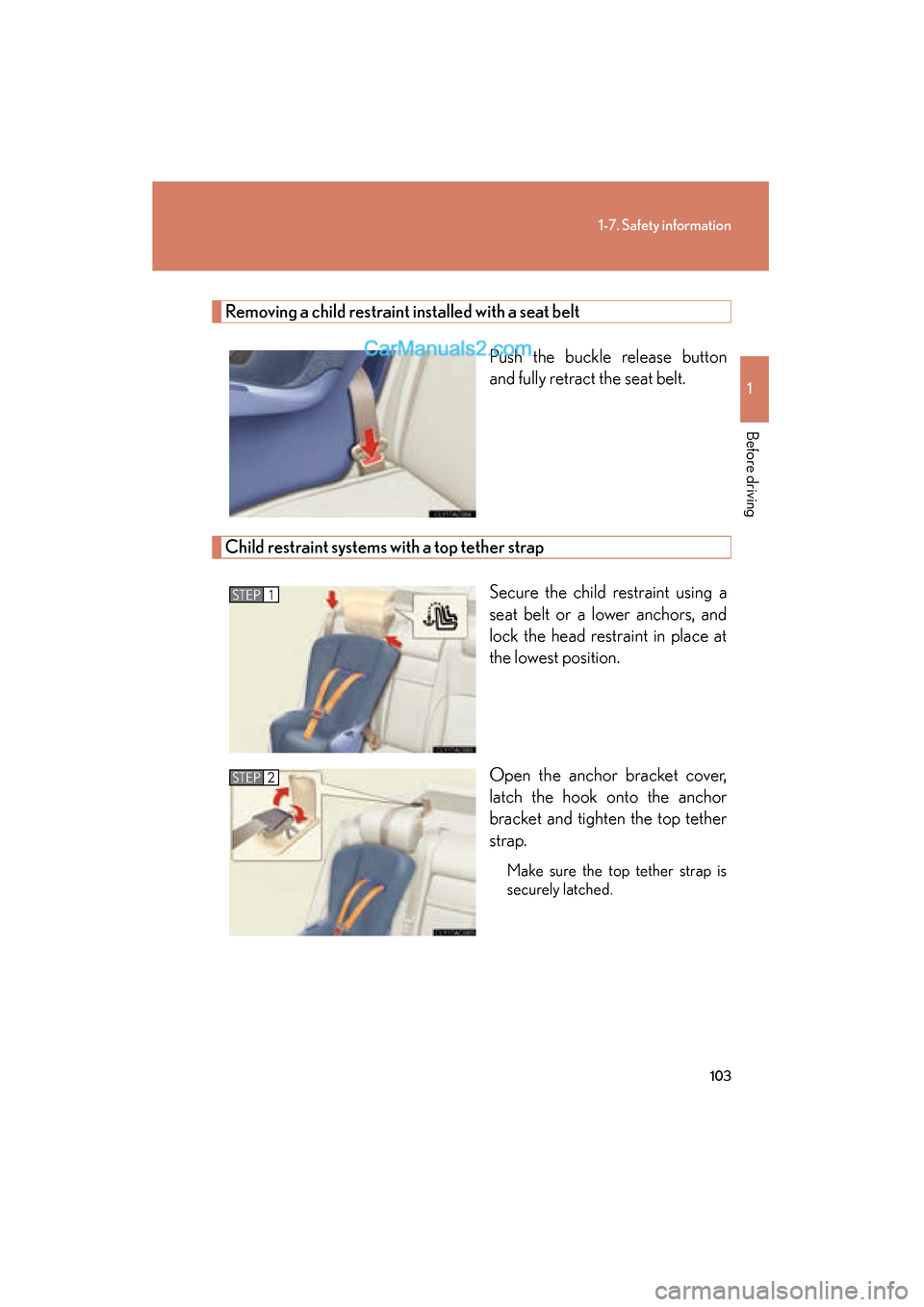

Removing a child restraint installed with a seat beltPush the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strapSecure the child restraint using a
seat belt or a lower anchors, and
lock the head restraint in place at
the lowest position.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
STEP1
STEP2

Interior features3
187
ES350_U_(L/O_0808)
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ..................................... 188
Rear window and outside rear view mirror
defoggers ............................... 195
3-2. Using the audio system Audio system type................... 196
Using the radio......................... 198
Using the CD player ............ 205
Playing back MP3 and
WMA discs.............................. 211
Optimal use of the audio system ...................................... 219
Using the AUX adapter ....... 222
Using the steering wheel audio switches ..................... 223
3-3. Using the hands-free phone system
(for cellular phone)
Hands-free phone system features
(for cellular phone) ............. 225
Using the hands-free phone system
(for cellular phone) ............ 228
Making a phone call .............. 236
Setting a cellular phone ....... 240
Security and system setup ... 244
Using the phone book........... 247 3-4. Using the interior lights
Interior lights list .................... 253
• Interior lights ........................ 255
• Personal lights ..................... 255
3-5. Using the storage features List of storage features......... 256
• Glove box .............................. 256
• Console box ......................... 257
• Overhead console.............. 259
• Cup holders .......................... 260
• Auxiliary box ........................ 262
3-6. Other interior features Sun visors ................................. 263
Vanity mirror ........................... 264
Clock ......................................... 265
Ashtray ..................................... 266
Cigarette lighter ..................... 267
Power outlet ............................ 268
Seat heaters ............................ 269
Seat heaters and ventilators ............................... 271
Armrest .................................... 273
Rear sunshade ......................... 274
Extended trunk........................ 276
Floor mat ................................... 277
Trunk features ......................... 278
Garage door opener ............ 280
Compass .................................. 286

301
4-2. Maintenance
4
Maintenance and care
ES350_U_(L/O_0808)
Vehicle interior
ItemsCheck points
Accelerator pedal• Moves smoothly (without uneven pedal effort or catching)?
Automatic transmission “Park”
mechanism• Can the vehicle be hold securely on an incline with the shift lever in
P?
Brake pedal
• Moves smoothly?
• Does it have appropriate clearance and correct amount of free play?
Brakes
• Not pull to one side when applied?
• Loss of brake effectiveness?
• Spongy feeling brake pedal?
• Pedal almost touches floor?
Head restraints• Move smoothly and lock securely?
Indicators/buzzers• Function properly?
Lights
• Do all the lights come on?
• Headlights aimed correctly? (→ P. 3 5 2 )
Parking brake
• Moves smoothly?
• Can hold the vehicle securely on
an incline?
Seat belts
• Does the seat belt system operate smoothly?
• Are the belts undamaged?
Seats• Do the seat controls operate prop- erly?

360
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0808)■
Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
● Headlight low beams (discharge bulbs)
● Front fog lights
● Tail lights
● High mounted stoplight
● License plate lights
● Back-up lights
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED stop lights
The high mounted stoplight consists of a number of LEDs. If any of the LEDs burn
out, take your vehicle to your Lexus dealer to have the light replaced.

5
When trouble arises
407
5-2. Steps to take in an emergency
ES350_U_(L/O_0808)
If the engine will not start
If the engine will not start, even though correct starting procedures are
being followed (
→P. 116), consider each of the following points.
■The engine will not start even when the starter motor operates
normally.
One of the following may be the cause of the problem.
●There may not be sufficient fuel in the vehicle’s tank.
Add fuel to the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. ( →P. 1 1 6 )
● There may be a malfunction in the engine immobilizer system.
(→ P. 7 0 )
■ The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low vol-
ume.
One of the following may be the cause of the problem.
● The battery may be discharged. ( →P. 413)
● The battery terminal connections may be loose or corroded.
■ The starter motor does not turn over
One of the following may be the cause of the problem.
●The engine starting system may be malfunctioning due to an elec-
trical problem such as an open circuit or a blown fuse. However,
an interim measure is available to start the engine. ( →P. 4 0 8 )

460
ES350_U_(L/O_0808)
Alphabetical index
Alphabetical index
A/C .............................................................188
ABS................................................................ 161
Adaptive front lighting system ......... 136
AFS .............................................................. 136
Air conditioning filter ..........................340
Air conditioning systemAir conditioning filter .......................340
Automatic air conditioning system ................................................... 188
Airbags
Airbag operating conditions........... 79
Airbag precautions for your child.......................................................... 83
Airbag warning light ........................ 376
Curtain shield airbag operating conditions..............................................80
Curtain shield airbag precautions .......................................... 83
Front passenger occupant classification system.........................88
General airbag precautions ........... 83
Locations of airbags............................. 77
Modification and disposal of airbags .................................................... 87
Proper driving posture ............. 75, 83
Side airbag operating conditions..............................................80
Side airbag precautions .................... 83
SRS airbags .............................................. 77 Alarm.............................................................72
Antenna .................................................... 202
Anti-lock brake system ......................... 161
Armrest .................................................... 273
Ashtray...................................................... 266
Audio input.............................................. 222
Audio system
Antenna.................................................. 202
Audio input............................................ 222
AUX adapter ....................................... 222
CD player/changer ......................... 205
MP3/WMA disc................................... 211
Optimal use ........................................... 219
Portable music player ...................... 222
Radio .........................................................198
Steering wheel audio switch.........223
Automatic air conditioning system ..................................................... 188
Automatic headlight leveling system ...................................................... 137
Automatic light control system........ 135
Automatic transmission Automatic transmission ..................... 119
If the shift lever cannot be shifted from P................................... 409
S mode ..................................................... 120
AUX adapter ......................................... 222
Auxiliary box .......................................... 262A

464
Alphabetical index
ES350_U_(L/O_0808)
Hands-free phone system (for cellular phone)
Bluetooth
®........................................... 225
Hands-free phone system
(for cellular phone)........................ 225
Hazard lights
Switch ...................................................... 364
Head restraints
Adjusting .................................................. 49
Headlight aim .........................................352
Headlights Discharge headlights
precautions .........................................361
Replacing light bulbs........................ 354
Switch ........................................................135
Wattage.................................................... 431
Heaters Seat heaters................................ 269, 271
Side mirror ............................................. 195
Hood ......................................................... 308
Hooks Cargo hooks ....................................... 278
Grocery bag hooks ......................... 278
Horn ............................................................ 124 I/M test ..................................................... 303
Identification number
Engine ......................................................423
Vehicle.....................................................423
Ignition switch ........................................... 116
Illuminated entry system .................... 253
Indicator lights ......................................... 127
Initialization Items to initialize................................. 452
Inside rear view mirror .......................... 57
Interior lights Interior lights ........................................ 255
Switch...................................................... 255
Intuitive parking assist.......................... 155
Jack
Positioning a floor jack ................... 309
Vehicle-equipped jack....................397
Jack handle ............................................. 397
Keyless entry ............................................. 34
Keys Electronic key .........................................20
Engine switch .......................................... 116
If the electronic key does not operate properly................................ 411
If you lose your keys .......................... 410
Key number..............................................20
Keyless entry............................................ 34
Keys..............................................................20
Mechanical key ......................................20
Wireless remote control key...........34
HI
J
K
