2009 INFINITI QX56 engine

SEC-34
< COMPONENT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2194 ID DISCORD IMMU-I-KEY
B2194 ID DISCORD IMMU-I-KEY
DescriptionINFOID:0000000003775906
BCM performs the ID verification with Intelligent Key unit that allows the engine to start. BCM starts the com-
munication with Intelligent Key unit if ignition switch is turned ON and starts the engine if the ID is OK. BCM
prevents the engine from starting if the ID is not registered.
DTC LogicINFOID:0000000003775907
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?
YES >> Refer to SEC-34, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000003775908
1.PERFORM INITIALIZATION
1. Perform initialization with CONSULT-III. Re-register all mechanical keys. For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.
2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?
YES >> GO TO 2
NO >> ID was unregistered.
2.REPLACE BCM
1. Turn ignition switch OFF.
2. Replace BCM. Refer to BCS-56, "
Removal and Installation".
3. Perform initialization with CONSULT-III. Re-register all mechanical keys. For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.
Can the system be initialized and can the engine be started?
YES >> BCM is malfunctioning.
NO >> GO TO 3
3.CHECK INTERMITTENT INCIDENT
Refer to GI-38, "
Intermittent Incident".
>> Inspection End.
DTC No. Trouble diagnosis
name DTC detecting condition
Possible cause
B2194 DISCORD BCM-I-
KEY The ID verification results between BCM and Intel-
ligent Key unit are NG. The registration is neces-
sary. •BCM
• Intelligent Key unit
Revision: December 20092009 QX56

B2552 INTELLIGENT KEYSEC-35
< COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
B2552 INTELLIGENT KEY
DescriptionINFOID:0000000003775909
Intelligent key unit performs engine start operation and steering lock control by crosschecking ID with the Intel-
ligent key.
DTC LogicINFOID:0000000003775910
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?
YES >> Refer to SEC-35, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000003775911
1.REPLACE INTELLIGENT KEY UNIT
1. Replace Intelligent Key unit.
2. Perform initialization with CONSULT- III. Re-register all mechanical keys. Refer to “CONSULT-III Opera-
tion Manual”.
3. Start the engine.
Does the engine start?
YES >> Inspection End.
NO >> Perform “DTC confirmation procedure”. Refer to SEC-35, "
DTC Logic".
Special Repair RequirementINFOID:0000000003775912
1.REQUIRED WORK WHEN REPLACING INTELLIGENT KEY UNIT
Initialize control unit. Refer to CONSULT-III Operation Manual.
>> Work end.
DTC No. Trouble diagnosis
name DTC detecting condition
Possible cause
B2552 INTELLIGENT KEY
UNIT Malfunction is detected inside Intelligent
key unit.
Intelligent Key unit
Revision: December 20092009 QX56

SEC-36
< COMPONENT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2590 ID DISCORD BCM-I-KEY
B2590 ID DISCORD BCM-I-KEY
DescriptionINFOID:0000000003775913
Intelligent Key unit performs the ID verification with BCM that allows the engine to start. BCM starts the engine
if the ID is OK and prevents the engine from
starting if the ID is not registered.
DTC LogicINFOID:0000000003775914
DTC DETECTION LOGIC
NOTE:
• If DTC B2590 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
SEC-22, "
DTC Logic".
• If DTC B2590 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to SEC-23, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?
YES >> Refer to SEC-36, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000003775915
1.PERFORM INITIALIZATION
Perform initialization with CONSULT-III. Re-register all mechanical keys.
For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.
Can the system be initialized and can the engine be started with re-registered mechanical key?
YES >> ID was unregistered.
NO >> BCM is malfunctioning. • Replace BCM. Refer to BCS-56, "
Removal and Installation".
• Perform initialization again
DTC No. Trouble diagnosis
name DTC detecting condition
Possible cause
B2590 ID DISCORD BCM-I-
KEY The ID verification results between BCM and Intel-
ligent Key unit are NG. The registration is neces-
sary. •BCM
• Intelligent Key unit
Revision: December 20092009 QX56

P1610 LOCK MODESEC-37
< COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
P1610 LOCK MODE
DescriptionINFOID:0000000003775916
When the starting operation is carried more than five times consecutively under the following conditions, NATS
will shift to the mode which prevents the engine from being started.
• Unregistered mechanical key is used.
• BCM or ECM's malfunctioning.
DTC LogicINFOID:0000000003775917
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?
YES >> Refer to SEC-37, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000003775918
1.CHECK ENGINE START FUNCTION
1. Perform the check for DTC except DTC P1610.
2. Use CONSULT-III to erase DTC after fixing.
3. Check that engine can start with registered mechanical key.
Does the engine start?
YES >> Inspection End.
NO >> GO TO 2
2.CHECK INTERMITTENT INCIDENT
Refer to GI-38, "
Intermittent Incident".
>> Inspection End.
DTC No. Trouble diagnosis
name DTC detecting condition
Possible cause
P1610 LOCK MODE When the starting operation is carried out
five or more times consecutively under the
following conditions.
• Unregistered mechanical key
• BCM or ECM's malfunctioning. —
Revision: December 20092009 QX56

BCM (BODY CONTROL MODULE)SEC-49
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
ECU DIAGNOSIS
BCM (BODY CONTROL MODULE)
Reference ValueINFOID:0000000004221472
VALUES ON THE DIAGNOSIS TOOL
Monitor Item Condition Value/Status
AIR COND SW A/C switch OFF
OFF
A/C switch ON ON
AUT LIGHT SYS Outside of the room is dark
OFF
Outside of the room is bright ON
AUTO LIGHT SW Lighting switch OFF
OFF
Lighting switch AUTO ON
BACK DOOR SW Back door closed
OFF
Back door opened ON
CDL LOCK SW Door lock/unlock switch does not operate
OFF
Press door lock/unlock switch to the LOCK side ON
CDL UNLOCK SW Door lock/unlock switch does not operate
OFF
Press door lock/unlock switch to the UNLOCK side ON
DOOR SW-AS Front door RH closed
OFF
Front door RH opened ON
DOOR SW-DR Front door LH closed
OFF
Front door LH opened ON
DOOR SW-RL Rear door LH closed
OFF
Rear door LH opened ON
DOOR SW-RR Rear door RH closed
OFF
Rear door RH opened ON
ENGINE RUN Engine stopped
OFF
Engine running ON
FR FOG SW Front fog lamp switch OFF
OFF
Front fog lamp switch ON ON
FR WASHER SW Front washer switch OFF
OFF
Front washer switch ON ON
FR WIPER LOW Front wiper switch OFF
OFF
Front wiper switch LO ON
FR WIPER HI Front wiper switch OFF
OFF
Front wiper switch HI ON
FR WIPER INT Front wiper switch OFF
OFF
Front wiper switch INT ON
FR WIPER STOP Any position other than front wiper stop position
OFF
Front wiper stop position ON
HAZARD SW When hazard switch is not pressed
OFF
When hazard switch is pressed ON
LIGHT SW 1ST Lighting switch OFF
OFF
Lighting switch 1st ON
Revision: December 20092009 QX56

SEC-50
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
BCM (BODY CONTROL MODULE)
HEADLAMP SW1Headlamp switch OFF OFF
Headlamp switch 1st
ON
HEADLAMP SW2 Headlamp switch OFF
OFF
Headlamp switch 1st ON
HI BEAM SW High beam switch OFF
OFF
High beam switch HI ON
H/L WASH SW NOTE:
The item is indicated, but not monitored OFF
IGN ON SW Ignition switch OFF or ACC
OFF
Ignition switch ON ON
IGN SW CAN Ignition switch OFF or ACC
OFF
Ignition switch ON ON
INT VOLUME Wiper intermittent dial is in a dial position 1 - 7 1 - 7
I-KEY LOCK LOCK button of Intelligent Key is not pressed
OFF
LOCK button of Intelligent Key is pressed ON
I-KEY UNLOCK UNLOCK button of Intelligent Key is not pressed
OFF
UNLOCK button of Intelligent Key is pressed ON
KEY ON SW Mechanical key is removed from key cylinder
OFF
Mechanical key is inserted to key cylinder ON
OIL PRESS SW • Ignition switch OFF or ACC
• Engine running
OFF
Ignition switch ON ON
PASSING SW Other than lighting switch PASS
OFF
Lighting switch PASS ON
REAR DEF SW Rear window defogger switch OFF
OFF
Rear window defogger switch ON ON
RKE LOCK AND UN-
LOCK NOTE:
The item is indicated, but not monitored OFF
ON
RR WASHER SW Rear washer switch OFF
OFF
Rear washer switch ON ON
RR WIPER INT Rear wiper switch OFF
OFF
Rear wiper switch INT ON
RR WIPER ON Rear wiper switch OFF
OFF
Rear wiper switch ON ON
RR WIPER STOP Rear wiper stop position
OFF
Other than rear wiper stop position ON
TAIL LAMP SW Lighting switch OFF
OFF
Lighting switch 1ST ON
TRNK OPNR SW When back door opener switch is not pressed
OFF
When back door opener switch is pressed ON
TURN SIGNAL L Turn signal switch OFF
OFF
Turn signal switch LH ON
TURN SIGNAL R Turn signal switch OFF
OFF
Turn signal switch RH ON
VEHICLE SPEED While driving Equivalent to speedometer reading
Monitor Item
Condition Value/Status
Revision: December 20092009 QX56

BCM (BODY CONTROL MODULE)SEC-77
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
DTC Inspection Priority ChartINFOID:0000000004221477
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
DTC IndexINFOID:0000000004221478
NOTE: Details of time display
• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-
tion switch OFF → ON again.
• 1 - 39: Displayed if any previous ma lfunction is present when current conditi on is normal. It increases like 1
→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter
remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF → ON after returning to the normal condi tion if the malfunction is detected again.
Display contents of CONSULT Fail-safe Cancellation
U1000: CAN COMM CIRCUIT I nhibit engine crankingWhen the BCM re-establishes communication with the other mod-
ules.
U1010: CONTROL UNIT (CAN) Inhibit engine cranking When the BCM re-start communicating with the other modules.
Priority DTC
1 • U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)
2 • B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2013: STRG COMM 1
• B2552: INTELLIGENT KEY
• B2590: NATS MALFUNCTION
3 • C1729: VHCL SPEED SIG ERR
• C1735: IGNITION SIGNAL
4 • C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL
Revision: December 20092009 QX56

INTELLIGENT KEY UNITSEC-83
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P

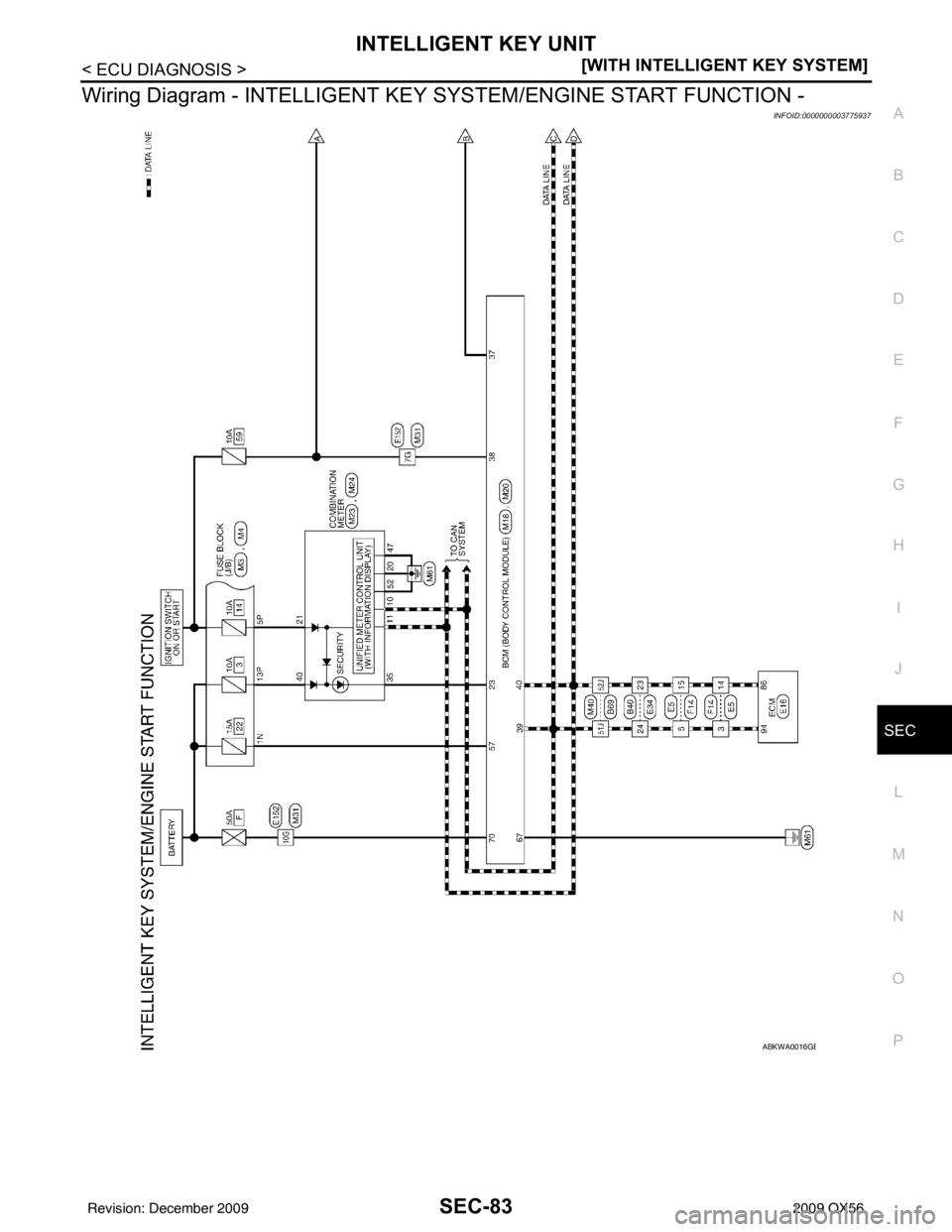

Wiring Diagram - INTE LLIGENT KEY SYSTEM/ENGINE START FUNCTION -
INFOID:0000000003775937
ABKWA0016GB
Revision: December 20092009 QX56
