Page 3225 of 4171
SCS-32
< ECU DIAGNOSIS >
SUSPENSION CONTROL UNIT

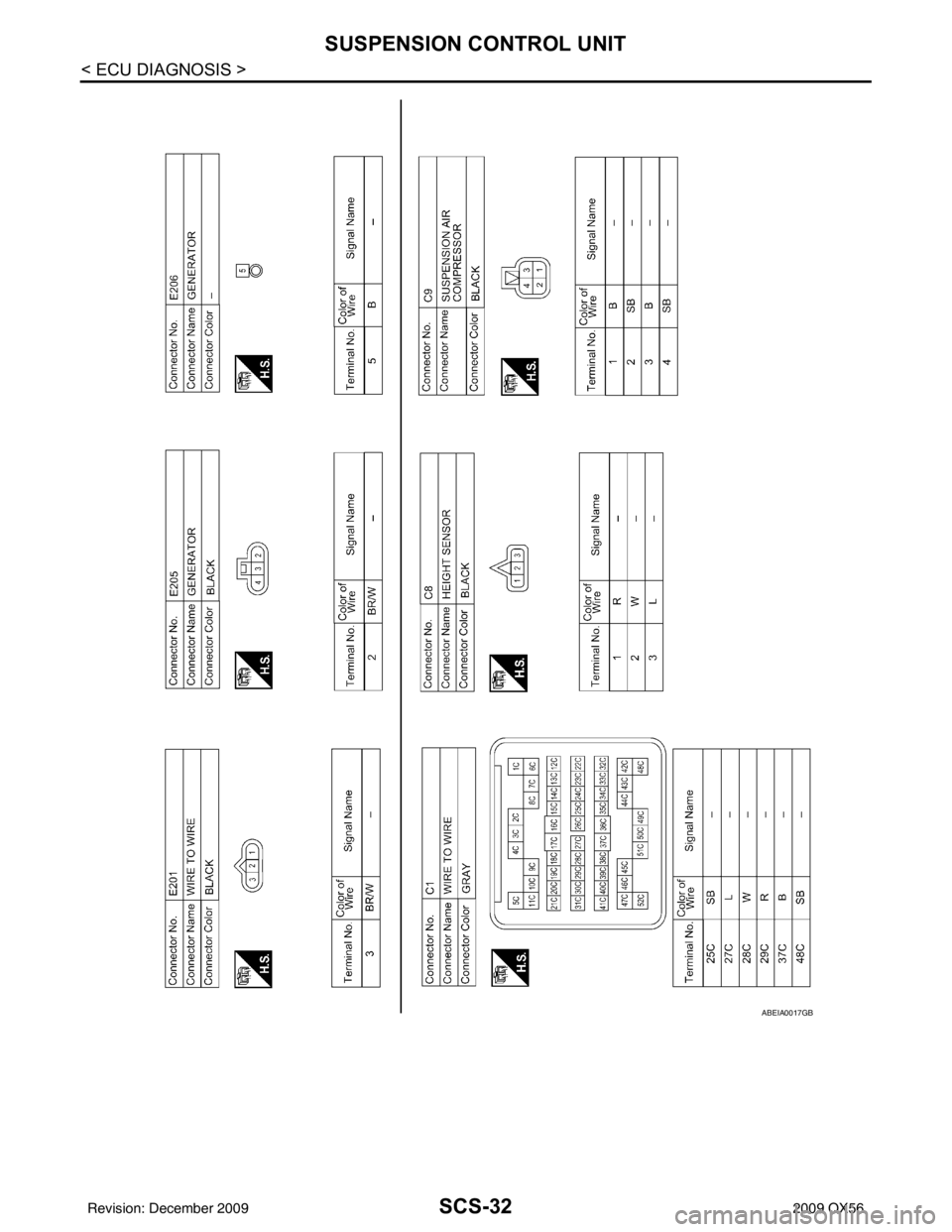

ABEIA0017GB
Revision: December 20092009 QX56
Page 3226 of 4171
SUSPENSION CONTROL UNITSCS-33
< ECU DIAGNOSIS >
C
DF
G H
I
J
K L
M A
B
SCS
N
O P
DTC IndexINFOID:0000000003772353
Self-diagnosis results display item
ABEIA0018GB
CONSULT-III display MalfunctionReference page
Vehicle height sensor [C1801] Vehicle height sensor voltage is less than 0.2V or greater than
4.8V for more than 60 seconds. SCS-9,
"DiagnosisProcedure".
Revision: December 20092009 QX56
Page 3227 of 4171
![INFINITI QX56 2009 Factory Service Manual SCS-34
< ECU DIAGNOSIS >
SUSPENSION CONTROL UNIT
Compressor relay [C1802]• Driving transistor for compre
ssor relay is OFF and monitor
voltage continues at a high level for more than 10 seconds.
INFINITI QX56 2009 Factory Service Manual SCS-34
< ECU DIAGNOSIS >
SUSPENSION CONTROL UNIT
Compressor relay [C1802]• Driving transistor for compre
ssor relay is OFF and monitor
voltage continues at a high level for more than 10 seconds.](/manual-img/42/57031/w960_57031-3226.png)
SCS-34
< ECU DIAGNOSIS >
SUSPENSION CONTROL UNIT
Compressor relay [C1802]• Driving transistor for compre
ssor relay is OFF and monitor
voltage continues at a high level for more than 10 seconds.
• Driving transistor for compre ssor relay is ON and monitor
voltage continues at a low level for more than 5 seconds. SCS-10, "DiagnosisProcedure".
Exhaust solenoid [C1803] • Driving transistor for exhaust valve solenoid is OFF and
monitor voltage continues at a high level for more than 10
seconds.
• Driving transistor for exhaust valve solenoid is ON and mon- itor voltage continues at a low level for more than 5 seconds. SCS-11,
"DiagnosisProcedure".
Vehicle height adjusting malfunc-
tion (compressor)[C1804] Continuous compressor relay ON time is more than 120 sec-
onds. SCS-12,
"DiagnosisProcedure".
Vehicle height adjusting malfunc-
tion (exhaust solenoid)[C1805] Continuous exhaust valve solenoid ON time is more than 120
seconds. SCS-13,
"DiagnosisProcedure".
Vehicle height sensor locking mal-
function [C1806] Output sensor voltage variation
±0.02V is more than 100 sec-
onds when vehicle height range is normal. SCS-14, "
Diagnosis Proce-
dure".
Sensor 5V malfunction [C1807] Sensor reference voltage is less than 0.8V or more than 6V for
20 seconds. SCS-15,
"DiagnosisProcedure"
Integral time malfunction by sup-
plying air [C1808]A suspension air compressor ON request has been in effect
for 180 seconds and the suspension air compressor has not
activated during that time. SCS-16,
"DiagnosisProcedure".
Revision: December 20092009 QX56
Page 3233 of 4171

SE-1
BODY INTERIOR
C
DE
F
G H
I
K L
M
SECTION SE
A
B
SE
N
O P
CONTENTS
SEAT
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Work Flow ........................................................... ......3
INSPECTION AND ADJUSTMENT .....................5
Preliminary Check ............................................... ......5
FUNCTION DIAGNOSIS ...............................6
THIRD ROW POWER FOLDING SEAT ......... .....6
System Description ............................................. ......6
Component Parts Location ........................................7
Component Description .............................................7
COMPONENT DIAGNOSIS ..........................8
POWER SEAT .....................................................8
Wiring Diagram — Passenger Side — ................ ......8
HEATED SEAT ...................................................12
Description ..............................................................12
Wiring Diagram .......................................................13
THIRD SEAT ......................................................19
Power Supply and Ground Circuit Check for Third
Row Power Folding Seat Control Unit ................. ....
19
Third Row Power Folding Seat Switch ....................20
Third Row Power Folding Seat Motor .....................20
ECU DIAGNOSIS .........................................22
THIRD ROW POWER FOLDING SEAT CON-
TROL UNIT .........................................................
22
Reference Value ................................................. ....22
Wiring Diagram .......................................................24
DTC Index ...............................................................29
Fail Safe ..................................................................30
SYMPTOM DIAGNOSIS ..............................31
THIRD ROW POWER FOLDING SEAT ......... ....31
Symptom Table ................................................... ....31
NONE OF THE THIRD ROW POWER FOLD-
ING SEATS WILL OPERATE WITH ANY
SWITCH. ............................................................
32
None of the Third Row Power Folding Seats Will
Operate With Any Third Row Power Folding Seat
Switch .................................................................. ....
32
ONLY ONE THIRD ROW POWER FOLDING
SEAT WILL OPERATE. ....................................
33
Only One Third Row Power Folding Seat Will Op-
erate .................................................................... ....
33
THIRD ROW POWER FOLDING SEAT WILL
OPERATE IN ONLY ONE DIRECTION. ...........
35
Third Row Power Folding Seat Will Operate in
Only One Direction .............................................. ....
35
THIRD ROW POWER FOLDING SEAT WILL
STOP SHORT OF IT’S FULLY UP OR DOWN
POSITION. .........................................................
36
Third Row Power Folding Seat Stops Short of it's
Fully Up or Down Position .......................................
36
THIRD ROW POWER FOLDING SEAT
MAKES EXCESSIVE NOISE WHILE MOV-
ING. ...................................................................
37
Third Row Power Folding Seat Makes Excessive
Noise While Moving ............................................. ....
37
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................
38
Work Flow ................................................................38
Generic Squeak and Rattle Troubleshooting ...........40
Diagnostic Worksheet ..............................................42
PRECAUTION ..............................................44
PRECAUTIONS .................................................44
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ....
44
Revision: December 20092009 QX56
Page 3254 of 4171

SE-22
< ECU DIAGNOSIS >
THIRD ROW POWER FOLDING SEAT CONTROL UNIT
ECU DIAGNOSIS
THIRD ROW POWER FOLDING SEAT CONTROL UNIT
Reference ValueINFOID:0000000003775450
TERMINAL LAYOUT
PHYSICAL VALUES
ALJIA0277ZZ
Te r m i n a l N o .Wire
color Description
ConditionVoltage (V)
(Approx.)
+ - Signal nameInput/
Output
1 Ground Y/R Battery Input— Battery voltage
3Ground LG 40% seat switch signal
(down) OutputPush either third row power fold-
ing seat switch passenger (down) 0
Third row power folding seat switch passenger released Battery voltage
4Ground V 60% seat switch signal
(down) OutputPush either third row power fold-
ing seat switch driver (down) 0
Third row power folding seat switch driver released Battery voltage
7 Ground G/R Park signal InputA/T selector lever in P or N
Battery voltage
A/T selector lever not in P or N 0
8 Ground O/L Ignition signal InputIgnition switch ON or START
Battery voltage
Ignition switch OFF 0
9 Ground G/B 40% seat Hall signal Input —9V
10 Ground O/B 60% seat Hall signal Input —9V
11 Ground SB 40% seat switch signal (up) Output Push either third row power fold-
ing seat switch passenger (up) 0
Third row power folding seat switch passenger released Battery voltage
12 Ground O 60% seat switch signal (up) Output Push either third row power fold-
ing seat switch driver (up) 0
Third row power folding seat switch driver released Battery voltage
13 Ground W Battery Input— Battery voltage
14 Ground W Battery Input— Battery voltage
15 Ground Y/B Hall switch ground —— —
16 Ground B Switch ground —— —
17 Ground W/L 60% Seat motor Output— Battery voltage
18 Ground B Ground —— —
19 Ground R/W 60% Seat motor Output— Battery voltage
Revision: December 20092009 QX56
Page 3255 of 4171
THIRD ROW POWER FOLDING SEAT CONTROL UNITSE-23
< ECU DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
20 Ground G/W 40% Seat motor Output— Battery voltage
21 Ground B Ground —— —
22 Ground V 40% Seat motor Output— Battery voltage
Te r m i n a l N o .
Wire
color Description
ConditionVoltage (V)
(Approx.)
+ - Signal nameInput/
Output
Revision: December 20092009 QX56
Page 3256 of 4171
SE-24
< ECU DIAGNOSIS >
THIRD ROW POWER FOLDING SEAT CONTROL UNIT
Wiring Diagram
INFOID:0000000003775451

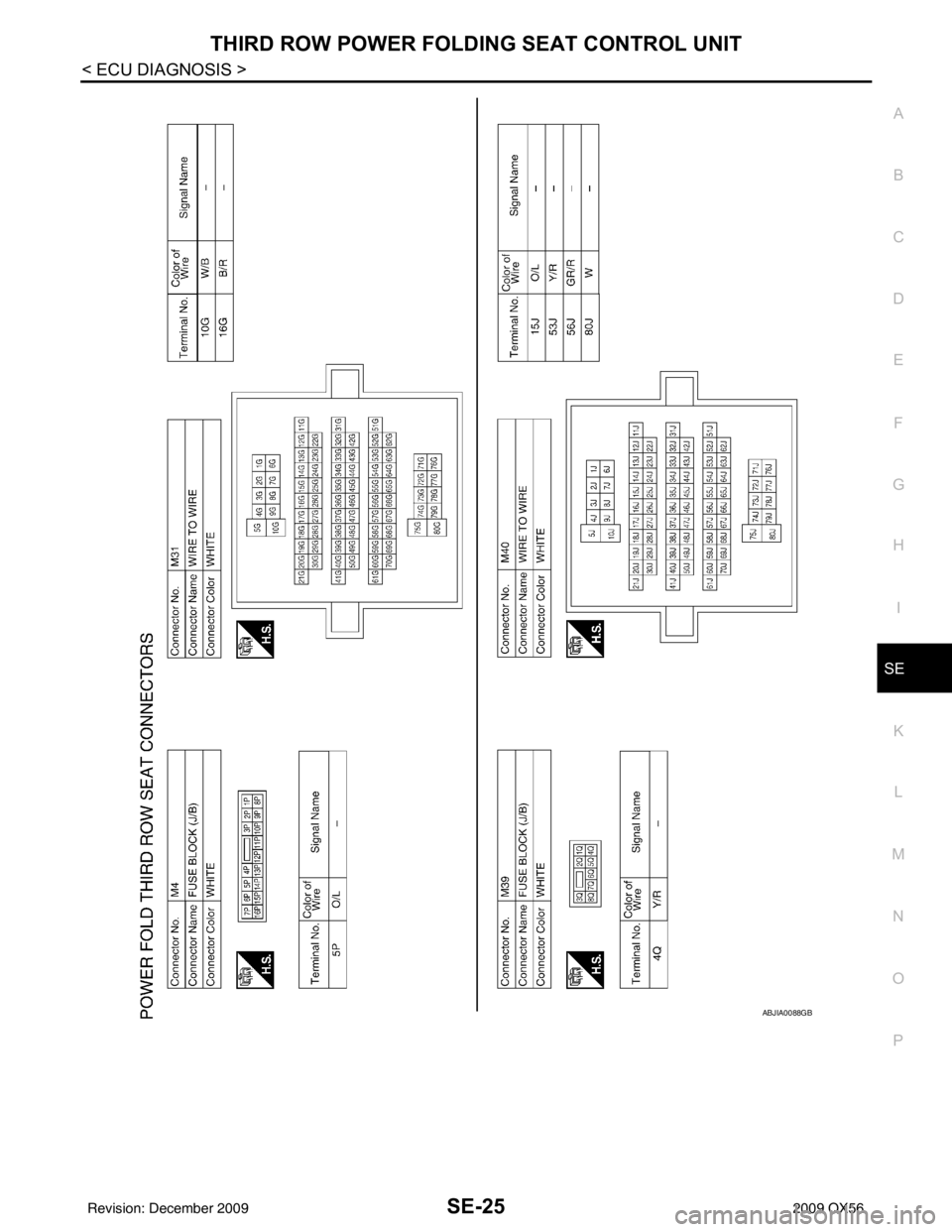

ABJWA0032GB
Revision: December 20092009 QX56
Page 3257 of 4171
THIRD ROW POWER FOLDING SEAT CONTROL UNITSE-25
< ECU DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

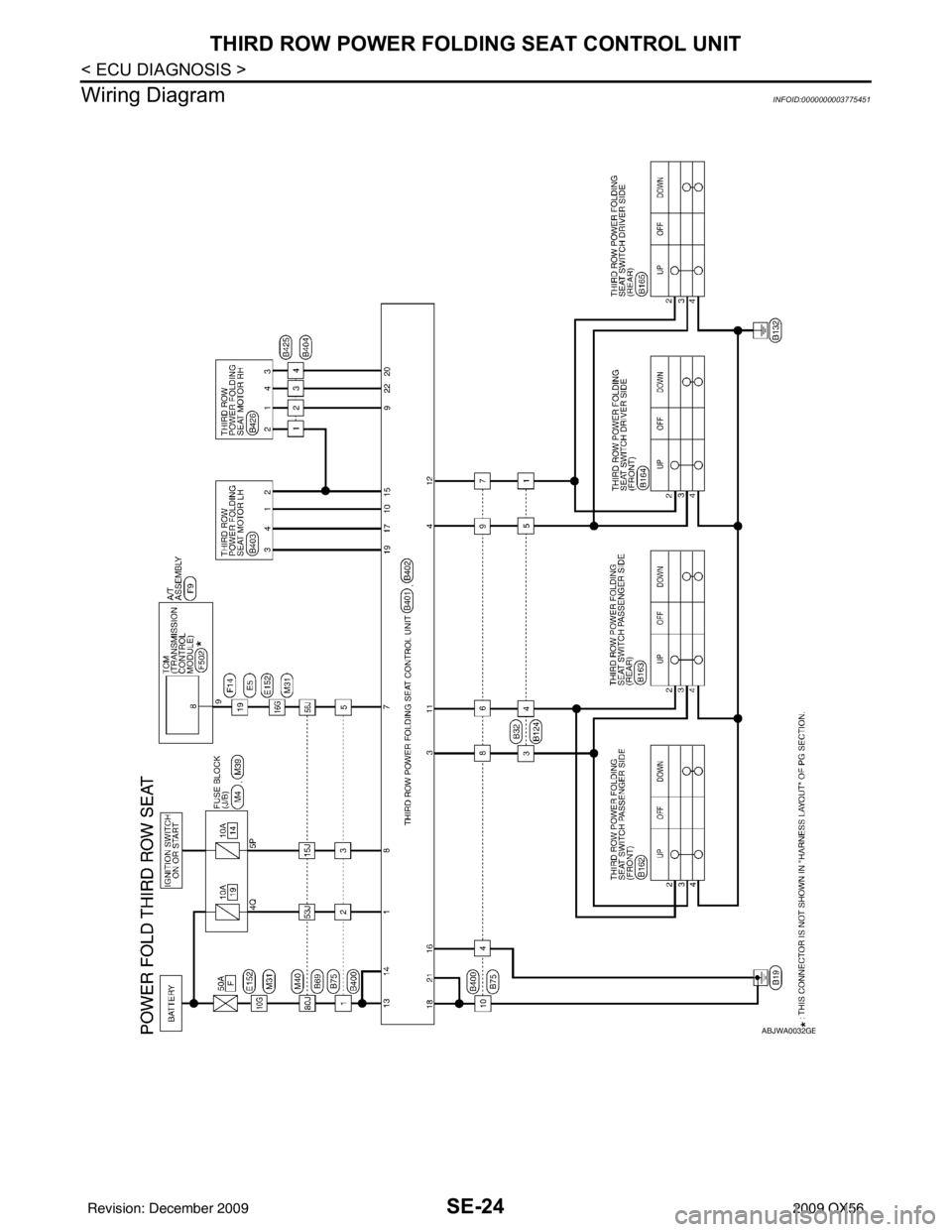

ABJIA0088GB
Revision: December 20092009 QX56
