2009 INFINITI QX56 100

TRANSFER ASSEMBLYDLN-171
< DISASSEMBLY AND ASSEMBLY > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
39. Remove all the sealant from the switch location area and inside the center case.
CAUTION:
Remove old sealant adhering to mounting surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mounting surfaces.
40. Thread the ATP switch and neutral-4LO switch in one to two pitches and apply sealant to the th reads of the switches. Tighten
to the specified torque. Refer to DLN-142, "Disassembly and
Assembly".
 Use Genuine Silicone RTV or equivalent. Refer to GI-15,
"Recommended Chemical Pr oducts and Sealants".
NOTE:
 Neutral-4LO switch harness connector is gray.
 ATP switch harness connector is black.
41. Install the front drive shaft rear bearing using Tools.
42. Install the front drive shaft to the front bearing using Tools.
43. Install the drive chain to the front drive shaft and clutch drum. CAUTION:
Install drive chain by aligning identification marks to the
rear as shown. Tool number A: KV40100621 (J-25273)
B: ST30032000 (J-26010-01)SDIA3435E
SDIA2198E
Tool number A: KV40100621 (J-25273)B: ST30032000 (J-26010-01)
SDIA2199E
SDIA2200E
Revision: December 20092009 QX56

DLN-172
< DISASSEMBLY AND ASSEMBLY >[ATX14B]
TRANSFER ASSEMBLY
44. Tap the front drive shaft while keeping it upright and press-fit the
front drive shaft rear bearing.
CAUTION:
Do not tap drive chain.
45. Install the front case assembly. Refer to DLN-142, "Disassembly
and Assembly".
46. Install the rear case assembly. Refer to DLN-142, "Disassembly
and Assembly".
Front Case
1. Install the carrier bearing to the sun gear using Tools.
2. Install the new snap ring to the sun gear assembly using suitable
tool.
CAUTION:
Do not reuse snap ring.
3. Apply ATF to the circumference of the new metal bushing and install it to the sun gear assembly using Tool.
CAUTION:
 Do not reuse metal bushing.
 Apply ATF to metal bushing before installing.
4. Apply ATF to the new needle bearing and install it to the sun gear assembly using Tool.
CAUTION:
 Do not reuse needle bearing.
 Apply ATF to needle bear ing before installing.
SMT988C
Tool number A: ST30911000 ( — )
B: KV31103300 ( — )
SDIA2179E
SDIA2148E
Tool number : ST35300000 ( — )
Dimension A : 7.7 - 8.3 mm (0.303 - 0.327 in)
SDIA3189E
Tool number : ST33220000 ( — )
Dimension B : 62.5 - 63.1 mm (2.461 - 2.484 in)
SDIA3190E
Revision: December 20092009 QX56

TRANSFER ASSEMBLYDLN-173
< DISASSEMBLY AND ASSEMBLY > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
5. Install the sun gear assembly to the planetary carrier assembly.
6. Install the new snap ring to the planetary carrier assembly. CAUTION:
Do not reuse snap ring.
7. Set the input bearing into the front case and install using Tool.
8. Install the new snap ring into the front case. CAUTION:
Do not reuse snap ring.
9. Install the internal gear with its groove facing the snap ring into the front case. Then secure it with the new snap ring.
CAUTION:
Do not reuse snap ring.
SDIA2180E
SDIA2794E
Tool number : ST30720000 (J-25405)
SDIA2172E
SDIA2171E
WDIA0100E
Revision: December 20092009 QX56

DLN-174
< DISASSEMBLY AND ASSEMBLY >[ATX14B]
TRANSFER ASSEMBLY
10. Install the new front oil seal until it is seated flush with the end
face of the front case using Tool.
CAUTION:
 Do not reuse oil seal.
 Apply petroleum jelly to oi l seal lip before installing.
11. Install the planetary carrier assembly and sun gear assembly to the front case using Tool.
12. Install the new snap ring to the sun gear. CAUTION:
Do not reuse snap ring.
13. Apply petroleum jelly to the circumference of the new oil seal, and install it to the front case using Tools.
CAUTION:
 Do not reuse oil seal.
 Apply petroleum jelly to oil seal.
14. Install the fork guide, shift fork spring, 2-4 fork, and L-H fork to the shift rod, and secure them with new retaining pins.
CAUTION:
Do not reuse retaining pins.Tool number : KV38100500 ( — )
SDIA3383E
Tool number : ST33200000 (J-26082)
SDIA2791E
SDIA2144E
Tool number A: ST30720000 (J-25405)
B: ST33200000 (J-26082)
Dimension : 4.0 - 4.6 mm (0.157 - 0.181 mm)
SDIA3191E
SDIA2142E
Revision: December 20092009 QX56

DLN-176
< DISASSEMBLY AND ASSEMBLY >[ATX14B]
TRANSFER ASSEMBLY
21. Tighten the front case bolts to the specified torque. Refer to
DLN-142, "Disassembly and Assembly"
.
CAUTION:
Be sure to install air breather hose clamp, connector
bracket and harness clip.
22. Install the drain plug with a new gasket. CAUTION:
Do not reuse gasket.
23. Align the matching mark on the front drive shaft with the mark on the companion flange, then install the companion flange.
24. Install a new companion flange self-lock nut. Tighten to the specified torque using suitable tool. Refer to DLN-142, "Disas-
sembly and Assembly".
CAUTION:
Do not reuse self-lock nut.
25. Remove all the sealant from the check plug, switch mounting and front case.
CAUTION:
Remove old sealant adhering to mating surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mounting surfaces.
26. Install the check ball and check spring to the front case. Apply sealant to the check plug and wait detection switch and install
them to the front case. Tighten to the specified torque. Refer to
DLN-142, "Disassembly and Assembly"
.
 Use Genuine Silicone RTV or equivalent. Refer to GI-15,
"Recommended Chemical Products and Sealants".
NOTE:
Wait detection switch harness connector is black.
SDIA2100E
SDIA2779E
WDIA0219E
WDIA0158E
Revision: December 20092009 QX56

PREPARATIONDLN-205
< PREPARATION > [FRONT FINAL DRIVE: M205]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000005875036
The actual shapes of Kent-Moore tools may differ fr om those of special service tools illustrated here.

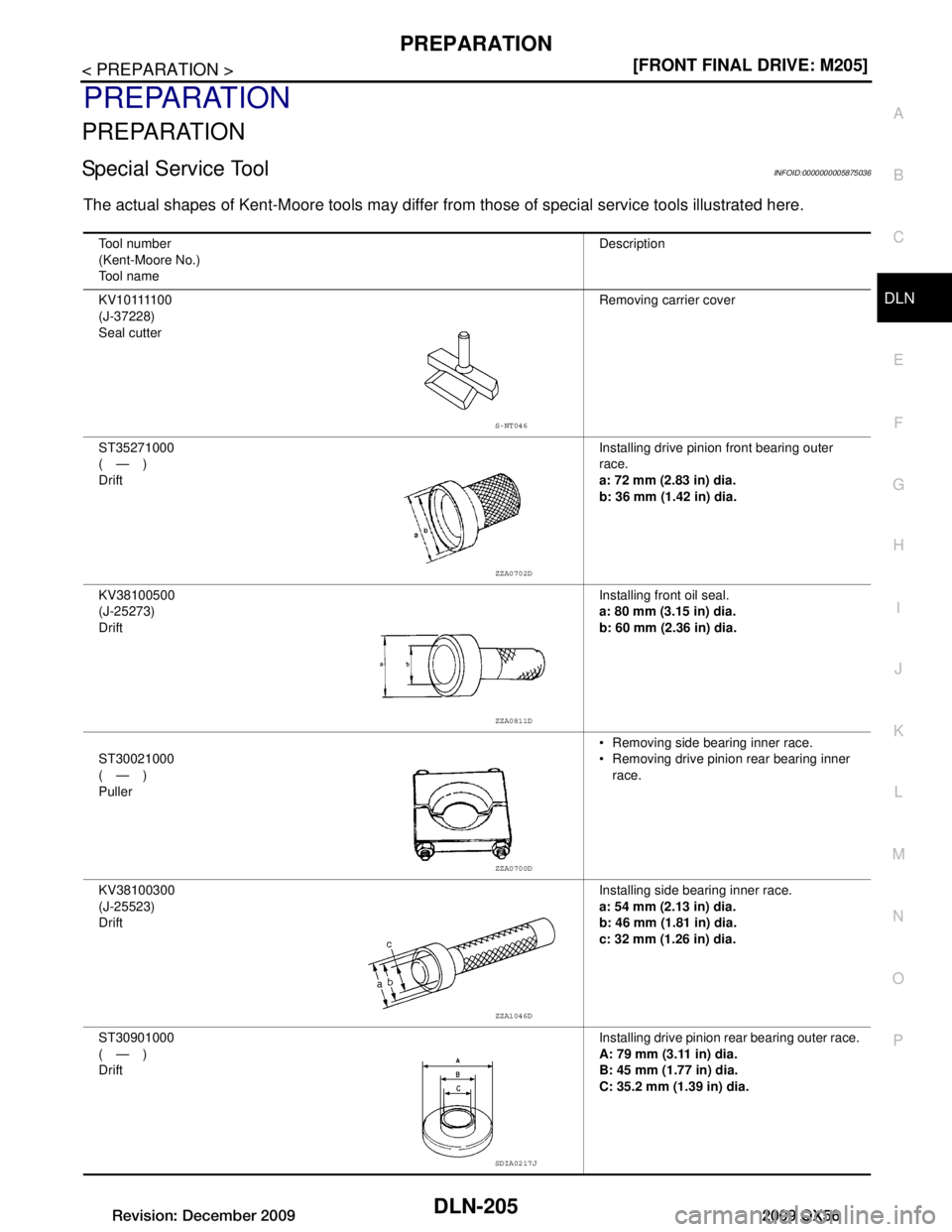

Tool number
(Kent-Moore No.)
Tool name Description
K V 1 0 1111 0 0
(J-37228)
Seal cutter Removing carrier cover
ST35271000
(—)
Drift Installing drive pinion front bearing outer
race.
a: 72 mm (2.83 in) dia.
b: 36 mm (1.42 in) dia.
KV38100500
(J-25273)
Drift Installing front oil seal.
a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.
ST30021000
(—)
Puller  Removing side bearing inner race.
 Removing drive pinion rear bearing inner
race.
KV38100300
(J-25523)
Drift Installing side bearing inner race.
a: 54 mm (2.13 in) dia.
b: 46 mm (1.81 in) dia.
c: 32 mm (1.26 in) dia.
ST30901000
(—)
Drift Installing drive pinion rear bearing outer race.
A: 79 mm (3.11 in) dia.
B: 45 mm (1.77 in) dia.
C: 35.2 mm (1.39 in) dia.
S-NT046
ZZA0702D
ZZA0811D
ZZA0700D
ZZA1046D
SDIA0217J
Revision: December 20092009 QX56

DLN-206
< PREPARATION >[FRONT FINAL DRIVE: M205]
PREPARATION
KV40104810
(—)
Drift Installing drive pinion front bearing outer
race.
a: 68 mm (2.68 in) dia.
b: 55 mm (2.17 in) dia.
KV38102200
(—)
Drift Installing front oil seal.
a: 55.3 mm (2.18 in) dia
.
b: 90 mm (3.54 in) dia.
ST33081000
(—)
Adapter Removing and installing side bearing inner
race.
a: 43 mm (1.69 in) dia
.
b: 33.5 mm (1.32 in) dia.
ST3127S000
(J-25765-A)
Preload gauge
1. GG91030000
(J-25765)
Torque wrench
2. HT62940000
( — )
Socket adapter (1/2 ″)
3. HT62900000
( — )
Socket adapter (3/8 ″) Inspecting drive pinion bearing preload and
total preload
—
(C-4040)
Installer Installing drive pinion rear bearing inner race.
KV40105230
(—)
Drift Installing drive pinion rear bearing outer race.
a: 92 mm (3.62 in) dia.
Tool number
(Kent-Moore No.)
Tool name
Description
ZZA1003D
NT660
ZZA1000D
NT124
SDIA2607E
ZZA0898D
Revision: December 20092009 QX56

DLN-212
< ON-VEHICLE REPAIR >[FRONT FINAL DRIVE: M205]
FRONT OIL SEAL
8. Remove the front oil seal using Tool as shown.
INSTALLATION
1. Apply multi-purpose grease to the lips of the new front oil seal.
Then drive the new front oil seal in evenly to the gear carrier
using Tool.
CAUTION:
 Do not reuse front oil seal.
 Do not incline the new fron t oil seal when installing.
 Apply multi-purpose grease to the lips of the new front oil seal.
2. Install the companion flange to the drive pinion while aligning the matching marks.
3. Apply anti-corrosive oil to the threads of the drive pinion and the seating surface of the new drive pinion lock nut. Then adjust the
drive pinion lock nut tightening torque using suitable tool A, and
check the total preload torque using Tool B.
 The total preload torque should be within the total preload
torque specification. When not replacing the collapsible
spacer, it should also be equal to the measurement taken dur-
ing removal plus an additional 0.56 N·m (0.06 Kg-m, 5 in-lb).
 If the total preload torque is low, tighten the drive pinion lock nut in 6.8 N·m (0.69 Kg-m, 5ft-lb) increments until the total pre-
load torque is met.
CAUTION:
 Do not reuse drive pinion lock nut.
 Apply anti-corrosive oil to th e threads of the drive pinion
and the seating surface of the new drive pinion lock nut.
 Adjust the drive pinion lock nut tightening torque to the
lower limit first. Do not exceed the drive pinion lock nut
specified torque. Refer to DLN-217, "Disassembly and
Assembly".
 Do not loosen drive pinion lock nut to adjust the total preload torque. If the drive pinion lock nut
torque or the total preload torque exceeds the sp ecifications, replace the collapsible spacer and
tighten it again to adjust. Refer to DLN-217, "Disassembly and Assembly"
.
 After adjustment, rotate drive pinion back and fo rth 2 to 3 times to check for unusual noise, rota-
tion malfunction, and other malfunctions.
4. Installation of the remaining components is in the reverse order of removal. CAUTION:Tool number : SP8P
LDIA0130E
Tool number : KV38100500 (J-25273)
: KV38102200 ( — )
BDIA0003E
Tool number B: ST3127S000 (J-25765-A)
Total preload torque: Refer to DLN-234, "General
Specification".
WDIA0381E
