HOOD SWITCHSEC-45
< COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
Check continuity between hood switch connector E8 terminal 2 and
ground.
Is the inspection result normal?
YES >> GO TO 5
NO >> Repair or replace harness.
5.CHECK HOOD SWITCH
Check continuity between hood switch terminals 1 and 2.
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to PCS-34, "Removal and
Installation of IPDM E/R".
NO >> Replace hood switch.
Connector Terminals Continuity
E8 2Ground Yes
ALKIA1786ZZ
Terminals ConditionContinuity
1- 2 Pressed
No
Released Yes
ALKIA1787ZZ
Revision: December 20092009 QX56

SEC-46
< COMPONENT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
HORN FUNCTION
HORN FUNCTION
Symptom TableINFOID:0000000003775926
HAZARD AND HORN REMINDER FUNCTION MALFUNCTION
NOTE:
• Before performing the diagnosis in the follo
wing table, check “Work flow”. Refer to SEC-3, "
Work Flow".
• If the following symptoms” are detected, check systems shown in the “Diagnosis/service procedure” column in this order.
Conditions of Vehicle (Operating Conditions)
• “ANSWER BACK FUNCTION” is ON when setting on CONSULT-III.
• Ignition switch is in OFF position.
• All doors are closed.
Symptom Diagnosis/service procedureReference
page
Hazard reminder does not operate by request switch.
(Horn reminder operate.) 1.
Check “HAZARD ANSWER BACK” setting in “WORK
SUPPORT”. DLK-53
2. Check hazard function.
DLK-112
3. Check Intermittent Incident. GI-38
Hazard reminder does not operate by Intelligent Key.
(Horn reminder operate.)1.
Check “HAZARD ANSWER BACK” setting in “WORK
SUPPORT”. DLK-53
2. Check hazard function.
DLK-112
3. Check Intelligent Key battery inspection.DLK-106
Horn reminder does not operate by request switch.
(Hazard reminder operate.)1.
Check “ANSWER BACK WITH I-KEY LOCK” or “AN-
SWER BACK WITH I-KEY UNLOCK” setting in “WORK
SUPPORT”. DLK-53
2. Check Intelligent Key warning buzzer.
DLK-95
3. Check Intermittent Incident. GI-38
Horn reminder does not operate by Intelligent Key.
(Hazard reminder operate.)1.
Check “HORN WITH KEYLESS LOCK” setting in
“WORK SUPPORT”. DLK-53
2. Check horn function.
SEC-46
3. Check Intermittent Incident. GI-38
Revision: December 20092009 QX56

VEHICLE SECURITY INDICATORSEC-47
< COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
VEHICLE SECURITY INDICATOR
DescriptionINFOID:0000000003775927
• Vehicle security indicator is built in combination meter.
• NATS (Nissan Anti-Theft System) and vehicle security system conditions are indicated by blink or illumina-
tion of vehicle security indicator.
Component Function CheckINFOID:0000000003775928
1.CHECK FUNCTION
1. Perform “THEFT IND” in the “Active Test” mode with CONSULT-III.
2. Check vehicle security indicator operation.
Is the inspection result normal?
YES >> Inspection End.
NO >> Refer to SEC-47, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003775929
1.SECURITY INDICATOR LAMP ACTIVE TEST
With CONSULT-III
Check "THEFT IND” in "ACTI VE TEST" mode with CONSULT-III.
Without CONSULT-III
1. Disconnect BCM.
2. Check voltage between BCM harness connector M18 terminal 23 and ground.
Is the inspection result normal?
YES >> Security indicator lamp is OK.
NO >> GO TO 2
2.SECURITY INDICATOR LAMP CHECK
Check security indicator lamp condition by performing the self-diagnosis test. Refer to MWI-24, "
Diagnosis
Description".
Is the inspection result normal?
YES >> GO TO 3
NO >> Replace combination meter. Refer to MWI-102, "
Removal and Installation".
3.CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect BCM and combination meter connector.
Te s t i t e m D e s c r i p t i o n
THEFT IND ON
Vehicle security indicator ON
OFF OFF
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M18 23Ground ON
0
OFF Battery voltage
LIIA0523E
Revision: December 20092009 QX56

SEC-48
< COMPONENT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
VEHICLE SECURITY INDICATOR
3. Check continuity between BCM connector (A) M18 terminal 23
and combination meter harness connector (B) M24 terminal 35.
4. Check continuity between BCM connector (A) M18 terminal 23 and ground.
Is the inspection result normal?
YES >> Replace the BCM. Refer to BCS-56, "Removal and
Installation".
NO >> Repair or replace harness. 23 - 35
: Continuity should exist.
23 - Ground : Continuity should not exist.
ALKIA1290ZZ
Revision: December 20092009 QX56

BCM (BODY CONTROL MODULE)SEC-49
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
ECU DIAGNOSIS
BCM (BODY CONTROL MODULE)
Reference ValueINFOID:0000000004221472
VALUES ON THE DIAGNOSIS TOOL
Monitor Item Condition Value/Status
AIR COND SW A/C switch OFF
OFF
A/C switch ON ON
AUT LIGHT SYS Outside of the room is dark
OFF
Outside of the room is bright ON
AUTO LIGHT SW Lighting switch OFF
OFF
Lighting switch AUTO ON
BACK DOOR SW Back door closed
OFF
Back door opened ON
CDL LOCK SW Door lock/unlock switch does not operate
OFF
Press door lock/unlock switch to the LOCK side ON
CDL UNLOCK SW Door lock/unlock switch does not operate
OFF
Press door lock/unlock switch to the UNLOCK side ON
DOOR SW-AS Front door RH closed
OFF
Front door RH opened ON
DOOR SW-DR Front door LH closed
OFF
Front door LH opened ON
DOOR SW-RL Rear door LH closed
OFF
Rear door LH opened ON
DOOR SW-RR Rear door RH closed
OFF
Rear door RH opened ON
ENGINE RUN Engine stopped
OFF
Engine running ON
FR FOG SW Front fog lamp switch OFF
OFF
Front fog lamp switch ON ON
FR WASHER SW Front washer switch OFF
OFF
Front washer switch ON ON
FR WIPER LOW Front wiper switch OFF
OFF
Front wiper switch LO ON
FR WIPER HI Front wiper switch OFF
OFF
Front wiper switch HI ON
FR WIPER INT Front wiper switch OFF
OFF
Front wiper switch INT ON
FR WIPER STOP Any position other than front wiper stop position
OFF
Front wiper stop position ON
HAZARD SW When hazard switch is not pressed
OFF
When hazard switch is pressed ON
LIGHT SW 1ST Lighting switch OFF
OFF
Lighting switch 1st ON
Revision: December 20092009 QX56

SEC-50
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
BCM (BODY CONTROL MODULE)
HEADLAMP SW1Headlamp switch OFF OFF
Headlamp switch 1st
ON
HEADLAMP SW2 Headlamp switch OFF
OFF
Headlamp switch 1st ON
HI BEAM SW High beam switch OFF
OFF
High beam switch HI ON
H/L WASH SW NOTE:
The item is indicated, but not monitored OFF
IGN ON SW Ignition switch OFF or ACC
OFF
Ignition switch ON ON
IGN SW CAN Ignition switch OFF or ACC
OFF
Ignition switch ON ON
INT VOLUME Wiper intermittent dial is in a dial position 1 - 7 1 - 7
I-KEY LOCK LOCK button of Intelligent Key is not pressed
OFF
LOCK button of Intelligent Key is pressed ON
I-KEY UNLOCK UNLOCK button of Intelligent Key is not pressed
OFF
UNLOCK button of Intelligent Key is pressed ON
KEY ON SW Mechanical key is removed from key cylinder
OFF
Mechanical key is inserted to key cylinder ON
OIL PRESS SW • Ignition switch OFF or ACC
• Engine running
OFF
Ignition switch ON ON
PASSING SW Other than lighting switch PASS
OFF
Lighting switch PASS ON
REAR DEF SW Rear window defogger switch OFF
OFF
Rear window defogger switch ON ON
RKE LOCK AND UN-
LOCK NOTE:
The item is indicated, but not monitored OFF
ON
RR WASHER SW Rear washer switch OFF
OFF
Rear washer switch ON ON
RR WIPER INT Rear wiper switch OFF
OFF
Rear wiper switch INT ON
RR WIPER ON Rear wiper switch OFF
OFF
Rear wiper switch ON ON
RR WIPER STOP Rear wiper stop position
OFF
Other than rear wiper stop position ON
TAIL LAMP SW Lighting switch OFF
OFF
Lighting switch 1ST ON
TRNK OPNR SW When back door opener switch is not pressed
OFF
When back door opener switch is pressed ON
TURN SIGNAL L Turn signal switch OFF
OFF
Turn signal switch LH ON
TURN SIGNAL R Turn signal switch OFF
OFF
Turn signal switch RH ON
VEHICLE SPEED While driving Equivalent to speedometer reading
Monitor Item
Condition Value/Status
Revision: December 20092009 QX56

BCM (BODY CONTROL MODULE)SEC-51
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P

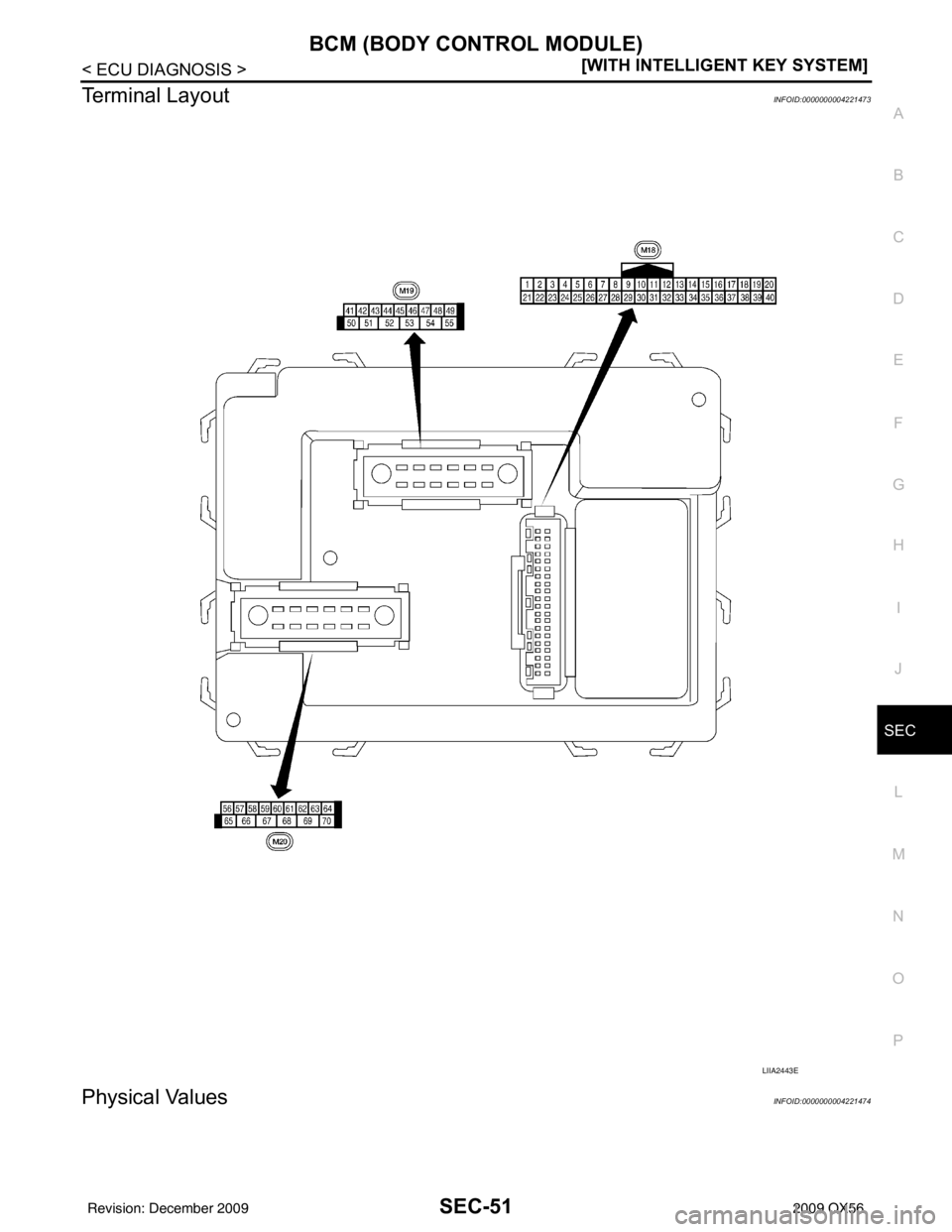

Terminal LayoutINFOID:0000000004221473
Physical ValuesINFOID:0000000004221474
LIIA2443E
Revision: December 20092009 QX56

SEC-52
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
BCM (BODY CONTROL MODULE)
Te r m i n a lWire
color Signal name Signal
input/
output Measuring condition
Reference value or waveform
(Approx.)
Ignition
switch Operation or condition
1BR/W Ignition keyhole illumi-
nation Output OFFDoor is locked (SW OFF)
Battery voltage
Door is unlocked (SW ON) 0V
2SB Combination switch
input 5 Input ON
Lighting, turn, wiper OFF
Wiper dial position 4
3G/Y Combination switch
input 4 Input ONLighting, turn, wiper OFF
Wiper dial position 4
4Y Combination switch
input 3 Input ON
Lighting, turn, wiper OFF
Wiper dial position 4
5G/B Combination switch
input 2
Input ONLighting, turn, wiper OFF
Wiper dial position 4
6V Combination switch
input 1
9GR/R Rear window defogger
switch
Input ONRear window defogger switch
ON
0V
Rear window defogger switch
OFF 5V
10 G Hazard lamp flash Input OFF ON (opening or closing)
0V
OFF (other than above) Battery voltage
11 O Ignition switch (ACC
or ON)
InputACC or
ON Ignition switch ACC or ON
Battery voltage
12 R/L Front door switch RH Input OFF ON (open)
0V
OFF (closed) Battery voltage
13 GR Rear door switch RH Input OFF ON (open)
0V
OFF (closed) Battery voltage
15 L/W Tire pressure warning
check connector
Input OFF
—5V
18 P Remote keyless entry
receiver and optical
sensor (ground)
Output OFF
—0V
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
