CONTENTS
SEAT
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Work Flow ........................................................... ......3
INSPECTION AND ADJUSTMENT .....................5
Preliminary Check ............................................... ......5
FUNCTION DIAGNOSIS ...............................6
THIRD ROW POWER FOLDING SEAT ......... .....6
System Description ............................................. ......6
Component Parts Location ........................................7
Component Description .............................................7
COMPONENT DIAGNOSIS ..........................8
POWER SEAT .....................................................8
Wiring Diagram — Passenger Side — ................ ......8
HEATED SEAT ...................................................12
Description ..............................................................12
Wiring Diagram .......................................................13
THIRD SEAT ......................................................19
Power Supply and Ground Circuit Check for Third
Row Power Folding Seat Control Unit ................. ....
19
Third Row Power Folding Seat Switch ....................20
Third Row Power Folding Seat Motor .....................20
ECU DIAGNOSIS .........................................22
THIRD ROW POWER FOLDING SEAT CON-
TROL UNIT .........................................................
22
Reference Value ................................................. ....22
Wiring Diagram .......................................................24
DTC Index ...............................................................29
Fail Safe ..................................................................30
SYMPTOM DIAGNOSIS ..............................31
THIRD ROW POWER FOLDING SEAT ......... ....31
Symptom Table ................................................... ....31
NONE OF THE THIRD ROW POWER FOLD-
ING SEATS WILL OPERATE WITH ANY
SWITCH. ............................................................
32
None of the Third Row Power Folding Seats Will
Operate With Any Third Row Power Folding Seat
Switch .................................................................. ....
32
ONLY ONE THIRD ROW POWER FOLDING
SEAT WILL OPERATE. ....................................
33
Only One Third Row Power Folding Seat Will Op-
erate .................................................................... ....
33
THIRD ROW POWER FOLDING SEAT WILL
OPERATE IN ONLY ONE DIRECTION. ...........
35
Third Row Power Folding Seat Will Operate in
Only One Direction .............................................. ....
35
THIRD ROW POWER FOLDING SEAT WILL
STOP SHORT OF IT’S FULLY UP OR DOWN
POSITION. .........................................................
36
Third Row Power Folding Seat Stops Short of it's
Fully Up or Down Position .......................................
36
THIRD ROW POWER FOLDING SEAT
MAKES EXCESSIVE NOISE WHILE MOV-
ING. ...................................................................
37
Third Row Power Folding Seat Makes Excessive
Noise While Moving ............................................. ....
37
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................
38
Work Flow ................................................................38
Generic Squeak and Rattle Troubleshooting ...........40
Diagnostic Worksheet ..............................................42
PRECAUTION ..............................................44
PRECAUTIONS .................................................44
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ....
44
Revision: December 20092009 QX56

SE-8
< COMPONENT DIAGNOSIS >
POWER SEAT
COMPONENT DIAGNOSIS
POWER SEAT

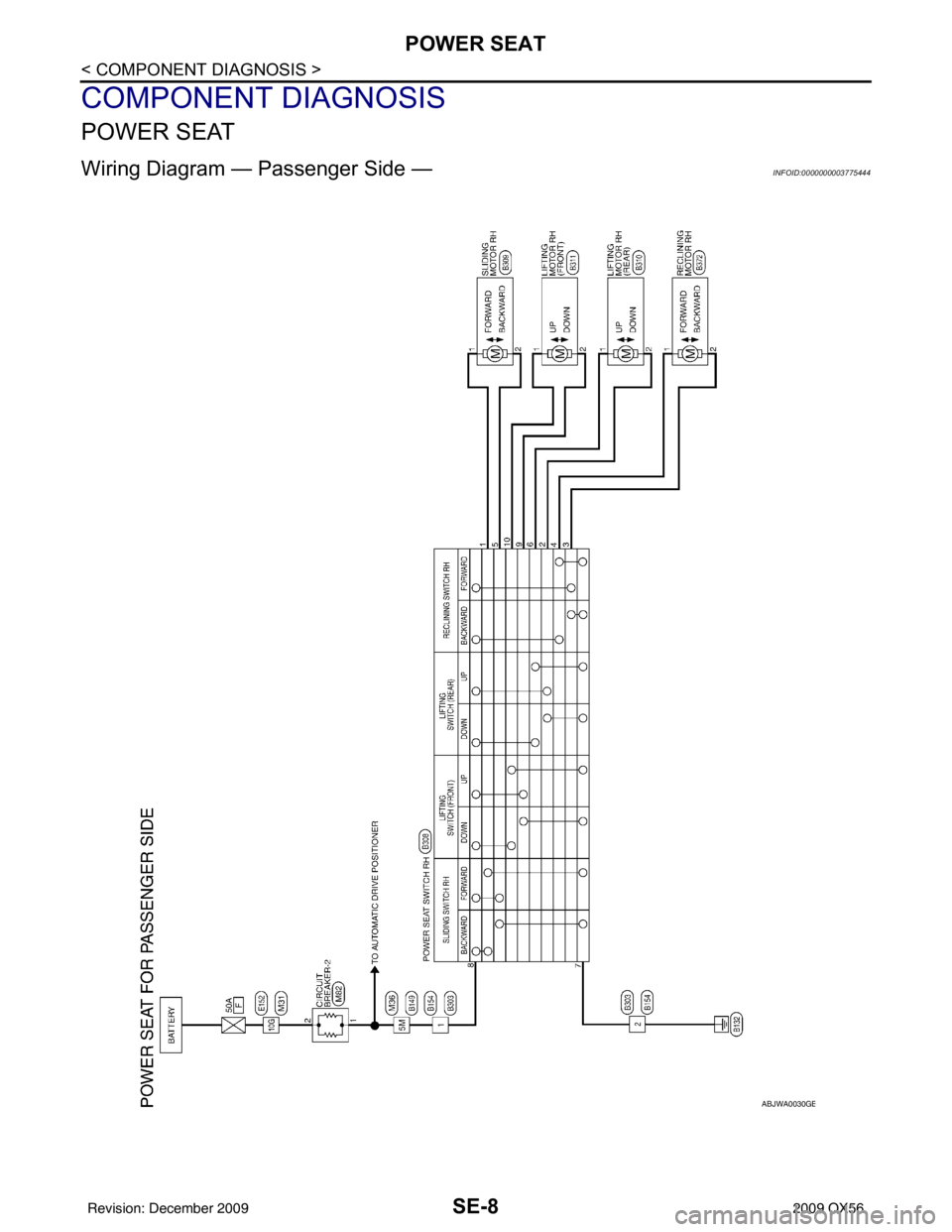

Wiring Diagram — Passenger Side —INFOID:0000000003775444
ABJWA0030GB
Revision: December 20092009 QX56

HEATED SEATSE-13
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

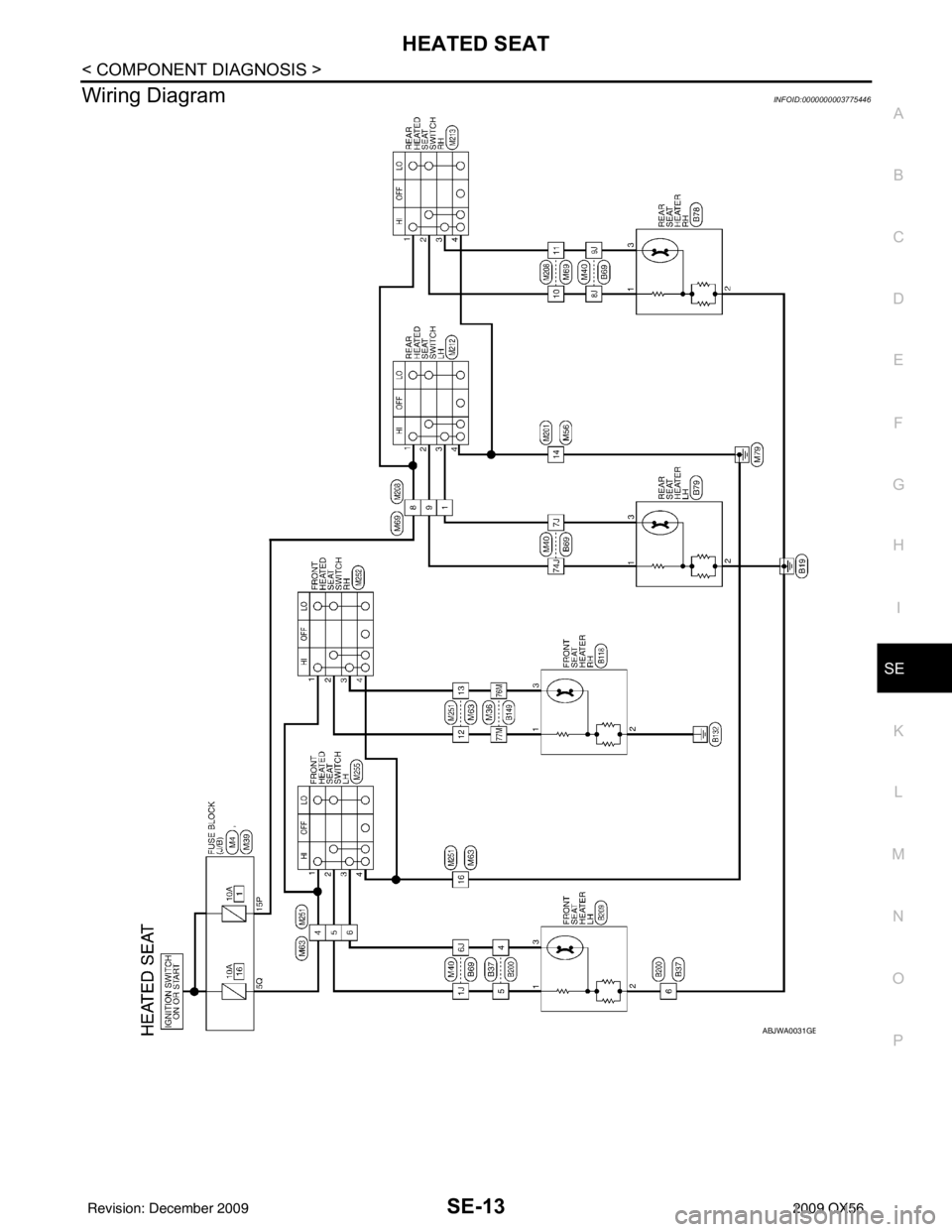

Wiring DiagramINFOID:0000000003775446
ABJWA0031GB
Revision: December 20092009 QX56

SE-24
< ECU DIAGNOSIS >
THIRD ROW POWER FOLDING SEAT CONTROL UNIT
Wiring Diagram
INFOID:0000000003775451
ABJWA0032GB
Revision: December 20092009 QX56

SEC-1
BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY
C
DE
F
G H
I
J
L
M
SECTION SEC
A
B
SEC
N
O P
CONTENTS
SECURITY CONTROL SYSTEM
WITH INTELLIGENT KEY SYSTEM
BASIC INSPECTION ....... .............................
3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Work Flow ........................................................... ......3
INSPECTION AND ADJUSTMENT .....................6
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT .................................................... ......
6
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement .......
6
ECM RE-COMMUNICATING FUNCTION ............. ......6
ECM RE-COMMUNICATING FUNCTION : De-
scription .....................................................................
6
ECM RE-COMMUNICATING FUNCTION : Spe-
cial Repair Requirement ............................................
6
FUNCTION DIAGNOSIS ...............................7
INTELLIGENT KEY SYSTEM/ENGINE
START FUNCTIO N ........................................ .....
7
System Diagram .................................................. ......7
System Description ...................................................7
Component Parts Location ........................................9
Component Description ...........................................10
INFINITI VEHICLE IMMOBILIZER SYSTEM-
NATS ..................................................................
11
System Diagram .................................................. ....11
System Description .................................................11
Component Parts Location ......................................13
Component Description ..........................................13
VEHICLE SECURITY SYSTEM .........................15
System Diagram .................................................. ....15
System Description .................................................15
Component Parts Location ......................................16
Component Description ...........................................17
DIAGNOSIS SYSTEM (BCM) ............................18
COMMON ITEM ..................................................... ....18
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
18
IMMU ...................................................................... ....18
IMMU : CONSULT-III Function (BCM - IMMU) ........18
THEFT ALM ........................................................... ....19
THEFT ALM : CONSULT-III Function (BCM -
THEFT ALM) ....................................................... ....
19
DIAGNOSIS SYSTEM (INTELLIGENT KEY
UNIT) .................................................................
20
CONSULT-III Function (INTELLIGENT KEY) ..........20
COMPONENT DIAGNOSIS .........................22
U1000 CAN COMM CIRCUIT ...........................22
Description ........................................................... ....22
DTC Logic ................................................................22
Diagnosis Procedure ...............................................22
U1010 CONTROL UNIT (CAN) .........................23
Description ...............................................................23
DTC Logic ................................................................23
Diagnosis Procedure ...............................................23
Special Repair Requirement ....................................23
B2013 ID DISCORD I-KEY-STRG ....................24
Description ...............................................................24
DTC Logic ................................................................24
Diagnosis Procedure ...............................................24
B2190, P1614 NATS ANTENNA AMP. ............27
Description ...............................................................27
DTC Logic ................................................................27
Diagnosis Procedure ...............................................27
B2191, P1615 DIFFERENCE OF KEY .............30
Description ...............................................................30
DTC Logic ................................................................30
Diagnosis Procedure ...............................................30
Revision: December 20092009 QX56

SEC-2
B2192, P1611 ID DISCORD, IMMU-ECM .........31
Description ........................................................... ...31
DTC Logic ...............................................................31
Diagnosis Procedure ..............................................31
B2193, P1612 CHAIN OF ECM-IMMU ..............33
Description ........................................................... ...33
DTC Logic ...............................................................33
Diagnosis Procedure ..............................................33
B2194 ID DISCORD IMMU-I-KEY .....................34
Description ........................................................... ...34
DTC Logic ...............................................................34
Diagnosis Procedure ..............................................34
B2552 INTELLIGENT KEY ................................35
Description ........................................................... ...35
DTC Logic ...............................................................35
Diagnosis Procedure ..............................................35
Special Repair Requirement ...................................35
B2590 ID DISCORD BCM-I-KEY .................... ...36
Description ........................................................... ...36
DTC Logic ...............................................................36
Diagnosis Procedure ..............................................36
P1610 LOCK MODE ..........................................37
Description ........................................................... ...37
DTC Logic ...............................................................37
Diagnosis Procedure ..............................................37
POWER SUPPLY AND GROUND CIRCUIT .....38
INTELLIGENT KEY UNIT ...................................... ...38
INTELLIGENT KEY UNIT : Diagnosis Procedure ...38
BCM ........................................................................ ...38
BCM : Diagnosis Procedure ...................................38
KEY CYLINDER SWITCH .................................40
Description ........................................................... ...40
Component Function Check ...................................40
Diagnosis Procedure ..............................................40
IGNITION KNOB SWITCH .................................42
Ignition Knob Switch Check ................................. ...42
HOOD SWITCH .................................................44
Diagnosis Procedure ..............................................44
HORN FUNCTION .............................................46
Symptom Table ................................................... ...46
VEHICLE SECURITY INDICATOR ....................47
Description ........................................................... ...47
Component Function Check .................................47
Diagnosis Procedure ..............................................47
ECU DIAGNOSIS ..................................... ...49
BCM (BODY CONTROL MODULE) ............... ...49
Reference Value .................................................. ...49
Terminal Layout ......................................................51
Physical Values .......................................................51
Wiring Diagram - VEHICLE SECURITY SYSTEM ...57
Wiring Diagram - IVIS .............................................68
Fail Safe .................................................................76
DTC Inspection Priority Chart ...............................77
DTC Index ..............................................................77
INTELLIGENT KEY UNIT ..................................79
Reference Value - Intelligent Key Unit ................. ...79
Reference Value - Steering Lock Solenoid .............82
Wiring Diagram - INTELLIGENT KEY SYSTEM/
ENGINE START FUNCTION - ................................
83
Fail Safe .................................................................95
DTC Inspection Priority Chart ...............................95
DTC Index ..............................................................95
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) .................
96
Reference Value .................................................. ...96
Terminal Layout ......................................................98
Physical Values .......................................................98
Fail Safe ...............................................................102
DTC Index ............................................................103
SYMPTOM DIAGNOSIS ...........................104
INTELLIGENT KEY SYSTEM/ENGINE
START FUNCTION SYMPTOMS ................... ..
104
Symptom Table .................................................... .104
VEHICLE SECURITY SYSTEM SYMPTOMS ..105
Symptom Table .....................................................105
INFINITI VEHICLE IMMOBILIZER SYSTEM-
NATS SYMPTOMS ...........................................
106
Symptom Table .................................................... .106
ON-VEHICLE MAINTENANCE .................107
PRE-INSPECTION FOR DIAGNOSTIC ......... ..107
Basic Inspection ................................................... .107
Vehicle Security Operation Check ........................107
PRECAUTION ...........................................109
PRECAUTIONS .............................................. ..109
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. .
109
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ................................
109
ON-VEHICLE REPAIR ..............................111
VEHICLE SECURITY SYSTEM ...................... ..111
Removal and Installation .......................................111
Revision: December 20092009 QX56

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-7
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
FUNCTION DIAGNOSIS
INTELLIGENT KEY SYSTEM /ENGINE START FUNCTION
System DiagramINFOID:0000000003775868
System DescriptionINFOID:0000000003775869
INPUT/OUTPUT SIGNAL CHART
Intelligent Key Unit
IPDM E/R
BCM
SYSTEM DESCRIPTION
• The engine start function of Intelligent Key system is a system that makes it possible to start and stop the
engine without using the key. It verifies the electr onic ID using two-way communications when pressing the
ignition knob switch while carrying the Intelligent Key, which operates based on the results of electronic ID
verification for Intelligent Key using two-way communications between the Intelligent Key and the vehicle.
NOTE:
The driver should carry the Intelligent Key at all times.
Switch/Input signal Input signal to
Intelligent Key unit Intelligent Key unit
function Actuator/Output signal
Key switch Mechanical key
(insert/remove)
Engine start function• KEY warning lamp/buzzer
• Steering lock solenoid
• Starter relay requ
est (to IPDM E/R)
• Inside key antenna
(Front and rear center console, over-
head console, luggage compartment)
• Key interlock solenoid
Ignition knob switch
Ignition knob
(push/release)
Steering lock solenoid Steering lock
(lock/unlock)
Inside key antenna
(Front and rear center console, over-
head console, luggage compartment) Intelligent key
(inside antenna detection
area or not.)
Switch/Input signal Input signal to
IPDM E/R IPDM E/R function
Actuator/Output signal
Park/neutral position switch P, N range Engine start function• Starter relay
• Starter motor
Switch/Input signal Input signal to
BCM BCM function
Actuator/Output signal
Key switch Brake
(press/release)
Engine start function• Inside key antenna
(Front and rear center console, over-
head console, luggage compartment)
ALKIA0925GB
Revision: December 20092009 QX56

INFINITI VEHICLE IMMOBILIZER SYSTEM-NATSSEC-11
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS
System DiagramINFOID:0000000003775872
System DescriptionINFOID:0000000003775873
INPUT/OUTPUT SIGNAL CHART
Intelligent Key Unit
BCM
SYSTEM DESCRIPTION
NATS (Nissan Anti-Theft System) has the following immobilizer functions:
• Engine immobilizer shows high anti-theft performance to prevent engine from starting by other than the owner.
• Only a key with key ID registered in BCM and ECM can start engine, and shows high anti-theft performance to prevent key from being copied or stolen.
• Security indicator always flashes with mechanical key removed condition (key switch: OFF) and ignition
knob released condition on LOCK posit ion (ignition knob switch: OFF).
• Therefore, NATS warns outsiders that the vehicl e is equipped with the anti-theft system. Refer to SEC-15,
"System Description".
• If system detects malfunction, security indicator illuminates when ignition switch is turned to ON position.
• If the owner requires, ignition key ID or mechanical key ID can be registered for up to 4 keys.
• During trouble diagnosis or when the following parts have been replaced, and if mechanical key is added, registration* is required.
*1: All keys kept by the owner of the vehi cle should be registered with mechanical key.
-ECM
-BCM
LIIA2537E
Switch/Input signal Input signal to BCM BCM function Actuator/Output signal
Ignition knob switch Ignition knob
(push/release)
NATS• Steering lock solenoid
Key switch
Mechanical key
(Insert/remove)
Steering lock solenoid Ste eri ng
(lock/unlock)
ECM Engine status signal
Switch/Input signalInput signal to BCM BCM function Actuator/Output signal
NATS antenna amp. Key ID
NATS• Security indicator lamp
• Starter request
ECM Engine status signal
Revision: December 20092009 QX56
