2009 HONDA S2000 lock

´
Õ Ü
To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up. Align the mark on the cover
with the mark on the
transmitter. Set the cover in place,
andturnitclockwise.
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR2025 An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations f or
battery disposal.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.Replacing the Transmitter
Battery
Remote Transmitter
68
BATTERY ROUND
COVER
2009 S2000

µ
To adjust the seat forward and
backward, pull up on the lever under
the seat cushion’s f ront edge. Then
trytomovetheseattomakesureit
is locked in position.To change the seat-back angle, pull
up on the lever on the outside of the
seat bottom.
Make all seat adjustments bef ore
you start driving.
See pagesf or important saf ety
inf ormation and warnings about how toproperly position the seats and seat-backs. 1012
Seats
Inst rument s and Cont rols
69
2009 S2000

Bef ore operating the convertible top,
make sure the vehicle is parked on
level ground, the rear def ogger is of f ,
and there is enough clearance above
the top.Apply the parking brake. The
convertible top will not operate
unless the parking brake is f ully
engaged.
Thereisalatchoneachside.Push
in the tabs, and pull the locking
levers down.
Turn the ignition switch to the ON
(II) position.
It is advisable to raise the top
whenever you park the vehicle. This
helps to protect the vehicle f rom
unexpected weather changes, and
f rom thef t of your valuables.
The convertible top on your vehicle
lowers and raises electrically.
1.
2.3.
Except CR modelsLowering the Convertible Top
Convertible Top
72
LATCHTAB
LOCKING LEVER
Park your vehicle in the shade
whenever possible. Extended
exposure to sunlight can cause the
convertible top to deteriorate.
Do not operate the convertible top if
the vehicle is on a jack, a hoist, or on
jack stands.
Never drive the vehicle with the
convertible top half open.
Do not operate the top if it is wet,
dirty, or covered with ice or snow.
Do not operate the convertible top in
f reezing weather. Y ou can damage
the material and the mechanism.
2009 S2000

With the latches released, push
the locking levers up until they
latch.PullbackandholdtheROOF
switch. The windows lower and
the roof f olds back. Release the
ROOF switch when the roof is
retracted completely into the rear
shelf .
4.
5.
Convertible Top
Inst rument s and Cont rols
73
LOCKING LEVER
ROOF SWITCH
Operating the convertible top
while any part of a passenger is
in the way of the convertible top
can cause serious injury.
Make sure that you, your
passenger, or any other people
around the vehicle are clear of
the moving convertible top.
Do not sit on the f olded convertible top,
or place any items on top of it. You
could damage the top or the rear
window.
2009 S2000

Push the locking levers up while
holding the tab. When the latch is
in place, release the tab. Make
sure the convertible top is securely
latched.
Push in the tab to release the
locking levers, and pull them down.
Note the movement of the latch
when you push in the tab.
While holding the lever down,
push in the tab to engage the latch
in the windshield header. Pull the
topdownandforwardif necessary.
Apply the parking brake. The
convertible top will not operate
unless the parking brake is f ully
engaged.
Turn the ignition switch to the ON
(II) position.
Push the ROOF switch f orward
and hold it. The windows, if raised,
will lower automatically.
The convertible top will rise.
Release the ROOF switch when
the top reaches the windshield
header.
5. 6.
4.
1.
2.
3.
Convertible Top
Raising the Convertible T op
76
TAB
LATCH
LOCKING LEVER
Operating the convertible top
while any part of a passenger is
in the way of the convertible top
can cause serious injury.
Make sure that you, your
passenger, or any other people
around the vehicle are clear of
the moving convertible top.
2009 S2000

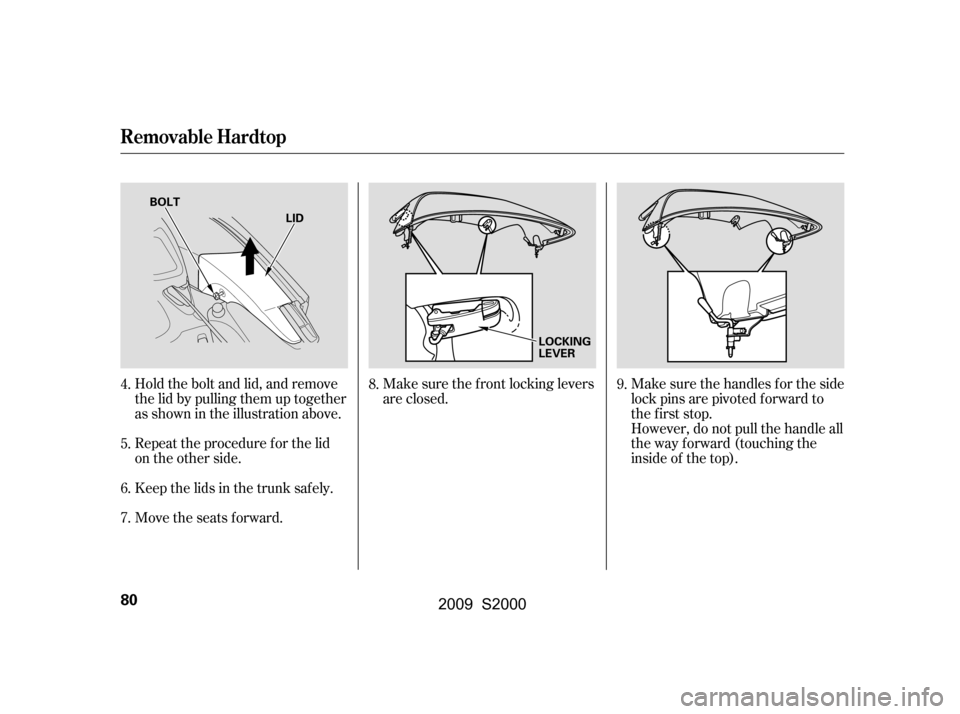

Hold the bolt and lid, and remove
the lid by pulling them up together
as shown in the illustration above.
Repeattheprocedureforthelid
on the other side.
Keep the lids in the trunk saf ely.
Move the seats forward.Make sure the f ront locking levers
are closed.
Make sure the handles f or the side
lock pins are pivoted f orward to
the f irst stop.
However, do not pull the handle all
the way forward (touching the
inside of the top).
4.
5.
6.
7. 8.
9.
Removable Hardtop
80
LOCKING
LEVER
LID
BOLT
2009 S2000

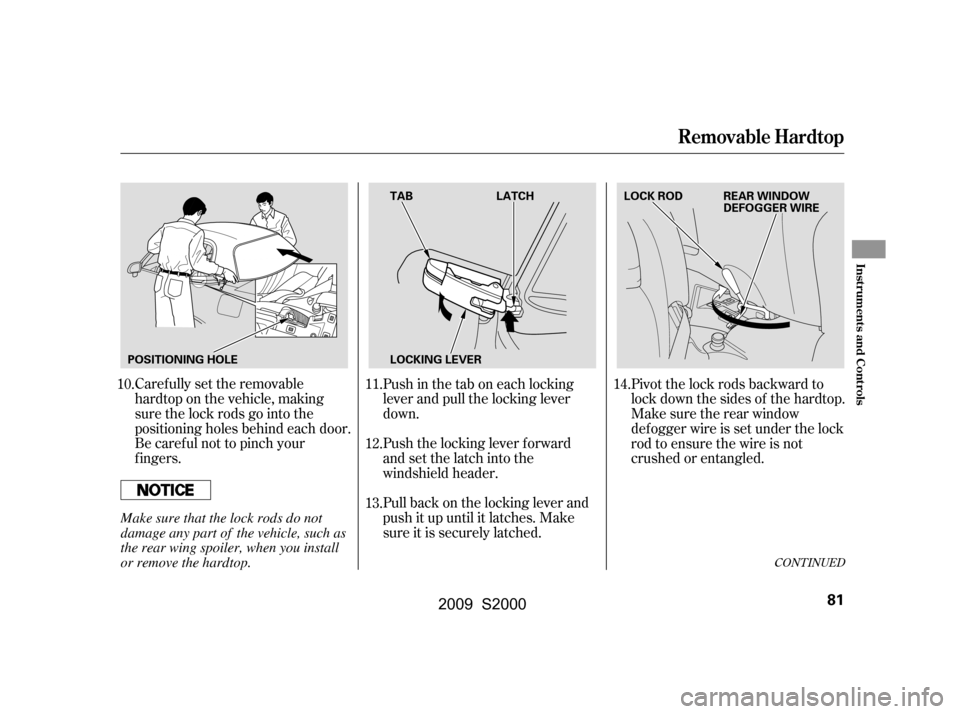

Caref ully set the removable
hardtop on the vehicle, making
sure the lock rods go into the
positioning holes behind each door.
Be caref ul not to pinch your
f ingers.Push in the tab on each locking
lever and pull the locking lever
down.
Push the locking lever f orward
and set the latch into the
windshield header.
Pull back on the locking lever and
push it up until it latches. Make
sure it is securely latched.Pivot the lock rods backward to
lock down the sides of the hardtop.
Make sure the rear window
def ogger wire is set under the lock
rod to ensure the wire is not
crushed or entangled.
10.
11.
12.
13. 14.
CONT INUED
Removable Hardtop
Inst rument s and Cont rols
81
POSITIONING HOLE
LOCKING LEVERTAB
LATCH LOCK ROD REAR WINDOW
DEFOGGER WIRE
Make sure that the lock rods do not
damage any part of the vehicle, such as
the rear wing spoiler, when you install
or remove the hardtop.
2009 S2000

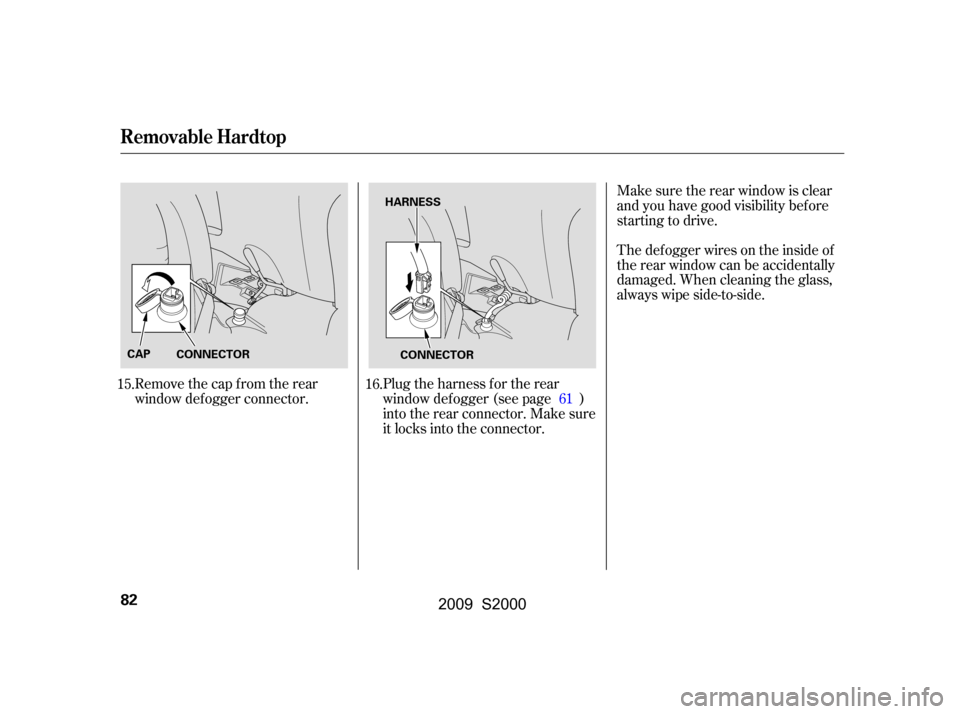

Plug the harness f or the rear
window def ogger (see page )
into the rear connector. Make sure
it locks into the connector.
Remove the cap from the rear
window def ogger connector. Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side-to-side.
15. 16.
61
Removable Hardtop
82
CAPCONNECTOR
CONNECTOR
HARNESS
2009 S2000
