2009 HONDA S2000 Owners Manual

If you need to park your vehicle f or
an extended period (more than 1
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.Fill the f uel tank. Block the rear wheels.
If the vehicle is to be stored f or a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Leave one window open slightly (if
the vehicle is being stored
indoors).
Disconnect the battery.Cover the vehicle with a
‘‘breathable’’ cover, one made
f rom a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
Support the f ront wiper blade
arms with a f olded towel or rag so
they do not touch the windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals. If possible, periodically run the
engine until it reaches f ull
operating temperature (the
cooling f an cycles on and of f
twice). Pref erably, do this once a
month.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry.
Raise the convertible top cover.
Leave the parking brake off. Put
the transmission in reverse.
Vehicle Storage
198
2009 S2000

This section covers the more
common problems that motorists
experience with their vehicles. It
gives you inf ormation about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also f ind instructions
on getting your vehicle towed.......................
Compact Spare Tire .200
....................
Changing a Flat Tire .201
....................
Repairing a Flat Tire .206
.............
If the Engine Won’t Start .212
................................
Jump Starting .214
..............
If the Engine Overheats .215
.........
Low Oil Pressure Indicator .218
..........
Charging System Indicator .218
.......
Malf unction Indicator Lamp .219
...............
Brake System Indicator .220
.......
Closing the Convertible Top .221
..............................................
Fuses .222
..........
Checking and Replacing .223
..............................
Fuse Locations .226
......................
Emergency Towing .228
..........
If Your Vehicle Gets Stuck .228
Taking Care of the Unexpected
T aking Care of t he Unexpect ed
199
2009 S2000

Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
samewheel.Thesparetireisnot
designed to be mounted on a regular
wheel, and the spare wheel is not
designed f or mounting a regular tire.
Check the inf lation pressure of the
compact spare tire every time you
check the other tires. It should be
inf lated to:
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road
surf aces. Use greater caution
while driving.
Do not mount tire chains on the
compact spare tire. Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Do not mount the compact spare
tire on either rear wheel position;
it will damage the limited slip
dif f erential (see page ).
The low tire pressure indicator
comes on and stays on af ter you
replace the flat tire with the
compact spare tire. Af ter several
miles (kilometers) driving with the
compact spare tire, the TPMS
indicator comes on and the low
tire pressure indicator goes of f .
201
Except CR models
Compact Spare Tire
200
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm)
2009 S2000

Open the trunk. Lift up the tool
box lid, and take the jack, the
wheel nut wrench, and the
extension out of the tool box.
Thecompactsparetireissmaller
than a standard tire, which will affect
the vehicle’s handling. Drive
cautiously when this spare is
mounted on your vehicle.
If you have a f lat tire while driving,
stop in a saf e place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.
Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have your
passenger get out of the vehicle
while you change the tire.
Park the vehicle on f irm, level, and
non-slippery ground. Put the
transmission in reverse. Apply the
parking brake.
Thesizedifferencemayalsocause
damage to the rear dif f erential, so do
not mount the compact spare on the
rear. If either rear tire goes f lat,
remove the f ront tire on that same
side, mount the compact spare tire
on the f ront, then mount the f ront
tire on the rear.
Your vehicle is equipped with the
tire repair kit instead of the spare
tire. This kit is available f or easy
repair of a f lat tire (see page ). 3.
1.
2.
206
CONT INUED
Except CR models
CR models
Changing a Flat Tire
T aking Care of t he Unexpect ed
201
TOOL BOX LID
JACK
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack. Use the jack that came with your
vehicle. If you try to raise another
vehicle with this jack or use another
jack to raise your vehicle, the vehicle or
jack can be damaged.
2009 S2000

Unscrew the wing bolt, and take
the spare tire out of the spare tire
shelf .
Remove the three clips holding
the spare tire cover by pulling the
rings straight back. Remove the
sparetirecover.
Loosen each wheel nut 1/2 turn
with the wheel nut wrench.Place the jack under the jacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the center of the jacking
point tab is resting in the jack
notch.
4.
5.
6. 7.
Changing a Flat Tire
202
SPARETIRECOVER WHEEL NUT WRENCH
JACKING
POINT
CLIPS
2009 S2000

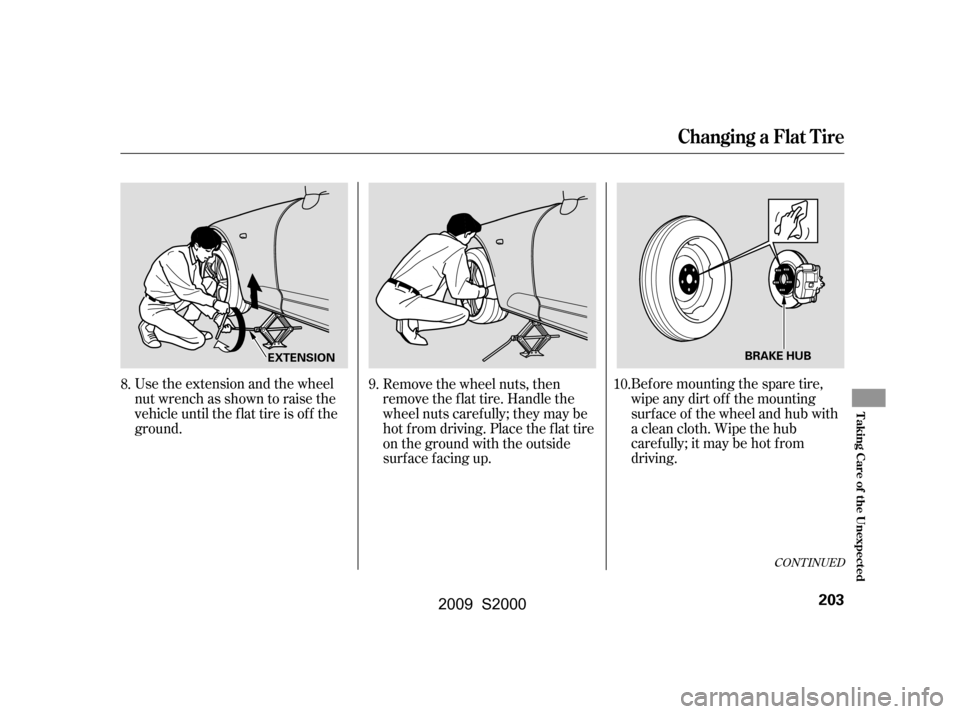

Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.Bef ore mounting the spare tire,
wipeanydirtoff themounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
Remove the wheel nuts, then
removetheflattire.Handlethe
wheel nuts caref ully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.
8.
9.10.
CONT INUED
Changing a Flat Tire
T aking Care of t he Unexpect ed
203
BRAKE HUB
EXTENSION
2009 S2000

Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is f irmly against
the hub. Do not try to tighten the
wheel nuts f ully.Lower the vehicle to the ground,
and remove the jack.
Tighten the wheel nuts securely in
a crisscross pattern. Have the
wheel nut torque checked at the
nearest automotive service f acility.
Tighten the wheel nuts to:
11.
12.13.
Changing a Flat Tire
204
80 lbf·ft (108 N·m , 11 kgf·m)
2009 S2000

Put the flat tire in the trunk well
vertically as shown.
Remove the tool box f rom the
trunk well, and replace the jack,
wheel wrench, and extension in
the tool box.
Place the tool box into the spare
tire shelf in the trunk.
Replacethesparetirecover.
Secure it with the three clips. Push
each clip in securely, and pivot the
ring down f lat.Your vehicle’s original tire has a
tire pressure monitoring system
sensor. To replace a tire, ref er to (see
page ). 155
17.
18.
16.
14.
15.
Changing a Flat Tire
Changing a T ire with T PMS
T aking Care of t he Unexpect ed
205
CLIPS
SPARETIRECOVER
TOOL BOX
2009 S2000
