2009 HONDA S2000 Owners Manual

94
2009 S2000

The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them. (If you have an optional
audio system, ref er to the operating
instructions that came with it.)
The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it................
Vents, Heating, and A/C .96
........................
Vents and Heating .100
..........
Playing the AM/FM Radio .104
............
AM/FM Radio Reception .107
.
Playing the XM
Satellite Radio .109
..................................
Playing a CD .114
...................................
CD Changer .116
....................
Protecting Your CDs .117
.........
CD Player Error Messages .120
.....
CD Changer Error Messages .121
................
Remote Audio Controls .122
.................
Radio Thef t Protection .123
...............................
Cruise Control .124
Features
Features
95
2009 S2000

Vents, Heating, and A/C
96

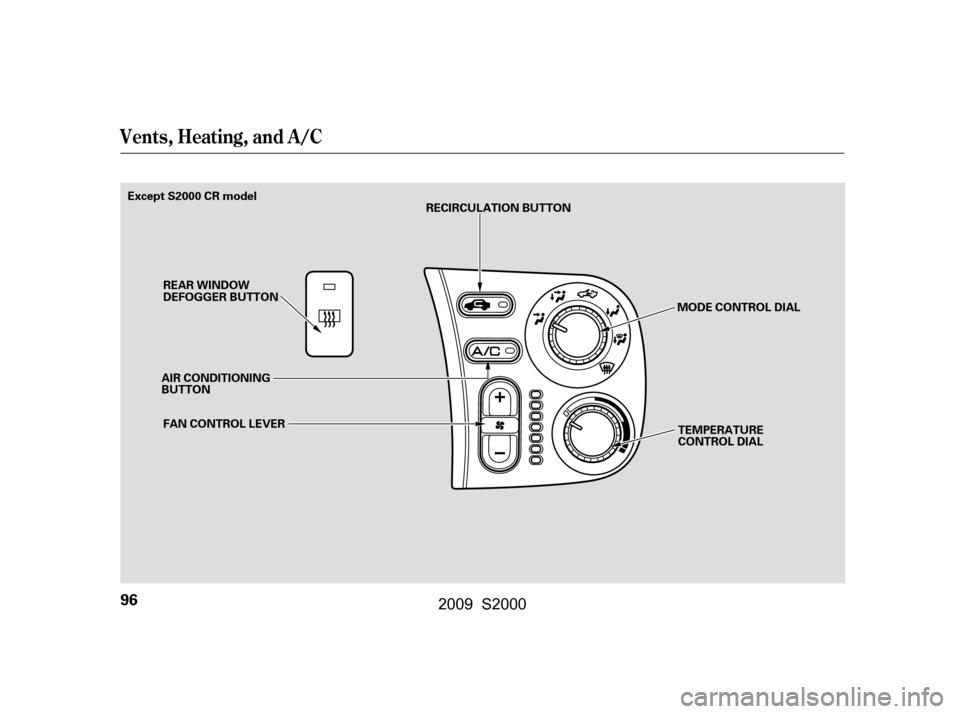

AIR CONDITIONING
BUTTONFAN CONTROL LEVER MODE CONTROL DIAL
TEMPERATURE
CONTROL DIAL
REAR WINDOW
DEFOGGER BUTTON
RECIRCULATION BUTTON
Except S2000 CR model
2009 S2000

Push this lever up and down to
increase or decrease the f an speed
and airf low. The indicators next to
the lever show you the speed and
airf low selected.
This button turns the air
conditioning on and of f . The
indicator in the button comes on
when the A/C is on.
Turning this dial clockwise increases
the temperature of the airflow.
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent through the system again
(recirculation mode). When the
indicator is of f , air is brought in f rom
the outside of the vehicle (f resh airmode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Do not push the def ogger button
when the convertible top is f olded.
Use the mode control dial to select
the vents the air flows from. Some
air will f low f rom the dashboard
vents in all modes.
Air flows from the vents on
both sides of the instrument panel,
andfromthedashboardventinfront
of the passenger.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air flows from the center
vents in the dashboard above the
audio system, the vents on both
sides of the instrument panel, and
f rom the f loor vents. Select this
position when you drive with the
convertible top f olded.
61
CONT INUED
Vents, Heating, and A/C
Fan Control L ever
Air Conditioning (A/C) Button
T emperature Control Dial
A irf low Controls
Recirculation Button Rear Window Def ogger ButtonMode Control Dial
Features
97
2009 S2000

Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents behind the seat-backs.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system. Select and fresh air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial. Set the f an to the desired speed.
Turn on the A/C by pressing the
button. The indicator in the button
comes on.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Air f lows f rom the f loor
vents and the vents on both sides of
the instrument panel.
When you select , the system
automatically switches to f resh air
mode.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield,
and the vents on both sides of the
instrument panel.
Air f lows f rom the def roster
vents at the base of the windshield
and the vents on both sides of the
instrument panel.
When you select or ,
the system automatically switches to
f resh air mode and turns on the A/C. you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
1.
2.
3.
4.
1.
2.
3.
1.
2.
3.
4.
5.
55
If the interior is very warm,
Vents, Heating, and A/C
Using the A/C
Ventilation
Using the Heater
98
2009 S2000

Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry and
can prevent the windows f rom
f ogging up.Turn the fan on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
pref erence.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
To remove f og f rom the inside of the
windows: Set the f an to the desired speed, or
high f or f aster def rosting.
Select . The system
automatically switches to f resh air mode and turns on the A/C.
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the corner vents.
When you select or ,
the system automatically turns on
the A/C. This helps to dehumidif y
the air and to def og the windshield.
In either mode, you cannot turn of f
the A/C.
When you switch to another mode
f rom or , the A/C
stayson.PresstheA/Cbuttonto
turn it off. Push the f an control level down until
the indicator goes off. A lack of
airf low can cause the windows to f og
up. You should keep the f an on at all
times so stale air and moisture do
not build up in the interior and cause
f ogging.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
To clear the windows f aster, you can
close the dashboard corner vents
and the vents on both sides of the
instrument panel by rotating the
wheel below the vent. This will send
more warm air to the windshield
def roster vents. Once the windshield
is clear, select f resh air mode to
avoid f ogging the windows.
Select . The system
automatically switches to f resh air
mode and turns on the A/C. Select .
Set the f an and temperature
controls to the maximum level.
1.
2.
3.
4.
1.
2. 3.
4.
5.
1.2.
3.
Vents, Heating, and A/C
Dehumidif y the Interior
To Defog and Defrost To Turn Everything Off
T o Remove Exterior Frost or Ice
From the Windows
Features
99
2009 S2000

Vents and Heating
100

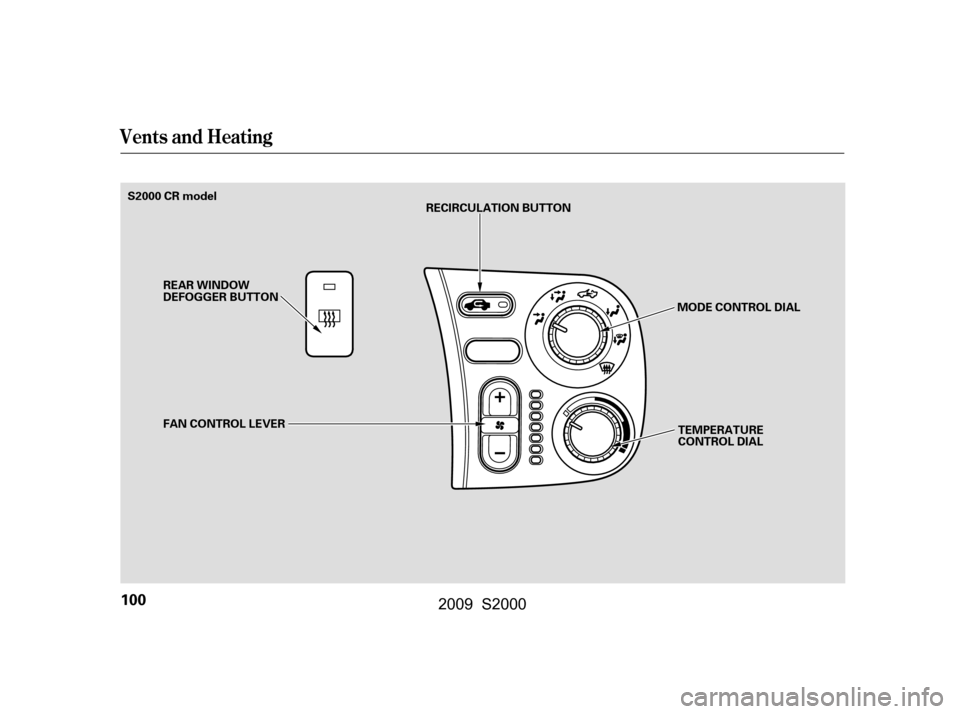

FAN CONTROL LEVERMODE CONTROL DIAL
TEMPERATURE
CONTROL DIAL
REAR WINDOW
DEFOGGER BUTTON
RECIRCULATION BUTTON
S2000 CR model
2009 S2000

Push this lever up and down to
increase or decrease the f an speed
and airf low. The indicators next to
the lever show you the speed and
airf low selected.
Turning this dial clockwise increases
the temperature of the airflow.This button turns the rear window
def ogger of f and on (see page ).
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent through the system again
(recirculation mode). When the
indicator is of f , air is brought in f rom
the outside of the vehicle (f resh air
mode).
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
The outside air intakes f or the
heating system are at the base of the
windshield. Keep this area clear of
leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, can cause the windows to f og
up. Do not push the def ogger button
when the removable hardtop is
removed.
Airf low is divided between
the vents in the dashboard and the
f loor vents. Air flows from the vents on
both sides of the instrument panel,
andfromthedashboardventinfront
of the passenger.
Use the mode control dial to select
the vents the air flows from. Some
air will f low f rom the dashboard
vents in all modes. 61
CONT INUED
Fan Control L ever
T emperature Control Dial
Rear Window Def ogger Button
Recirculation Button
A irf low Controls
Mode Control Dial
Vents and Heating
Features
101
2009 S2000
