Instrument Panel
Inst rument s and Cont rols
45
TRUNK-OPEN INDICATOR
IMMOBILIZER SYSTEM INDICATOR
ANTI-LOCK BRAKE
SYSTEM (ABS)
INDICATOR
DOOR-OPEN INDICATOR
VEHICLE STABILITY
ASSIST (VSA) SYSTEM
INDICATOR
(P.50)
(P.50)
(P.47)
(P.46) CHARGING SYSTEM INDICATORLOW OIL PRESSURE INDICATOR MALFUNCTION INDICATOR LAMP CRUISE CONTROL INDICATOR (P.47)
(P.47) (P.47)
(P.49) (P.47)
(P.48)
(P.49)
SUPPLEMENTAL RESTRAINT SYSTEM
INDICATOR
VSA ACTIVATION INDICATOR
OUTSIDE TEMPERATURE INDICATOR
TURN SIGNAL AND HAZARD WARNING
INDICATORS
MAINTENANCE MINDER INDICATOR(P.50)
INFORMATION DISPLAY
HIGH BEAM INDICATORTPMS INDICATOR
(P.48) DAYTIME RUNNING
LIGHTS INDICATOR
LOW TIRE PRESSURE
INDICATOR (P.49)
LOW FUEL
INDICATOR
SEAT BELT REMINDER
INDICATOR
ELECTRIC
POWER
STEERING (EPS)
INDICATOR
(P.48)
PARKING BRAKE AND
BRAKE SYSTEM INDICATOR (P.51)
(P.51)
(P.52)
PEAK POWER INDICATOR (P.53,161)
(P.55)
(P.46,220) (P.46,218)
(P.46,218) (P.47,219)
1 2
2009 S2000

The instrument panel has many
indicators to give you important
inf ormation about your vehicle.This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
f ully released can damage the
brakes and tires.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belts, the beeper sounds,
and the indicator f lashes. If you do
not fasten your seat belts before the
beeper stops, the indicator stops
f lashing but remains on. If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page . The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more information, see page . If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page . If your passenger does not f asten
their seat belt, the indicator comes
on about 6 seconds af ter the ignition
switch is turned to the ON (II)
position.
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passenger to f asten your seat belts.
A beeper also sounds if you and your
passenger have not f astened your
seat belts.
2. 1.
16
218
218 220
Instrument Panel Indicators
Seat Belt Reminder
Indicator Parking Brake and
Brake System
Indicator
Charging System
Indicator L ow Oil Pressure
Indicator
46
U.S. Canada
2009 S2000

See page .
This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on if either
door is not closed tightly.
This indicator comes on when you
set the cruise control. See pagef or inf ormation on operating the
cruise control.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when you push the
START button. If it comes on at any
other time, there is a problem with
theABS.If thishappens,haveyour
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your airbags.
This indicator will also alert you to a
potential problem with your
automatic seat belt tensioners,
driver’s seat position sensor, or the
passenger’s seat weight sensors. For
more information, see page .
25
150
124219
Instrument Panel Indicators
Supplemental Restraint
System Indicator
Malf unction Indicator
Lamp
Trunk-open Indicator
Door-open Indicator
Cruise Control Indicator
Anti-lock Brake System
(A BS) Indicator
Inst rument s and Cont rols
47
2009 S2000

If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the high beam headlight’s circuit.
Have your vehicle checked by your
dealer.
Driving with the power steering
system continuously overheating can
cause system damage.
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicator does not
blink or blinks rapidly, it usually
means one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
blink. All turn signals on the outside
of the vehicle should f lash.
This indicator normally comes on
when you turn the ignition to the ON
(II) position and goes of f af ter the
engine starts. If it comes on at any
other time, there is a problem in the
electric power steering system. If
this happens, stop the vehicle in a
saf e place and turn of f the engine.
Reset the system by restarting the
engine. The indicator will not turn
of f immediately. If it does not go of f
after driving a short distance, or
comes on again while driving, take
the vehicle to your dealer to have it
checked. With the indicator on, the
EPS may be turned of f , making the
vehicle harder to steer.
If the power steering system
overheats while driving, the assist is
reduced and steering may f eel
slightly harder.
181
Instrument Panel Indicators
‘‘Daytime Running
Lights’’ Indicator
Turn Signal and
Hazard Warning
Indicators
Electric Power Steering
(EPS) Indicator
48
2009 S2000

This indicator comes on as a
reminder that you must ref uel soon.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
then go of f if you have inserted a
properly coded ignition key. If it is
not a properly coded key, the
indicator will blink, and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
When the daytime running lights
(DRL) are on, this indicator comes
on with reduced brightness.
When the indicator comes on, there
is about 2.22 US gal (8.4
)of fuel
remaining in the tank.
When the needle reaches E, there is
a very small amount of f uel in the
tank.
59
63
Instrument Panel Indicators
Low Fuel Indicator
Immobilizer System
Indicator
High Beam Indicator
Inst rument s and Cont rols
49
2009 S2000

This indicator has three f unctions:Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. For more inf ormation, see
page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See page
f or more inf ormation on the
VSA system. This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
inf ormation display. See page f or
more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
1.
2.
3.
152 152
152 161
Vehicle Stability Assist
(VSA ) System Indicator
VSA A ctivation Indicator Maintenance Minder
Indicator
Instrument Panel Indicators
50
2009 S2000

This indicator normally comes on f or
a f ew seconds when you turn the
ignition to the ON (II) position.
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are extremely low on
pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure, and determine
the cause. If it is because of a flat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). Ref er to pagef or more inf ormation. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure, and determine
the cause. If it is because of a flat tire,
repair the f lat tire with the tire repair
kit (see page ), and have the flat
tire repaired as soon as possible. If
two or more tires are underinf lated,
call a prof essional towing service
(see page ). Ref er to page
f or more inf ormation.
201
154 154
228 228
206
CR models
Except CR modelsLow Tire Pressure
Indicator Tire Pressure Monitoring
System (T PMS) Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
51
2009 S2000

This indicator shows the rpm range
where peak power occurs.When it is f lashing, engine speed
is approaching the maximum
power range.
When it stays on, the engine speed
is in the maximum power range. When the tachometer reading
reaches the red zone, this
indicator goes out and the red
zone starts f lashing.
See page f or recommended shif t
points. 148
CR models
Instrument Panel Indicators
Peak Power Indicator
52

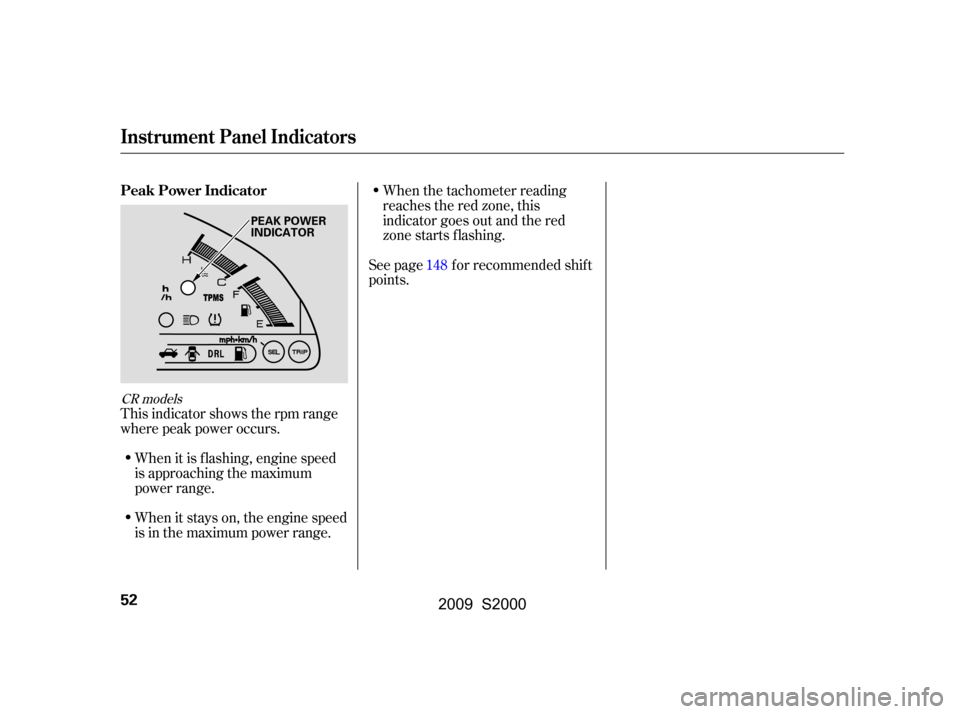

PEAK POWER
INDICATOR
