2009 S2000 Online Reference Owner's Manual

Contents

Owner's Identification Form

Introduction .............................................................................................................................\
............................. i

A Few Words About Safety ......................................................................\
........................................................ iii
Your Vehicle at a Glance (main controls) ....................................................\
................................................ 3
Driver and Passenger Safety (seat belts, SRS, and child protection) ......................\
.............................. 5
Instruments and Controls (indicators, gauges, dashboard and steering column) .................................... 43
Features (heating and cooling ,audio,steering wheel, and cruise control) ...................................................... 95
Before Driving (fuel, vehicle break-in, and cargo loading) ...........................................\
........................... 127
Driving (engine and transmission operation) .........................................\
....................................................... 143
Maintenance (minder, fluid checking, minor services, and vehicle storage)........................................... 159
Taking Care of the Unexpected (flat tire, dead battery, overheating, fuses) ..................................... 199
Technical Information (vehicle specifications, tires, and emissions controls) ....................................... 231
Warranty and Customer Relations (U. S. and Canada only) (warranty and contact information) ... 247
Authorized Manuals (U. S. only) (how to order) ..............................................\
........................................... 251
Index ......................................................................\
......................................................... ........................................ I

Service Information Summary ( fluid capacities and tire pressures)
\
\
1 00X31-S2A-6900

A convenient ref erence to the
sections in this manual.
A quick ref erence to the main
controls in your vehicle.
Explains the purpose of each
instrument panel indicator and gauge,
and how to use the controls on the
dashboard and steering column.
How to operate the heating and air
conditioning system, the audio
system, and other convenience
f eatures.What gasoline to use, how to break-
in your new vehicle, and how to load
luggage and other cargo.
The proper way to start the engine,
shif t the transmission, and park.
How to order manuals and other
technical literature.
A summary of the inf ormation you
need when you pull up to the f uel
pump.
The maintenance minder shows you
when you need to take your vehicle
to the dealer for maintenance service.
There is also a list of things to check
and instructions on how to check
them.
ID numbers, dimensions, capacities,
and technical information.
This section covers several problems
motorists sometimes experience,
and details how to handle them. A summary of the warranties
covering your new vehicle, and how
to contact us for any reason. Refer to
your warranty manual f or detailed
inf ormation.
Important inf ormation about the
proper use and care of your vehicle’s
seat belts, an overview of the
supplemental restraint system, and
valuable inf ormation on how to
protect children with child restraints.
Contents
Your Vehicle at a Glance
Driver and Passenger Saf ety
Instruments and Controls
Features Bef ore Driving
Driving
Maintenance
Warranty and Customer
Relations
(U.S. and Canada only)
Authorized Manuals
(U.S. only)
Index
Service Inf ormation Summary
T echnical Inf ormation
T aking Care of the Unexpected
Overview of Contents
2
2009 S2000

ÎÎ
Î
Î
Î
To use the horn, press the center pad of the steering wheel.
If equipped
1:
2:
Your Vehicle at a Glance
4
HOOD RELEASE HANDLE WINDSHIELD WIPERS/
WASHERS
INSTRUMENT PANEL BRIGHTNESS
VEHICLE STABILITY ASSIST
(VSA) SYSTEM OFF SWITCH
CRUISE BUTTON
HEADLIGHTS/TURN SIGNALS
CRUISE CONTROL
BUTTONS
ENGINE START BUTTON CLOCK BUTTON
HORNHEATING/COOLING
CONTROLS
REMOTE AUDIO
CONTROLS
(P.59)
(P.122)
(P.146)
(P.130) (P.124) (P.124) (P.58)
(P.96,100)
(P.153)
(P.56)
(P.60)1 2
2
2009 S2000

Your vehicle is equipped with many
features that work together to
protect you and your passenger
during a crash.
Some f eatures do not require any
action on your part. These include a
strong steel f ramework that f orms a
saf ety cage around the passenger
compartment; front and rear crush
zones, a collapsible steering column;
and tensioners that tighten the seat
belts in a crash.
However, you and your passenger
can’t take full advantage of these
f eatures unless you remain sitting in
a proper position and. In fact, some safety
f eatures can contribute to injuries if
they are not used properly.
The f ollowing pages explain how you
cantakeanactiveroleinprotecting
yourself and your passenger.
Your Vehicle’s Saf ety Features
always wear
your seat belts
Driver and Passenger Saf ety
7
(8) (1) (9)
(3)(4)
(7) (6)
(2)
(5)
(2)
(8)

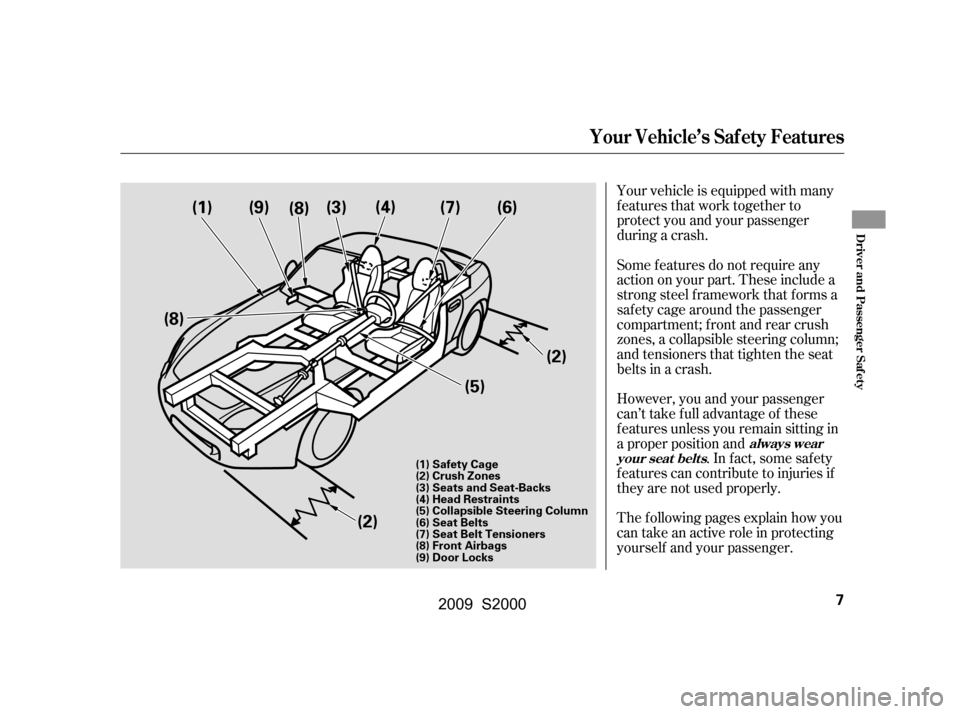

(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Seat Belt Tensioners
(8) Front Airbags
(9) Door Locks
2009 S2000

Your vehicle has a supplemental
restraint system (SRS) with f ront
airbags to help protect the heads and
chests of the driver and a passenger
during a moderate to severe frontal
collision (see page f or more
information on how your airbags
work).The most important things you need
to know about your airbags are:
They are designed to supplement
the seat belts. Always wear
your seat belt properly, and sit
upright and as f ar back f rom the
steering wheel as possible while
allowing f ull control of the vehicle. A
passenger should move the seat as
f ar back f rom the dashboard as
possible.
The rest of this section gives more
detailed inf ormation about how you
can maximize your saf ety.
Remember, however, that no saf ety
system can prevent all injuries or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags deploy.
To do their job, airbags must
inf late with tremendous f orce. So
while airbags help save lives, they
can cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.
22
Your Vehicle’s Saf ety Features
Airbags
Airbags do not replace seat belts. What you should do:
Airbags of f er no protection in side impact s, rear impact s, rollovers,or minor f ront al collisions.
Airbags can pose serious hazards.Driver and Passenger Saf ety
9
2009 S2000

µAdjust the driver’s seat as far to the
rear as possible while allowing you to
maintain f ull control of the vehicle.
Have a passenger adjust his or her
seat as far to the rear as possible.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent a passenger f rom
accidentally opening a door and
f alling out.
Locking the doors also helps prevent
an outsider f rom unexpectedly
opening a door when you come to a
stop.
See page f or how to lock the
doors, and page f or how the door-
open indicator works.
If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inf lating f ront
airbag, or by striking the steering
wheel or dashboard.
The f ollowing pages provide
instructions on how to properly
protect the driver, an adult
passenger or teenage child large
enough and mature enough to drive
or ride in your vehicle. See pages
f or important guidelines on
how to properly protect a child in a
forward-facing child seat or a larger
child passenger.
Your vehicle has door and trunk
open indicators on the instrument
panel to indicate when either door or
the trunk is not tightly closed.
After everyone has entered the
vehicle, be sure the doors are closed
and locked. 40
47
29
65
Protecting A dults and Teens
Adjust the Seats
Introduction
Close and L ock the Doors
1. 2.
10
2009 S2000

Adjust the driver’s seat-back to a
comf ortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest.
A passenger should also adjust their
seat-back to a comf ortable, upright
position.
If you cannot get f ar enough away
f rom the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
Once your seat is adjusted correctly,
rock it back and f orth to make sure
the seat is locked in position.
See page f or how to adjust the
seats.
69
CONT INUED
Protecting A dults and Teens
Adjust the Seat-Backs
3.
Driver and Passenger Saf ety
11
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
2009 S2000

Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
Your airbag system includes: An indicator on the dashboard that
alerts you that the passenger’s
airbag has been turned of f (see
page ).
A sophisticated electronic system
that continually monitors and
records inf ormation about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and
passenger seat belt use when the
ignition switch is in the ON (II)
position.
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ). Weight sensors that monitor the
weight on the passenger’s seat. If
the weight is about 65 lbs (29 kg)
or less (the weight of an inf ant or
small child), the passenger’s
airbag will be turned off (see page ).
Two SRS (supplemental restraint
system) airbags. The driver’s
airbag is stored in the center of
the steering wheel; the passenger’s
airbag is stored in the dashboard.
Both are marked ‘‘SRS AIRBAG’’
(see page ).
A driver’s seat position sensor that
monitors the distance of the seat
f rom the airbag. If the seat is too
far forward, the airbag will inflate
with less f orce (see page ). Sensors that can detect whether
the driver’s seat belt and the
passenger’s seat belt are latched
or unlatched (see page ). Sensors that can detect a
moderate to severe front impact. Automatic seat belt tensioners
(see page ). 26
24
25
18
24
16
22
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
21
