2009 HONDA PILOT maintenance reset

This indicator comes on when there
is a system message on the multi-
inf ormation display. Press the INFO
button on the steering wheel (see
page ) to see the message (see
page ).
Most of the time, this indicator
comes on along with other indicators
in the instrument panel such as the
seat belt reminder indicator, SRS
indicator, VSA system indicator, etc.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the inf ormation display. See page
f or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem in the 4WD
system. Take the vehicle to your
dealer to have it checked.
If the indicator blinks while driving,
the VTM-4 fluid temperature is too
high. Pull to the side of the road
when it is saf e, shif t to Park, and let
the engine idle until the indicator
goes out.
85
93
459
Except Touring models On Touring models4WD models only
Message Indicator
Maintenance Minder
Indicator VTM-4 Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
75
Continuing to drive with the VTM-4
indicator blinking may cause serious
damage to the system.
——
y
y
(/yy
2009 Pilot

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
To switch the display, press and
release the select/reset knob
repeatedly. When you turn the
ignition switch to the ON (II)
position, what you last selected is
displayed. This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the select/reset
knob repeatedly.
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
To reset a trip meter, display it, and
then press and hold the select/reset
knob until the number resets to ‘‘0.0’’.
For inf ormation about the multi-
inf ormation display, see page .
The inf ormation display shows the
odometer, trip meter, engine oil lif e,
outside temperature (if equipped),
current f uel mileage, average f uel
mileage, range (estimated distance),
and maintenance item code(s).
85
On Touring models
Except Touring models
Odometer
Inf ormation Display Trip Meter
Gauges
Inst rument s and Cont rols
81
INFORMATION DISPLAY
TRIP METER AOUTSIDE
TEMPERATURE
INDICATOR
U.S. model with outside temperature indicator is shown. ODOMETER
RANGE
ENGINE
OIL LIFE CURRENT FUEL MILEAGE AVERAGE FUEL MILEAGE
TRIP METER B
——
y
y
(/yy
2009 Pilot

The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.Your vehicle’s onboard diagnostic
system will detect a loose or missing
f uel f ill cap as an evaporative system
leak. The f irst time a leak is detected
a ‘‘CHECK FUEL CAP’’ message
appears on the information display.
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go
off after several days of normal
driving once you tighten or replace
the f uel f ill cap. To scroll to another
display, press the select/reset knob.
The ‘‘CHECK FUEL CAP’’ message
will appear each time you restart the
engine until the system turns the
message of f .If the system still detects a leak in
your vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
459
526
Gauges
Maintenance MinderCheck Fuel Cap Message
84
——
y
y
(/yy
2009 Pilot

ÛÝÛÝ
ÛÝ
To change the display, press the
INFO( / )buttononthesteering
wheel repeatedly until the main
menu appears (see page ). With the ignition switch in the ON
(II) position, the multi-inf ormation
display changes as shown in the
next
page each time you press the INFO
( / ) button or SEL/RESET
button.
When you turn the ignition switch to
the ON (II) position, what you last
selected is displayed.
In the multi-information display, the
system message is also displayed
(see page ) and you can
customize your vehicle control
settings (see page ).
The multi-inf ormation display in the
instrument panel displays various
inf ormation and messages when the
ignition switch is in the ON (II)
position. Some of the messages help
you operate your vehicle more
comf ortably.
Others help to keep you aware of the
periodic maintenance your vehicle
needs f or continued trouble-f ree
driving.
When you open the driver’s door, a
‘‘Welcome’’ message is shown on the
multi-inf ormation display.
You can also change the display by
pressing the select/reset knob in the
instrument panel.86
92
95
CONT INUED
On Touring models
Multi-Inf ormation Display
Inst rument s and Cont rols
85
INFO ( / )
BUTTON
SEL/
RESET
BUTTON
——
y

y
(/yy
2009 Pilot

µ
µ
µ
µ
µ
µ
µ
µ
µ
µ µ
µ
Your vehicle displays engine oil lif e
and maintenance service items on
the inf ormation display or multi-
inf ormation display (depending on
models) to show you when you
should have your dealer perf orm
engine oil replacement and indicated
maintenance services.
Based on the engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil lif e and displays it as a
percentage. The remaining engine oil lif e is
shownonthedisplayaccordingto
this table:
To see the current engine oil lif e,
turn the ignition switch to the ON
(II) position, and press the select/
reset knob repeatedly until the
engine oil lif e display appears (see
page ).81
Calculated Engine
Oil Lif e (%)
100 % 91 % 90 % 81 %
80 % 71 %
70 % 61 %
60 % 51 %
50 % 41 %
40 % 31 %
30 % 21 %
20 % 16 %
15 % 11 %10 % 6 % 5% 1% 0% Displayed
Engine Oil Lif e (%) 100 %90 %
80 %
70 %
60 %
50 %
40 %
30 %
20 %
15 %
10 %5%
0%
CONT INUED
Except Touring models
Engine Oil L if e Display
Maintenance Minder
Maint enance
459
ENGINE OIL
LIFE DISPLAY SELECT/
RESET KNOB
U.S. model is shown.
——
y
y
(/yy
2009 Pilot

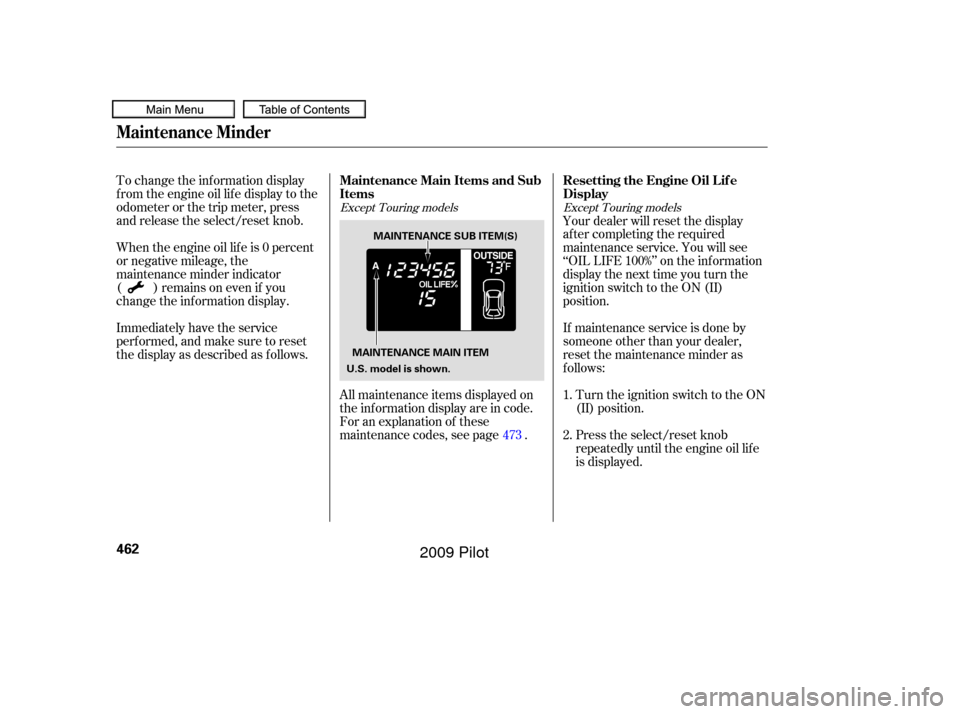

The maintenance item code or codes
indicate the main and sub items
required at the time of the oil change
(see page ).
You can switch the information
display f rom the engine oil lif e
display to the odometer or the trip
meter. Press and release the select/
reset knob on the instrument panel.
Whentheengineoillifeis15to1
percent, the maintenance minder
indicator ( ) comes on every
time you turn the ignition switch to
the ON (II) position, then it goes out
if you switch the inf ormation display.
When you see this message, have
the indicated maintenance
perf ormed by your dealer as soon as

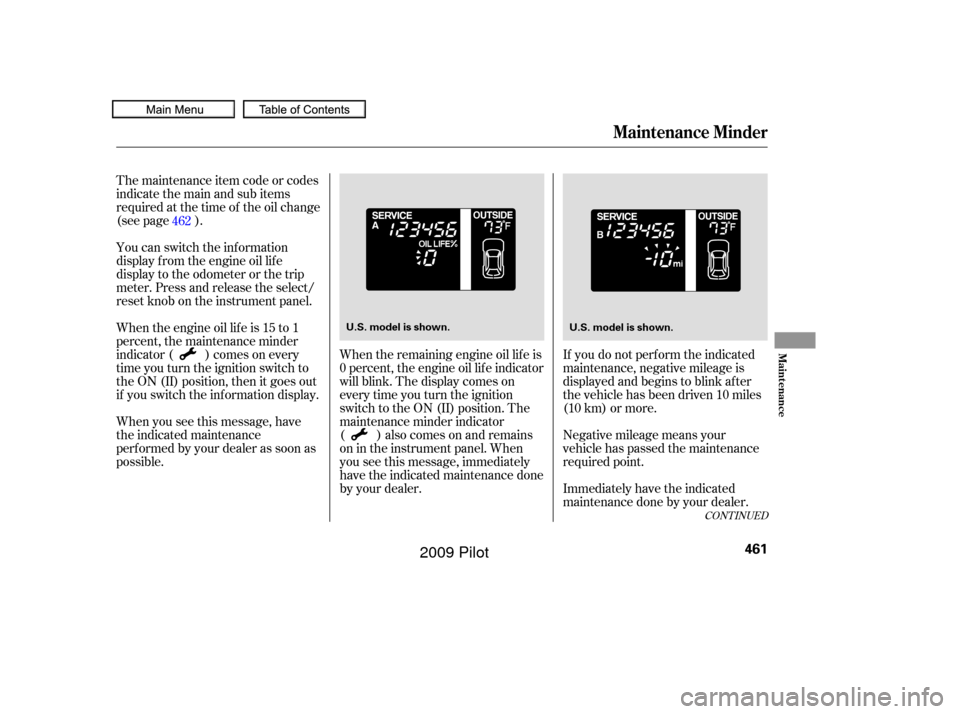

possible.When the remaining engine oil lif e is
0 percent, the engine oil lif e indicator
will blink. The display comes on
everytimeyouturntheignition
switch to the ON (II) position. The
maintenance minder indicator
( ) also comes on and remains
on in the instrument panel. When
you see this message, immediately
have the indicated maintenance done
by your dealer.If you do not perf orm the indicated
maintenance, negative mileage is
displayed and begins to blink af ter
the vehicle has been driven 10 miles
(10 km) or more.
Negative mileage means your
vehicle has passed the maintenance
required point.
Immediately have the indicated
maintenance done by your dealer.
462
CONT INUED
Maintenance Minder
Maint enance
461
U.S. model is shown.
U.S. model is shown.
——
y
y
(/yy
2009 Pilot

To change the inf ormation display
f rom the engine oil lif e display to the
odometer or the trip meter, press
and release the select/reset knob.
Immediately have the service
perf ormed, and make sure to reset
the display as described as f ollows. When the engine oil lif e is 0 percent
or negative mileage, the
maintenance minder indicator
( )remainsonevenif you
change the inf ormation display.All maintenance items displayed on
the inf ormation display are in code.
For an explanation of these
maintenance codes, see page .Your dealer will reset the display
af ter completing the required
maintenance service. You will see
‘‘OIL LIFE 100%’’ on the inf ormation
display the next time you turn the
ignition switch to the ON (II)
position.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
f ollows:
Turn the ignition switch to the ON
(II) position.
Press the select/reset knob
repeatedly until the engine oil lif e
is displayed.
1.
2.
473
Except Touring models Except Touring models
Maintenance Main Items and Sub
ItemsResetting the Engine Oil Lif e
Display
Maintenance Minder
462
MAINTENANCE MAIN ITEMMAINTENANCE SUB ITEM(S)
U.S. model is shown.
——
y
y
(/yy
2009 Pilot

ÛÝ
ÛÝ

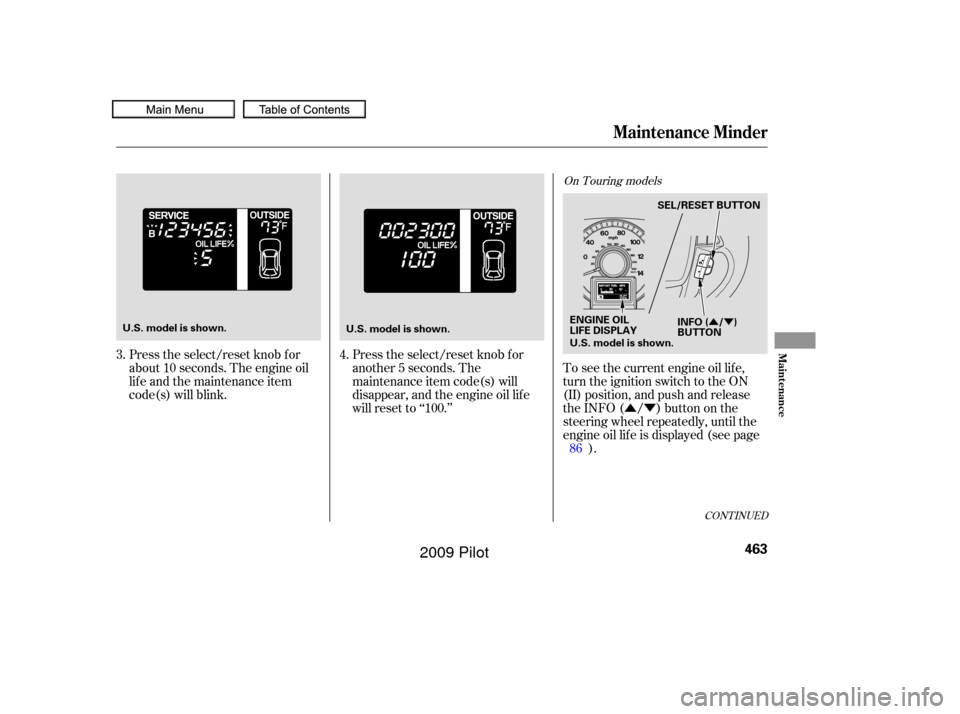

Press the select/reset knob f or
about 10 seconds. The engine oil
lif e and the maintenance item
code(s) will blink.Press the select/reset knob f or
another 5 seconds. The
maintenance item code(s) will
disappear, and the engine oil lif e
will reset to ‘‘100.’’To see the current engine oil lif e,
turn the ignition switch to the ON
(II) position, and push and release
the INFO ( / ) button on the
steering wheel repeatedly, until the
engine oil lif e is displayed (see page
).
3.
4.
86
CONT INUED
On Touring models
Maintenance Minder
Maint enance
463
ENGINE OIL
LIFE DISPLAYSEL/RESET BUTTON
INFO ( / )
BUTTON
U.S. model is shown.
U.S. model is shown.
U.S. model is shown.
——
