2009 FORD FOCUS Owners Manual

ENGINE DATA
Engine 2.0L I4 engine
Cubic inches 121
Required fuel 87 octane
Firing order 1–3–4–2
Ignition system C.O.P
Compression ratio 10.0:1
Spark plug gap .051 inch +/- .002
(1.3 mm +/- .05)
2009 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
265

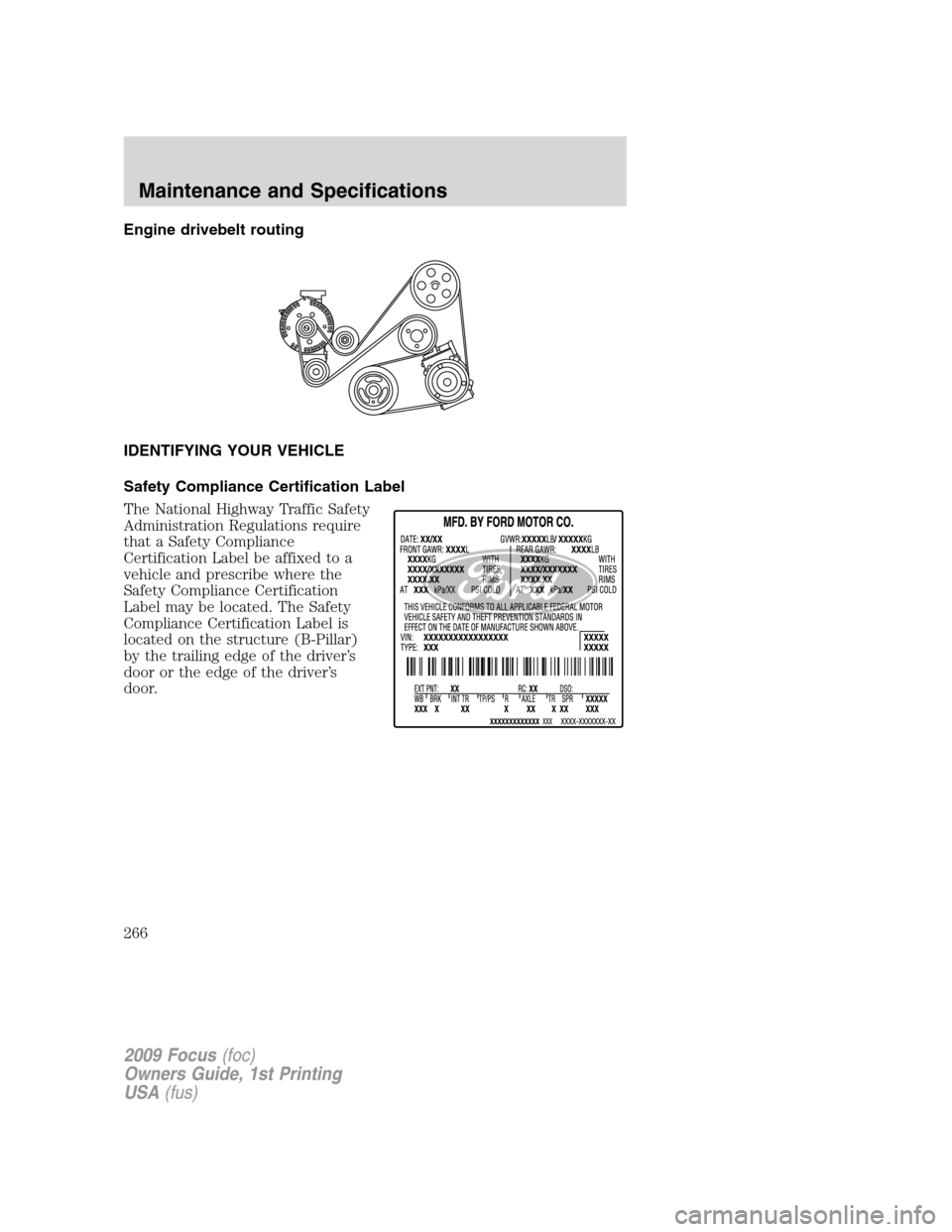

Engine drivebelt routing
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
2009 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
266

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
2009 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
267

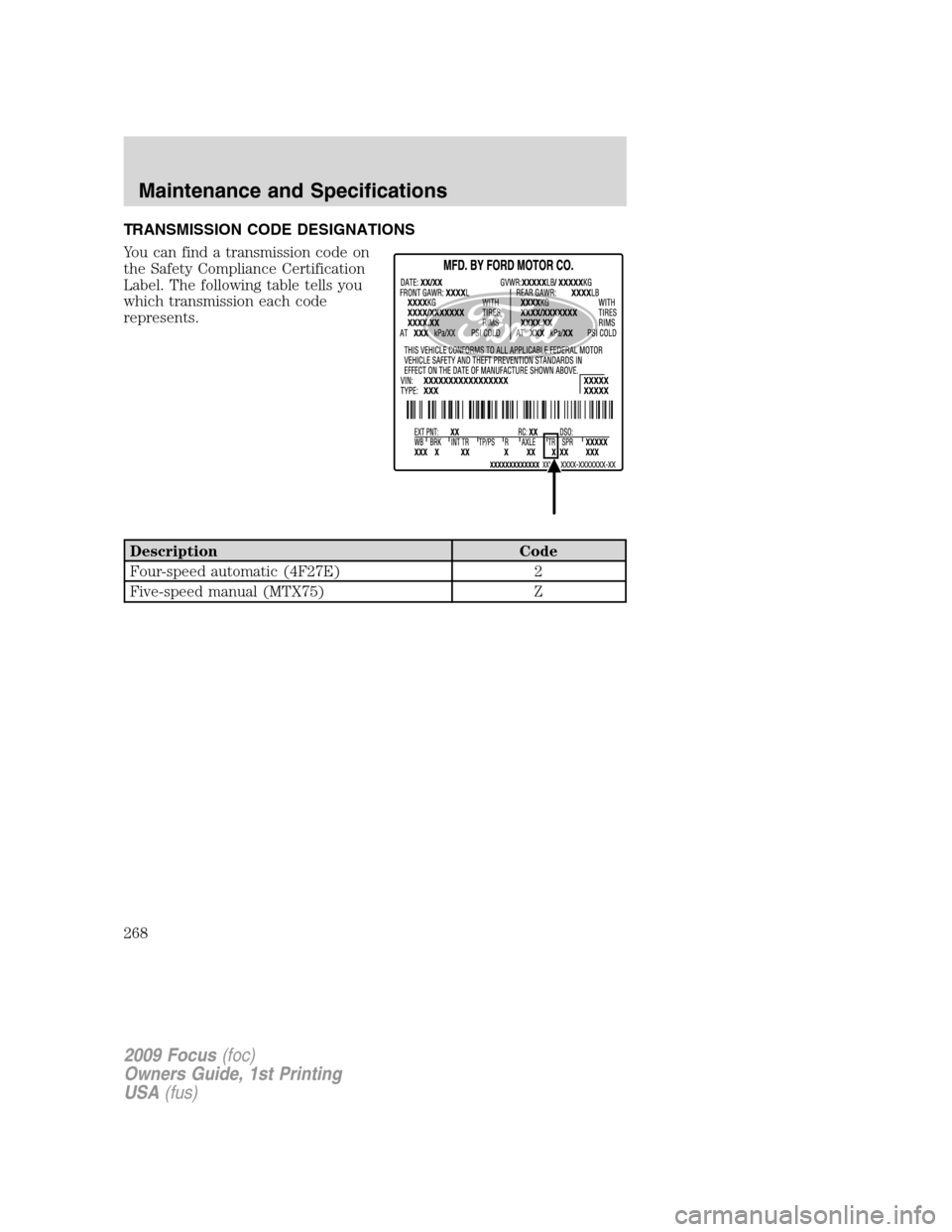

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Four-speed automatic (4F27E) 2
Five-speed manual (MTX75) Z
2009 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
268

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Exterior trim kits
Fog lights
Splash guards
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
2009 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
Accessories
269

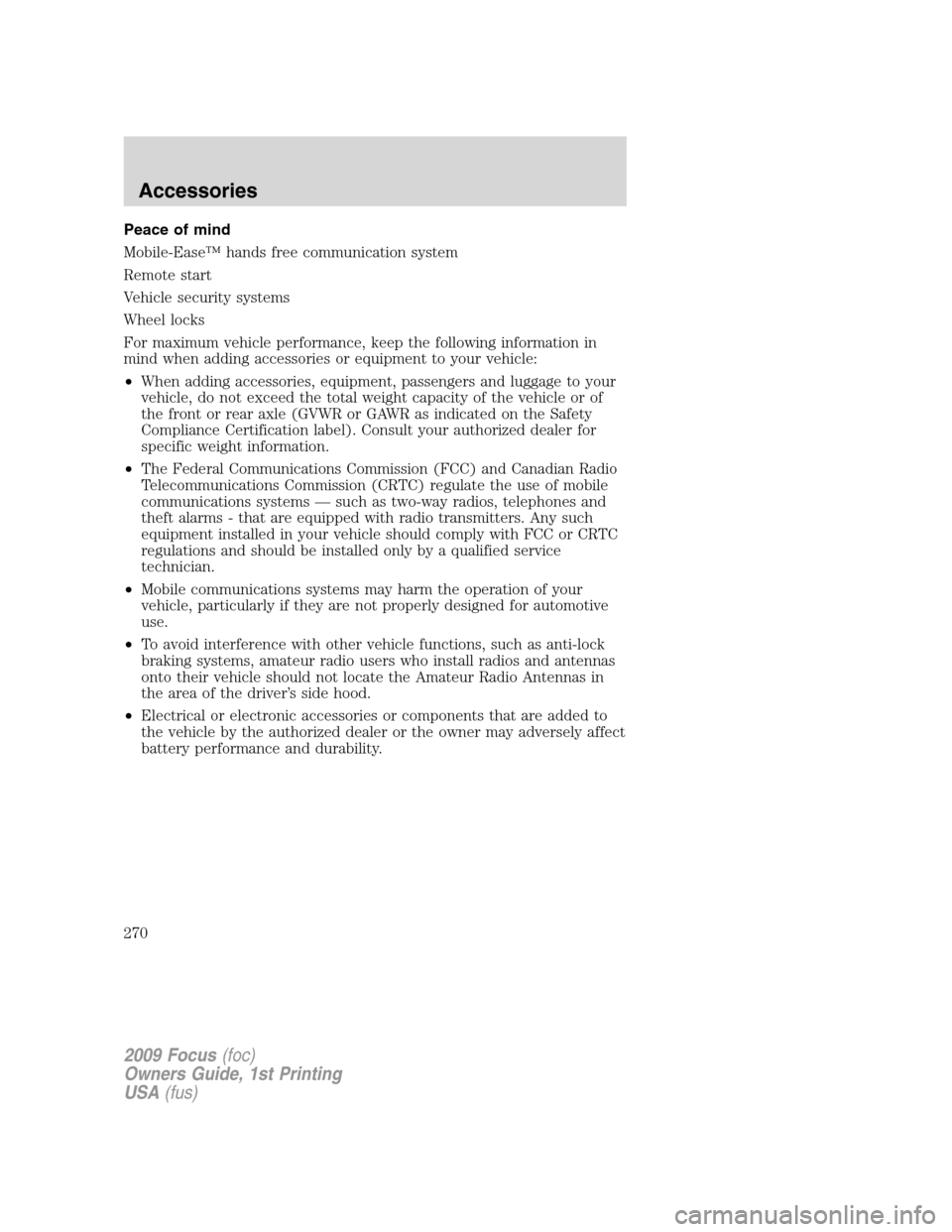

Peace of mind
Mobile-Ease™ hands free communication system
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
Accessories
270

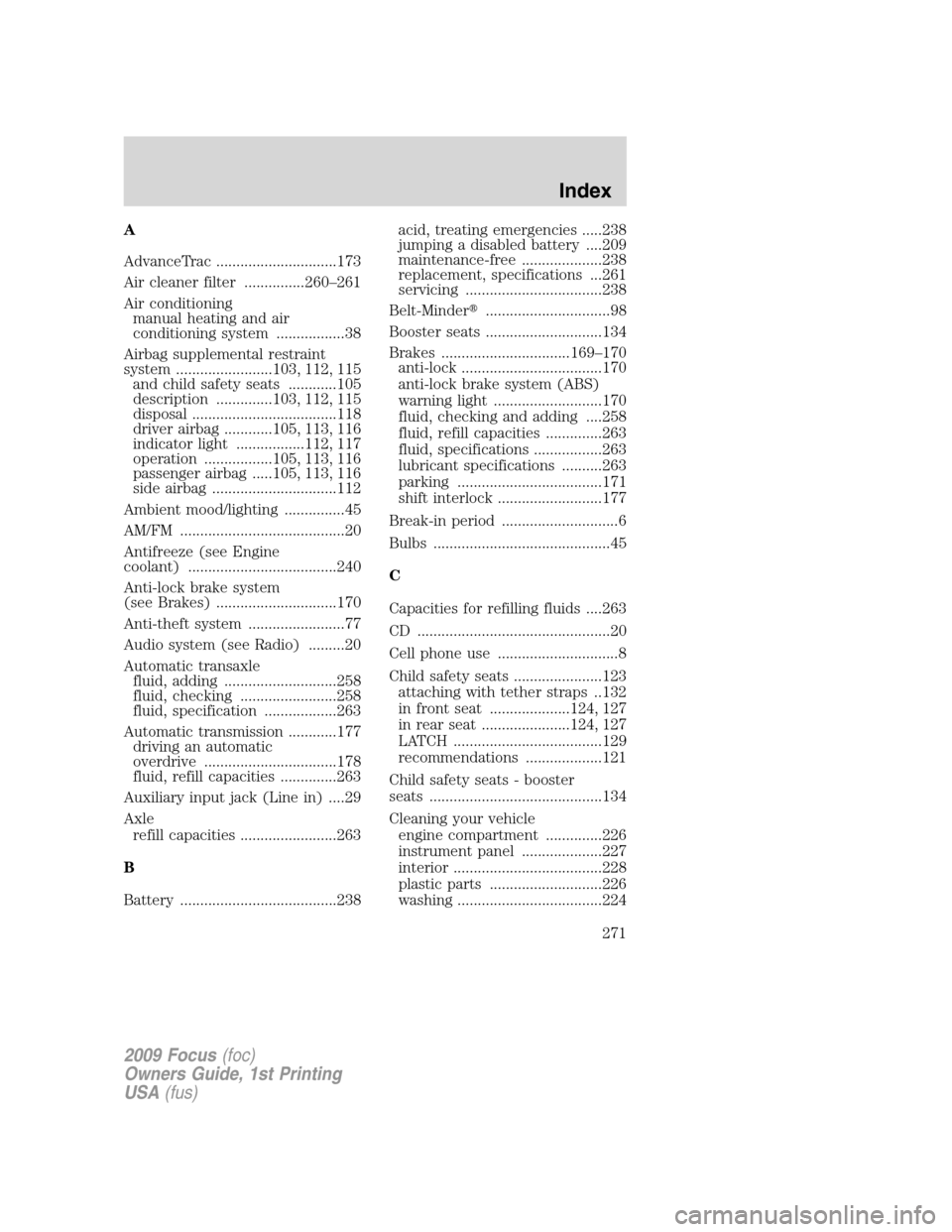

A
AdvanceTrac ..............................173
Air cleaner filter ...............260–261
Air conditioning
manual heating and air
conditioning system .................38
Airbag supplemental restraint
system ........................103, 112, 115
and child safety seats ............105
description ..............103, 112, 115
disposal ....................................118
driver airbag ............105, 113, 116
indicator light .................112, 117
operation .................105, 113, 116
passenger airbag .....105, 113, 116
side airbag ...............................112
Ambient mood/lighting ...............45
AM/FM .........................................20
Antifreeze (see Engine
coolant) .....................................240
Anti-lock brake system
(see Brakes) ..............................170
Anti-theft system ........................77
Audio system (see Radio) .........20
Automatic transaxle
fluid, adding ............................258
fluid, checking ........................258
fluid, specification ..................263
Automatic transmission ............177
driving an automatic
overdrive .................................178
fluid, refill capacities ..............263
Auxiliary input jack (Line in) ....29
Axle
refill capacities ........................263
B
Battery .......................................238acid, treating emergencies .....238
jumping a disabled battery ....209
maintenance-free ....................238
replacement, specifications ...261
servicing ..................................238
Belt-Minder
...............................98
Booster seats .............................134
Brakes ................................169–170
anti-lock ...................................170
anti-lock brake system (ABS)
warning light ...........................170
fluid, checking and adding ....258
fluid, refill capacities ..............263
fluid, specifications .................263
lubricant specifications ..........263
parking ....................................171
shift interlock ..........................177
Break-in period .............................6
Bulbs ............................................45
C
Capacities for refilling fluids ....263
CD ................................................20
Cell phone use ..............................8
Child safety seats ......................123
attaching with tether straps ..132
in front seat ....................124, 127
in rear seat ......................124, 127
LATCH .....................................129
recommendations ...................121
Child safety seats - booster
seats ...........................................134
Cleaning your vehicle
engine compartment ..............226
instrument panel ....................227
interior .....................................228
plastic parts ............................226
washing ....................................224
