2009 FORD FLEX keyless

Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds, touch the 1•2 on the keypad and release.
3. Touch and hold the 1•2 for two seconds. This must be done within
five seconds of completing Step 2.
All personal codes are now erased and only the factory set 5–digit code
will work.
Anti-scan feature
If the wrong code has been entered seven times (35 consecutive number
touches), the keypad will go into an anti-scan mode. This mode disables
the keypad for one minute and the keypad lamp will flash.
The anti-scan feature will turn off after:
•one minute of keypad inactivity.
•pressing the
control on the remote entry transmitter portion of
your Integrated Keyhead Transmitter.
•the ignition is turned on.
Unlocking and locking the doors using keyless entry
To unlock the driver’s door,enter the factory set 5-digit code or your
personal code. Each number must be touched within five seconds of
each other. The interior lamps will illuminate.Note:If the two-stage
unlocking feature is disabled, all doors will unlock; for more information
regarding two-stage unlocking, refer to theUnlocking the doors/Two
stage unlocksection earlier in this chapter.
To unlock all doors,enter the factory set code or your personal code,
then touch the 3•4 control within five seconds.
To lock all doors,touch the 7•8 and the 9•0 at the same time (with
the driver’s door closed) for two seconds. Youdo notneed to enter the
keypad code first.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
141

Anti-theft indicator (If equipped)
The anti-theft indicator is located in the instrument panel cluster.
•When the ignition is in the off
position, the indicator will flash
once every two seconds to
indicate the SecuriLock™ system
is functioning as a theft
deterrent.
•When the ignition is in the on position, the indicator will glow for
three seconds to indicate normal system functionality.
If a problem occurs with the SecuriLock™ system, the indicator will flash
rapidly or glow steadily when the ignition is in the on position. If this
occurs, the vehicle will not start and should be taken to an authorized
dealer for service.
Automatic arming
The vehicle is armed immediately after switching the ignition to the off
position.
The theft indicator (if equipped)
will flash every two seconds to act
as a theft deterrent when the
vehicle is armed.
Automatic disarming
The vehicle is disarmed immediately after the ignition is turned to the on
position.
The theft indicator (if equipped) will illuminate for three seconds and
then go out. If the theft indicator stays on for an extended period of
time or flashes rapidly, have the system serviced by your authorized
dealer.
Replacement Integrated Keyless Transmitters (IKT) and coded keys
Note:Your vehicle comes equipped with two Integrated Keyhead
Transmitters (IKTs). The IKT functions as both a programmed ignition
key that operates all the locks and starts the vehicle, as well as a remote
keyless entry transmitter. A maximum of eight coded keys can be
programmed to your vehicle; only four of these eight keys can be IKTs
with remote entry functionality.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
143

When you press the lock control twice within three seconds on the
remote entry transmitter portion of your IKT, the horn will chirp once
to let you know that all doors, the hood and the liftgate are closed. If
any of these are not closed, the horn will chirp twice to warn you that
a door, the hood or the liftgate is still open.
•Press the driver or passenger
interior door lock control while
the door is open, then close the
door.
•Touch the 7•8 and 9•0
controls on the keyless entry pad
at the same time to lock the
doors (driver’s door must be
closed).
There is a 20 second countdown
when any of the above actions occur
before the vehicle becomes armed.
Each door, the hood, and the
liftgate is armed individually, and if
any are open, they must be closed
before the open entry point (door,
hood, or liftgate) can enter the
20 second countdown.
The turn signal lamps will flash once when all doors, the hood and the
liftgate are closed indicating the vehicle is locked and entering the
20 second countdown.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
146

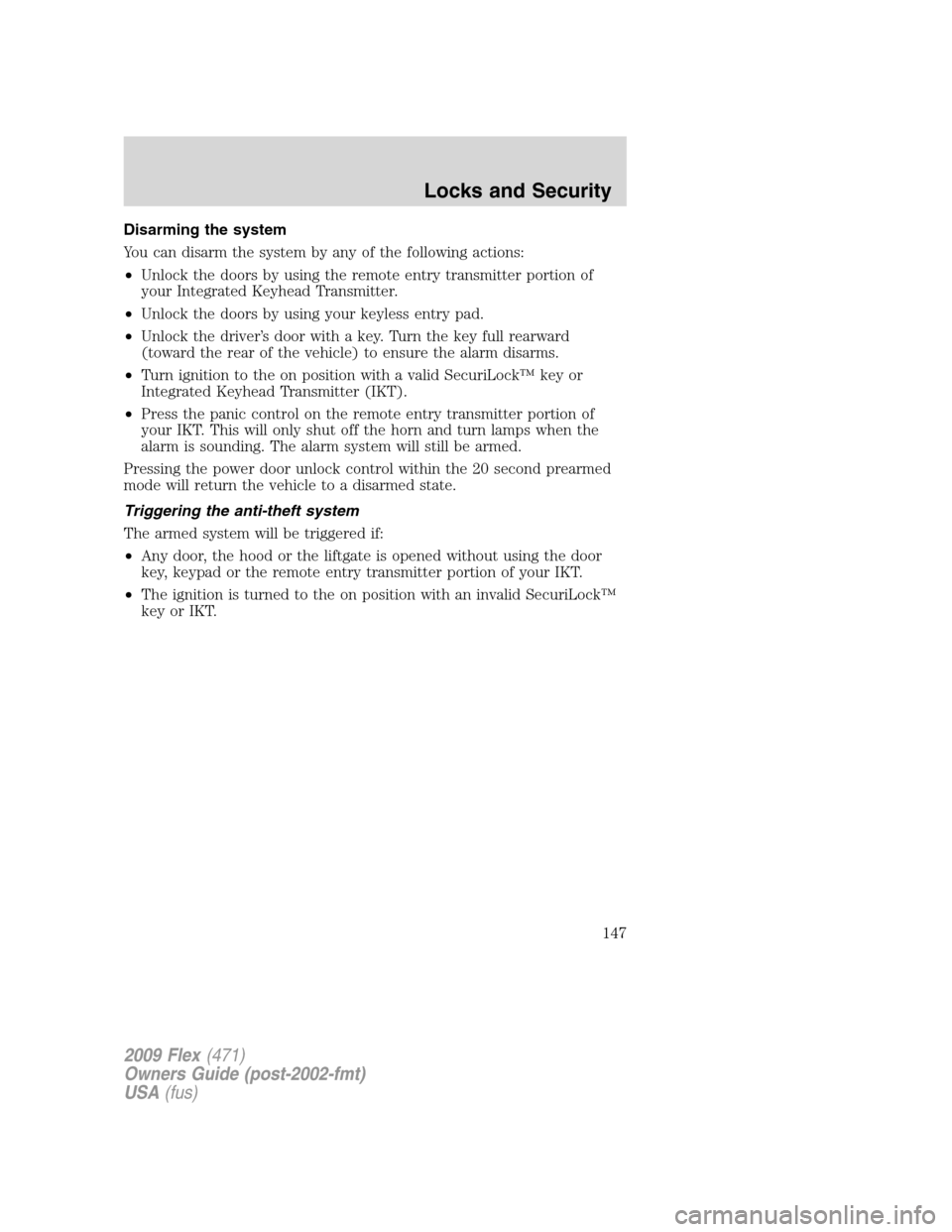

Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by using the remote entry transmitter portion of
your Integrated Keyhead Transmitter.
•Unlock the doors by using your keyless entry pad.
•Unlock the driver’s door with a key. Turn the key full rearward
(toward the rear of the vehicle) to ensure the alarm disarms.
•Turn ignition to the on position with a valid SecuriLock™ key or
Integrated Keyhead Transmitter (IKT).
•Press the panic control on the remote entry transmitter portion of
your IKT. This will only shut off the horn and turn lamps when the
alarm is sounding. The alarm system will still be armed.
Pressing the power door unlock control within the 20 second prearmed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if:
•Any door, the hood or the liftgate is opened without using the door
key, keypad or the remote entry transmitter portion of your IKT.
•The ignition is turned to the on position with an invalid SecuriLock™
key or IKT.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
147

Inspection/maintenance (I/M)
testing ........................................356
Instrument panel
cleaning ...................................326
cluster ........................................10
lighting up panel and
interior .......................................78
J
Jump-starting your vehicle ......307
K
Keyless entry system ...............140
autolock ...................................127
keypad .....................................140
locking and unlocking doors ..141
programming entry code .......140
Keys ...................................125, 143
positions of the ignition .........250
L
Lamps
autolamp system .......................76
bulb replacement
specifications chart ..................82
daytime running light ...............78
fog lamps ...................................77
headlamps .................................76
headlamps, flash to pass ..........77
instrument panel, dimming .....78
interior lamps .....................81, 83
replacing bulbs .........................83
LATCH anchors .........................205
Liftgate ..............................119, 134
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........256
Load limits .................................239Locks
autolock ...................................127
childproof ................................131
doors ........................................127
Lubricant specifications ...........362
Lug nuts ....................................306
Luggage rack .............................124
Lumbar support, seats .....152, 155
M
Message center .................110–111
english/metric button .............114
system check button ..............113
warning messages ...................116
Mirrors ...................................98–99
automatic dimming rearview
mirror ........................................99
heated ................................70, 100
programmable memory ..........135
side view mirrors (power) .......99
Moon roof ..................................106
Motorcraft parts ........328, 344, 361
N
Navigation system .......................63
O
Octane rating ............................348
Oil (see Engine oil) ..................333
Overdrive ...................................264
P
Parking brake ............................256
Parts (see Motorcraft parts) ....361
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Index
372
