2009 FORD FLEX relay

Locks and Security 125
Keys 125
Locks 127
Anti-theft system 142
Seating and Safety Restraints 148
Seating 148
Safety restraints 168
Airbags 181
Child restraints 196
Tires, Wheels and Loading 216
Tire information 218
Tire inflation 220
Tire Pressure Monitoring System (TPMS) 233
Vehicle loading 239
Trailer towing 244
Recreational towing 249
Driving 250
Starting 250
Brakes 255
Traction Control™/AdvanceTrac
257
Transmission operation 262
Reverse camera 269
All wheel drive 271
Roadside Emergencies 278
Getting roadside assistance 278
Hazard flasher switch 279
Fuses and relays 280
Changing tires 289
Temporary mobility kit 296
Wheel lug nut torque 306
Jump starting 307
Wrecker towing 312
Table of Contents
2
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)

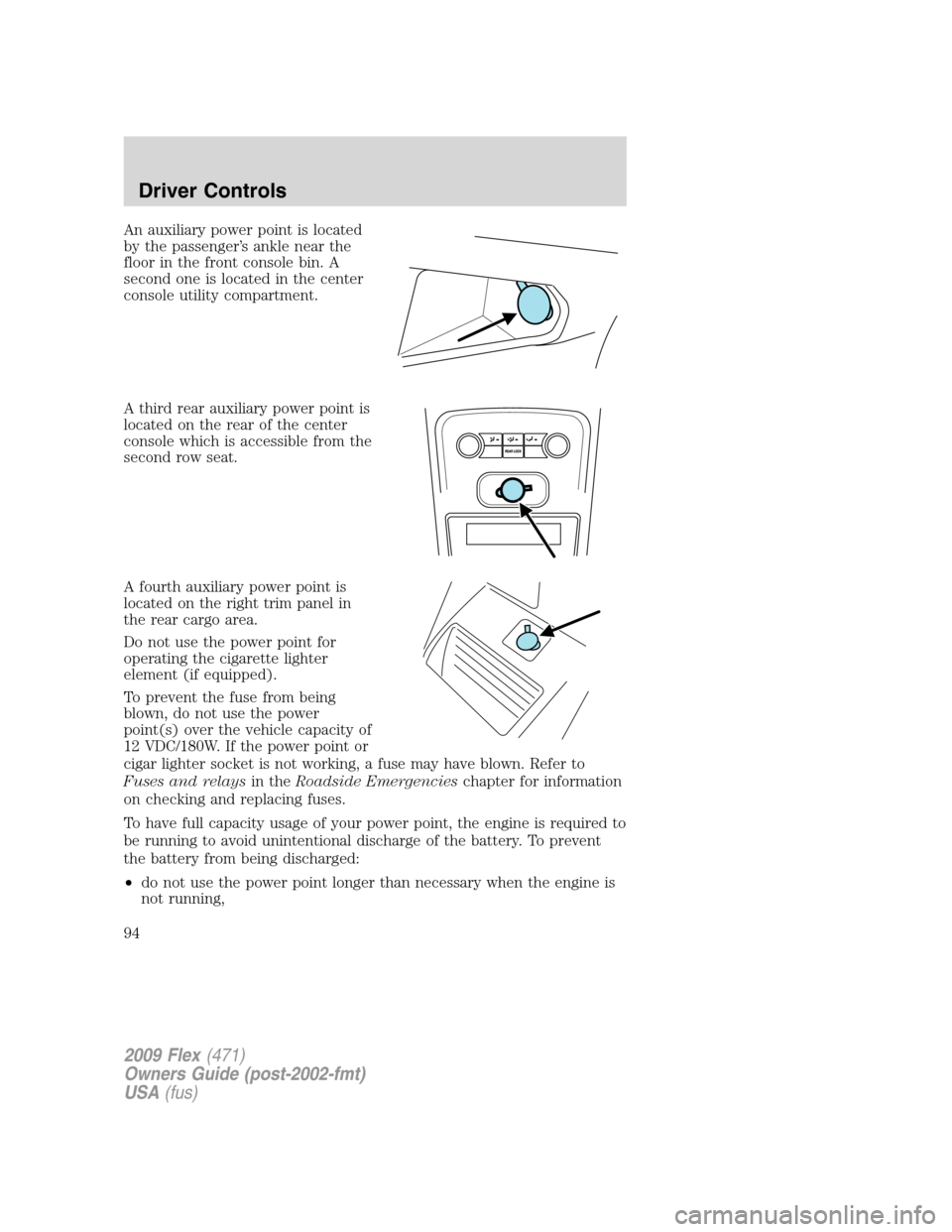

An auxiliary power point is located
by the passenger’s ankle near the
floor in the front console bin. A
second one is located in the center
console utility compartment.
A third rear auxiliary power point is
located on the rear of the center
console which is accessible from the
second row seat.
A fourth auxiliary power point is
located on the right trim panel in
the rear cargo area.
Do not use the power point for
operating the cigarette lighter
element (if equipped).
To prevent the fuse from being
blown, do not use the power
point(s) over the vehicle capacity of
12 VDC/180W. If the power point or
cigar lighter socket is not working, a fuse may have blown. Refer to
Fuses and relaysin theRoadside Emergencieschapter for information
on checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
94

If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal depressed:
1. Apply the parking brake, turn
ignition key to off, then remove the
key.
2. Using a screwdriver (or similar
tool), remove the protective cover
to the interlock release access hole
on the console.
3. Insert the screwdriver (or similar
tool) into the access hole and press
downward while pulling the
gearshift lever out of the P (Park)
position and into the N (Neutral)
position.
4. Remove the tool and reinstall the
protective cover.
5. Start the vehicle and release the
parking brake.
If it is necessary to use the above procedure to move the gearshift lever,
it is possible that a fuse has blown or the vehicle’s brakelamps are not
operating properly. Refer toFuses and relaysin theRoadside
Emergencieschapter.
WARNING:Do not drive your vehicle until you verify that the
brakelamps are working.
WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the off
position and remove the key whenever you leave your vehicle.
WARNING:If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer as soon as possible.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
263

FUEL PUMP SHUT-OFF
In the event of a moderate to severe collision, this vehicle is equipped
with a fuel pump shut-off feature that stops the flow of fuel to the
engine. Not every impact will cause a shut-off.
Should your vehicle shut off after a collision due to this feature, you may
restart your vehicle by doing the following:
1. Turn the ignition switch to the off position.
2. Turn the ignition switch to the on position.
In some instances the vehicle may not restart the first time you try to
restart and may take one additional attempt.
WARNING:Failure to inspect and if necessary repair fuel leaks
after a collision may increase the risk of fire and serious injury.
Ford Motor Company recommends that the fuel system be inspected
by an authorized dealer after any collision.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
280

Passenger compartment fuse panel
The fuse panel is located under the instrument panel to the left of the
steering wheel.
The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Driver smart window motor
2 15A Not used (spare)
3 15A Family entertainment system
(FES)
4 30A DC/AC inverter
5 10A Passenger compartment fuse
panel logic power, Keypad
illumination, BTSI
6 20A Turn signals
7 10A Low beam headlamps (left)
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
282

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
8 10A Low beam headlamps (right)
9 15A Interior lights, Cargo lamps
10 15A Backlighting, Puddle lamps
11 10A All wheel drive
12 7.5A Not used (spare)
13 5A Keypad, Mirror switch, Memory
module, DSM logic, Adjustable
pedals
14 10A Power liftgate module, CID, MGM
15 10A Climate control head
16 15A EFP, Navigation Screen
17 20A All power lock motor feeds,
Liftgate release
18 20A 2nd row power seat, Front heated
seats
19 25A Moon roof
20 15A OBDII connector, Memory seat
21 15A Fog lamps
22 15A Park lamps, License lamps
23 15A High beam headlamps
24 20A Horn relay
25 10A Demand lamps/Interior lamps,
Power fold seat (2nd row)
26 10A Instrument panel cluster
27 20A Ignition Switch
28 5A Radio, Radio start signal
29 5A Instrument panel cluster
30 5A Overdrive cancel and grade assist
switch
31 10A Not used (spare)
32 10A Restraint control module
33 10A Battery charge relay
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
283

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
34 5A Yaw rate sensor, ABS R/S,
Refrigerator relay coil
35 10A Steering rotation sensor, Rear
park assist, Heated seat modules,
AWD, DC/AC inverter
36 5A PATS module
37 10A Not used (spare)
38 20A Not used (spare)
39 20A Radio
40 20A Second row heated seats
41 15A Switch illumination, EC mirror,
Moon roof, Front lock switches,
Radio
42 10A Not used (spare)
43 10A Aux relay, Heated back light relay,
rear wiper
44 10A Not used (spare)
45 5A Relay coils: PDB, Front and rear
wipers, Front blower motor
46 7.5A Occupant Classification Sensor
(OCS), Passenger Airbag
Deactivation Indicator (PADI)
47 30A Circuit
BreakerPower windows
48 Full ISO relay Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
284

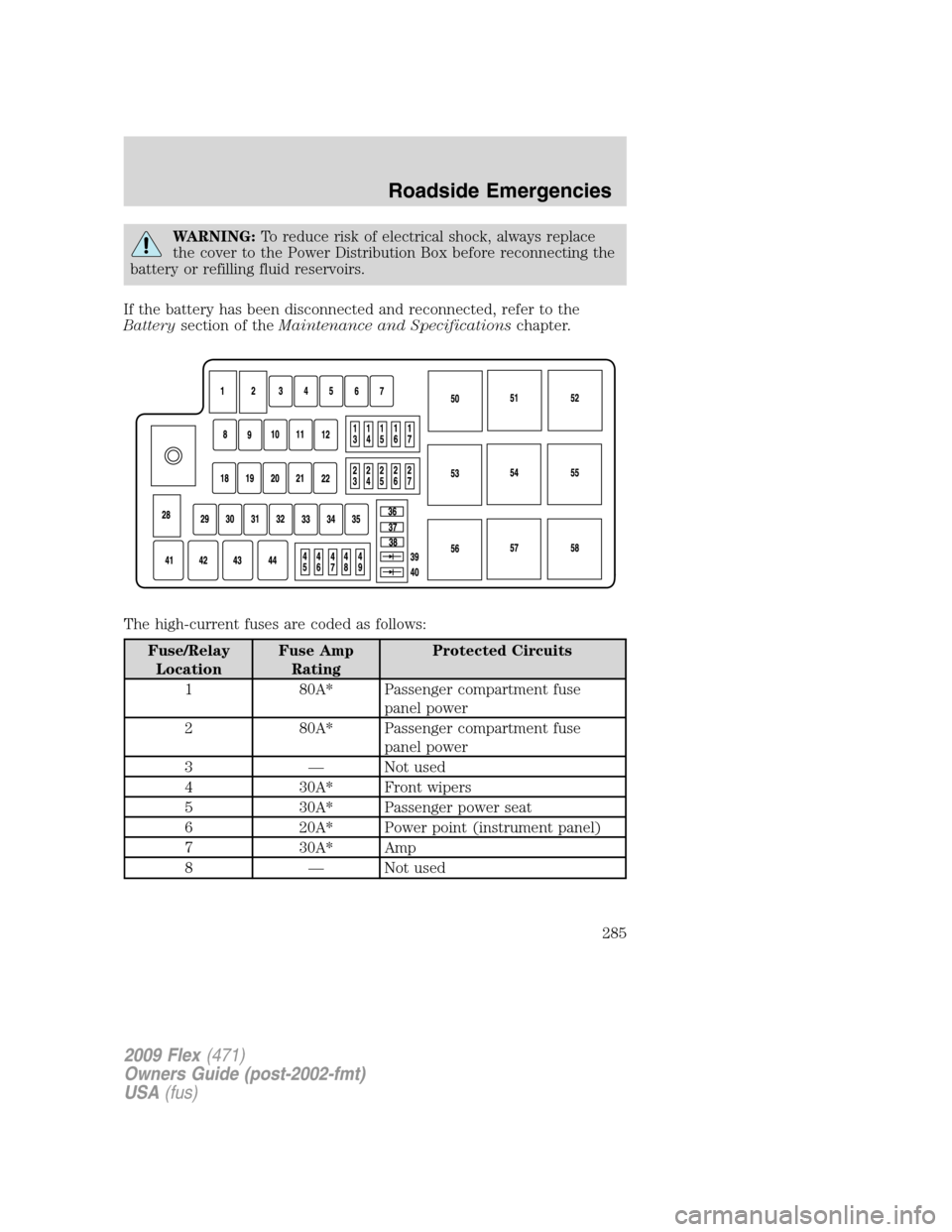

WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 80A* Passenger compartment fuse
panel power
2 80A* Passenger compartment fuse
panel power
3 — Not used
4 30A* Front wipers
5 30A* Passenger power seat
6 20A* Power point (instrument panel)
7 30A* Amp
8 — Not used
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
285
