2009 FIAT SEDICI stop start

161
Any forcible operation while driving of-
froad in the sand or water or when a
wheel has run off the road, the differ-
ence of the revolution between front
wheels and rear wheels increases
(wheels run idle). If this state continues,
the oil temperature of the driving sys-
tem parts rises.
In such case, the “4WD AUTO” indi-
cator light blinks and the driving mode
changes to the 2WD mode to protect
the driving system parts.
When you operate your vehicle in the
4WD mode continuously, park the ve-
hicle at a safe place and run the engine
idle. After some time, the “4WD AU-
TO” indicator light turns on again and
the driving mode returns to the “4WD
AUTO” mode.
IMPORTANT
Never use the “4WD LOCK” mode
when driving on dry paved roads.
Avoid using the “4WD LOCK” mode
when driving on wet paved roads as
much as possible. Use of the “4WD
LOCK” mode in above conditions will
apply excessive force to the driving sys-
tem and may cause a critical failure. Also,
the tires may wear faster and fuel con-
sumption may be affected adversely.
BRAKING
The distance needed to bring any vehicle
to a halt increases with the speed of the
vehicle. The braking distance needed, for
example, at 60 km/h (37 mph) will be ap-
proximately 4 times greater than the brak-
ing distance needed at 30 km/h (19 mph).
Start to brake the vehicle when there is
plenty of distance between your vehicle
and the stopping point, and slow down
gradually.
60G165A
Note that 4WD vehicles are not al-
laround vehicles. Be sure to observe
following instructions when driving
your vehicle.
– Do not drive through water like
crossing a river.
– Do not drive continuously where
front wheels tend to race such as in
the sand and mud.
– When any wheel is in the air for such
reason as running off the road, do
not race it needlessly.
If the “4WD AUTO” and the “4WD
LOCK” indicator lights stay on and come
on simultaneously when driving, there
may be something wrong the 4WD sys-
tem. Have the system inspected by an au-
thorized Fiat Dealership.
IMPORTANT Unevenly worn tires can
cause problems in the operation of the
2WD/4WD switch. Be sure to rotate the
tires according to the maintenance sched-
ule. Refer to “Tires” and “Maintenance
Schedule” in the “INSPECTION AND
MAINTENANCE” section for proper tire
rotation procedures.
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 161

164
HOW THE ABS WORKS
A computer continuously monitors wheel
speed. The computer compares the
changes in wheel speed when braking. If
the wheels slow suddenly, indicating a
skidding situation, the computer will
change braking pressure several times
each second to prevent the wheels from
locking. When you start your vehicle or
when you accelerate after a hard stop, you
may hear a momentary motor or clicking
noise as the system resets or checks itself.
The ABS may not work
properly if tires or wheels
other than those specified in the own-
er’s manual are used. This is because
the ABS works by comparing changes
in wheel speed. When replacing tires
or wheels, use only the size and type
specified in this owner’s manual.
WARNING
ELECTRONIC STABILITY
PROGRAM (ESP®)
(for versions/markets, where provided)
ESP
®is a registered trademark of Daimler
AG.
The Electronic Stability Program (ESP
®)
helps to control the vehicle during cor-
nering if the vehicle is understeering or
oversteering. It also assists you in main-
taining traction while accelerating on loose
or slippery road surfaces. It does this by
regulating the engine’s output, and by se-
lectively applying the brakes. In addition,
ESP
®helps to avoid skidding by controlling
braking pressure.
The ESP®cannot enhance
the vehicle’s driving stabili-
ty in all situations and does not con-
trol your vehicle’s entire braking sys-
tem. The ESP
®cannot prevent acci-
dents, including those resulting from
excessive speed in turns, or hy-
droplaning. Only a safe and attentive
driver can prevent accidents. The ca-
pabilities of an ESP
®- equipped ve-
hicle must never be used as a substi-
tute for careful driving.
WARNING
The ESP®has the following three systems:
STABILITY CONTROL SYSTEM
The vehicle stability control system helps
provide integrated control of systems such
as anti- lock brakes, traction control, en-
gine control, etc. This system automati-
cally controls the brakes and engine to
help prevent the vehicle from skidding
when cornering on a slippery road surface
or when turning the steering wheel
abruptly.
TRACTION CONTROL SYSTEM
The traction control system automatical-
ly helps prevent the spinning of wheels
when the vehicle is started or accelerated
on slippery road surfaces. The system op-
erates only if it senses that some of the
wheels are spinning or beginning to lose
traction. When this happens, the system
operates the front or rear brakes and re-
duces engine power to limit wheel spin.
NOTE You may hear a clicking sound in
the engine compartment for a few seconds
when you start the engine or just after the
vehicle begins to move. This means that
the above systems are in the self-check
mode. This sound does not indicate a mal-
function.
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 164

167
IMPORTANT To minimize the possibili-
ty of catalyst or other vehicle damage:
Maintain the engine in the proper op-
erating condition.
In the event of an engine malfunction,
particularly one involving engine misfire
or other apparent loss of performance,
have the vehicle serviced promptly.
Do not turn off the engine or interrupt
the ignition when the transaxle is in
gear and the vehicle is in motion.
Do not try to start the engine by push-
ing or towing the vehicle, or coasting
down a hill.
Do not idle the engine with any spark
plug wires disconnected or removed,
such as during diagnostic testing.
CATALYTIC CONVERTER
(for versions/markets, where provided)
The purpose of the catalytic converter is
to minimize the amount of harmful pollu-
tants in your vehicle’s exhaust. Use of
leaded fuel in vehicles equipped with cat-
alytic converters is prohibited, because
lead deactivates the pollutant- reducing
components of the catalyst system.
The converter is designed to last the life
of the vehicle under normal usage and
when unleaded fuel is used. No special
maintenance is required on the convert-
er. However, it is very important to keep
the engine properly tuned. Engine misfir-
ing, which can result from an improperly
tuned engine, may cause overheating of
the catalyst. This may result in permanent
heat damage to the catalyst and other ve-
hicle components.
68KM085
RUNNING-IN
IMPORTANT The future performance
and reliability of the engine depends on the
care and restraint exercised during its ear-
ly life. It is especially important to observe
the following precautions during the initial
960 km (600 miles) of vehicle operation.
After starting, do not race the engine.
Warm it up gradually.
Avoid prolonged vehicle operation at a
constant speed. Moving parts will break
in better if you vary your speed.
Start off from a stop slowly. Avoid full
throttle starts.
Avoid hard braking, especially during
the first 320 km (200 miles) of driving.
Do not drive slowly with the transaxle
in a high gear.
Drive the vehicle at moderate engine
speeds.
Do not tow a trailer during the first
960 km (600 miles) of vehicle opera-
tion.
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 167

168
IMPROVING FUEL
ECONOMY
The following instructions will help you
improve fuel economy.
Avoid excessive idling
If you are to wait for more than a minute
while you are parked, stop the engine and
start it again later. When warming up a
cold engine, allow the engine to idle until
the temperature gauge pointer comes up
to the “C” position (if the idling is not pro-
hibited). In this position, the engine is suf-
ficiently warm for starting off.
Avoid “fast” starts
Fast starts away from lights or stop signs
will consume fuel unnecessarily and short-
en engine life. Start off slowly.
Avoid unnecessary stops
Avoid unnecessary deceleration and stop-
ping. Try to maintain a slow, steady speed
whenever possible. Slowing down and
then accelerating again uses more fuel.
Keep a steady cruising speed
Keep as constant a speed as road and traf-
fic conditions will permit.Keep the air cleaner clean
If the air cleaner is clogged with dust, there
will be greater intake resistance, result-
ing in decreased power output and in-
creased fuel consumption.
Keep weight to a minimum
The heavier the load, the more fuel the
vehicle consumes. Take out any luggage or
cargo when it is not necessary.
Keep tire pressures correct
Underinflation of the tires can waste fuel
due to increased running resistance of the
tires. Keep your tires inflated to the cor-
rect pressure shown on the label on the
driver’s side door or the driver’s door
lock pillar.
60A183S
Do not idle the vehicle for prolonged
periods if idling seems rough or there
are other malfunctions.
Do not allow the fuel tank to get near
the empty level.
54G584S
Be careful where you park
and drive; the catalytic con-
verter and other exhaust components
can get very hot. As with any vehicle,
do not park or operate this vehicle
in areas where combustible materials
such as dry grass or leaves can come
in contact with a hot exhaust system.
WARNING
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 168

178
– Avoid “riding” the brakes.
This could cause the brakes
to overheat resulting in reduced brak-
ing efficiency. Use engine braking as
much as possible.
– Because of the added trailer weight,
your engine may overheat on hot
days when going up long or steep
hills. Pay attention to your engine
temperature gauge. If it indicates
overheating, pull off the road and
stop in a safe place. Refer to “If the
Engine Overheats” in “EMERGENCY
SERVICE” section.
WARNING
60A186
When parking your vehicle
and connected trailer, al-
ways use the following procedure:
– Apply the vehicle’s brakes firmly.
– Have another person place wheel
chocks under the wheels of the vehi-
cle and the trailer while you are hold-
ing the brakes.
– Slowly release the brakes until the
wheel chocks absorb the load.
– Fully engage the parking brake.
– Manual Transaxle – Shift into Re-
verse or first gear and turn off the en-
gine.
– Automatic Transaxle – Shift into
Park and turn off the engine.
WARNING
When starting out after
parking:
– Depress the clutch and start the en-
gine.
– Shift into gear, release the parking
brake, and slowly pull away from the
chocks.
– Stop, apply the brakes firmly and
hold them.
– Have another person remove the
chocks.
WARNING
173-182 SEDICI LUM FL GB 1E 19-06-2009 10:49 Pagina 178

192

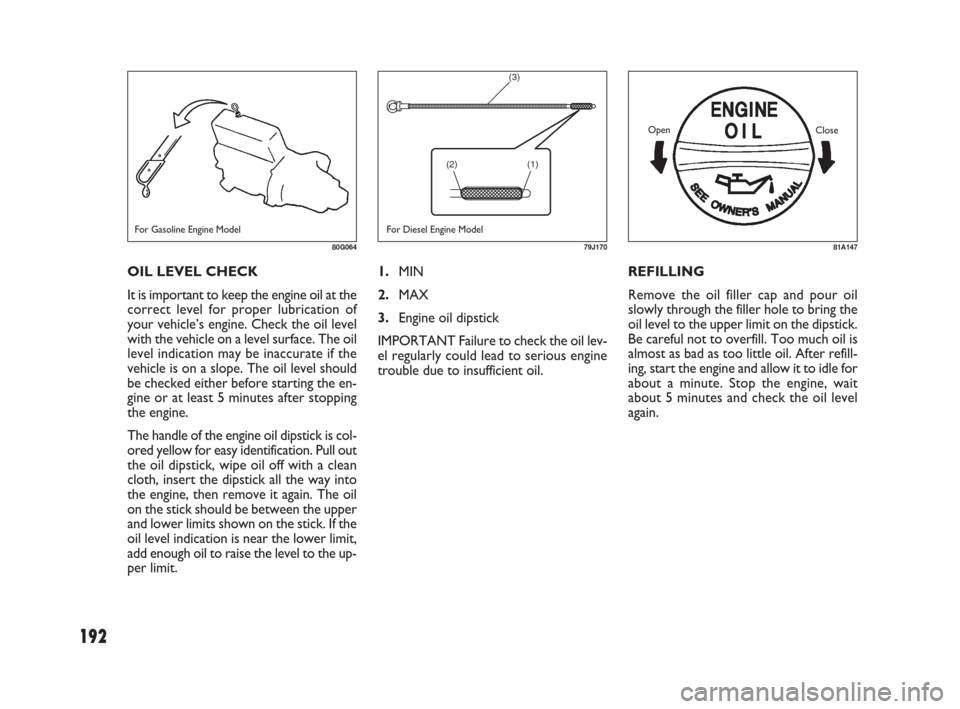

1.MIN
2.MAX
3.Engine oil dipstick
IMPORTANT Failure to check the oil lev-
el regularly could lead to serious engine
trouble due to insufficient oil.REFILLING
Remove the oil filler cap and pour oil
slowly through the filler hole to bring the
oil level to the upper limit on the dipstick.
Be careful not to overfill. Too much oil is
almost as bad as too little oil. After refill-
ing, start the engine and allow it to idle for
about a minute. Stop the engine, wait
about 5 minutes and check the oil level
again. OIL LEVEL CHECK
It is important to keep the engine oil at the
correct level for proper lubrication of
your vehicle’s engine. Check the oil level
with the vehicle on a level surface. The oil
level indication may be inaccurate if the
vehicle is on a slope. The oil level should
be checked either before starting the en-
gine or at least 5 minutes after stopping
the engine.
The handle of the engine oil dipstick is col-
ored yellow for easy identification. Pull out
the oil dipstick, wipe oil off with a clean
cloth, insert the dipstick all the way into
the engine, then remove it again. The oil
on the stick should be between the upper
and lower limits shown on the stick. If the
oil level indication is near the lower limit,
add enough oil to raise the level to the up-
per limit.
80G06481A147
Open
Close
For Gasoline Engine Model
(3)
(2) (1)
79J170
For Diesel Engine Model
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 192

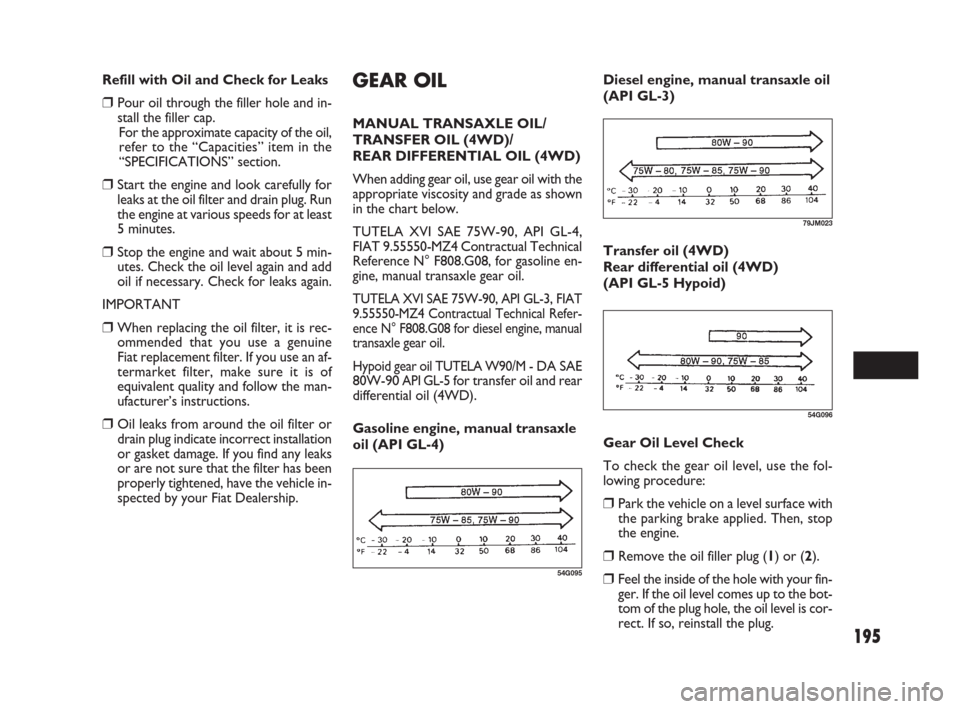

195
Refill with Oil and Check for Leaks
❒Pour oil through the filler hole and in-
stall the filler cap.
For the approximate capacity of the oil,
refer to the “Capacities” item in the
“SPECIFICATIONS” section.
❒Start the engine and look carefully for
leaks at the oil filter and drain plug. Run
the engine at various speeds for at least
5 minutes.
❒Stop the engine and wait about 5 min-
utes. Check the oil level again and add
oil if necessary. Check for leaks again.
IMPORTANT
❒When replacing the oil filter, it is rec-
ommended that you use a genuine
Fiat replacement filter. If you use an af-
termarket filter, make sure it is of
equivalent quality and follow the man-
ufacturer’s instructions.
❒Oil leaks from around the oil filter or
drain plug indicate incorrect installation
or gasket damage. If you find any leaks
or are not sure that the filter has been
properly tightened, have the vehicle in-
spected by your Fiat Dealership.
GEAR OIL
MANUAL TRANSAXLE OIL/
TRANSFER OIL (4WD)/
REAR DIFFERENTIAL OIL (4WD)
When adding gear oil, use gear oil with the
appropriate viscosity and grade as shown
in the chart below.
TUTELA XVI SAE 75W-90, API GL-4,
FIAT 9.55550-MZ4 Contractual Technical
Reference N° F808.G08, for gasoline en-
gine, manual transaxle gear oil.
TUTELA XVI SAE 75W-90, API GL-3, FIAT
9.55550-MZ4 Contractual Technical Refer-
ence N° F808.G08 for diesel engine, manual
transaxle gear oil.
Hypoid gear oil TUTELA W90/M -
DA SAE
80W-90 API GL-5for transfer oil and rear
differential oil (4WD).
Gasoline engine, manual transaxle
oil (API GL-4)
54G095
54G096
79JM023
Transfer oil (4WD)
Rear differential oil (4WD)
(API GL-5 Hypoid)
Gear Oil Level Check
To check the gear oil level, use the fol-
lowing procedure:
❒Park the vehicle on a level surface with
the parking brake applied. Then, stop
the engine.
❒Remove the oil filler plug (1) or (2).
❒Feel the inside of the hole with your fin-
ger. If the oil level comes up to the bot-
tom of the plug hole, the oil level is cor-
rect. If so, reinstall the plug. Diesel engine, manual transaxle oil
(API GL-3)
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 195

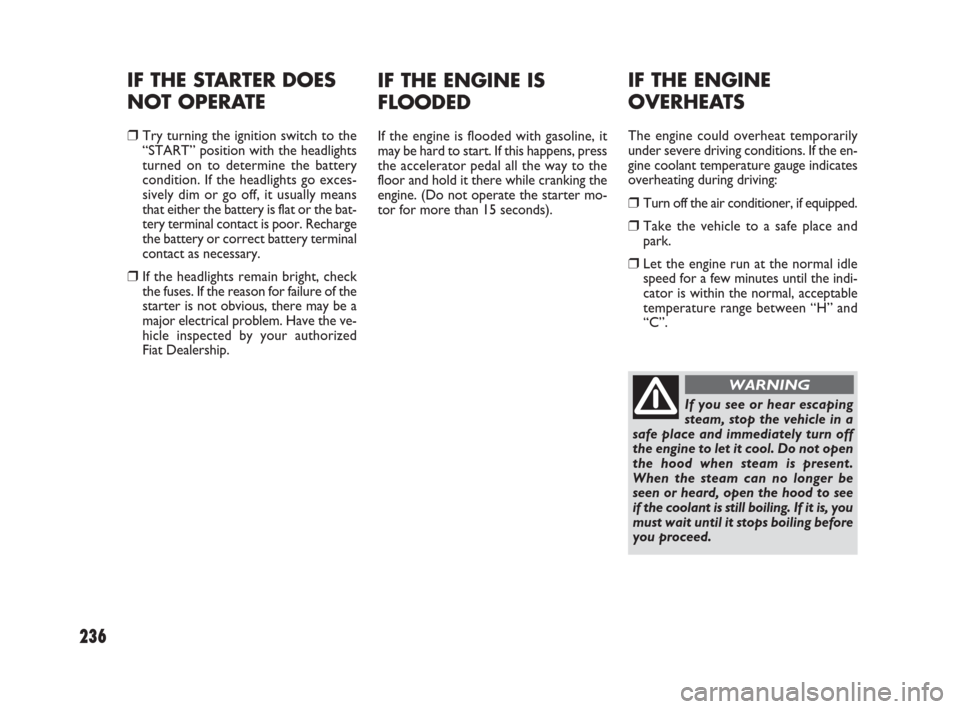

236
IF THE ENGINE
OVERHEATS
The engine could overheat temporarily
under severe driving conditions. If the en-
gine coolant temperature gauge indicates
overheating during driving:
❒Turn off the air conditioner, if equipped.
❒Take the vehicle to a safe place and
park.
❒Let the engine run at the normal idle
speed for a few minutes until the indi-
cator is within the normal, acceptable
temperature range between “H” and
“C”.
IF THE ENGINE IS
FLOODED
If the engine is flooded with gasoline, it
may be hard to start. If this happens, press
the accelerator pedal all the way to the
floor and hold it there while cranking the
engine. (Do not operate the starter mo-
tor for more than 15 seconds).
If you see or hear escaping
steam, stop the vehicle in a
safe place and immediately turn off
the engine to let it cool. Do not open
the hood when steam is present.
When the steam can no longer be
seen or heard, open the hood to see
if the coolant is still boiling. If it is, you
must wait until it stops boiling before
you proceed.
WARNING
IF THE STARTER DOES
NOT OPERATE
❒Try turning the ignition switch to the
“START” position with the headlights
turned on to determine the battery
condition. If the headlights go exces-
sively dim or go off, it usually means
that either the battery is flat or the bat-
tery terminal contact is poor. Recharge
the battery or correct battery terminal
contact as necessary.
❒If the headlights remain bright, check
the fuses. If the reason for failure of the
starter is not obvious, there may be a
major electrical problem. Have the ve-
hicle inspected by your authorized
Fiat Dealership.
231-238 SEDICI LUM FL GB 1E 19-06-2009 11:06 Pagina 236
