SERVICE STATION GUIDE
1.Fuel (see section 1)
2.Engine hood (see section 4)
3.Tire changing tools (see section 4)
4.Engine oil dipstick (Yellow)
(see section 8)
5.Automatic transaxle fluid dipstick
(Red or Orange) (see section 8)
6.Engine coolant (see section 8)
7.Windshield washer fluid
(see section 8)
8.Battery (see section 8)
9.Tire pressure (see Tire Information
Label on driver’s door lock pillar)
10.Spare tire (see section 8)
LHD: Left Hand Drive
RHD: Right Hand Drive
(RHD)
2
2
(LHD) 2
4
7
6
(LHD)19
(RHD) 9
3
10
85
6
79JF017
(Diesel Engine Model)
001-008 SEDICI LUM FL GB 1E 19-06-2009 13:27 Pagina 3

4

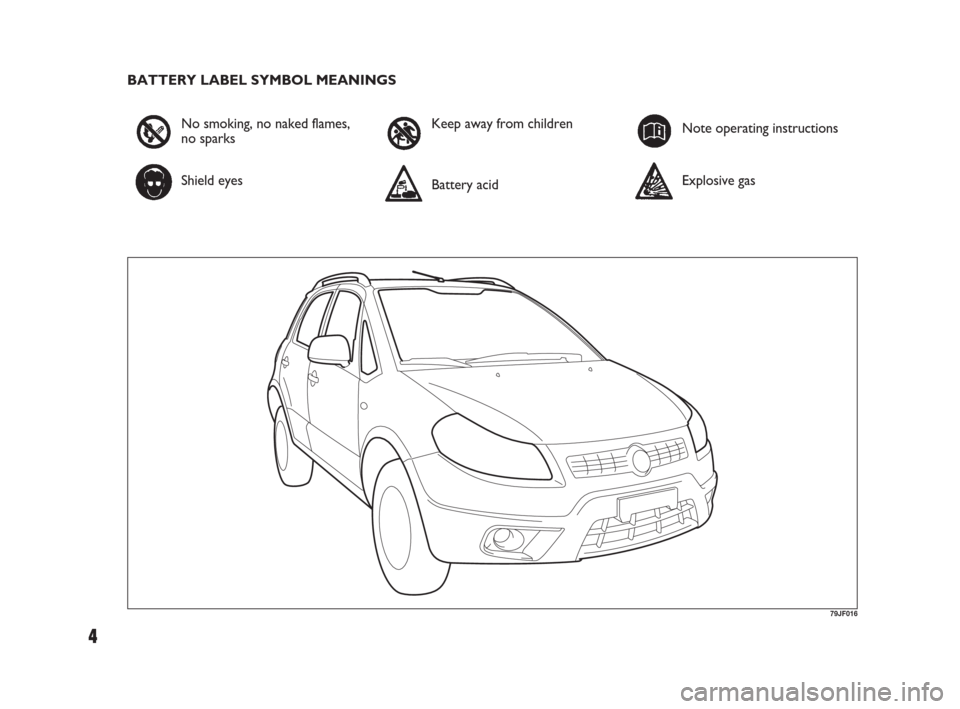

BATTERY LABEL SYMBOL MEANINGS
79JF016
No smoking, no naked flames,
no sparks
Shield eyesKeep away from children
Battery acidNote operating instructions
Explosive gas
001-008 SEDICI LUM FL GB 1E 19-06-2009 13:27 Pagina 4

15
To release this system:
To unlock all the side doors, insert the key
in the driver’s door lock and turn the top
of the key toward the front of the vehi-
cle twice.
To unlock only the driver’s door, insert
the key in that door lock and turn the top
of the key toward the front of the vehi-
cle once.
83E105
Rear
Front
❒When the remote controller is placed
near an electric appliance such as per-
sonal computer.
The Keyless Start System, controller mod-
el S62J1 and key model TS001 are in com-
pliance with the essential requirements
and other provisions of Directive
1999/5/EC.
NOTE
❒Make sure the ignition key is stowed
in the remote controller. If the remote
controller becomes unreliable, you can
not lock or unlock the doors and start
the engine.
❒Be sure that the driver always carries
the remote controller.
❒If you lose your remote controller, see
your Fiat Dealership as soon as possi-
ble to have the lost one deactivated.
❒You can use up to four remote con-
trollers and ignition keys for your ve-
hicle. Ask your Fiat Dealership for de-
tails.
❒The battery life of the remote con-
troller is about two years, but it can
very depending on usage conditions. KEYLESS START SYSTEM
(for versions/markets, where provided)
The keyless start system enables the fol-
lowing operations:
❒You can lock or unlock the doors by
pushing the request switch on the door
handle. For details, refer to the expla-
nation in this section.
❒You can start the engine without using
an ignition key. For details, refer to “Ig-
nition Switch” in the “STEERING COL-
UMN CONTROLS” section and
“Starting the Engine” in the “OPERAT-
ING YOUR VEHICLE” section.
❒You can lock or unlock the doors by
operating the LOCK/UNLOCK but-
tons on the remote controller. Refer
to “Keyless Entry System” in the “BE-
FORE DRIVING” section.
NOTE The keyless start system may not
function correctly depending on the en-
vironment or operating conditions as fol-
lows:
❒When there are strong signals coming
from a television, power station or a
cellular phone with you.
❒When the remote controller is in con-
tact with or covered by a metal object.
❒When the radio wave type remote key-
less entry is used nearby.
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 15

17
When the door(s) is(are) unlocked:
❒the turn signal lights will flash twice, and
❒the interior light will turn on for about
15 seconds and then fade out with the
interior light switch in the middle po-
sition. If you push the ignition switch
during that time, the light will start to
fade out immediately.
Be sure the doors are locked after you op-
erate the request switch to lock.
NOTE
❒The door locks can not be operated by
the request switch under the follow-
ing conditions:
– if any door is open or incompletely
closed;
– if the ignition switch is in a position
other than LOCK;
– if the ignition key is inserted in the ig-
nition switch.
❒If no doors are opened within about 30
seconds after unlocking by pushing the
request switch, the doors will be locked
automatically again.
❒If a spare remote controller is in the ve-
hicle, the request switches may not op-
erate normally.
❒The remote controller will only oper-
ate a request switch if it is within the
switch’s operating range. For example,
if the remote controller is within the
operating range of the driver’s door re-
quest switch, the driver’s door switch
can be operated but the front passen-
ger’s door switch or rear door switch
can not be operated.
IMPORTANT The remote controller is
a sensitive electronic instrument. To avoid
damaging the remote controller:
❒Do not expose it to impacts, moisture
or high temperature such as on the
dashboard under direct sunlight.
❒Keep the remote controller away from
magnetic objects such as a television. 1. 80 cm
When the remote controller is within ap-
proximately 80 cm from a front door han-
dle or rear door, you can lock or unlock
the doors by pushing the request switch.
NOTE❒The request switch operating range is
within approximately 80 cm of the door
handle or rear door handle. If the re-
mote controller is outside this range, it
will not operate the request switch.
❒If the battery of the remote controller
runs down or there are strong radio
waves or noise, the operating range
may be narrower or the remote con-
troller may be inoperative.
❒If you are too close to the door glass,
the remote controller may not oper-
ate.
(1) (1)
(1)
80JM020
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 17

20
Replacement of the battery
If the transmitter/ remote controller be-
comes unreliable, replace the battery.
To replace the battery for the
transmitter of the keyless entry
❒Remove the screw (1), and open the
transmitter cover.
❒Remove the transmitter (2). Type 1
The Keyless Entry System, Transmitter
model TS002 and Receiver model R51K0
are in compliance with the essential re-
quirements and other provisions of Di-
rective 1999/5/EC.
Type 2
The Keyless Start System, controller mod-
el S62J1 and key model TS001 are in com-
pliance with the essential requirements
and other provisions of Directive
1999/5/EC.
IMPORTANT The transmitter/remote
controller is a sensitive electronic instru-
ment. To avoid damaging the transmit-
ter/remote controller:
❒Do not expose it to impacts, moisture
or high temperature such as on the
dashboard under direct sunlight.
❒Keep the transmitter/remote con-
troller away from magnetic objects
such as a television.
(1)
(2)
81A185
NOTE
❒The maximum operating distance is
about 5 meter (16 ft.), but this can vary
depending on the surroundings, espe-
cially near other transmitting devices
such as radio towers or CB (Citizen’s
Band) radios.
❒The door locks can not be operated
with the transmitter/remote controller:
– if the ignition switch is in a position
other than “LOCK” or the ignition
key is inserted in the ignition switch,
or
– if any door is open or incompletely
closed.
❒If you lose your transmitter/remote
controller, ask your Fiat Dealership as
soon as possible for a replacement and
to have the lost one deactivated.
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 20

21
❒Put the edge of a coin or a flat blade
screw driver in the slot of the trans-
mitter (2) and pry it open.
❒Replace the battery (3) (Lithium disc-
type CR1620 or equivalent) so its +
terminal faces the “+” mark of the
transmitter.
❒Close the transmitter and install it in-
to the transmitter holder.
❒Close the transmitter cover, install and
tighten the screw (1).
❒Make sure the door locks can be op-
erated with the transmitter.
❒Dispose of the used battery properly
according to applicable rules or regula-
tions. Do not dispose of lithium bat-
teries with ordinary household trash.
(2)
(3)
80JM135
To replace the battery for the
remote controller of the keyless
start system
❒Insert a flat blade screw driver covered
with a soft cloth in the slit of the re-
mote controller and pry it open.
❒Replace the battery (1) (Lithium disc
type CR2032 or equivalent) so its +
terminal faces the bottom of the case
as shown in the illustration.
❒Close the remote controller firmly.
❒Make sure the door locks can be op-
erated with the remote controller.
189002189003
Swallowing a lithium battery
may cause serious internal
injury. Do not allow anyone to swal-
low a lithium battery. Keep lithium
batteries away from children and
pets. If swallowed, contact physician
immediately.
WARNING
IMPORTANT The transmitter/remote
controller is a sensitive electronic instru-
ment. To avoid damaging it, do not expose
it to dust or moisture or tamper with in-
ternal parts.
NOTE Used batteries must be disposed
properly according to applicable rules or
regulations and must not be disposed with
ordinary household trash.
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 21

22
Child-Proof Locks (rear side door)
1. LOCK
2.UNLOCK
As illustrated, a child-proof lock is pro-
vided for both rear doors. When the lock
lever is in position (1), the child-proof lock
is locked, and when in position (2), the
childproof lock is unlocked. When the
childproof lock is in the locked position,
the rear door cannot be opened from the
inside even if the inside door lock is un-
locked but can be opened from the out-
side.
(1) (2)
79J025
Be sure to place the child-
proof lock in the locked po-
sition whenever children are seated in
the rear.
WARNING
1.Crossed-out wheeled bin symbol
The crossed-out wheeled bin symbol (1)
indicates that used battery should be col-
lected separately from ordinary household
trash.
By ensuring the used battery is disposed
or recycled correctly, you will help pre-
vent potential negative consequences for
the environment and human health, which
could otherwise be caused by inappropri-
ate trash handling of the battery. The re-
cycling of materials will help to conserve
natural resources. For more detailed in-
formation about disposing or recycling of
the used battery, consult your FIAT Deal-
ership.
After engaging the child lock
on both rear doors, check for
proper engagement by trying to open
a rear door with the internal handle.
WARNING
(1)
80JM133
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 22

23
Rear door
1.Rear door unlatch switch
You can lock and unlock the rear door by
using the key in the driver’s door lock.
If your vehicle is equipped with a rear
door keylock, you can lock or unlock the
rear door by using the key in the rear
door lock. To open the rear door, insert
the key and turn it clockwise to unlatch
and lift the rear door.
If your vehicle is equipped with a rear
door unlatch switch (1), push and hold the
rear door unlatch switch (1) and lift the
rear door to open the rear door.NOTE When the rear door is closed in-
completely, follow the procedure below:
❒Push the rear door unlatch switch (1)
and open the rear door a little.
❒After a few seconds, close the rear
door.
❒Make sure that the rear door is closed
completely.
If you can not unlatch the rear door by
pushing the unlatch switch (1) due to a dis-
charged battery or malfunction, follow the
procedures below to unlatch the rear
door from inside the vehicle.
❒Fold the rear seat forward for easier ac-
cess. Refer to “Folding Rear Seats” sec-
tion for details on how to fold the rear
seat forward.
(1)
79J026
Always make sure that the
rear door is closed and
latched securely. Completely closing
the rear door helps prevent occupants
from being thrown from the vehicle in
the event of an accident. Completely
closing it also helps keep exhaust gas-
es from entering the vehicle.
WARNING
❒Push open the rear door from inside by
pushing up on the emergency lever (2)
using a flat blade screw driver or the
jack handle. The rear door will be
latched again by closing the rear door
simply.
If the rear door can not be unlatched, have
the vehicle inspected by your Fiat Deal-
ership.
(2)
79J099
To avoid injury, do not use
your finger to push the
emergency lever.
Make sure there is not anyone near
the rear door when pushing open the
rear door from inside the vehicle.
WARNING
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 23
