2009 FIAT PANDA 100HP Supplement Manual

16
FIAT PANDA 100HP
6.5 J x 15 ET304.00B x 15” HET35
195/45 R15 78V (*) Version Rims Standard tyres Space-saver spare wheel (where provided)
Rim Tyre
Fiat Panda
100HP
(*) Tyres that can be fitted with snow chains (snow chains with reduced size: 9 mm)
Note- Available at common retailers: alloy rims 5.5 J x 14ET32 with winter tyres 185/55 R14 80T (M+S).
2.2
2.42.3
2.52.3
2.5 2.1
2.3 195/45 R15 78V
185/55 R14 80T (M+S) 4.2 COLD TYRE INFLATION PRESSURE (bar)
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm.
Recheck pressure value with cold tyres.
Version Tyres Medium load Full load Space-saver
Front Rear Front Rearspare wheel
(where provided)
Fiat Panda
100HP
WHEELS AND TYRES
125/70 R15 95M
603_97_390 Panda 100 HP GB:603_97_390 Panda 100 HP GB 7-10-2009 17:06 Pagina 16

17
FIAT PANDA 100HP
DIMENSIONS
Dimensions are expressed in mm and re-
fer to the car fitted with standard tyres.
The height refers to the car unladen.
F0G0712m
Version A B C D E F G H
Fiat Panda 100HP3578 729 2299 550 1560 1368 1609 1378
(*) Track measurements may vary according to rim size.
fig. 14
603_97_390 Panda 100 HP GB:603_97_390 Panda 100 HP GB 7-10-2009 17:06 Pagina 17

18
FIAT PANDA 100HP
Fiat Panda 100HP
975
390
730
660
1365
800
400
50
60

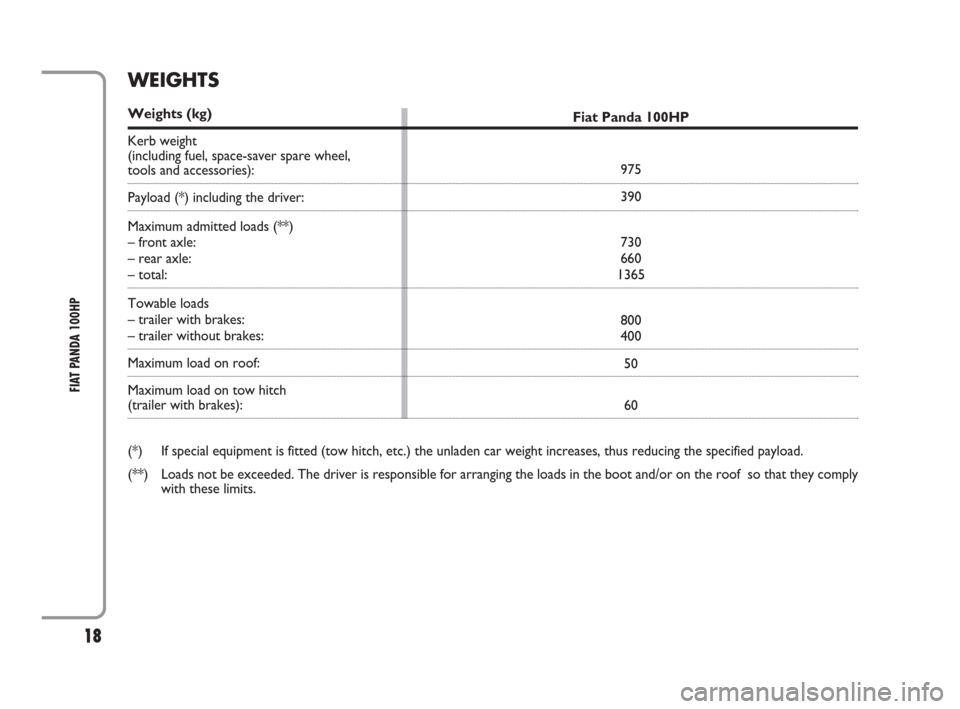

WEIGHTS
Weights (kg)
Kerb weight
(including fuel, space-saver spare wheel,
tools and accessories):
Payload (*) including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on tow hitch
(trailer with brakes):
(*) If special equipment is fitted (tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload.
(**) Loads not be exceeded. The driver is responsible for arranging the loads in the boot and/or on the roof so that they comply
with these limits.
603_97_390 Panda 100 HP GB:603_97_390 Panda 100 HP GB 7-10-2009 17:06 Pagina 18

19
FIAT PANDA 100HP
Fiat Panda 100HP
35
5
4.50
2.75
2.90
1.65
0.55
1.80
CAPACITIES
Fuel tank: litresincluding a reserve of: litres
Engine cooling system: litres
Engine sump: litres
Engine sump and filter: litres
Gearbox/differential casing: litres
Hydraulic brake circuit: kg
Windscreen and rear window
washer fluid reservoir: litresSpecified fuels and
recommended products
Unleaded petrol with no less than 95
R.O.N.
Mixture of distilled water and
PARAFLU
UPat 50%
SELENIA 20K
TUTELA CAR TECHNYX
TUTELA TOP 4
Mixture of water and
TUTELA PROFESSIONAL SC 35
PERFORMANCE
Top admitted speed after initial car use in km/h.
Fiat Panda 100HP185
603_97_390 Panda 100 HP GB:603_97_390 Panda 100 HP GB 7-10-2009 17:06 Pagina 19

20
FIAT PANDA 100HP
FUEL CONSUMPTION
IMPORTANT The type of route, traffic situations, weather conditions, driving style (e.g.: sports driving), general conditions of the
car, trim level/equipment/accessories, load, climate control system, roof rack, other situations that affect air drag may lead to dif-
ferent fuel consumption levels than those measured
Fuel consumption according to European Directive in force (litres x 100 km)
Version Urban Extra-urban Combined
Fiat Panda 100HP8.7 5.3 6.5
Using the SPORT function, fuel consumption will be slightly higher than the stated values.
CO2EMISSIONS
The CO2emission levels at the exhaust given in the following tables refer to combined consumption.
Version CO2emissions according to European Directive in force (g/km)
Fiat Panda 100HP154
Fiat Group Automobiles S.p.A.
Customer Services - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print n° 603.97.390 - 09/2009 - 1 Edition
