REAR COURTESY LIGHT WITH MOVABLE
LENS
(Cargo versions)
This is located on the rear panel of the load compartment.
The light comes on automatically when you open the slid-
ing side doors (for versions/markets where provided) and
the rear swing doors/tailgate (for versions/markets where
provided), and goes out when you close them.
Press the left or right side of the movable lens A, as shown
in fig. 52, to switch the light on/off when the doors are
closed.REAR COURTESY LIGHT WITH MOVABLE
LENS
(additional for Cargo long wheelbase versions)
It is located on the right side of the load compartment.
The light comes on automatically when the sliding side
doors and the rear swing door/tailgate are opened and it
goes out when they are closed.
Press the left side of the lens A-fig. 52, as shown in the
diagram, to switch the light on/off when the doors are
closed.
LUGGAGE COMPARTMENT COURTESY
LIGHT
(Doblò/Doblò Combi version)
The light fig. 53 comes on automatically when the swing
doors or tailgate (for versions/markets where provided)
are opened and goes out when they are closed.
F0V0172mfig. 53

68
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX


F0V0174mfig. 55
TORCH FUNCTION
(for Cargo versions where provided)
This is located on the right side of the load compartment.
It has a removable electric torch.
To use the removable torch A-fig. 55, push button B and
remove the torch in the direction shown by the arrow.
Then press switch C to switch the light on/off.
When the removable courtesy light is secured to its fixed
support, the electric torch battery is automatically
recharged.
With the vehicle stationary and the ignition key either
turned to STOP or removed, the courtesy light is
recharged for a maximum of 15 minutes. REAR COURTESY LIGHT WITH REMOVABLE
TORCH
(for Cargo versions where provided)
The light can only be switched on/off manually by pressing
switch A-fig.54.
The removable courtesy light is not connected to the
doors; it can only be operated manually using switch A.
Switch A can assume three different positions:
❒with the switch in the middle, the light is always off;
❒with the switch pushed up (position 1), the light is al-
ways on;
❒with the switch pushed down (position 2 – AUTO
OFF), the light is always off.
F0V0173mfig. 54

69
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Doblò/Doblò Combi versions
Switching on
The front and rear courtesy lights come on when one of
the front doors or a sliding side door is opened and they
stay on for 3 minutes if at least one of these doors con-
tinues to remain open.
Switching off
The front and rear courtesy lights go out immediately (with
fading), if the key is in the MAR position when all the front
doors and the sliding side doors are closed.
The front and rear courtesy lights go out after 10 secs.
(with fading), if the key is in the OFF position when all
the front doors and the sliding side doors are closed. SWITCHING COURTESY LIGHTS ON/OFF
Cargo versions
Switching on
The front courtesy light comes on when one of the two
front doors is opened and remains on for 3 minutes if at
least one of the two doors continues to remain open.
The rear courtesy lights come on when one of the sliding
side doors or the rear door (swing or tailgate) is opened
and they stay on for 3 minutes if at least one of these doors
remains open.
Switching off
The front courtesy light goes out immediately (with fad-
ing), if the key is in the MAR position when all the front
doors are closed.
The front courtesy light goes out after 10 secs. (with fad-
ing), if the key is in the OFF position when all the front
doors are closed.
The rear courtesy lights go out immediately (with fading),
if the key is in the MAR position when all the side doors
and the rear door (swing or tailgate) are closed.
The rear courtesy lights go out after 10 secs. (with fading),
if the key is in the OFF position when all the side doors
and the rear door (swing or tailgate) are closed.

F0V0019mfig. 56

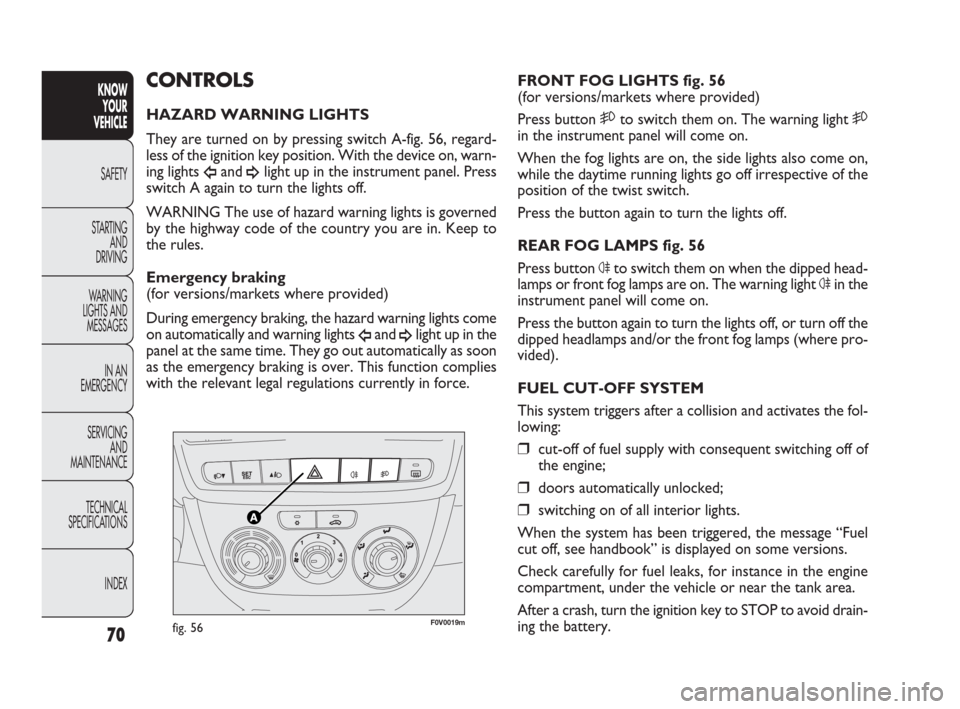

FRONT FOG LIGHTS fig. 56
(for versions/markets where provided)
Press button 5to switch them on. The warning light 5
in the instrument panel will come on.
When the fog lights are on, the side lights also come on,
while the daytime running lights go off irrespective of the
position of the twist switch.
Press the button again to turn the lights off.
REAR FOG LAMPS fig. 56
Press button
4to switch them on when the dipped head-
lamps or front fog lamps are on. The warning light
4in the
instrument panel will come on.
Press the button again to turn the lights off, or turn off the
dipped headlamps and/or the front fog lamps (where pro-
vided).
FUEL CUT-OFF SYSTEM
This system triggers after a collision and activates the fol-
lowing:
❒cut-off of fuel supply with consequent switching off of
the engine;
❒doors automatically unlocked;
❒switching on of all interior lights.
When the system has been triggered, the message “Fuel
cut off, see handbook” is displayed on some versions.
Check carefully for fuel leaks, for instance in the engine
compartment, under the vehicle or near the tank area.
After a crash, turn the ignition key to STOP to avoid drain-
ing the battery.
CONTROLS
HAZARD WARNING LIGHTS
They are turned on by pressing switch A-fig. 56, regard-
less of the ignition key position. With the device on, warn-
ing lights
Îand¥light up in the instrument panel. Press
switch A again to turn the lights off.
WARNING The use of hazard warning lights is governed
by the highway code of the country you are in. Keep to
the rules.
Emergency braking
(for versions/markets where provided)
During emergency braking, the hazard warning lights come
on automatically and warning lights
Îand¥light up in the
panel at the same time. They go out automatically as soon
as the emergency braking is over. This function complies
with the relevant legal regulations currently in force.
