SUN VISORS fig. 69
The driver’s side and passenger’s side sun visors can be
moved back and forth and to the side.
There is a space for storing tickets behind the visor on the
driver’s side.
A vanity mirror is fitted on the passenger side sun visor
on all versions. ASHTRAY fig. 68
(for versions/markets where provided)
The ashtray is a removable spring-loaded plastic box that
can be fitted into the cup/can holders in the central con-
sole.
Do not use the ashtray as a waste paper
basket: it might catch fire in contact with
cigarette stubs.
WARNING
SATELLITE NAVIGATOR CAPABILITY fig. 69b
(for versions/markets where provided)
This is located in the dashboard area illustrated in the di-
agram for connecting the navigator.
F0V0065mfig. 69

76
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
A
fig. 70F0V0132m F0V0198mfig. 71
HINGED REAR SIDE WINDOWS
(Doblò/Doblò Combi versions) fig. 71
To open, proceed as follows:
❒move lever A-fig. 71 outwards until the window is ful-
ly open.
❒push the lever back until it locks into place.
To close them, carry out the process in reverse until the
lever clicks back into its original place.
Do not use the desk in a vertical position
with the vehicle in motion.
WARNING
DESK/BOOKREST
(for versions/markets where provided)
There is a desk A-fig. 70 in the middle of the dashboard
above the sound system compartment; on some versions,
this desk can be used as a bookrest by lifting the back sec-
tion and resting it on the dashboard as illustrated in the
picture.

77
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0046mfig. 72F0V0022mfig. 73

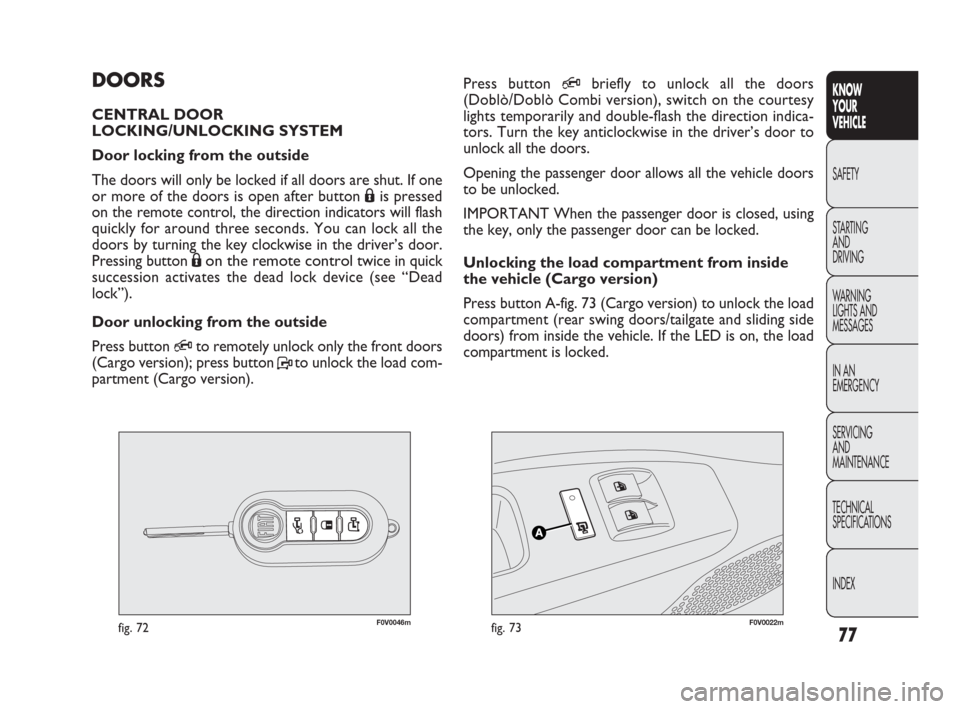

Press button Qbriefly to unlock all the doors
(Doblò/Doblò Combi version), switch on the courtesy
lights temporarily and double-flash the direction indica-
tors. Turn the key anticlockwise in the driver’s door to
unlock all the doors.
Opening the passenger door allows all the vehicle doors
to be unlocked.
IMPORTANT When the passenger door is closed, using
the key, only the passenger door can be locked.
Unlocking the load compartment from inside
the vehicle (Cargo version)
Press button A-fig. 73 (Cargo version) to unlock the load
compartment (rear swing doors/tailgate and sliding side
doors) from inside the vehicle. If the LED is on, the load
compartment is locked.DOORS
CENTRAL DOOR
LOCKING/UNLOCKING SYSTEM
Door locking from the outside
The doors will only be locked if all doors are shut. If one
or more of the doors is open after button Áis pressed
on the remote control, the direction indicators will flash
quickly for around three seconds. You can lock all the
doors by turning the key clockwise in the driver’s door.
Pressing button Á
on the remote controltwice in quick
succession activates the dead lock device (see “Dead
lock”).
Door unlocking from the outside
Press button
Qto remotely unlock only the front doors
(Cargo version); press button Pto unlock the load com-
partment (Cargo version).

78
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
On Cargo versions, the sliding side door is fitted with
a spring-loaded latch that stops the door from opening any
further. To lock it, simply push the door as far as it will go;
to unlock it, pull forward firmly.
In any case, make sure that the door is properly attached
to the device which keeps it fully open.SLIDING SIDE DOORS
(for versions/markets where provided)
Before opening a door, check that you can
do so safely.
WARNING
Before refuelling, check that the left sliding
side door is fully closed; if it is not, you could
damage the door and the slide locking
mechanism when the fuel cap is open.
You cannot open the left sliding side door
with the fuel cap open.
WARNING
If you are parked on a slope, do not leave
the sliding door locked in the open posi-
tion. An involuntary impact could unhook the
door, causing it to move.
WARNING
Before leaving the vehicle parked with the
sliding doors open, always check that they
are locked into place.
WARNING

79
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0085mfig. 74F0V0133mfig. 75
Opening/closing from the inside
(Doblò/Doblò Combi versions)
Opening: push switch A-fig. 75 to unlock the door, then
pull the handle and slide the door towards the rear of the
vehicle until it can go no further.
Closing: push switch A-fig. 75 to release the door and then
push it towards the front of the vehicle.
Push switch B-fig. 75 to lock the door from inside the ve-
hicle. Opening/closing from outside
Opening: turn the key in the lock and pull the handle
A-fig. 74 in the direction shown by the arrow, then slide
the door towards the rear of the vehicle until it locks in-
to place and can go no further.
Closing: grab the handle A-fig. 74 and push towards the
front of the vehicle. Lock with the key.

80
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0066mfig. 76F0V0186mfig. 77
The device remains engaged even if the doors are unlocked
remotely. Opening/closing from the inside
(Cargo versions)
Opening: pull lever A-fig. 76 and slide the door towards
the rear of the vehicle until it can go no further.
Closing: slide the door towards the front of the vehicle.
CHILD LOCK SYSTEM fig. 77
This system prevents the sliding side doors being opened
from the inside.
It can be engaged only with the sliding side door open:
❒position 1 – engaged (door locked);
❒position 2 – disengaged (door can be opened from in-
side).
Always use this device when carrying chil-
dren.
WARNING
DOUBLE REAR SWING DOORS
The double rear swing doors are fitted with a spring-loaded
system that stops them when they have opened to an an-
gle of approximately 90 degrees.
To open them wider to an angle of 180 degrees, push the
locking device A-fig. 78 (one on each side) as shown in the
diagram and simultaneously open the doors.

81
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0067mfig. 78F0V0079mfig. 79
Opening/closing the first swing door from the
outside
To open the door, turn the key in the lock or press but-
ton Pon the remote control and then pull handle
A-fig. 79 in the direction of the arrow. To close the door,
turn the key in the lock or press button
Áon the remote
control. Using the key pawl on the door, you can do the following:
❒for Cargo versions with swing door/boot: centrally un-
lock the load compartment (sliding side doors + rear
swing doors/tailgate), centrally lock all the doors;
❒for Doblò/Doblò Combi versions with swing door: lo-
cal unlocking/locking.
The spring-loaded system was designed for
optimum usage. Accidental knocks or
a strong gust of wind may release the springs, forc-
ing the doors to close.
WARNINGWhen closing, shut the right hand door ful-
ly before you close the left hand door.
Never shut the two doors at the same time.
WARNING
Emergency opening of the first swing door from
the inside
From inside the vehicle, use device A-fig. 80.

82
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0078mfig. 81
F0V0080mfig. 80
WINDOW OPENING MECHANISM
FRONT ELECTRIC WINDOWS
Buttons fig. 82 have been provided on the driver’s door
panel to control the following functions with the ignition
key turned to MAR:
A: Opening/closing left window
B: Opening/closing right window
Push button A or B to open/close the appropriate win-
dow.
When one of the two buttons is pressed briefly, the win-
dow moves in stages; if the button is held down, continu-
ous automatic operation is activated both for closing and
opening. Press button A or B again to stop the window
in its current position.
The window opening mechanism is fitted with a security
system (where provided) that can detect the presence of
an obstacle whilst the window is closing; when this hap-
pens, the system kicks in and the movement of the glass
is immediately reversed. Opening the second swing door
After having opened the first door, pull handle A-fig. 81
in the direction shown by the arrow.
WARNING Pull handle A-fig. 81 only in the direction
shown in the diagram.
