Never rest head, arms and
elbows on the door, on the
windows and in the window bag area
to prevent possible injuries during in-
flation phase.
WARNING
Never lean head, arms and
elbows out of the window.
WARNING

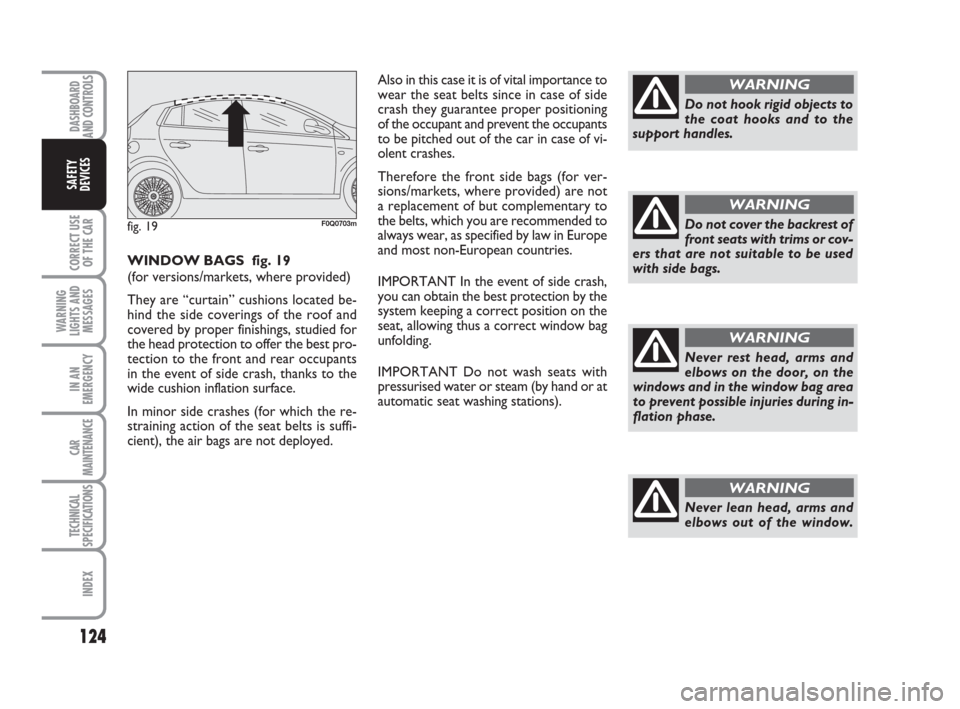

WINDOW BAGS fig. 19
(for versions/markets, where provided)
They are “curtain” cushions located be-
hind the side coverings of the roof and
covered by proper finishings, studied for
the head protection to offer the best pro-
tection to the front and rear occupants
in the event of side crash, thanks to the
wide cushion inflation surface.
In minor side crashes (for which the re-
straining action of the seat belts is suffi-
cient), the air bags are not deployed.
Do not cover the backrest of
front seats with trims or cov-
ers that are not suitable to be used
with side bags.
WARNING
Do not hook rigid objects to
the coat hooks and to the
support handles.
WARNINGAlso in this case it is of vital importance to
wear the seat belts since in case of side
crash they guarantee proper positioning
of the occupant and prevent the occupants
to be pitched out of the car in case of vi-
olent crashes.
Therefore the front side bags (for ver-
sions/markets, where provided) are not
a replacement of but complementary to
the belts, which you are recommended to
always wear, as specified by law in Europe
and most non-European countries.
IMPORTANT In the event of side crash,
you can obtain the best protection by the
system keeping a correct position on the
seat, allowing thus a correct window bag
unfolding.
IMPORTANT Do not wash seats with
pressurised water or steam (by hand or at
automatic seat washing stations).
fig. 19F0Q0703m
105-128 BRAVO GB.qxd:105-128 BRAVO GB 11-11-2009 10:54 Pagina 124

DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
125
GENERAL WARNINGS
1) The front air bags and/or front and
front side bags (for versions/markets,
where provided) may be deployed if the
car is subject to heavy knocks or accidents
involving the underbody area, such as for
example violent shocks, against steps,
kerbs or low obstacles, falling of the car in
big holes or sags in the road.
2) When the airbag inflates it emits a small
amount of dusts. These dusts are harm-
less and is not the beginning of a fire; then
the unfold cushion surface and the car in-
teriors can be covered by a dusty remains:
this dust can irritate skin and eyes. In case
of contact, wash yourself using neutral
soap and water.3) Should an accident occur in which any
of the safety devices is activated, take the
car to a Fiat Dealership to have the de-
vices activated replaced and to have the
system checked.
Every control, repair and replacement op-
erations concerning the air bags must on-
ly be carried out c/o Fiat Dealership.
If you are having the car scrapped, have
the air bag system deactivated at a Fiat
Dealership first. If the car changes own-
ership, the new owner must be informed
of the method of use of air bags and the
above warnings and also be given this
“Owner Handbook”.4) The triggering of pretensioners, front
air bags and front side bags is decided in
a differentiated manner, depending on the
type of crash. The failure to deploy one or
more of them does not mean that the sys-
tem is not working properly.
105-128 BRAVO GB.qxd:105-128 BRAVO GB 11-11-2009 10:54 Pagina 125

DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
126
If the car has been stolen or
an attempt to steal it has
been made, if it has been subjected to
vandals or floods, have the air bag
system checked by Fiat Dealership.
WARNING
Never travel with objects on
your lap, in front of your
chest or with a pipe, pencil, etc. be-
tween your lips; injury may result in
the event of the air bag being trig-
gered.
WARNING
Life and validity of pyrotech-
nic charge and coil contact
are indicated on the label located in-
side the lower oddment compart-
ment. As this date approaches, con-
tact Fiat Dealership to have them re-
placed.
WARNING
If when turning the ignition
key to MAR, the warning
light ¬does not turn on or if it stays
on when travelling (together with the
message on the display) there could
be a failure in safety systems; in this
event air bags or pretensioners could
not trigger in case of impact or, in a
minor number of cases, they could
trigger accidentally. Contact Fiat
Dealership immediately to have the
system checked.
WARNING
105-128 BRAVO GB.qxd:105-128 BRAVO GB 11-11-2009 10:54 Pagina 126

127
DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
The front air bag is triggered
for shocks greater in magni-
tude than the pretensioners. For im-
pacts between these two thresholds,
it is therefore normal that only the
pretensioners are triggered.
WARNING
When the ignition key is
turned to MAR, the warning
light
“(with passenger’s front Air
bag on) turns on and flashes for few
seconds to remind that the passen-
ger’s air bag will be deployed in a
crash, after which it should go off.
WARNING
Remember that with the key
engaged and at MAR, even
with the engine not running, the air
bags may be triggered on a stationary
car if it is bumped by another moving
car. Therefore, never seat children on
the front seat even when the car is
stationary. On the other hand, re-
member that with the key at STOP
no safety system (air bags or preten-
sioners) is triggered in the event of an
impact; in this case, failure to come
into action cannot be considered as a
sign that the system is not working
properly.
WARNING
105-128 BRAVO GB.qxd:105-128 BRAVO GB 11-11-2009 10:54 Pagina 127

128
DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
The air bag does not substi-
tute the seat belts, but only
increases their effectiveness. More-
over, since the front air bags do not
come into operation in the event of
front impact at low speed, side colli-
sions, bumps from behind or over-
turning, in these circumstances the
occupants would only be protected
by the seat belts which must therefore
always be fastened.
WARNING
105-128 BRAVO GB.qxd:105-128 BRAVO GB 11-11-2009 10:54 Pagina 128

129
DASHBOARD
AND CONTROLS
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
CORRECT USE
OF THE CAR
