2009 DODGE VIPER key

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys................. 12
▫Ignition Key Removal.................. 12
▫Key-In-Ignition Reminder................ 13
Vehicle Security Alarm System............. 13
▫Rearming Of The System................ 13
▫To Arm The System.................... 13
▫To Disarm The System.................. 16
▫Electronic Immobilization System —
Canada Only......................... 17Illuminated Entry System................. 18
Remote Keyless Entry (RKE)............... 18
▫To Unlock The Doors................... 18
▫To Lock The Doors.................... 20
▫To Unlatch The Trunk/Liftgate............ 21
▫Using The Panic Alarm................. 21
▫Programming Additional Transmitters....... 22
▫Battery Replacement................... 23
▫General Information.................... 24
2

A WORD ABOUT YOUR KEYS
You can insert the double-sided keys into the locks with
either side up.
The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle’s locks. These
numbers can be used to order duplicate keys from your
authorized dealer or a locksmith. Ask your authorized
dealer for these numbers and keep them in a safe place.
Ignition Key Removal
1. Press the clutch pedal to the floor.
2. Bring the vehicle to a stop.
3. Place the shift lever into gear.
4. Apply the parking brake fully.
5. Press the key removal RELEASE button, turn the key
to place the ignition switch in the OFF/LOCK position,
and then pull the key out of the switch.6. Release the clutch pedal.
Ignition Key Positions
1 — ACC 4 — ON/RUN
2 — OFF/LOCK 5 — RELEASE Button
3 — UNLOCK 12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:The Power Accessory Delay feature allows you
to operate the radio and the power windows for two
minutes after turning OFF the ignition switch. Removing
the key from the ignition switch and opening the driver’s
door will cancel this feature. Your authorized dealership
can enable or disable the Power Accessory Delay feature
as desired.
Key-In-Ignition Reminder
If you open the driver’s door when the key is in the
ignition, a chime will sound to remind you to remove the
key.
NOTE:The Key-In-Ignition reminder only sounds
when the ignition switch is placed in the OFF/LOCK or
ACC positions.
VEHICLE SECURITY ALARM SYSTEM
The Vehicle Security Alarm monitors the doors, trunk/
liftgate, and hood for unauthorized entry and the ignition
switch for unauthorized operation. If something triggers
the alarm, the Vehicle Security Alarm will prevent the
vehicle from starting. It will also sound the horn and
flash the park lights, the taillights and the fog lights.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
(flashing lights) after 15 minutes, and then rearm itself.
To Arm the System
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver’s or passen-
ger’s door is open or press the LOCK button on the
Remote Keyless Entry (RKE) transmitter. After the last
door is closed, or if all doors are closed, the system will
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

Entering the Trunk with the System Armed —
Convertible
NOTE:Using the key to open the trunk while the
system is armed will trigger the alarm.
Press the TRUNK button on the RKE transmitter to allow
access without triggering the alarm or having to disarm
the system. The trunk lid will pop open.
Entering the Liftgate with the System Armed —
Coupe
NOTE:Using the key to open the liftgate while the
Vehicle Security Alarm is armed will trigger the alarm.Press the LIFTGATE button on the RKE transmitter to
allow access without triggering the alarm or having to
disarm the Vehicle Security Alarm. Then, within 30 sec-
onds, open the liftgate by using the key cylinder or the
LIFTGATE RELEASE switch located in the exterior lift-
gate handle.
NOTE:If you do not open the liftgate within 30 seconds,
the system will rearm and ignore the switch input.
After closing the liftgate, the Vehicle Security Alarm will
arm immediately without having to re-lock the vehicle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

To Disarm the System
There are two ways to disarm the system:
•Use the key to unlock the driver’s door. The door lock
is located on the outside door panel beneath the
mirror.
•Press the UNLOCK button on the RKE transmitter.
The front and rear park lights and the turn signal
lights will flash to acknowledge the signal.
NOTE:The vehicle will not start unless the Vehicle
Security Alarm is disarmed by either method. Inserting
the key in the ignition WILL NOT disarm the system.
Furthermore, turning the ignition key to any position
while the Vehicle Security Alarm is armed will trigger an
alarm.
Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the Vehicle Security Light will flash twice
every six seconds. In addition, the horn will sound three
times when you disarm the Vehicle Security Alarm.
Mechanical Door Lock
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Electronic Immobilization System — Canada Only
The Electronic Immobilization system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
To Arm the System
The Electronic Immobilization system will passively arm
30 seconds after the key is removed from the vehicle.
When the system is armed the Vehicle Security Light will
flash at a rate of a half-second ON, a half-second OFF, a
half-second ON, followed by a 10 second pause. While in
this mode the vehicle will not start.
NOTE: If the Electronic Immobilization system is
armed and the vehicle is unlocked it will remain
unlocked until the driver presses either the LOCK
button on the RKE transmitter or the power door LOCKbutton on the door.At this time the Vehicle Security
Alarm will also arm itself in approximately 16 seconds.
To Disarm the System
Pressing the UNLOCK button on the RKE transmitter
after the Electronic Immobilization system is activated,
will allow the driver 60 seconds to start the vehicle.
Failure to complete the process within 60 seconds will
cause the system to passively re-arm. The driver must
repeat the process again by pressing the UNLOCK button
on the RKE transmitter to start the vehicle.
NOTE:Pressing the RKE transmitter UNLOCK button
during the 30 second Electronic Immobilization arming
process will allow the driver 60 seconds to start the
vehicle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

ILLUMINATED ENTRY SYSTEM
The interior lights will turn on whenever a door is
opened or the liftgate is opened (Coupe models) and the
dimmer switch is not in the defeat position.
The interior lights will turn on, remain on for about
30 seconds, and then fade to off if any of the following
occur:
•A door is opened using the outside door handle and
then closed.
•A door is unlocked using the Remote Keyless Entry
(RKE) transmitter.
•A door is unlocked using the outside driver’s door key
cylinder.
The interior lights will turn on and remain on for about
four seconds and then fade to off if a door is opened
using the inside door handle.
REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors, open
the trunk/liftgate, or activate the Panic Alarm from
distances up to about 23 ft (7 m) using a Remote Keyless
Entry (RKE) transmitter. The RKE transmitter does not
need to be pointed at the vehicle to activate the system.
To Unlock the Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door, or twice to
unlock both doors. The park lights and turn signal lights
will flash to acknowledge the signal and the illuminated
entry system will turn on. In addition, the words DOOR
RKE Transmitter
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

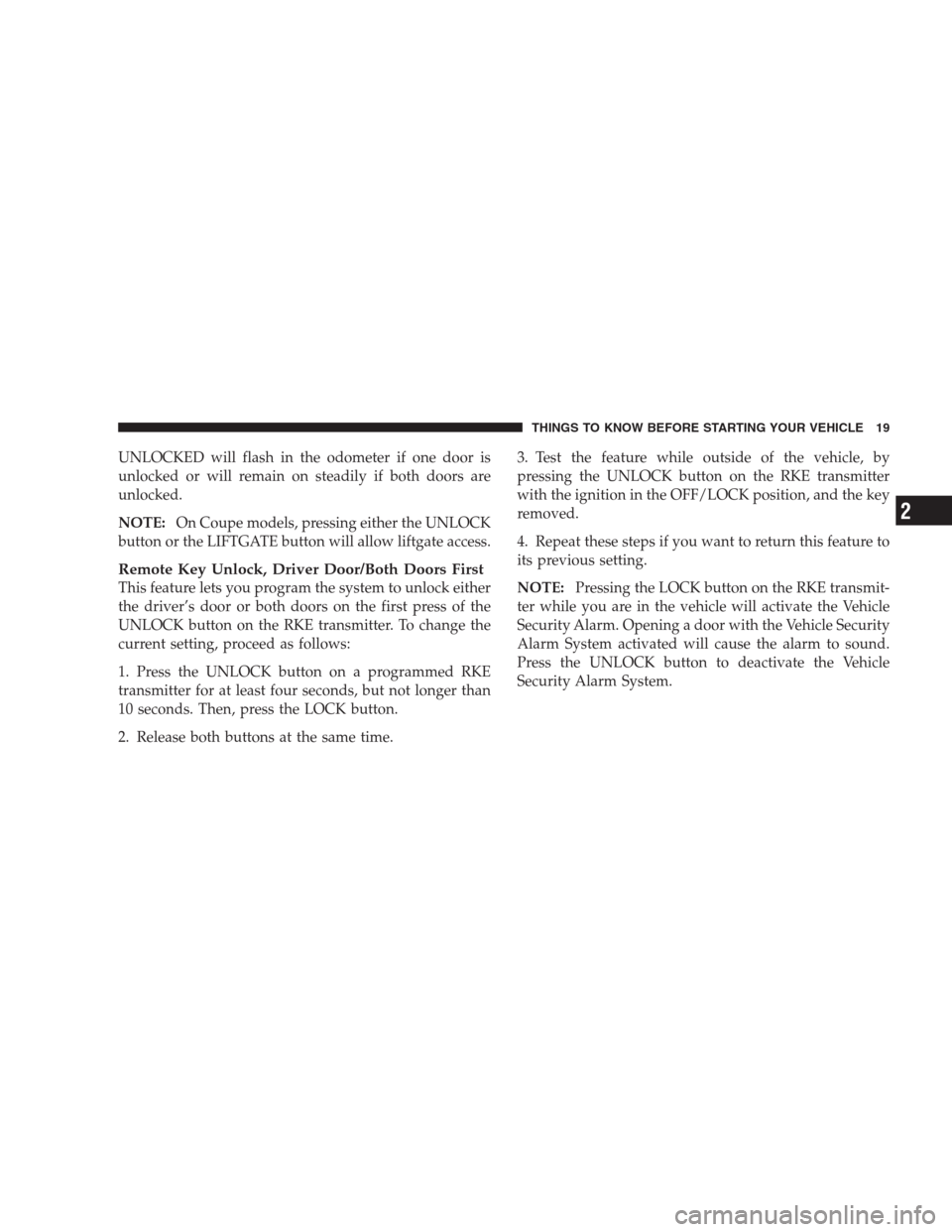

UNLOCKED will flash in the odometer if one door is
unlocked or will remain on steadily if both doors are
unlocked.
NOTE:On Coupe models, pressing either the UNLOCK
button or the LIFTGATE button will allow liftgate access.
Remote Key Unlock, Driver Door/Both Doors First
This feature lets you program the system to unlock either
the driver’s door or both doors on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:
1. Press the UNLOCK button on a programmed RKE
transmitter for at least four seconds, but not longer than
10 seconds. Then, press the LOCK button.
2. Release both buttons at the same time.3. Test the feature while outside of the vehicle, by
pressing the UNLOCK button on the RKE transmitter
with the ignition in the OFF/LOCK position, and the key
removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security
Alarm System activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm System.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2
