2009 DODGE DAKOTA buttons

To Unlock The Doors:
Press and release the UNLOCK button on the RKE
transmitter once to unlock only the driver's door, or twice
to unlock all the doors. When the unlock button is
pressed, the illuminated entry will initiate, and the
parking lights will flash twice.
The system can be programmed to unlock all the doors
upon the first unlock button press by using the following
procedure:
1. Press and hold the LOCK button on a programmed
RKE transmitter.
2. Continue to hold the LOCK button for at least 4 sec-
onds, but not longer than 10 seconds, then press and hold
the UNLOCK button. A single chime will sound to
indicate that this feature has changed.
3. Release both buttons at the same time.4. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK button on the RKE transmitter.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm System activated will cause the alarm to
sound. Press the UNLOCK button to deactivate the
Vehicle Security Alarm System.
5. If the desired programming was not achieved, or to
reactivate this feature, repeat the above steps.
To Lock The Doors:
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. If the ignition is OFF, when the doors
are locked the parking lights will flash on once and the
horn will chirp once.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Horn Chirp Programming
The horn chirp feature is shipped from the assembly
plant activated. If desired, this feature can be disabled by
using the following procedure:
1. Press and hold the LOCK button on the RKE trans-
mitter.
2. After holding the LOCK button for four seconds, also
press the PANIC button within six seconds. A single
chime will sound to indicate that this feature has
changed.
3. Release both buttons at the same time.
4. To reactivate this feature, repeat the above steps.
5. Test the horn chirp feature while outside of the vehicle
by pressing the LOCK button on the RKE transmitter
with the ignition in the OFF position and the key
removed.NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm System.
6. If the desired programming was not achieved, or to
reactivate this feature, repeat the above steps.
Flash Lamps With Lock Programming
1. Press and hold the UNLOCK button on the RKE
transmitter.
2. After holding the UNLOCK button for four seconds,
also press the LOCK button within six seconds. A single
chime will sound to indicate that this feature has
changed.
3. Release both buttons at the same time.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

6. After holding the UNLOCK button for four seconds,
also press the PANIC button within six seconds.
7. When a single chime is heard, release both buttons.
The chime is an indication that you have successfully
entered program mode. All RKE transmitters that are to
be programmed must be done so within 60 seconds of
when the chime was heard.
8. Using the RKE transmitter to be programmed, press
and hold both the LOCK and UNLOCK buttons, simul-
taneously for two seconds, and then release.
9. Press and release the UNLOCK button. A single chime
will be heard.
10. Repeat steps 8 and 9 to program up to six additional
RKE transmitters.
11. Turn the ignition to the OFF position.12. Your vehicle will remain in program mode up to
60 seconds from when the original chime was heard.
After 60 seconds, all programmed RKE transmitters
function normally.
NOTE:If you do not have a programmed RKE trans-
mitter, contact your authorized dealer for details.
Battery Replacement
The recommended replacement battery is CR2032.
NOTE:Perchlorate Material ± special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate
1. If the RKE transmitter is equipped with a screw,
remove the screw. With the RKE transmitter buttons
facing down, use a flat blade to pry the two halves of the
RKE transmitter apart. Make sure not to damage the
elastomer seal during removal.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

²or call 1±877±855±8400
UConnecttallows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle and enables you to mute the system's microphone
for private conversation.
The UConnecttsystem is driven through your
BluetoothtªHands-Free profileº cellular phone.
UConnecttfeatures Bluetoothttechnology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
UConnecttworks no matter where you stow your cellu-
lar phone (be it your purse, pocket, or briefcase), as long
as your phone is turned on and has been paired to the
vehicle's UConnecttsystem. The UConnecttsystem
allows up to seven cellular phones to be linked to the
system. Only one linked (or paired) cellular phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.Phone Button
The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons
(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.
Voice Recognition Button
Actual button location may vary with radio.
The individual buttons are described in the
ªOperationº section.
The UConnecttsystem can be used with any Hands-Free
Profile certified Bluetoothtcellular phone. See the
UConnecttwebsite for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnectt
features. Refer to your cellular service provider or the
phone manufacturer for details.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3

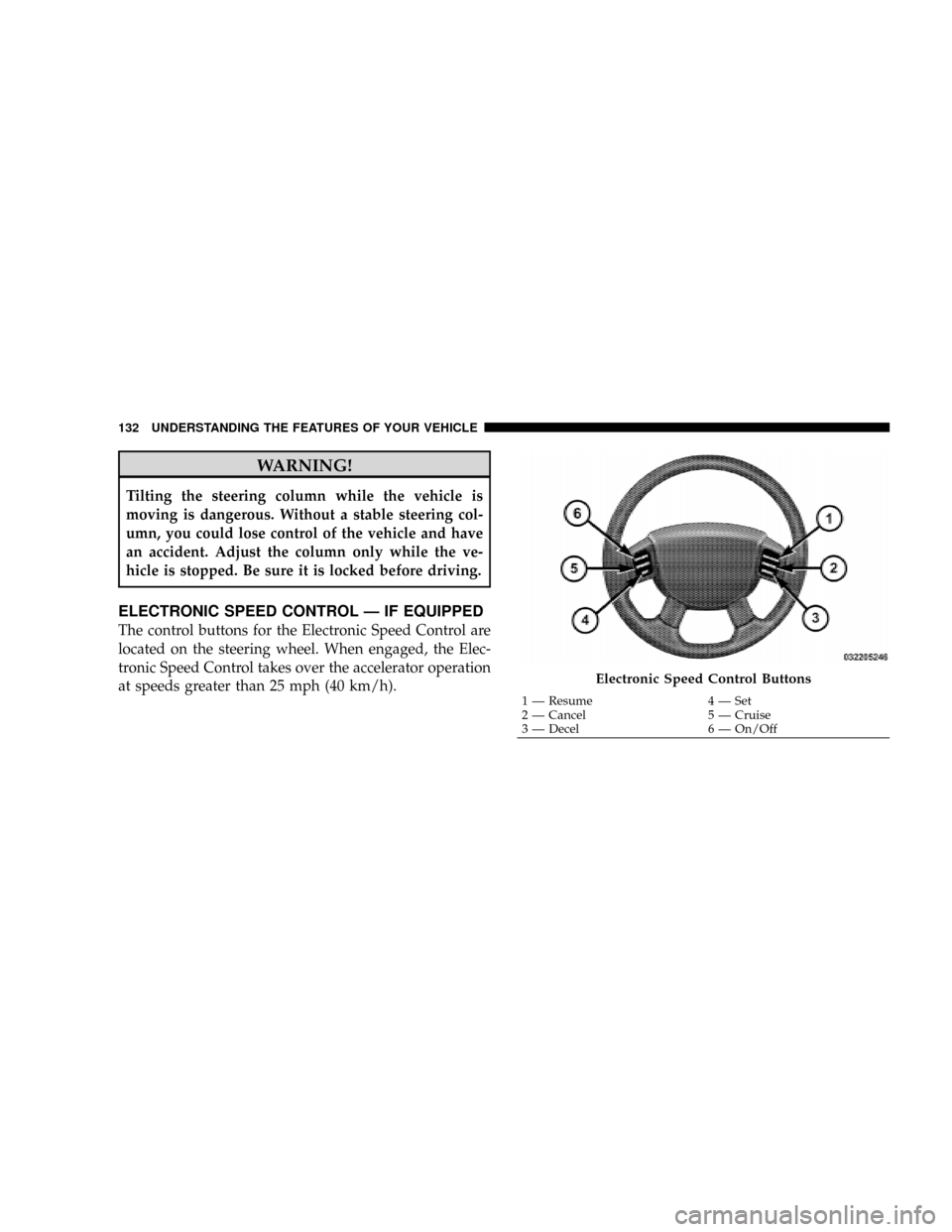

WARNING!
Tilting the steering column while the vehicle is
moving is dangerous. Without a stable steering col-
umn, you could lose control of the vehicle and have
an accident. Adjust the column only while the ve-
hicle is stopped. Be sure it is locked before driving.
ELECTRONIC SPEED CONTROL Ð IF EQUIPPED
The control buttons for the Electronic Speed Control are
located on the steering wheel. When engaged, the Elec-
tronic Speed Control takes over the accelerator operation
at speeds greater than 25 mph (40 km/h).
Electronic Speed Control Buttons
1 Ð Resume 4 Ð Set
2 Ð Cancel 5 Ð Cruise
3 Ð Decel 6 Ð On/Off 132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

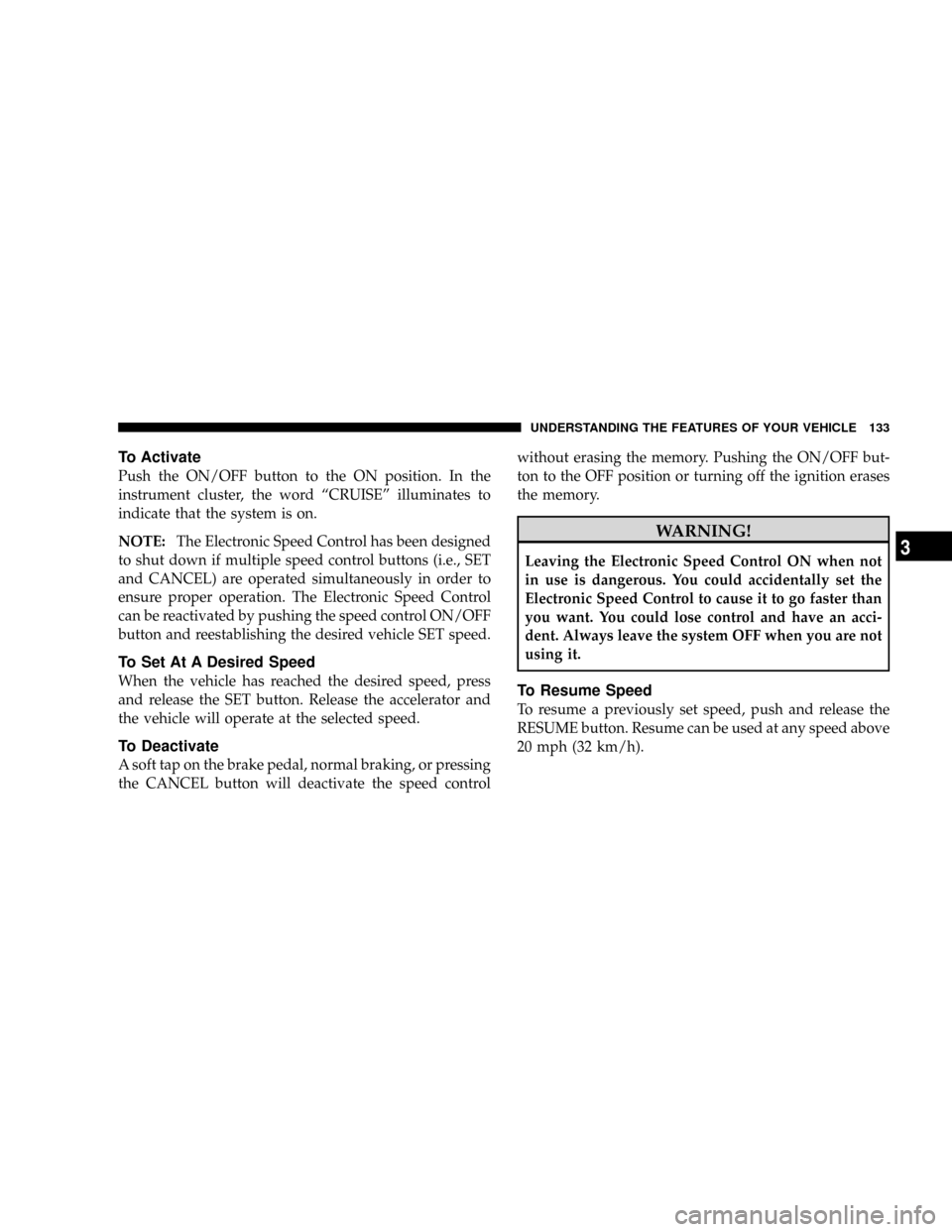

To Activate
Push the ON/OFF button to the ON position. In the
instrument cluster, the word ªCRUISEº illuminates to
indicate that the system is on.
NOTE:The Electronic Speed Control has been designed
to shut down if multiple speed control buttons (i.e., SET
and CANCEL) are operated simultaneously in order to
ensure proper operation. The Electronic Speed Control
can be reactivated by pushing the speed control ON/OFF
button and reestablishing the desired vehicle SET speed.
To Set At A Desired Speed
When the vehicle has reached the desired speed, press
and release the SET button. Release the accelerator and
the vehicle will operate at the selected speed.
To Deactivate
A soft tap on the brake pedal, normal braking, or pressing
the CANCEL button will deactivate the speed controlwithout erasing the memory. Pushing the ON/OFF but-
ton to the OFF position or turning off the ignition erases
the memory.
WARNING!
Leaving the Electronic Speed Control ON when not
in use is dangerous. You could accidentally set the
Electronic Speed Control to cause it to go faster than
you want. You could lose control and have an acci-
dent. Always leave the system OFF when you are not
using it.
To Resume Speed
To resume a previously set speed, push and release the
RESUME button. Resume can be used at any speed above
20 mph (32 km/h).
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133
3

To set the variance: Turn the ignition ON and set the
display to ªCompass/Temperature.º Press and hold the
RESET button approximately five seconds. The last vari-
ance zone number will be displayed. Press the STEP
button to select the new variance zone and press the
RESET button to resume normal operation.
Outside Temperature
Because the ambient temperature sensor is located under
the hood, engine temperature can influence the displayed
temperature; therefore, temperature readings are slowly
updated when the vehicle speed is below 20 mph
(30 km/h) or during stop-and-go driving.
GARAGE DOOR OPENER Ð IF EQUIPPED
HomeLinktreplaces up to three remote controls (hand-
held transmitters) that operate devices such as garage
door openers, motorized gates, lighting, or home security
systems. The HomeLinktunit operates off of your vehi-
cle's battery.
The HomeLinktbuttons are located in the overhead
console, and contain one, two, or three dots/lines desig-
nating the different HomeLinktchannels.
Compass Variance Map
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:HomeLinktis disabled when the Vehicle Theft
Alarm is active.
WARNING!
Your motorized door or gate will open and close while
you are training the Universal Transceiver. Do not train
the transceiver if people or pets are in the path of the
door or gate. Only use this transceiver with a garage
door opener that has a ªstop and reverseº feature as
required by federal safety standards. This includes
most garage door opener models manufactured after
1982. Do not use a garage door opener without these
safety features. Call toll-free 1±800±355±3515 or, on the
Internet at www.HomeLink.com for safety information
or assistance.
HomeLink Buttons
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
3
