2009 DODGE CHARGER fuse

Cavity Car-tridge
FuseMini-
Fuse
Description
35 — 5 Amp OrangeAntenna Module - if
equipped/Power Mir-
rors
36 — 20 Amp YellowHands-Free Phone - if
equipped/Video Moni-
tor - if equipped/Radio
37 — 15 Amp BlueTransmission
38 — 10 Amp RedCargo Light/Satellite
Receiver (SDARS) Video
- if equipped/Vehicle
Information Module - if
equipped
39 — 10 Amp RedHeated Mirrors - if
equippedCavity Car-
tridge
FuseMini-
Fuse
Description
40 — 5 Amp OrangeAuto Inside Rearview
Mirror - if equipped/
Heated Seats - if
equipped/Switch Bank
41 — 10 Amp RedAC Heater Control/
Headlights/Tire Pres-
sure Monitoring - if
equipped
42 30 Amp Pink— Front Blower Motor
43 30 Amp Pink— Rear Window Defroster
44 20 Amp Blue— Amplifier - if equipped/
Sunroof - if equipped
MAINTAINING YOUR VEHICLE 417
7

*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The cluster and the driver seat switch (if
equipped) are fused by the 25-Amp circuit breaker in
Cavity 11. The passenger seat switch (if equipped) is
fused by the 25-Amp circuit breaker in Cavity 12. The
door modules, the driver power window switch, and the
passenger power window switch are fused by the 25-
Amp circuit breaker in Cavity 13. If you experience
temporary or permanent loss of these systems, see your
authorized dealer for service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT LIGHT BULBS
Interior
Bulb Number
Rear Courtesy/Reading Lights .............. W5W
Rear Compartment (Trunk) Light ............. 562
Overhead Console Reading Lights ............. 578
Visor Vanity Lights ..................... A6220
Glove Box Light ......................... 194
Door Courtesy .......................... 562
Shift Indicator Light ................. JKLE14140
Optional Door Map Pocket / Cupholder
Lighting ........ LED (Serviced at Authorized Dealer)
418 MAINTAINING YOUR VEHICLE

Deck Lid, Emergency Release................ 41
Deck Lid, Power Release ................... 39
Defroster, Rear Window ................... 163
Defroster, Windshield ................80,254,260
Delay (Intermittent) Wipers ................. 137
Diagnostic System, Onboard ................ 382
Dimmer Switch, Headlight ................. 135
Dipsticks Oil (Engine) ....................... 385,386
Power Steering ........................ 291
Disabled Vehicle Towing ................... 374
Disposal Antifreeze (Engine Coolant) ............... 400
Engine Oil ........................... 388
Door Locks ............................. 29
Door Locks, Automatic .................... 30
Door Opener, Garage ..................... 146
Driving On Slippery Surfaces ................... 287 Through Flowing, Rising, or Shallow
Standing Water
........................ 288
DVD Player (Video Entertainment System™) .... 248
Electric Rear Window Defrost ............... 163
Electric Remote Mirrors .................... 88
Electrical Power Outlets ................... 155
Electronic Brake Control System ............. 296
Anti-Lock Brake System ................. 296
Brake Assist System .................... 297
Electronic Stability Program ............... 298
Traction Control System ................. 297
Electronic Power Distribution Center (Fuses) .... 411
Electronic Speed Control (Cruise Control) ...... 141
Electronic Stability Program (ESP) ............ 298
Electronic Throttle Control Warning Light ...... 173
Electronic Vehicle Information Center (EVIC) .... 183
Emergency Deck Lid Release ................ 41
464 INDEX

Gauge.............................. 172
Materials Added ....................... 335
Methanol ............................ 333
Octane Rating ...................... 332,429
Requirements ......................... 332
Specifications ......................... 429
Tank Capacity ........................ 427
Fuel System Caution ..................... 338
Fueling ............................... 337
Fuses ................................ 411
Garage Door Opener (HomeLink) ........... 146
Gas Cap (Fuel Filler Cap) ...............337,382
Gasoline, Clean Air ...................... 333
Gasoline, Reformulated ................... 333
Gauges Coolant Temperature ................... 173
Fuel ............................... 172
Odometer ........................... 177 Speedometer
......................... 172
Tachometer .......................... 172
Gear Ranges ........................ 277,282
General Information ...............18,26,117,332
General Maintenance ..................... 385
Glass Cleaning .......................... 409
Gross Axle Weight Rating ...............340,343
Gross Vehicle Weight Rating .............340,342
GVWR ............................... 340
Hands-Free Phone (uconnect) ................ 89
Hazard Driving Through Flowing, Rising, or Shallow
Standing Water ........................ 288
Hazard Warning Flasher ................... 356
Head Restraints ......................... 126
Headlight Washers ....................... 393
Headlights ............................ 422
Automatic ........................... 132
INDEX 467
10

Bulb Replacement...................... 419
Cleaning ............................ 409
Delay .............................. 132
High Beam/Low Beam Select Switch ........ 135
Lights On Reminder .................... 133
On With Wipers .................... 132,138
Passing ............................. 135
Switch .............................. 131
Time Delay .......................... 132
Washers ............................. 393
Heated Mirrors .......................... 88
Heated Seats ........................... 127
Heater ............................... 253
Heater, Engine Block ..................... 272
High Beam/Low Beam Select (Dimmer) Switch . . 135
Hitches Trailer Towing ........................ 344
Holder, Coin ........................... 159
Holder, Cup ........................... 158 HomeLink
(Garage Door Opener) Transmitter . . . 146
Hood Release .......................... 129
Ignition ............................... 13
Key ............................... 12,13
Ignition Key Removal ..................... 13
Immobilizer (Sentry Key) ................... 15
Infant Restraint ........................ 67,68
Information Center, Vehicle ................. 183
Inside Rearview Mirror .................... 85
Instrument Cluster .................... 170,172
Instrument Panel and Controls .............. 169
Instrument Panel Lens Cleaning ............. 410
Interior Appearance Care .................. 408
Interior Fuses .......................... 411
Interior Lights .......................... 135
Intermittent Wipers (Delay Wipers) ........... 137
Introduction ............................. 4
468 INDEX

Phone, Cellular.......................... 89
Phone, Hands-Free (uconnect) ............... 89
Placard, Tire and Loading Information ......... 306
Power Deck Lid Release ....................... 39
Distribution Center (Fuses) ............... 411
Door Locks ........................... 30
Mirrors .............................. 88
Outlet (Auxiliary Electrical Outlet) .......... 155
Seats ............................... 124
Steering ............................. 291
Sunroof ............................. 152
Windows ............................. 35
Power Steering Fluid ..................... 430
Pregnant Women and Seat Belts .............. 51
Preparation for Jacking .................... 360
Pretensioners Seat Belts ............................ 49
Programmable Electronic Features ............ 193Programming Transmitters
(Remote Keyless Entry)
.................... 20
Radial Ply Tires ......................... 313
Radiator Cap (Coolant Pressure Cap) .......... 400
Radio Operation ........................ 252
Radio Remote Controls .................... 250
Radio, Satellite (uconnect gps) ............241,247
Rear Cupholder ......................... 159
Rear Seat, Folding ....................... 128
Rear Window Defroster ................... 163
Rear Window Features .................... 163
Rearview Mirrors ........................ 85
Reclining Front Seats ..................... 124
Recorder, Event Data ...................... 65
Recreational Towing ...................... 354
Reformulated Gasoline .................... 333
Refrigerant ............................ 392
Release, Hood .......................... 129
INDEX 473
10

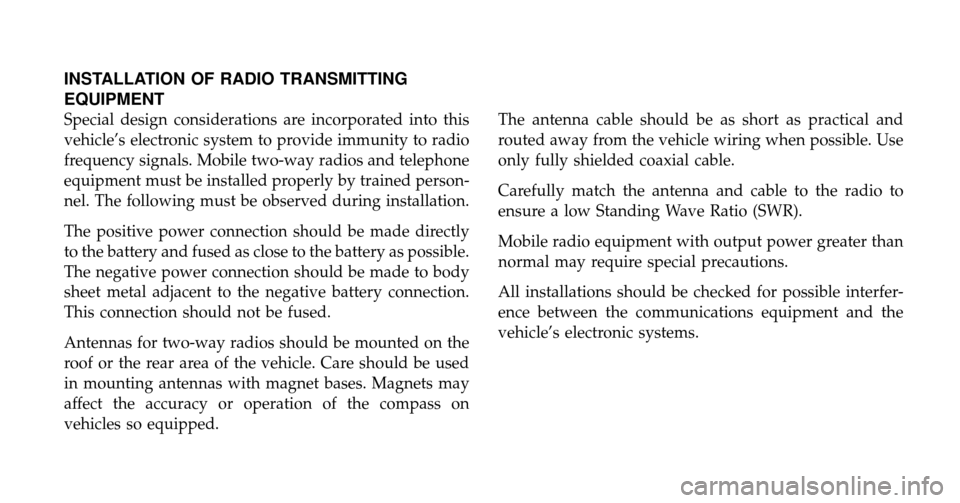

INSTALLATION OF RADIO TRANSMITTING
EQUIPMENT
Special design considerations are incorporated into this
vehicle’s electronic system to provide immunity to radio
frequency signals. Mobile two-way radios and telephone
equipment must be installed properly by trained person-
nel. The following must be observed during installation.
The positive power connection should be made directly
to the battery and fused as close to the battery as possible.
The negative power connection should be made to body
sheet metal adjacent to the negative battery connection.
This connection should not be fused.
Antennas for two-way radios should be mounted on the
roof or the rear area of the vehicle. Care should be used
in mounting antennas with magnet bases. Magnets may
affect the accuracy or operation of the compass on
vehicles so equipped.The antenna cable should be as short as practical and
routed away from the vehicle wiring when possible. Use
only fully shielded coaxial cable.
Carefully match the antenna and cable to the radio to
ensure a low Standing Wave Ratio (SWR).
Mobile radio equipment with output power greater than
normal may require special precautions.
All installations should be checked for possible interfer-
ence between the communications equipment and the
vehicle’s electronic systems.
