2009 DODGE CHARGER Owners Manual

If you are required to drive with the trunk/liftgate open,
make sure that all windows are closed and the climate
control BLOWER switch is set at high speed. DO NOT
use the recirculation mode.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding belt
or retractor condition, replace the belt.
Airbag Warning Light
The light should come on and remain on for six to eight
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, see your
authorized dealer. If the light stays on, flickers, or comes
on while driving, have the system checked by an autho-
rized dealer.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79
2

Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect the tread and sidewall for
cuts and cracks. Check the wheel nuts for tightness.
Check the tires (including spare) for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

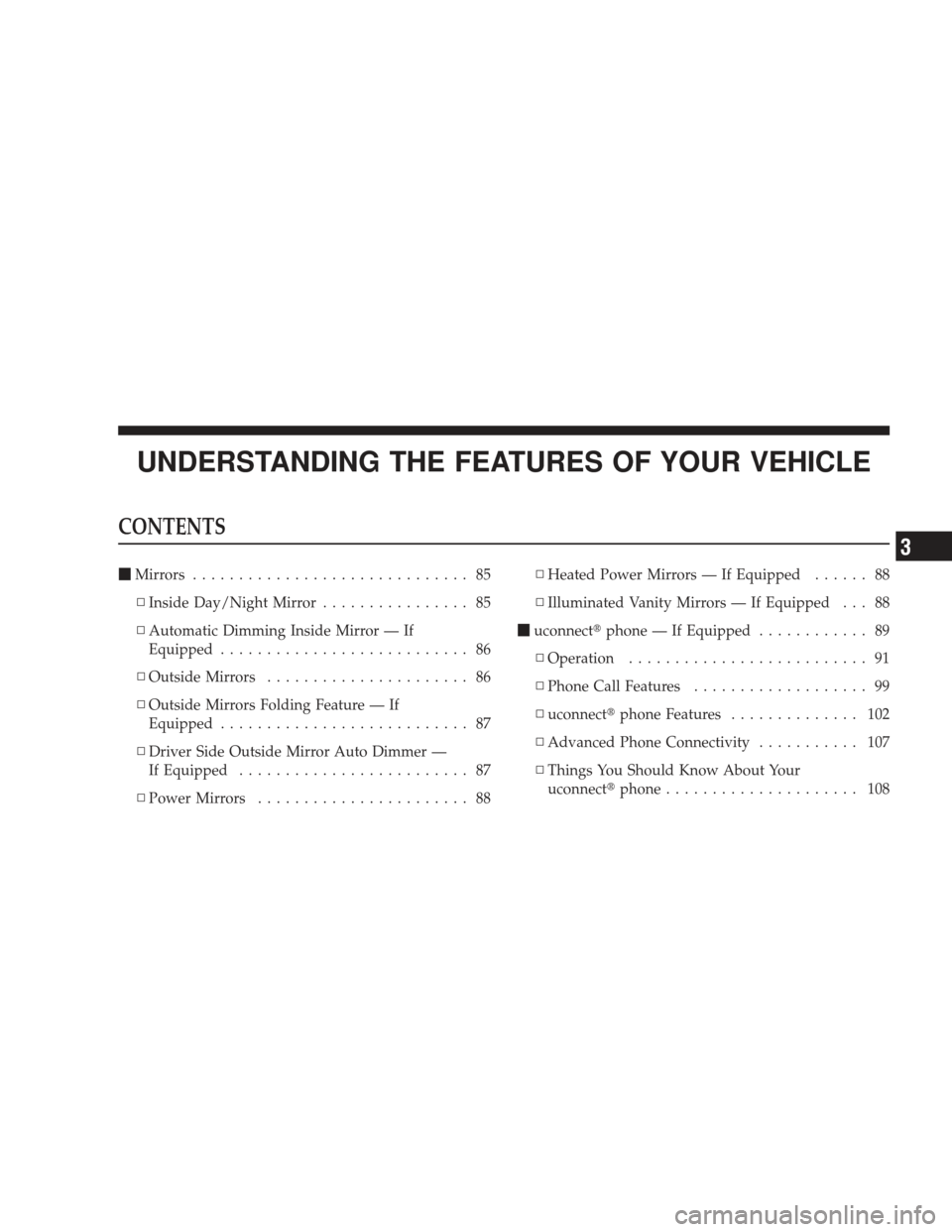

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 85
▫ Inside Day/Night Mirror ................ 85
▫ Automatic Dimming Inside Mirror — If
Equipped ........................... 86
▫ Outside Mirrors ...................... 86
▫ Outside Mirrors Folding Feature — If
Equipped ........................... 87
▫ Driver Side Outside Mirror Auto Dimmer —
If Equipped ......................... 87
▫ Power Mirrors ....................... 88 ▫
Heated Power Mirrors — If Equipped ...... 88
▫ Illuminated Vanity Mirrors — If Equipped . . . 88
 uconnect phone — If Equipped ............ 89
▫ Operation .......................... 91
▫ Phone Call Features ................... 99
▫ uconnect phone Features .............. 102
▫ Advanced Phone Connectivity ........... 107
▫ Things You Should Know About Your
uconnect phone..................... 108
3

▫General Information .................. 117
 Voice Recognition System (VR) —
If Equipped .......................... 117
▫ Voice Recognition System (VR) Operation . . . 117
▫ Commands ........................ 119
▫ Voice Training ...................... 122
 Seats .............................. 122
▫ Manual Seats — If Equipped ............ 122
▫ Power Seats — If Equipped ............. 124
▫ Power Reclining Seats — If Equipped ...... 124
▫ Lumbar Support — If Equipped .......... 126
▫ Head Restraints ..................... 126
▫ Heated Seats — If Equipped ............ 127▫
Folding Rear Seat — If Equipped ......... 128
 To Open And Close The Hood ............ 129
 Lights ............................. 131
▫ Headlight Switch .................... 131
▫ Automatic Headlights — If Equipped ...... 132
▫ Headlights On With Wipers (Available With
Auto Headlights Only) ................ 132
▫ Headlight Time Delay ................. 132
▫ Daytime Running Lights — If Equipped .... 133
▫ Lights-On Reminder .................. 133
▫ Fog Lights — If Equipped .............. 133
▫ Multifunction Lever .................. 134
▫ Overhead Console Map/Reading Lights .... 135
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Interior Lights ...................... 135
 Windshield Wipers And Washers .......... 137
▫ Intermittent Wiper System .............. 137
▫ Mist Feature ........................ 138
▫ Windshield Washers .................. 138
▫ Headlights On With Wipers (Available With
Auto Headlights Only) ................ 138
 Tilt/Telescoping Steering Column .......... 139
 Adjustable Pedals — If Equipped .......... 140
 Electronic Speed Control ................ 141
▫ To Activate ......................... 142
▫ To Set At A Desired Speed .............. 142
▫ To Deactivate ....................... 142 ▫
To Resume Speed .................... 143
▫ To Vary The Speed Setting .............. 143
▫ To Accelerate For Passing .............. 143
 Overhead Console ..................... 145
▫ Courtesy/Reading Lights .............. 145
▫ Sunglasses Storage ................... 145
 Garage Door Opener — If Equipped ........ 146
▫ Programming HomeLink .............. 147
▫ Gate Operator/Canadian Programming .... 150
▫ Using HomeLink ................... 150
▫ Reprogramming A Single
HomeLink Button................... 151
▫ Security ........................... 151
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3

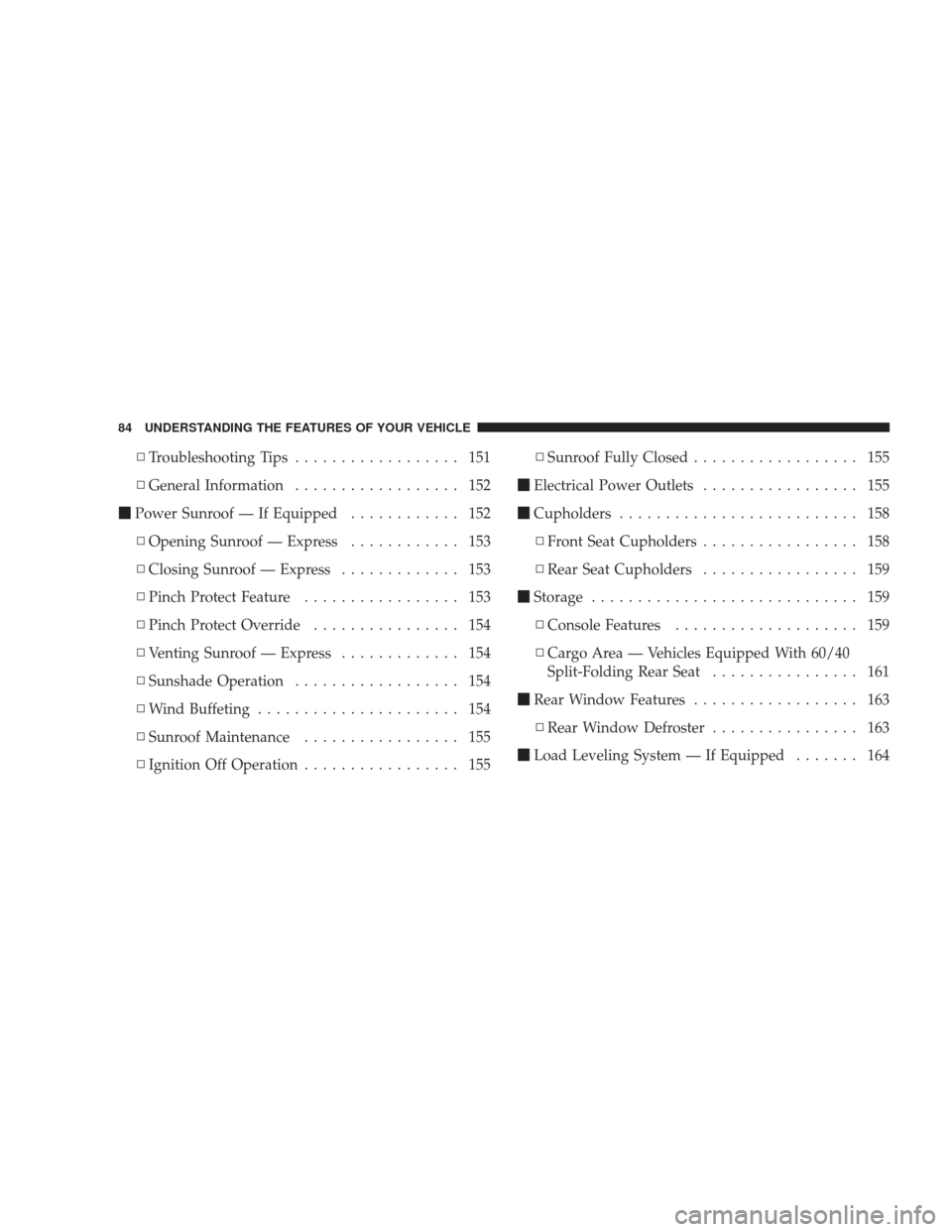

▫Troubleshooting Tips .................. 151
▫ General Information .................. 152
 Power Sunroof — If Equipped ............ 152
▫ Opening Sunroof — Express ............ 153
▫ Closing Sunroof — Express ............. 153
▫ Pinch Protect Feature ................. 153
▫ Pinch Protect Override ................ 154
▫ Venting Sunroof — Express ............. 154
▫ Sunshade Operation .................. 154
▫ Wind Buffeting ...................... 154
▫ Sunroof Maintenance ................. 155
▫ Ignition Off Operation ................. 155 ▫
Sunroof Fully Closed .................. 155
 Electrical Power Outlets ................. 155
 Cupholders .......................... 158
▫ Front Seat Cupholders ................. 158
▫ Rear Seat Cupholders ................. 159
 Storage ............................. 159
▫ Console Features .................... 159
▫ Cargo Area — Vehicles Equipped With 60/40
Split-Folding Rear Seat ................ 161
 Rear Window Features .................. 163
▫ Rear Window Defroster ................ 163
 Load Leveling System — If Equipped ....... 164
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Adjusting Rearview Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3

Automatic Dimming Inside Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will illuminate to indicate when the
dimming feature is activated.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger-side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
Automatic Dimming Mirror
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
