CRUISE
I N S T R U M E N T S a n d C O N T R O L S
I
20

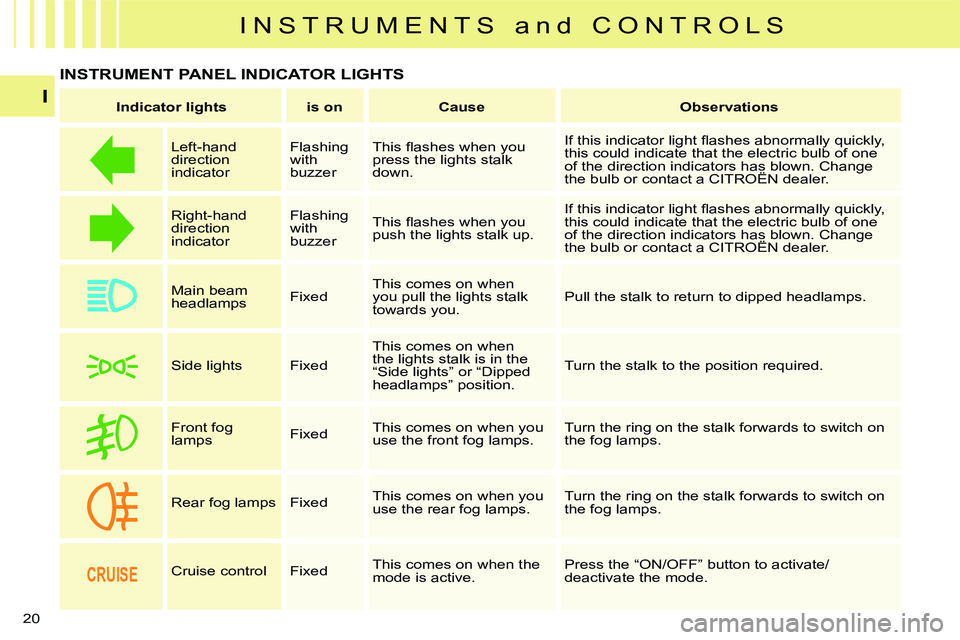

INSTRUMENT PANEL INDICATOR LIGHTS
Indicator lights is on Cause Observations
Left-hand
direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
press the lights stalk
down. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a CITROËN dealer.
Right-hand
direction
indicator Flashing
with
buzzer
T h i s fl a s h e s w h e n y o u
push the lights stalk up. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a CITROËN dealer.
Main beam
headlamps
F i x e d This comes on when
you pull the lights stalk
towards you. Pull the stalk to return to dipped headlamps.
Side lights
F i x e d This comes on when
the lights stalk is in the
“Side lights” or “Dipped
headlamps” position. Turn the stalk to the position required.
Front fog
lamps
F i x e d This comes on when you
use the front fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Rear fog lamps
F i x e d This comes on when you
use the rear fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Cruise control
F i x e d This comes on when the
mode is active. Press the “ON/OFF” button to activate/
deactivate the mode.
Page 39 of 216
C O M F O R T
II
42
For even air distribution, take care not
t o o b s t r u c t t h e e x t e r i o r a i r i n t a k e g r i l l e
located at the bottom of the windscreen,
the vents, the air outlets under the front
s e a t s a n d t h e a i r e x t r a c t o r l o c a t e d b e -
h i n d t h e fl a p s i n t h e b o o t . The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and have it checked by a
CITROËN dealer.
THE AIR CONDITIONING
Do not cover the temperature and hu-
midity sensor
2 and the sunshine sen-
sor
7 .
They are required for regulation of the
air conditioning.
Advice on operation
In hot weather, in order to obtain in-
tense ventilation, it is advisable to
use vents 1 and
4 only.
If, when the vehicle has been parked
in the sun for a long time, the interior
temperature remains very high, do
not hesitate to ventilate the passen-
ger compartment for a few minutes. Switch off the air conditioning when
the climatic conditions permit.
Use of the automatic regulation of the
air conditioning is recommended. It per-
mits automatic and optimised control of
a l l o f t h e f o l l o w i n g f u n c t i o n s : a i r fl o w ,
passenger compartment temperature
and air distribution, by means of vari-
o u s s e n s o r s ( e x t e r i o r t e m p e r a t u r e , i n -
terior temperature, sunshine), so pre-
venting the need for you to change your
reference settings other than the value
displayed.
In certain cases of particularly arduous
u s e ( t o w i n g t h e m a x i m u m l o a d o n a
steep gradient in hot weather), cutting
off the air conditioning permits recovery
of the engine power and therefore im-
provement of the towing capacity.
C l o s e t h e w i n d o w s t o b e n e fi t f r o m t h e
full effectiveness of the air condition-
ing.
Ensure that the passenger compart-
m e n t fi l t e r i s i n g o o d c o n d i t i o n . H a v e
t h e fi l t e r e l e m e n t s r e p l a c e d p e r i o d i c a l l y .
If you drive in a dusty environment, re-
place it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
1. Centre panel vents.
2. Temperature sensor .
3. Air outlet to passenger footwells.
4. Side vents.
5. Front windows de-icing or demisting
vents.
6. Windscreen de-icing or demisting
vents.
7. Sunshine sensor.
Page 42 of 216
C O M F O R T
II
45
Manual operation
It is possible to set one or more func-
tions manually while leaving the other
functions in automatic mode.
Switching to manual mode may result
in discomfort (temperature, humidity,
odour, condensation) and does not of-
fer optimum comfort.
Temperature adjustment (1) A i r fl o w a d j u s t m e n t ( 2 )
Turn the dial to the
right to increase the
a i r fl o w o r t o t h e l e f t t o
decrease it.
Turn the temperature
control dial to the right
to increase the tem-
perature and to the
left to decrease it.
Place the dial in the
position required to
direct the air towards:
To avoid condensation and deterio-
ration of the quality of the air in the
passenger compartment, ensure that
a s u f fi c i e n t fl o w o f a i r i s m a i n t a i n e d . the central and side vents,
the central and side vents and
the footwells,
the footwells,
the windscreen, the side win-
dows and the footwells, the windscreen and the side
windows.
The air distribution can be adapted by
placing the adjustment dial in the inter-
mediate positions.
Air distribution adjustment (3)
Page 48 of 216
C O M F O R T
II
51
REAR SEATS (ROW 2)
Seat back angle adjustment
Pull the control and adjust.
When the seat back is at the correct
angle, release the control.
Sit in the centre of the rear bench seat
to check that the two seats are at the
same level and that the angle of their
seat backs is the same.
Forwards-backwards adjustment
Pull the control towards the outside and
adjust.
When your seat is at the correct
distance, release the control.
To ensure that the seat is secured
correctly, move it forwards and
backwards slightly without using the
control. When manoeuvring the seats,
ensure that no person or ob-
ject is in the vicinity of the mov-
ing parts to avoid any risk of injury or
damage.
To prevent the seat back from mov-
ing forwards sharply and knocking
you, press on it with your back or
push it with your hand while operat-
ing the lever.
The rear seats can be folded in two
parts (1/3 - 2/3).
Page 50 of 216
C O M F O R T
II
53

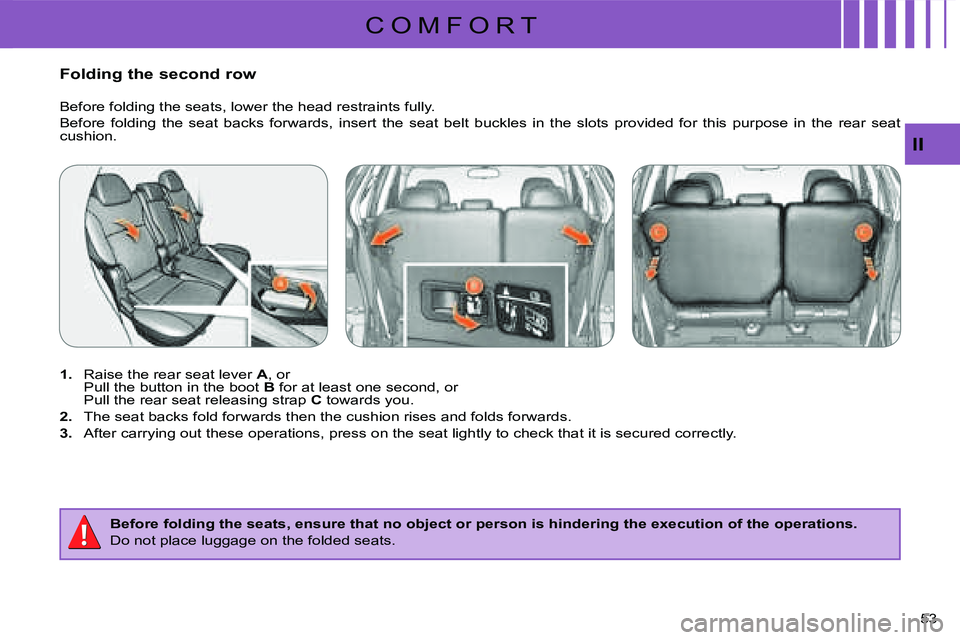

Folding the second row
1. Raise the rear seat lever A , or
Pull the button in the boot B for at least one second, or
Pull the rear seat releasing strap C towards you.
2. The seat backs fold forwards then the cushion rises and folds fo rwards.
3. After carrying out these operations, press on the seat lightly to check that it is secured correctly.
Before folding the seats, lower the head restraints fully.
Before folding the seat backs forwards, insert the seat belt b
uckles in the slots provided for this purpose in the rear seat
cushion.
Before folding the seats , ensure that no object or person is hindering the execution of the operatio ns.
Do not place luggage on the folded seats.
Page 55 of 216
C O M F O R T
II
58
1. Open the tailgate and the lower tail-
gate (refer to the “Access” section).
2. Lift the cover A a n d fi x i t t o t h e s e a t
back using the press stud of the
band
B .
3. Unlock the head restraints by sliding
the controls
C and fold them onto
the seat back.
4. Pull the grey strap
D and bring the
bench seat towards you. Press on
the bench seat to lock it.
5. Tilt and push the bench seat for-
wards.
6. Pull the black strap E located at the
centre of the seat back to fold the
seat back.
Undo the press stud of the band B to
put the cover back in place.
Folding the bench seat
Page 65 of 216
C O M F O R T
II
69
BOOT LAYOUT
1. 1 2 v o l t s o c k e t ( 1 2 0 W m a x ) .
2. Open storage compartment.
3. Right-hand side enclosed storage
compartment.
4. S t o r a g e c o m p a r t m e n t i n t h e fl o o r * .
5. Stowing rings.
6. Left-hand side storage compartment
or audio equipment.
7. Load space cover.
* 5 - s e a t v e r s i o n o n l y .
Page 66 of 216
C O M F O R T
II
70
12 volt socket (120 W max)
This operates when the ignition switch
is in the “ON” or “ACC” position.
Lift the cover to gain access to the
socket. Check that the electrical equip-
ment operates with 12 volts
a n d t h a t i t s m a x i m u m e l e c t r i -
cal power is 120 W.
The prolonged use of electri-
cal equipment without running the
engine may discharge the battery. Stowing rings
There are four stowing rings in the boot
for securing luggage:
- two rings are located on the boot
fl o o r ,
- two rings are located on the rear side pillars.
* O n 5 - s e a t v e r s i o n o n l y .
R a i s e t h e b o o t fl o o r t o g a i n a c c e s s t o
this compartment.
Right-hand side enclosed storage
compartment
This storage compartment contains the
tools for changing a wheel. S t o r a g e c o m p a r t m e n t i n t h e fl o o r *
