2009 CHRYSLER TOWN AND COUNTRY Owners Manual

Eight–Way Driver And Passenger Power Seat — If
Equipped
The power seat switches are located on the outboard side
of the seat. The front switch controls the up/down,
forward/rearward and tilt adjustment. The rear switch
controls the recline adjustment of the seatback.
Driver Power Seat Switch
1 — Front Switch2 — Rear Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151

CAUTION!
DO NOT place any article under a power seat or
impede its ability to move as it may cause damage to
the seat controls. Seat travel may become limited if
movement is stopped by an obstruction in the seat’s
path.
Adjustable Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of a rear impact. Pull upward or push down-
ward on the head restraint cushion so that the upper
edge is as high as practical. To raise the head restraint,
pull upward on the head restraint. To lower the head
restraint, press the release tab located at the base of the
head restraint and push downward on the head restraint.
Heated Seats — If Equipped
This feature heats the front driver and passenger seats.
The controls for front heated seats are located on the
center instrument panel area.
Adjusting The Head Restraint Cushion
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

After turning the ignition ON, you can choose from High,
Low, or Off heat settings. Amber indicator lights in each
switch indicate the level of heat in use. Two indicator
lights will illuminate for High, one for Low, and none for
Off.Press the switch once to select High-level heat-
ing. Press the switch a second time to select
Low-level heating. Press the switch a third time
to shut the heating elements Off.
Second row heated seat switches are located in the
sliding side door handle trim panels and function the
same as front switches.
Heated Seat Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153

WARNING!
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time. DO NOT place anything on the seat
that insulates against heat, such as a blanket or
cushion. This may cause the seat heater to overheat.
Manual Reclining Seats — If Equipped
The recliner control lever is on the outboard side of the
seat. To recline, lean forward slightly, lift the lever, then
push back to the desired position and release the lever.
Lean forward and lift the lever to return the seatback toits normal position. Using body pressure, lean forward
and rearward on the seat to be sure the seatback has
latched.
Manual Reclining Seat Control
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
DO NOT ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or fatally injured. Use the recliner only
when the vehicle is parked.

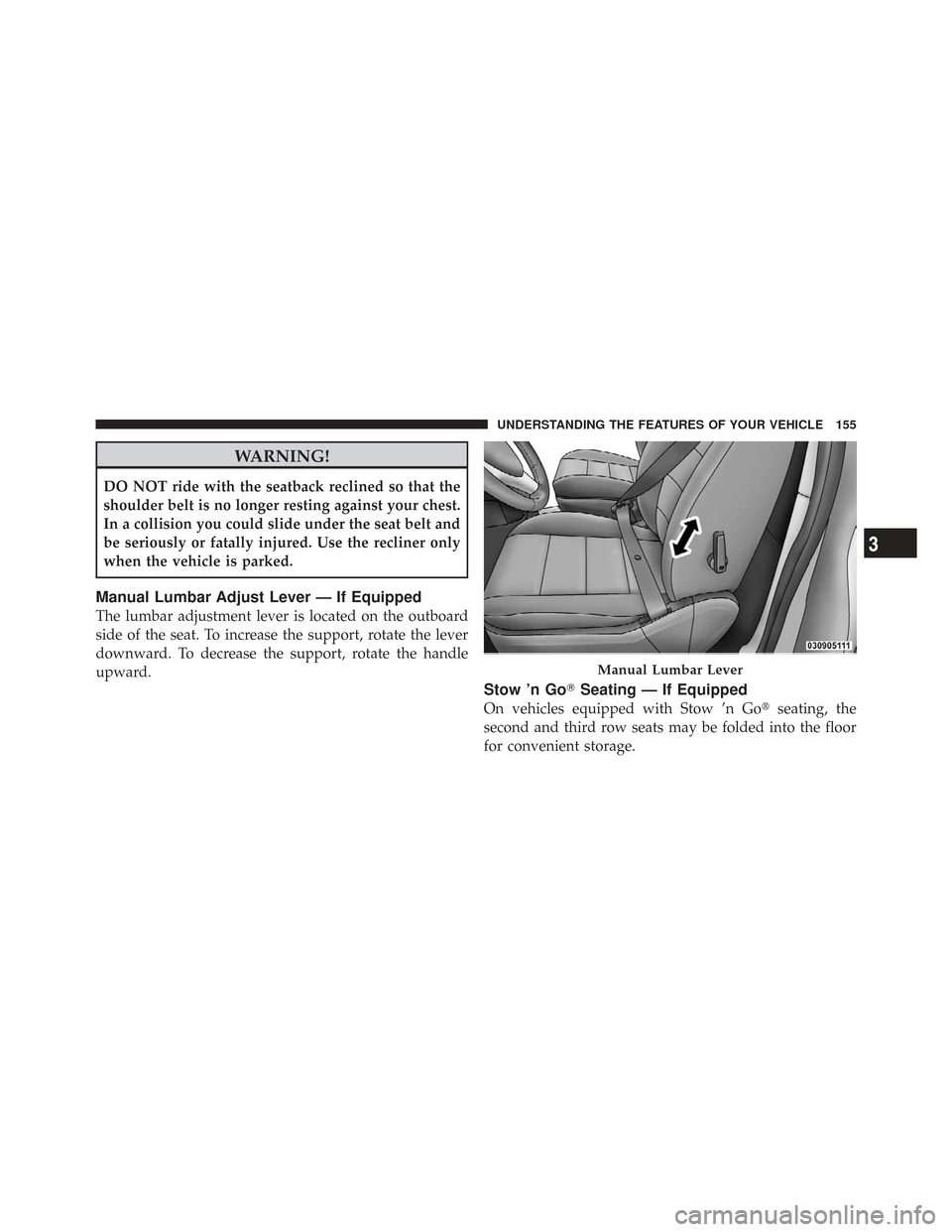

Manual Lumbar Adjust Lever — If Equipped
The lumbar adjustment lever is located on the outboard
side of the seat. To increase the support, rotate the lever
downward. To decrease the support, rotate the handle
upward.
Stow ’n GoSeating — If Equipped
On vehicles equipped with Stow ’n Go seating, the
second and third row seats may be folded into the floor
for convenient storage.
Manual Lumbar Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155

To Fold Second Row Seats
1. Move the front seat fully forward.
2. Lower the head restraints and raise the armrests on the
second row seat.
3. Slide the storage bin locking mechanism to the
LOCKposition and then pull up on the storage bin latch
to open the cover.
4. Pull up on the seatback recliner lever located on the
outboard side of the seat and fold the seatback down. To
assure the seatback is latched in the folded position,
additional downward pressure on the seatback may be
required when folding.
Storage Bin Cover Lock Release
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

5. Pull rearward on the release strap located at the rear of
the seat and tumble the seat forward into the storage bin.6. Close the storage bin cover.
Second Row Seatback Release LeverSecond Row Seat Release Strap
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157

CAUTION!
The storage bin cover must be locked and flat to
avoid damage from contact with the front seat tracks,
which have minimal clearance to the cover.
WARNING!
In an accident, serious injury could result if the seat
storage bin covers are not properly latched.
•DO NOT drive the vehicle with the storage bin
covers open.
•Keep the storage bin covers closed and latched
while the vehicle is in motion.
•DO NOT use a storage bin latch as a tie down.
To Unfold Second Row Seats
1. Pull up on the storage bin latch to open the cover.2. Pull up on the handle to lift the seat out of the storage
bin and push the seat rearward to latch the seat anchors.
3. Pull upward on the seatback recliner lever, located on
the outboard side of the seat, to return the seatback to its
full upright position.
Second Row Seat Release Handle
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
