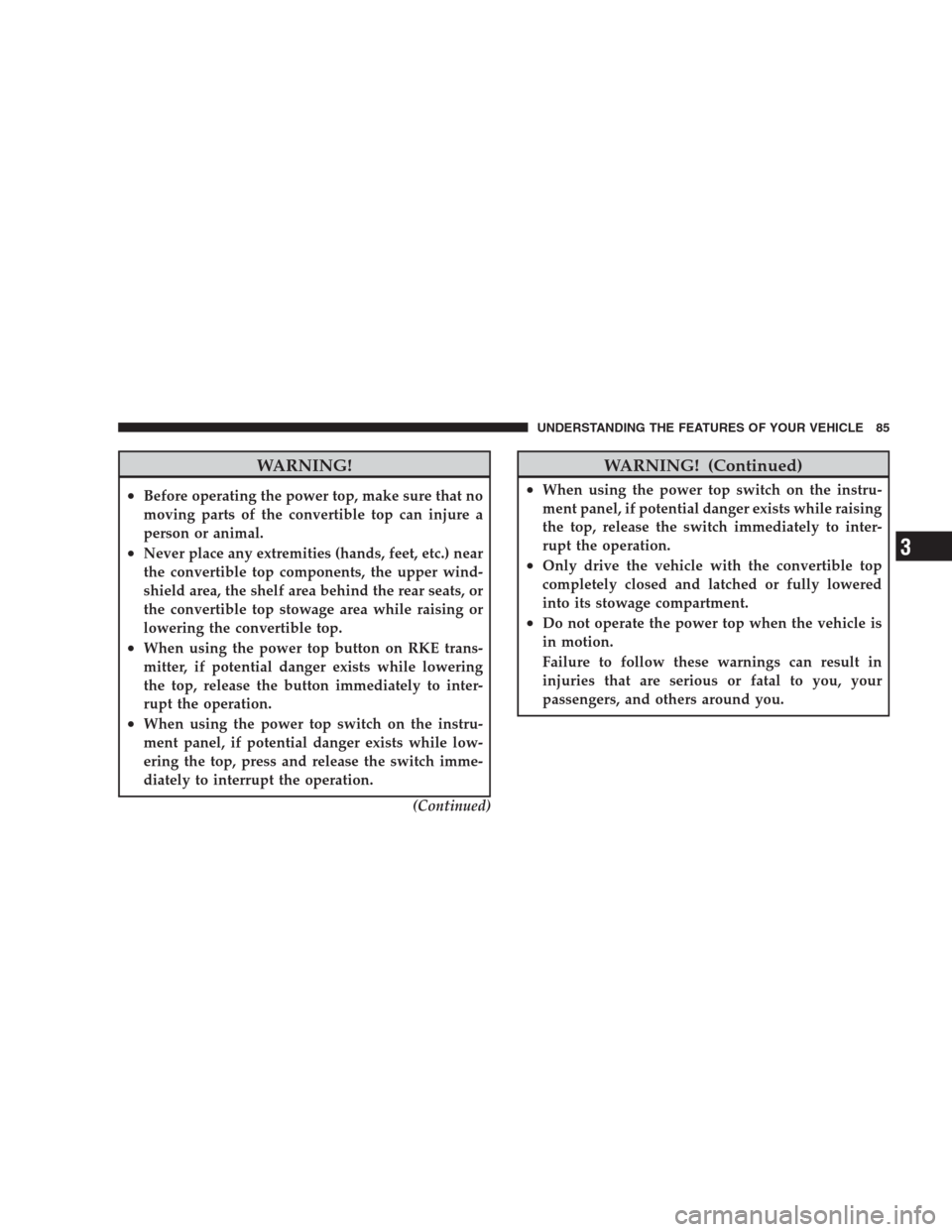

Page 87 of 475

WARNING!
•Before operating the power top, make sure that no
moving parts of the convertible top can injure a
person or animal.
•Never place any extremities (hands, feet, etc.) near
the convertible top components, the upper wind-
shield area, the shelf area behind the rear seats, or
the convertible top stowage area while raising or
lowering the convertible top.
•When using the power top button on RKE trans-
mitter, if potential danger exists while lowering
the top, release the button immediately to inter-
rupt the operation.
•When using the power top switch on the instru-
ment panel, if potential danger exists while low-
ering the top, press and release the switch imme-
diately to interrupt the operation.
(Continued)
WARNING! (Continued)
•When using the power top switch on the instru-
ment panel, if potential danger exists while raising
the top, release the switch immediately to inter-
rupt the operation.
•Only drive the vehicle with the convertible top
completely closed and latched or fully lowered
into its stowage compartment.
•Do not operate the power top when the vehicle is
in motion.
Failure to follow these warnings can result in
injuries that are serious or fatal to you, your
passengers, and others around you.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3
Page 88 of 475

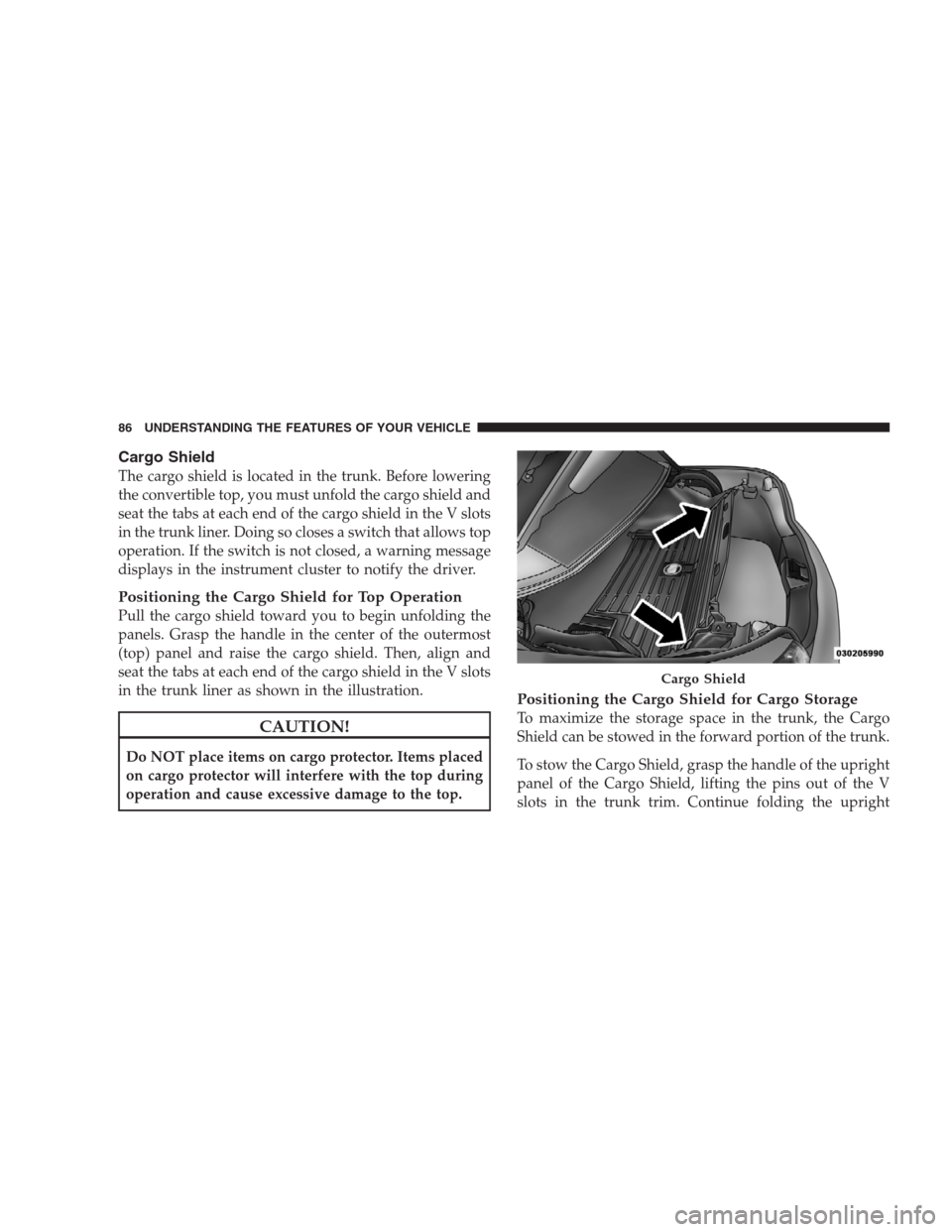

Cargo Shield
The cargo shield is located in the trunk. Before lowering
the convertible top, you must unfold the cargo shield and
seat the tabs at each end of the cargo shield in the V slots
in the trunk liner. Doing so closes a switch that allows top
operation. If the switch is not closed, a warning message
displays in the instrument cluster to notify the driver.
Positioning the Cargo Shield for Top Operation
Pull the cargo shield toward you to begin unfolding the
panels. Grasp the handle in the center of the outermost
(top) panel and raise the cargo shield. Then, align and
seat the tabs at each end of the cargo shield in the V slots
in the trunk liner as shown in the illustration.
CAUTION!
Do NOT place items on cargo protector. Items placed
on cargo protector will interfere with the top during
operation and cause excessive damage to the top.
Positioning the Cargo Shield for Cargo Storage
To maximize the storage space in the trunk, the Cargo
Shield can be stowed in the forward portion of the trunk.
To stow the Cargo Shield, grasp the handle of the upright
panel of the Cargo Shield, lifting the pins out of the V
slots in the trunk trim. Continue folding the upright
Cargo Shield
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 92 of 475

1. Read all of the Notes, Cautions, and Warning found
under “Power Convertible Top Usage Precautions” to
verify all operating conditions are met.
2. Check for Operation and Warning Messages as de-
scribed under “Power Convertible Top Operation &
Warning Messages.” If applicable, perform the related
action to correct the condition present.
3. If Steps 1 and 2 do not resolve the problem, see
“Manual Bypass Mode” Section.
Manual Bypass Mode
In case of an unresponsive power top system, there is a
customer Manual Bypass Mode. If the power top mal-
functions mid-cycle, press the interior POWER TOP
switch in the Top Up direction five times within two
seconds. This mode will allow the top to close with
failures. Once the top is closed, please see your autho-
rized dealer.NOTE:This process may take a more significant
amount of time to fully close the power top. It’s not
uncommon to see 30 second delays before operation
begins.
Wind Stop — If Equipped
The Wind Stop installs in the backseat area of the vehicle.
The Wind Stop will not interfere with power top opera-
tion. Therefore, it can remain installed when the top is up.
However, when not in use, the Wind Stop folds to allow
for convenient storage underneath the cargo shield in the
trunk.
NOTE:It is recommended that you lower the convert-
ible top before installing or removing the Wind Stop.
Installing the Wind Stop
1. Remove the Wind Stop from the trunk.
2. Unfold the Wind Stop framework.
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 96 of 475
Power Convertible Top Operation and Warning
Messages
When the appropriate conditions exist, the PTCM dis-
plays various power convertible top operation and warn-
ing messages in the Electronic Vehicle Information Center(EVIC) – if equipped, or in the Odometer for vehicles not
equipped with the EVIC. Refer to the following chart for
message related information:
EVIC
MessageEVIC
Message
Display
TimeOdometer
Message
(< 5 mph
[8 km/h])
Odometer
Message
Display
TimeOdometer
Message
(> 5 mph
[8 km/h])
Odometer
Message
Display
TimeChime Condition Operator
Action
Required
CONVERT-
IBLE TOP
IN OPERA-
TIONUntil Op-
eration is
CompleteTOP Until Op-
eration is
Complete— — — The System
is Lowering
or Raising
the Top—
CONVERT-
IBLE TOP
COM-
PLETE9 Seconds TOP DONE Display
Scrolls for 6
Seconds— — Single
ChimeThe System
Completes
Operation of
Lowering or
Raising the
To p—
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 102 of 475

CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirrors
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Power Mirrors
The power mirror switch is located on the driver’s door
trim. A rotary knob selects the left mirror, right mirror or
off position.
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 118 of 475

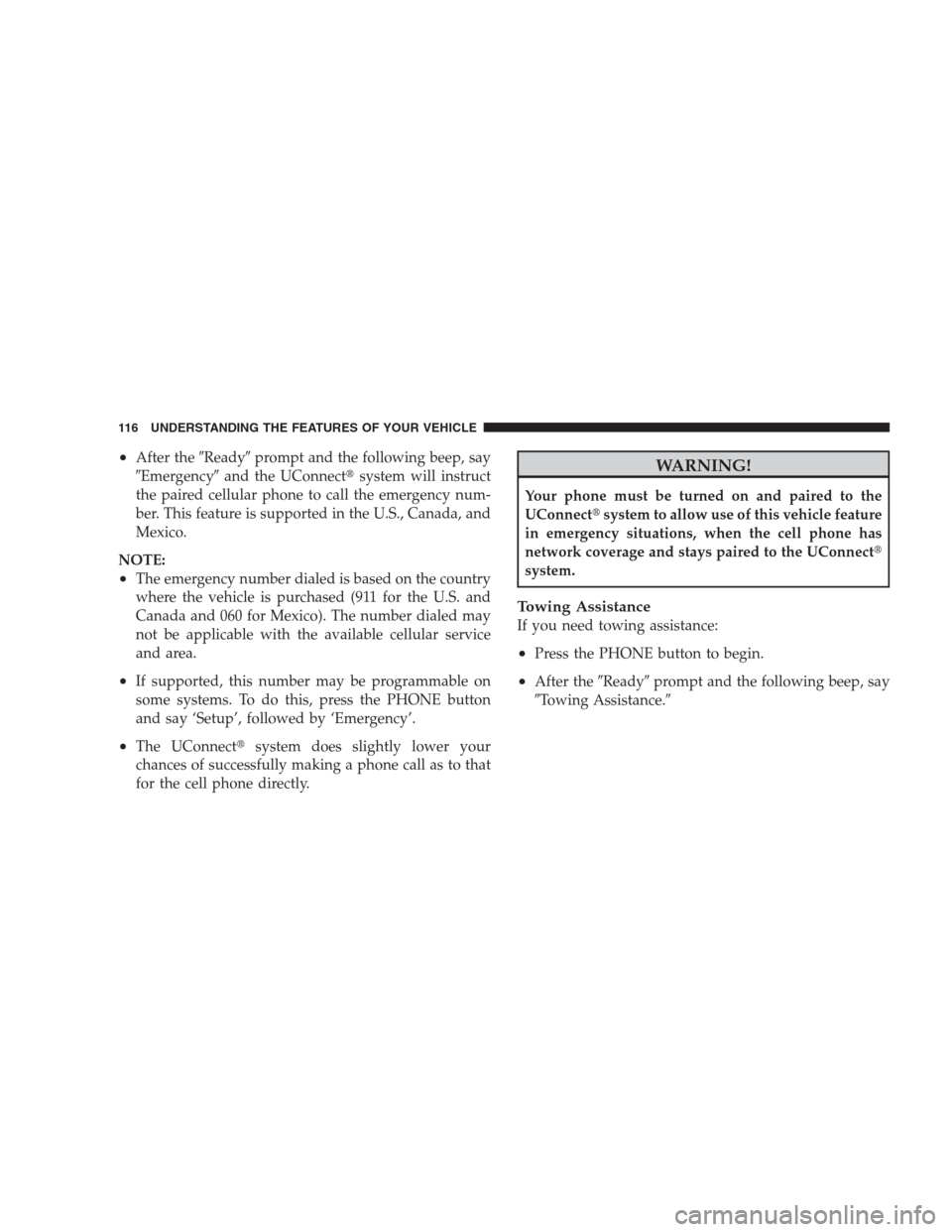

•After theReadyprompt and the following beep, say
Emergencyand the UConnectsystem will instruct
the paired cellular phone to call the emergency num-
ber. This feature is supported in the U.S., Canada, and
Mexico.
NOTE:
•The emergency number dialed is based on the country
where the vehicle is purchased (911 for the U.S. and
Canada and 060 for Mexico). The number dialed may
not be applicable with the available cellular service
and area.
•If supported, this number may be programmable on
some systems. To do this, press the PHONE button
and say ‘Setup’, followed by ‘Emergency’.
•The UConnectsystem does slightly lower your
chances of successfully making a phone call as to that
for the cell phone directly.
WARNING!
Your phone must be turned on and paired to the
UConnectsystem to allow use of this vehicle feature
in emergency situations, when the cell phone has
network coverage and stays paired to the UConnect
system.
Towing Assistance
If you need towing assistance:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Towing Assistance.
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 132 of 475

General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
VOICE RECOGNITION SYSTEM (VR) — IF
EQUIPPED
Voice Recognition System (VR) Operation
This Voice Recognition system allows you to
control your AM, FM radio, satellite radio, disc
player, and a memo recorder.
NOTE:Take care to speak into the Voice Interface
System as calmly and normally as possible. The ability of
the Voice Interface System to recognize user voice com-
mands may be negatively affected by rapid speaking or a
raised voice level.
WARNING!
Any voice commanded system should be used only
in safe driving conditions and all attention should be
kept on the roadway ahead. Failure to do so may
result in an accident causing serious injury or death.
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 138 of 475

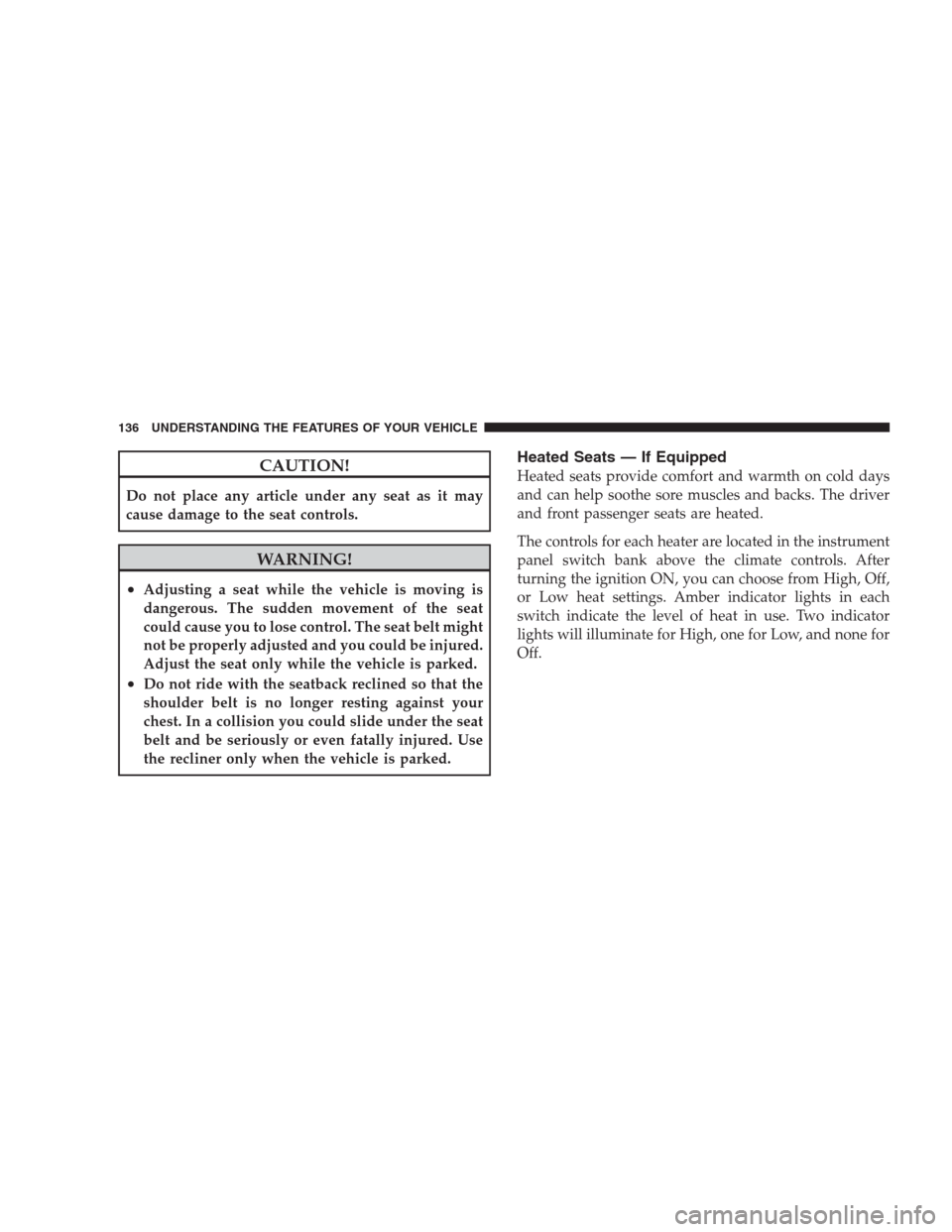

CAUTION!
Do not place any article under any seat as it may
cause damage to the seat controls.
WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt might
not be properly adjusted and you could be injured.
Adjust the seat only while the vehicle is parked.
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Heated Seats — If Equipped
Heated seats provide comfort and warmth on cold days
and can help soothe sore muscles and backs. The driver
and front passenger seats are heated.
The controls for each heater are located in the instrument
panel switch bank above the climate controls. After
turning the ignition ON, you can choose from High, Off,
or Low heat settings. Amber indicator lights in each
switch indicate the level of heat in use. Two indicator
lights will illuminate for High, one for Low, and none for
Off.
