2009 CHEVROLET TAHOE Owners Manual

Page 393 of 574

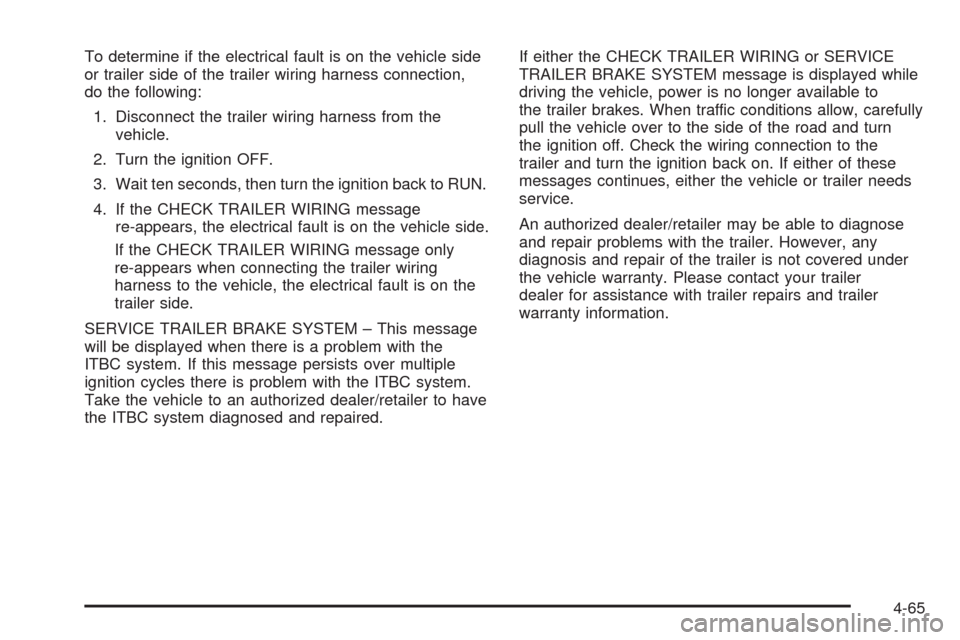

CHEVROLET TAHOE 2009 3.G Owners Manual To determine if the electrical fault is on the vehicle side
or trailer side of the trailer wiring harness connection,
do the following:
1. Disconnect the trailer wiring harness from the
vehicle.
2. Tu

Page 394 of 574

CHEVROLET TAHOE 2009 3.G Owners Manual Driving with a Trailer
{CAUTION:
When towing a trailer, exhaust gases may collect
at the rear of the vehicle and enter if the liftgate,
trunk/hatch, or rear-most window is open.
Engine exhaust contain

Page 395 of 574

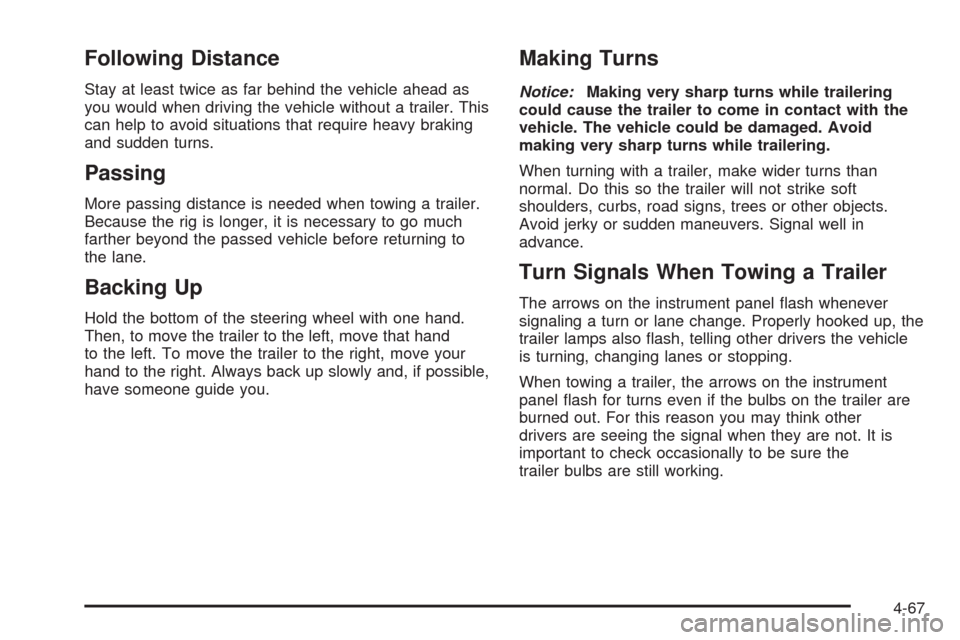

CHEVROLET TAHOE 2009 3.G Owners Manual Following Distance
Stay at least twice as far behind the vehicle ahead as
you would when driving the vehicle without a trailer. This
can help to avoid situations that require heavy braking
and sudden

Page 396 of 574

CHEVROLET TAHOE 2009 3.G Owners Manual Driving On Grades
Reduce speed and shift to a lower gearbefore
starting down a long or steep downgrade. If the
transmission is not shifted down, the brakes might have
to be used so much that they woul

Page 397 of 574

CHEVROLET TAHOE 2009 3.G Owners Manual 5. If the vehicle is four-wheel-drive, be sure the
transfer case is in a drive gear and not in
N (Neutral).
6. Release the brake pedal.
{CAUTION:
It can be dangerous to get out of the vehicle if the
s

Page 398 of 574

CHEVROLET TAHOE 2009 3.G Owners Manual Trailer Wiring Harness
The vehicle is equipped with the following wiring
harnesses for towing a trailer.
Basic Trailer Wiring
The trailer wiring harness, with a seven-pin connector,
is located at the

Page 399 of 574

CHEVROLET TAHOE 2009 3.G Owners Manual *The fuses for these two circuits are installed in the
underhood electrical center, but the wires are not
connected. They should be connected by your
dealer/retailer or a quali�ed service center.
If c

Page 400 of 574

CHEVROLET TAHOE 2009 3.G Owners Manual ✍NOTES
4-72
