2009 CHEVROLET EQUINOX Owners Manual

Page 57 of 442

CHEVROLET EQUINOX 2009 1.G Owners Manual 4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.5. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
la

Page 58 of 442

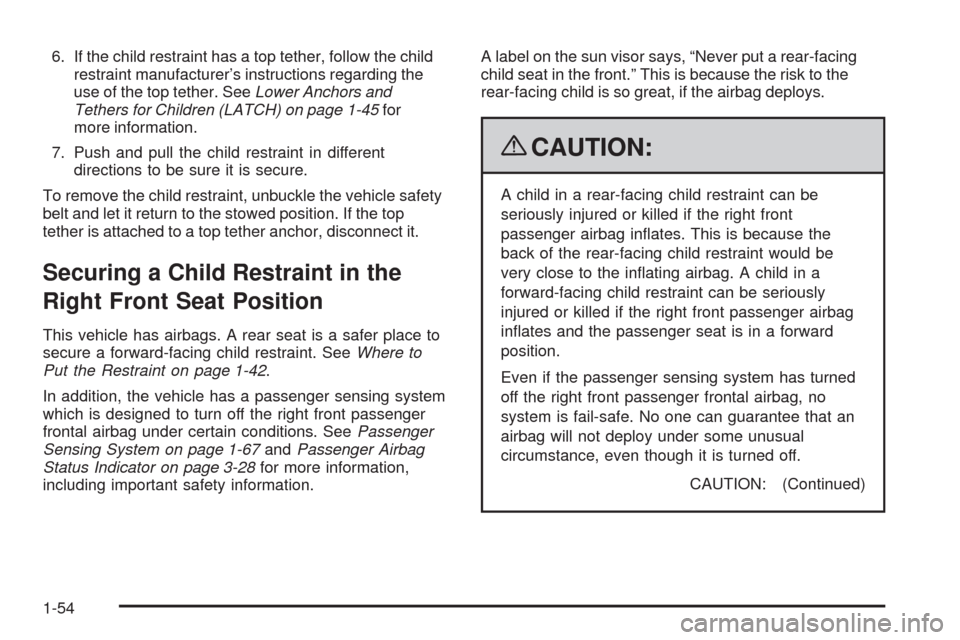

CHEVROLET EQUINOX 2009 1.G Owners Manual 6. If the child restraint has a top tether, follow the child
restraint manufacturer’s instructions regarding the
use of the top tether. SeeLower Anchors and
Tethers for Children (LATCH) on page 1-45

Page 59 of 442

CHEVROLET EQUINOX 2009 1.G Owners Manual CAUTION: (Continued)
Secure rear-facing child restraints in a rear
seat, even if the airbag is off. If you secure a
forward-facing child restraint in the right front seat,
always move the front passen

Page 60 of 442

CHEVROLET EQUINOX 2009 1.G Owners Manual 4. Push the latch plate into the buckle until it clicks.
Position the release button on the buckle so that
the safety belt could be quickly unbuckled if
necessary.5. Pull the rest of the shoulder belt

Page 61 of 442

CHEVROLET EQUINOX 2009 1.G Owners Manual 6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the lap
portion of the belt and feed the shoulder belt back
into the retractor. When installi

Page 62 of 442

CHEVROLET EQUINOX 2009 1.G Owners Manual Airbag System
Your vehicle has the following airbags:
A frontal airbag for the driver.
A frontal airbag for the right front passenger.
Your vehicle may have the following airbags:
A roof-rail airbag f

Page 63 of 442

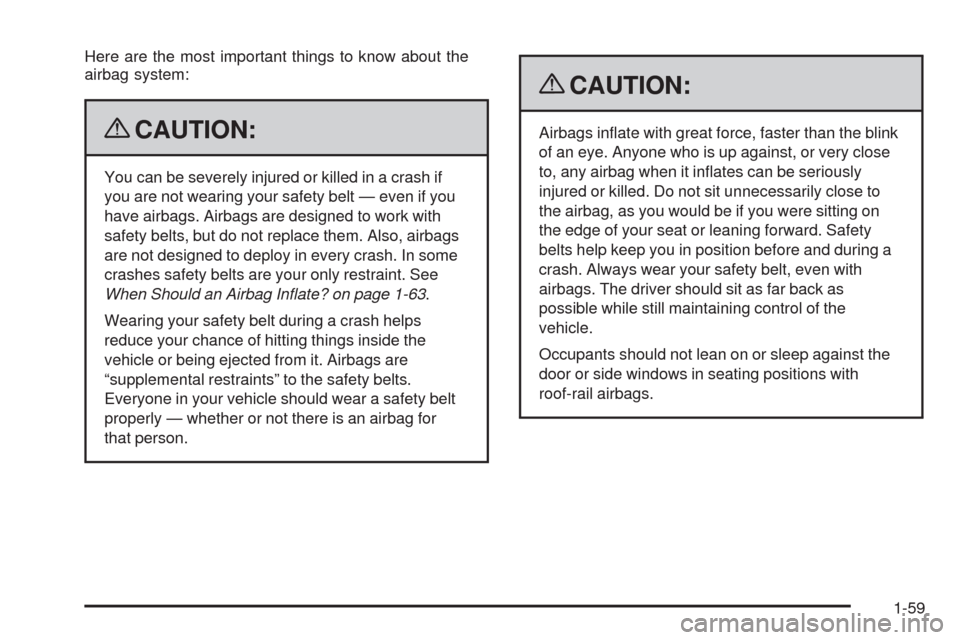

CHEVROLET EQUINOX 2009 1.G Owners Manual Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash if
you are not wearing your safety belt — even if you
have airbags. Air

Page 64 of 442

CHEVROLET EQUINOX 2009 1.G Owners Manual {CAUTION:
Children who are up against, or very close to,
any airbag when it in�ates can be seriously injured
or killed. Airbags plus lap-shoulder belts offer
protection for adults and older children,
