2009 CHEVROLET EQUINOX Owners Manual

Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
do not want to. Adjust the driver’s seat only when
the vehicle is not moving.
{CAUTION:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.To adjust the seatback, lift the lever on the outboard side
of the seat and move the seatback to the desired position.
Then release the lever to lock the seatback in place. If the
passenger’s seat is a at folding seat, fully raise the lever
to disengage the seatback.Driver’s Seat shown, Passenger Seat similar
1-5

{CAUTION:
Sitting in a reclined position when the vehicle is in
motion can be dangerous. Even if when buckled up,
the safety belts cannot do their job when reclined
like this.
The shoulder belt cannot do its job because it will
not be against your body. Instead, it will be in front
of you. In a crash, you could go into it, receiving
neck or other injuries.
The lap belt cannot do its job either. In a crash,
the belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in motion,
have the seatback upright. Then sit well back in the
seat and wear the safety belt properly.
Do not have a seatback reclined if your vehicle is
moving.
1-6

Head Restraints
Adjust the head restraint so that the top of the restraint is
at the same height as the top of the occupant’s head.
This position reduces the chance of a neck injury in a
crash.Pull the head restraint up to
raise it. To lower the head
restraint, press the button,
located on the top of the
seatback, and push the
restraint down.
1-7

Passenger Folding Seatback
{CAUTION:
If you fold the seatback forward to carry longer
objects, such as skis, be sure any such cargo is not
near an airbag. In a crash, an inating airbag might
force that object toward a person. This could cause
severe injury or even death. Secure objects away
from the area in which an airbag would inate. For
more information, seeWhere Are the Airbags? on
page 1-61andLoading the Vehicle on page 4-20.
{CAUTION:
Things you put on this seatback can strike and
injure people in a sudden stop or turn, or in a
crash. Remove or secure all items before driving.On vehicles with this feature, to fold the seatback:
1. Lower the head restraint all the way.
2. Lift the bar under the front of the seat to unlock it.
Slide the seat as far back as it will go and release
the bar. Try to move the seat back and forth to
make sure it is locked into place.
3. Lift up fully on the recliner lever, located on the
outboard side of the seat, and fold the seatback
forward until it disengages.
1-8

4. Continue to fold the seat forward until it locks in the
folded position.
5. Pull up on the seatback to be sure it is locked.To raise the seatback, do the following:
1. Lift up fully on the recliner lever, located on the
outboard side of the seat, and push up on the
seatback.
2. Continue raising the seatback until the seatback
re-engages.
{CAUTION:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
3. Push and pull on the seatback to make sure it is
locked in place.
The recliner lever is also used to recline the seatback
while a passenger is seated. SeeManual Reclining
Seatbacks on page 1-5.
1-9

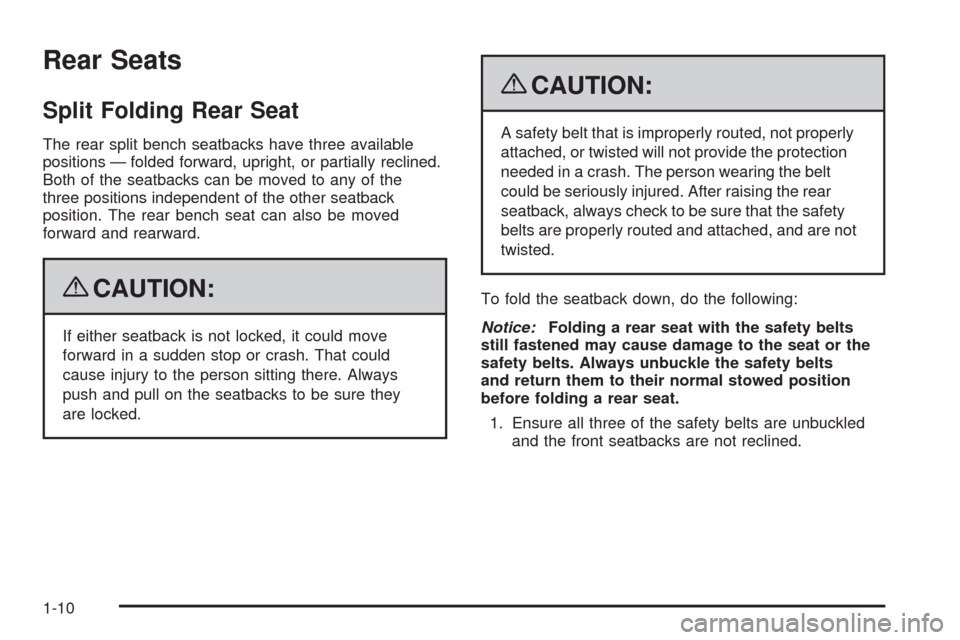

Rear Seats
Split Folding Rear Seat
The rear split bench seatbacks have three available
positions — folded forward, upright, or partially reclined.
Both of the seatbacks can be moved to any of the
three positions independent of the other seatback
position. The rear bench seat can also be moved
forward and rearward.
{CAUTION:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
{CAUTION:
A safety belt that is improperly routed, not properly
attached, or twisted will not provide the protection
needed in a crash. The person wearing the belt
could be seriously injured. After raising the rear
seatback, always check to be sure that the safety
belts are properly routed and attached, and are not
twisted.
To fold the seatback down, do the following:
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1. Ensure all three of the safety belts are unbuckled
and the front seatbacks are not reclined.
1-10

2. Lift the lever located on the top of the seatback to
release the seatback.
3. Fold the seatback forward to the desired position.To recline the seatback, do the following:
1. Lift and hold the lever located on top of the
seatback.
2. Tilt the seatback rearward, then release the lever
when the seatback is in the desired position.
To slide the entire seat forward or rearward, do the
following:
1. Lift and hold the release bar located under the front
of the seat cushion to unlock the seat.
2. Slide the seat to the desired position.
3. Release the bar.
4. Try to move the seat back and forth to ensure the
seat is locked in place.
1-11

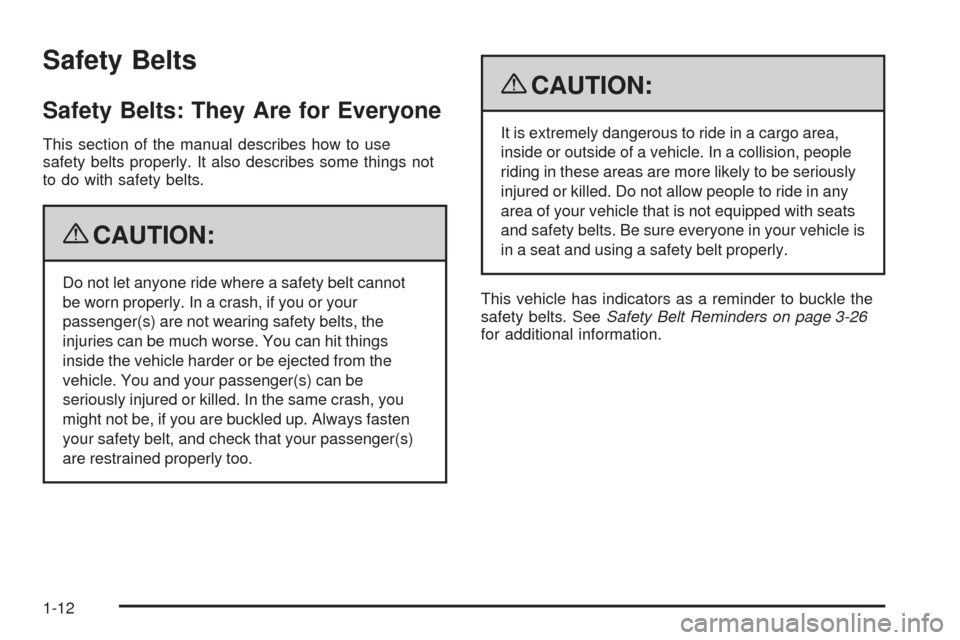

Safety Belts
Safety Belts: They Are for Everyone
This section of the manual describes how to use
safety belts properly. It also describes some things not
to do with safety belts.
{CAUTION:
Do not let anyone ride where a safety belt cannot
be worn properly. In a crash, if you or your
passenger(s) are not wearing safety belts, the
injuries can be much worse. You can hit things
inside the vehicle harder or be ejected from the
vehicle. You and your passenger(s) can be
seriously injured or killed. In the same crash, you
might not be, if you are buckled up. Always fasten
your safety belt, and check that your passenger(s)
are restrained properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed. Do not allow people to ride in any
area of your vehicle that is not equipped with seats
and safety belts. Be sure everyone in your vehicle is
in a seat and using a safety belt properly.
This vehicle has indicators as a reminder to buckle the
safety belts. SeeSafety Belt Reminders on page 3-26
for additional information.
1-12
