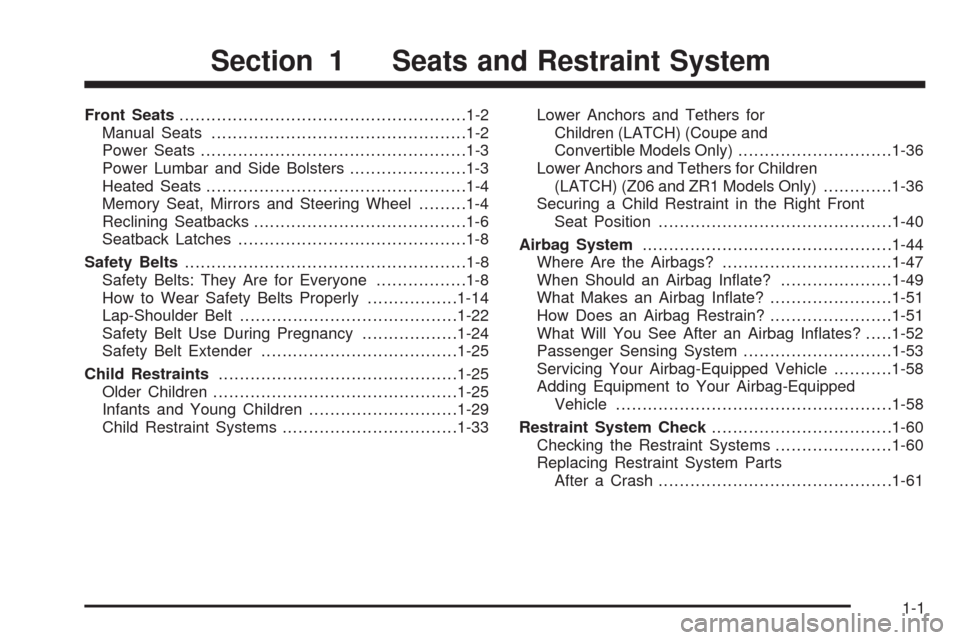

Front Seats......................................................1-2
Manual Seats................................................1-2
Power Seats..................................................1-3
Power Lumbar and Side Bolsters......................1-3
Heated Seats.................................................1-4
Memory Seat, Mirrors and Steering Wheel.........1-4
Reclining Seatbacks........................................1-6
Seatback Latches...........................................1-8
Safety Belts.....................................................1-8

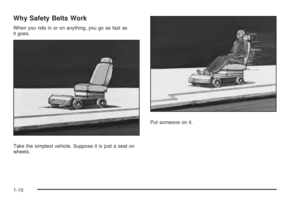

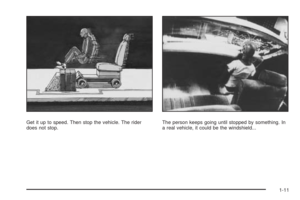

Safety Belts: They Are for Everyone.................1-8
How to Wear Safety Belts Properly.................1-14
Lap-Shoulder Belt.........................................1-22
Safety Belt Use During Pregnancy..................1-24
Safety Belt Extender.....................................1-25
Child Restraints.............................................1-25
Older Children..............................................1-25
Infants and Young Children............................1-29
Child Restraint Systems.................................1-33Lower Anchors and Tethers for
Children (LATCH) (Coupe and
Convertible Models Only).............................1-36
Lower Anchors and Tethers for Children
(LATCH) (Z06 and ZR1 Models Only).............1-36
Securing a Child Restraint in the Right Front
Seat Position............................................1-40
Airbag System...............................................1-44
Where Are the Airbags?................................1-47
When Should an Airbag Inate?.....................1-49
What Makes an Airbag Inate?.......................1-51
How Does an Airbag Restrain?.......................1-51
What Will You See After an Airbag Inates?.....1-52
Passenger Sensing System............................1-53
Servicing Your Airbag-Equipped Vehicle...........1-58
Adding Equipment to Your Airbag-Equipped
Vehicle....................................................1-58
Restraint System Check..................................1-60
Checking the Restraint Systems......................1-60
Replacing Restraint System Parts
After a Crash............................................1-61
Section 1 Seats and Restraint System
1-1

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
do not want to. Adjust the driver’s seat only when
the vehicle is not moving.If the vehicle has a manual seat, it can be moved
forward or rearward.
1. Lift the bar to unlock
the seat.
2. Slide the seat to the
desired position and
release the bar.
Try to move the seat with your body to be sure the seat
is locked in place.
1-2

Power Seats
To adjust a power seat:
Move the control forward or rearward to adjust the
seat forward or rearward.
Move the front or rear of the control up or down to
adjust the height of the seat cushion.
Your seat position can be stored and recalled if you
have the memory option. SeeMemory Seat, Mirrors and
Steering Wheel on page 1-4.
Power Lumbar and Side Bolsters
On vehicles with power lumbar and side bolsters:
Move (A) forward or rearward to adjust lumbar support.
Move (B) up or down to adjust the side bolsters.
1-3

Heated Seats
On vehicles with heated seats, the buttons are located
on the center console.
The ignition must be on for this feature to work.
L:Press to turn the seat on at the high setting, and
twice to turn it to the low setting.
9:Press to turn the system off.
Memory Seat, Mirrors and Steering
Wheel
On vehicles with the memory package, the controls are
located on the driver’s door.
1:Saves the seating position for driver 1.
2:Saves the seating position for driver 2.
B:Recalls the easy exit position.
The numbers on the back of the keyless access
transmitters correspond to the numbers on the memory
buttons.To save seating positions in the memory:
1. Adjust the driver’s seat, both outside mirrors, and
the telescopic steering column to a comfortable
driving position.
2. Press and hold button 1 until two beeps let you
know that the position has been stored in the
memory.
A second seating, mirror, and telescopic steering
column position can be set by repeating the above steps
and pressing button 2.
To recall a memory position:
On vehicles with an automatic transmission, press
and release the desired button.
If the vehicle is in P (Park), a single beep sounds
and the memory position is recalled after a brief
delay.
If the vehicle is not in P (Park), three beeps sound
and the memory position is not recalled.
On vehicles with a manual transmission, when the
vehicle is on, the parking brake needs to be set to
recall the memory position. Press and release
the desired button.
A single beep sounds and the memory position is
recalled after a brief delay.
If the vehicle is on and the parking brake is not set,
three beeps sound and the memory position is
not recalled.
1-4
