2009 CHERY TIGGO sensor

Downloaded from www.Manualslib.com manuals search engine Accelerator Pedal Position (APP) Sensor
Description
The Accelerator Pedal Position (APP) sensor is located inside the accelerator pedal. The accelerator pedal position
sensor cannot be disassembled by itself. The accelerator pedal must be replaced as a unit.
Operation
The Accelerator Pedal Position (APP) sensor on the accelerator pedal works according to the Hall principal. The
sensor is integrated into the pedal lever axis. It consists of a shaft with a ring magnet. This rotates in a printed circuit
board with a stator in the fixed Hall elements. This produces a change in the voltage. The APP sensor is supplied
with 5 V from the Engine Control Module (ECM). The information regarding accelerator position is supplied to the
ECM by means of two voltages.
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the instrument panel lower trim panel.
3. Disconnect the APP sensor electrical connector (2).
4. Remove the three APP sensor mounting bolts (1).(Tighten: APP sensor mounting bolts to 11 N·m)
5. Remove the APP sensor with the pedal.
6. Installation is in the reverse order of removal.
ON-VEHICLE SERVICE
LTSM030038
03–438Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Electronic Throttle Control Actuator
Description
The throttle body is located on the intake manifold. It controls air into the intake manifold. The Electronic Throttle
Control Actuator consists of a throttle control motor and the throttle position sensor. The throttle control motor is
operated by the ECM and it opens and closes the throttle valve. The throttle position sensor detects the throttle valve
position.
Operation
Filtered air from the air cleaner enters the intake manifold through the throttle body. A throttle valve (plate) is used to
supply air for idle and driving conditions. The throttle position sensor is part the throttle body. The throttle position
sensor signal is used by the ECM to determine throttle position. The ECM controls the electronic throttle control to
meter air into the engine. This regulates engine power. The vehicle is in sense a “Drive by Wire” system.
Removal & Installation
1. Remove the engine cover.
2. Disconnect the negative battery cable.
3. Disconnect the electronic throttle control actuatorconnector.
4. Remove two hoses on electronic throttle control actuator.
5. Remove four electronic throttle control actuator mounting bolts.
(Tighten: Electronic throttle control actuator bolts to
10 N·m)
6. Remove the throttle control actuator carefully.
7. Installation is in the reverse order of removal.
ON-VEHICLE SERVICE
BESM030022
03
03–439Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 2.4L ENGINE CONTROLS
GENERAL INFORMATION03-442
Description 03-442
Operation 03-442
Electronic Engine Control Input & Output
Device Failure Modes 03-443
Specifications 03-444
Special Tools 03-445
Electrical Schematics 03-447
ECM Connector Pin-Out Table 03-457
DIAGNOSIS & TESTING03-458
Diagnostic Help 03-458
Diagnostic Logic 03-458
Ground Inspection 03-459
Diagnostic Tools 03-459
Diagnostic Trouble Code (DTC) List 03-461
ECM Power Supply and Ground Circuit
Test 03-462
Power Supply And Ground Circuit
Diagnostic Check 03-462
Diagnostic Trouble Code (DTC) Tests 03-469
11 - Oxygen Sensor 03-469
12- Air Flow Sensor 03-476
13 - Air Temperature Sensor 03-482
14 - Throttle Position Sensor 03-487
21 - Coolant Temperature Sensor 03-493
22 - Crankshaft Position Sensor 03-498
23 - Camshaft Position Sensor 03-504
25 - Atmosphere Pressure Sensor 03-510
31 - Knock Sensor 03-515
41 - Injector 03-519
44 - Ignition Signal 03-525
ON-VEHICLE SERVICE03-531
Engine Coolant Temperature (ECT)
Sensor 03-531
Description 03-531
Operation 03-531
Removal & Installation 03-531
Coolant Temperature Sensor (For
Instrument Cluster) 03-532
Description 03-532
Operation 03-532
Removal & Installation 03-532Knock Sensor
03-533
Description 03-533
Operation 03-533
Removal & Installation 03-533
Oxygen Sensor 03-533
Description 03-533
Operation 03-533
Upstream Oxygen Sensor 03-534
Downstream Oxygen Sensor 03-534
Removal & Installation - Upstream
Oxygen Sensor 03-534
Removal & Installation - Downstream
Oxygen Sensor 03-535
Camshaft Position (CMP) Sensor 03-536
Description 03-536
Operation 03-536
Removal & Installation 03-536
Air Flow Sensor 03-537
Description 03-537
Operation 03-537
Removal & Installation 03-537
Throttle Control Actuator 03-538
Description 03-538
Operation 03-538
Removal & Installation 03-538
Engine Control Module (ECM) 03-539
Description 03-539
Operation 03-539
Removal & Installation 03-539
Throttle Position Sensor (TPS) 03-540
Description 03-540
Operation 03-540
Removal & Installation 03-540
Idle Air Control (IAC) Motor 03-541
Description 03-541
Operation 03-541
Removal & Installation 03-541
Crankshaft Position (CKP) Sensor 03-542
Description 03-542
Operation 03-542
Removal & Installation 03-542
03
03–441Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Description
The Engine Control Module (ECM) consists of a microcomputer and connectors for signal input and output and for
power supply. The ECM controls the engine.
The following are the input and output components monitored by the ECM. The monitored functions include compo-
nents from the engine, ignition, transaxle, air conditioning, or any other ECM supported subsystem.
ECM Inputs
•Brake Switch Sensor
• Camshaft Position (CMP) Sensor
• Crankshaft Position (CKP) Sensor
• Engine Coolant Temperature (ECT) Sensor
• Air Flow Sensor
• Coolant Temperature Sensor (For Instrument Cluster)
• Throttle Position Sensor (Integral with Electronic Throttle Control Actuator)
• Power Steering Switch
• Knock Sensor
• Oxygen Sensor (Upstream & Downstream)
• Clutch Pedal Switch (Manual transmission only)
ECM Outputs
• Canister Control Valve
• Fuel Injectors
• Fuel Pump Relay
• Electronic Throttle Control Actuator
• Ignition Coil
• A/C Compressor
• Cooling Fan
• Oxygen Sensor heating coil (Upstream & Downstream)
Operation
The ECM monitors components and circuits and tests them in various ways depending on the hardware, function,
and type of signal. For example, analog inputs such as throttle position or engine coolant temperature are typically
checked for opens, shorts and out-of-range values. This type of monitoring is carried out continuously. Some digital
inputs like vehicle speed or crankshaft position rely on rationality checks - checking to see if the input value makes
sense at the current engine operating conditions. These types of tests may require monitoring several components
and can only be carried out under appropriate test conditions.
The ECM is a pre-programmed, microprocessor-based digital computer. It regulates ignition timing, air-fuel ratio,
emission control devices, charging system, certain transmission features, speed control, air conditioning compressor
clutch engagement and idle speed. The ECM can adapt its programming to meet changing operating conditions.
03–442Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Electronic Engine Control Input & Output Device Failure Modes
NUMBER ITEMFAILURE MODECORRECTION
1 CKP•
Engine is hard to start.
• The engine RPM will be limited after the engine starts.
• The highest RPM is less than 3800.
• Excessive exhaust emissions.
• No ignition signal to the ECM.
• The tachometer does not work.
• Rough engine operation. Replace
2 CMP•
The fuel injector ON time may vary from 720 degrees to 360
degrees.
• The sensor output is not correct, the MIL light will turn on
when with the second revolution after the engine starts.
• Engine is hard to start.
• The highest RPM is less than 4000. Replace
3 APPS•
The MIL light will turn on.
• Poor acceleration.
• The engine RPM will be limited after the engine starts. Replace
4 ECT•
Engine hard to start when cold.
• Engine hard to start when hot.
• Poor driving capability.
• If the sensor circuit is shorted to power, the engine will run
under the default values.
• The temperature gauge indicates too high.
• The temperature gauge indicates too low.
• The cooling fan operates continuously on high speed.
• The high temperature warning lamp will flash when the IP
indicates low temperature. Replace
5 MAF•
The cooling fan will operate for approximately 60 seconds on
high speed after the ignition switch is turned off.
• Poor acceleration.
• Poor driving capability. Replace
6O
2Sensor •
Poor fuel economy.
• Excessive exhaust emissions.
• Sluggish acceleration.
• Poor driving capability. Replace
7 Knock Sensor •
The engine produces an engine knock.
• Overheated engine.
• Excessive exhaust emissions.
• Poor fuel economy.
• Lack of engine power.
• Internal engine damage. Replace
8 ECM•
Unstable engine idle.
• Poor acceleration.
• Unable to start.
• High engine idle.
• The engine exhaust exceeds emission standards.
• Engine is hard to start.
• Air conditioner does not operate.
• Fuel injector control failure.
• Engine stalls out. Replace
9 Ignition Coil •
Unstable idle.
• Lack of engine power.
• Poor fuel economy.
• Excessive exhaust emissions.
• Weak spark. Replace
GENERAL INFORMATION
03
03–443Chery Automobile Co., Ltd.

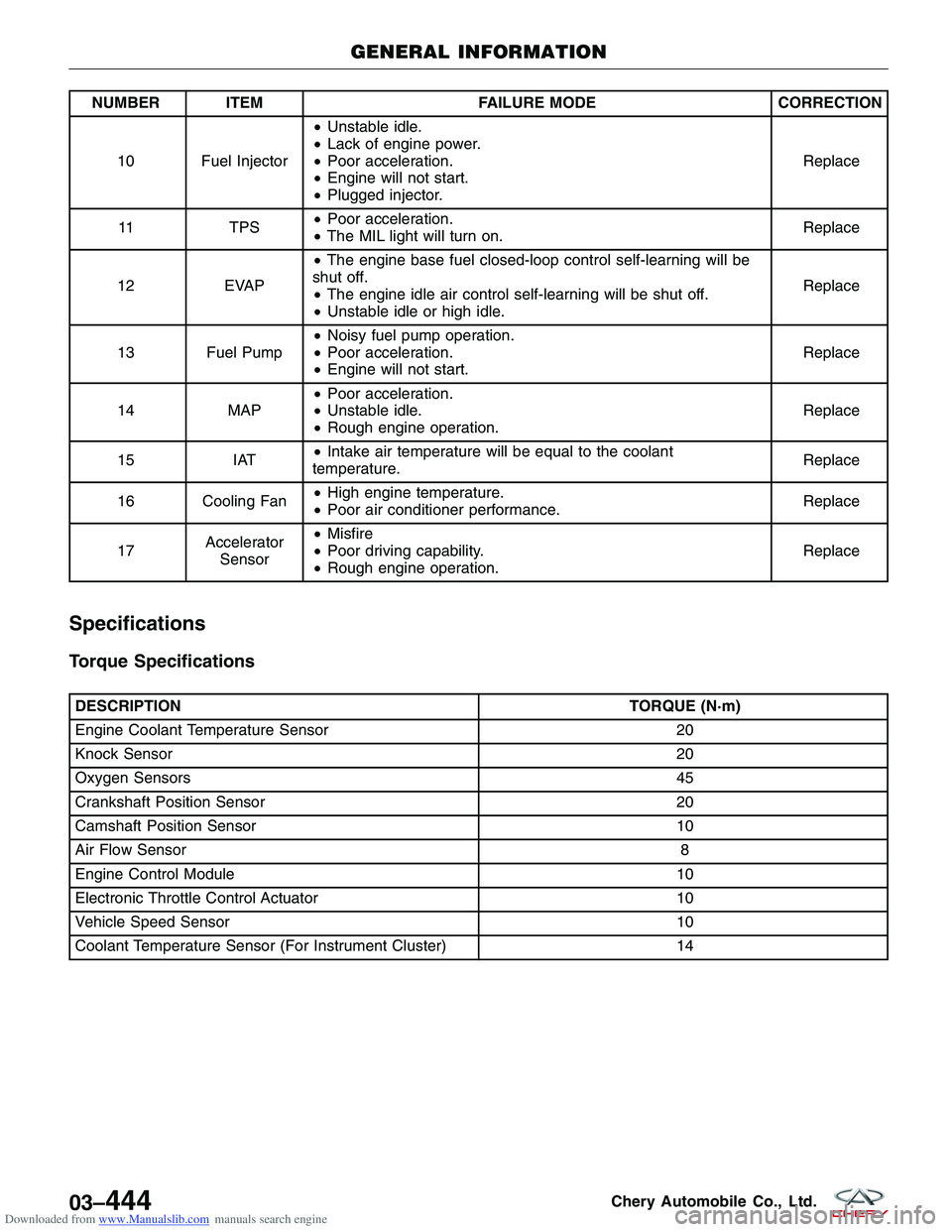

Downloaded from www.Manualslib.com manuals search engine NUMBER ITEMFAILURE MODECORRECTION
10 Fuel Injector •
Unstable idle.
• Lack of engine power.
• Poor acceleration.
• Engine will not start.
• Plugged injector. Replace
11 TPS•
Poor acceleration.
• The MIL light will turn on. Replace
12 EVAP•
The engine base fuel closed-loop control self-learning will be
shut off.
• The engine idle air control self-learning will be shut off.
• Unstable idle or high idle. Replace
13 Fuel Pump •
Noisy fuel pump operation.
• Poor acceleration.
• Engine will not start. Replace
14 MAP•
Poor acceleration.
• Unstable idle.
• Rough engine operation. Replace
15 IAT•
Intake air temperature will be equal to the coolant
temperature. Replace
16 Cooling Fan •
High engine temperature.
• Poor air conditioner performance. Replace
17 Accelerator
Sensor •
Misfire
• Poor driving capability.
• Rough engine operation. Replace
Specifications
Torque Specifications
DESCRIPTION
TORQUE (N·m)
Engine Coolant Temperature Sensor 20
Knock Sensor 20
Oxygen Sensors 45
Crankshaft Position Sensor 20
Camshaft Position Sensor 10
Air Flow Sensor 8
Engine Control Module 10
Electronic Throttle Control Actuator 10
Vehicle Speed Sensor 10
Coolant Temperature Sensor (For Instrument Cluster) 14
GENERAL INFORMATION
03–444Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine ECM Connector Pin-Out Table
ECM PIN-OUT TABLE
PINCIRCUIT IDENTIFICATION PINCIRCUIT IDENTIFICATION
1 Injector 1 39-
2 Injector 3 40-
3 -41A/C Pressure Switch
4 Idle Air Control 1 42-
5 Idle Air Control 3 43-
6 EGR Control 44-
7 Lan 1 45-
8 Fuel Pump Relay 46-
9 EVAP Control 47-
10 Ignition Coil 1 48Diagnostic Link K
11 -4 9 -
12 Switched Supply Voltage 50RPM
13 GND 51Lan 2
14 Injector 2 52Upstream Oxygen Sensor Heater
15 Injector 4 53-
16 -54Diagnostic Link K
17 Idle Air Control 2 55Ignition Switch Start
18 Idle Air Control 4 56Intake Air Temperature Sensor
19 Air Flow Sensor 57-
20 -58 -
21 Cooling Fan Control 59Downstream Oxygen Sensor
22 A/C Relay 60Upstream Oxygen Sensor
23 Ignition Coil 2 61-
24 -62Knock Sensor
25 Switched Supply Voltage 63-
26 GND 64Continuous Supply Voltage
27 -65Regulated Sensor Supply
28 -66Ignition Switch On
29 Generator G 67 Engine Coolant Temperature Sensor
30 -68Throttle Position Sensor
31 -69Atmosphere Pressure Sensor
32 MIL Lamp 70Speed In
33 Power Steering Switch 71Idle Position Switch
34 Main Relay 72Camshaft Position Sensor
35 -73Crankshaft Sensor
36 -74Air Flow Sensor
37 Generator FR 75P/N Switch
38 -76Sensor (GND)
GENERAL INFORMATION
03
03–457Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING
Diagnostic Help
1. Confirm that the malfunction is current and carry-out the diagnostic tests and repair procedures.
2. If the Diagnostic Trouble Code (DTC) cannot be deleted, it is a current fault.
3. Use a digital multimeter to perform voltage readings on the Electronic Fuel Injection (EFI) system.
4. The scan tool connects to the Data Link Connector (DLC) and communicates with the ECM.
5. If the failure is intermittent perform the following:•Check for loose connectors.
• Look for any chafed, pierced, pinched, or partially broken wires.
• Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
• Look for the data to change or for the DTC to reset during the wiggle test.
• Look for broken, bent, pushed out or corroded terminals.
• Inspect the sensor and mounting area for any condition that would result in an incorrect signal, such as
damage or foreign material.
6. Remove the ECM from the troubled vehicle and install in a new vehicle and test. If the DTC can not be deleted, the ECM is malfunctioning. If the DTC can be deleted, return the ECM to the original vehicle.
Diagnostic Logic
If the DTC can not be deleted, it is a current failure.
If the DTC can be deleted, it is an intermittent incident. In many cases, the malfunction resolves itself (the part or
circuit function returns to normal without intervention). It is important to realize that the symptoms described in the
customer’s complaint often do not recur on (1st trip) DTC visits. Realize also that the most frequent causes of inter-
mittent incidents occurrences is poor electrical connections. Because of this, the conditions under which the incident
occurred may not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may not
indicate the specific malfunctioning area.
Check if it is because of the loosening of cable joint.
Look for any chafed, pierced, pinched, or partially broken wires.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Look for broken, bent, pushed out or corroded terminals.
Inspect the sensor and mounting area for any condition that would result in an incorrect signal, such as damage,
foreign material.
Refer to any Technical Service Bulletins that may apply.
DIAGNOSTIC REFERENCE
•Check ground terminals for corroding or loose connection. Refer to Ground Inspection.
• Search for electrical incident. Refer to Diagnosis for an Electrical Incident.
• Check connector terminals. Refer to How to Check Terminal.
DURING ENGINE CHECKS AND REPAIRS USE CAUTION NOT TO HARM THE ENGINE MECHANICAL SYSTEM
• Check cylinder pressure.
• Check ignition timing.
• Check fuel system pressure.
• Check the EVAP system.
• Check for vacuum leaks.
• Check output of the TPS.
• Check the injectors for leaks.
Remove and install the doubtful ECM to a new vehicle and test it. If the DTC can not be deleted, the malfunction is
inside of ECM; if the DTC can be deleted, change the original ECM back and check it again according to above
items.
Inspect and clean all ECM, engine, and body grounds that are related to the DTC. If numerous trouble codes were
set, use a wire schematic and look for any common ground or supply circuits for any camshaft pulley DTCs inspect
for dirt/metal debris.
03–458Chery Automobile Co., Ltd.
