Controls
103Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
Locking
To lock the glove compartment, use the inte-
grated key of the remote control, refer to
page26.
USB interface for data transmission
Port for importing and exporting data on USB
devices, e.g. music collections, refer to
page 160.
Observe the following when connecting:
> Do not use force when plugging the con-
nector into the USB audio interface.
> Do not connect devices such as fans or
lamps to the USB audio interface.
> Do not connect USB hard disks.
> Do not use the USB interface to recharge
external devices.
Center armrest
Storage compartment
The center armrest between the front seats
contains either a compar tment or the cover for
the snap-in adapter
*, depending on the equip-
ment version. For more information about this
mobile phone base plate, refer to page 177.
Opening
Press the button, see arrow.
Settings*
Slide the center armrest into the desired posi-
tion on the driver's side.
Connection for external audio device
You can connect an external audio device such
as a CD or MP3 player and play audio tracks
over the car's loudspeaker system:
> AUX-IN port, refer to page 161
> USB-audio interface
*, refer to page 162
Storage compartments inside
the vehicle
Depending on your vehicle's equipment, you
will find compartments be side the steering col-
umn
*, in the front doors and in the center con-
sole
*.
There are nets
* on the front-seat backrests.
Clothes hooks
There are clothes hooks on the grab handles in
the rear passenger compartment.
ba8_E9091_cic.book Seite 103 Mittwoch, 29. Oktober 2008 2:59 14

Practical interior accessories
104

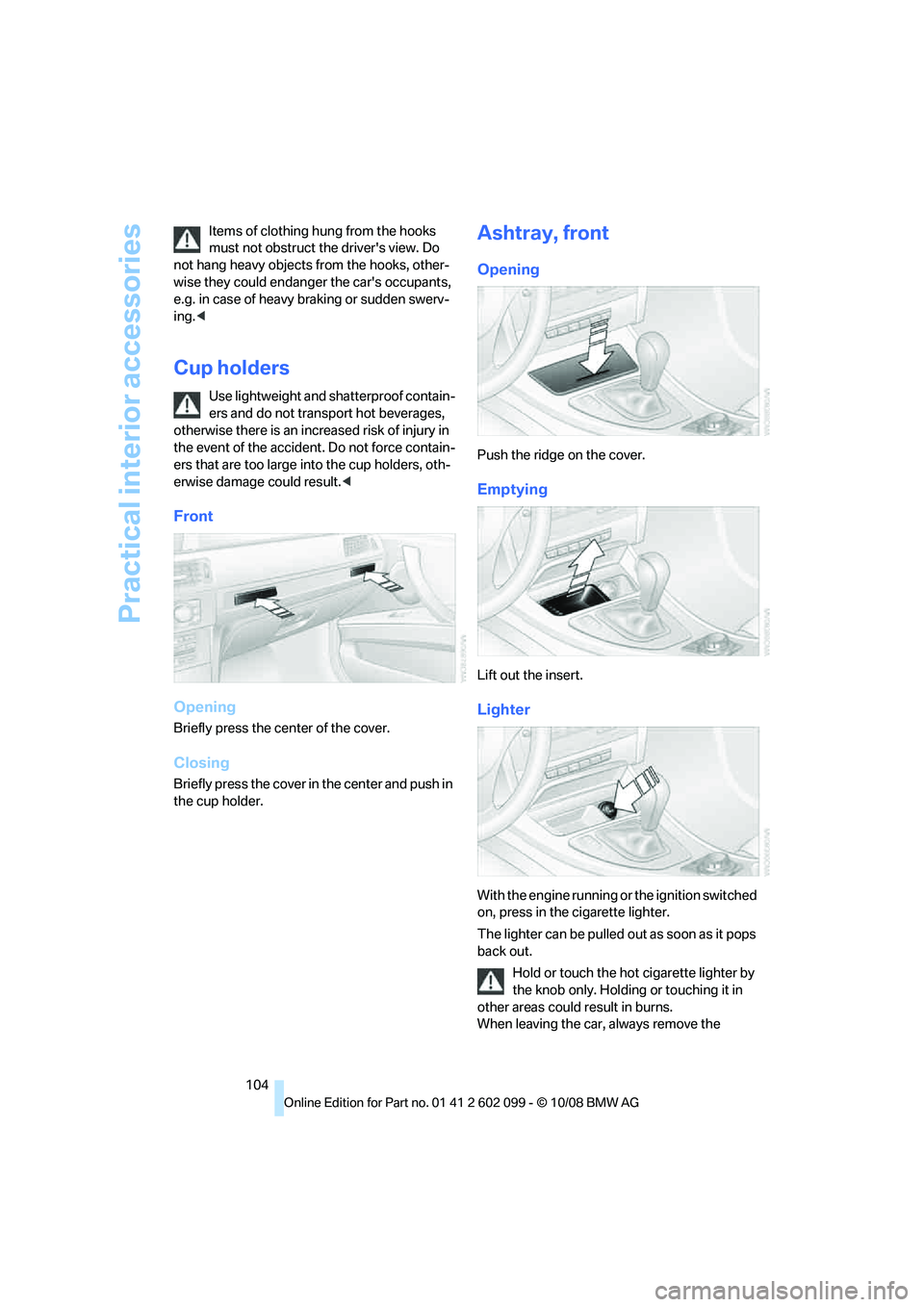

Items of clothing hung from the hooks
must not obstruct the driver's view. Do
not hang heavy objects from the hooks, other-
wise they could endanger the car's occupants,
e.g. in case of heavy braking or sudden swerv-
ing. <
Cup holders
Use lightweight and shatterproof contain-
ers and do not transport hot beverages,
otherwise there is an incr eased risk of injury in
the event of the accident . Do not force contain-
ers that are too large into the cup holders, oth-
erwise damage could result. <
Front
Opening
Briefly press the center of the cover.
Closing
Briefly press the cover in the center and push in
the cup holder.
Ashtray, front
Opening
Push the ridge on the cover.
Emptying
Lift out the insert.
Lighter
With the engine running or the ignition switched
on, press in the cigarette lighter.
The lighter can be pulled out as soon as it pops
back out.
Hold or touch the hot cigarette lighter by
the knob only. Holding or touching it in
other areas could result in burns.
When leaving the car, always remove the
ba8_E9091_cic.book Seite 104 Mittwoch, 29. Oktober 2008 2:59 14

Controls
105Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility

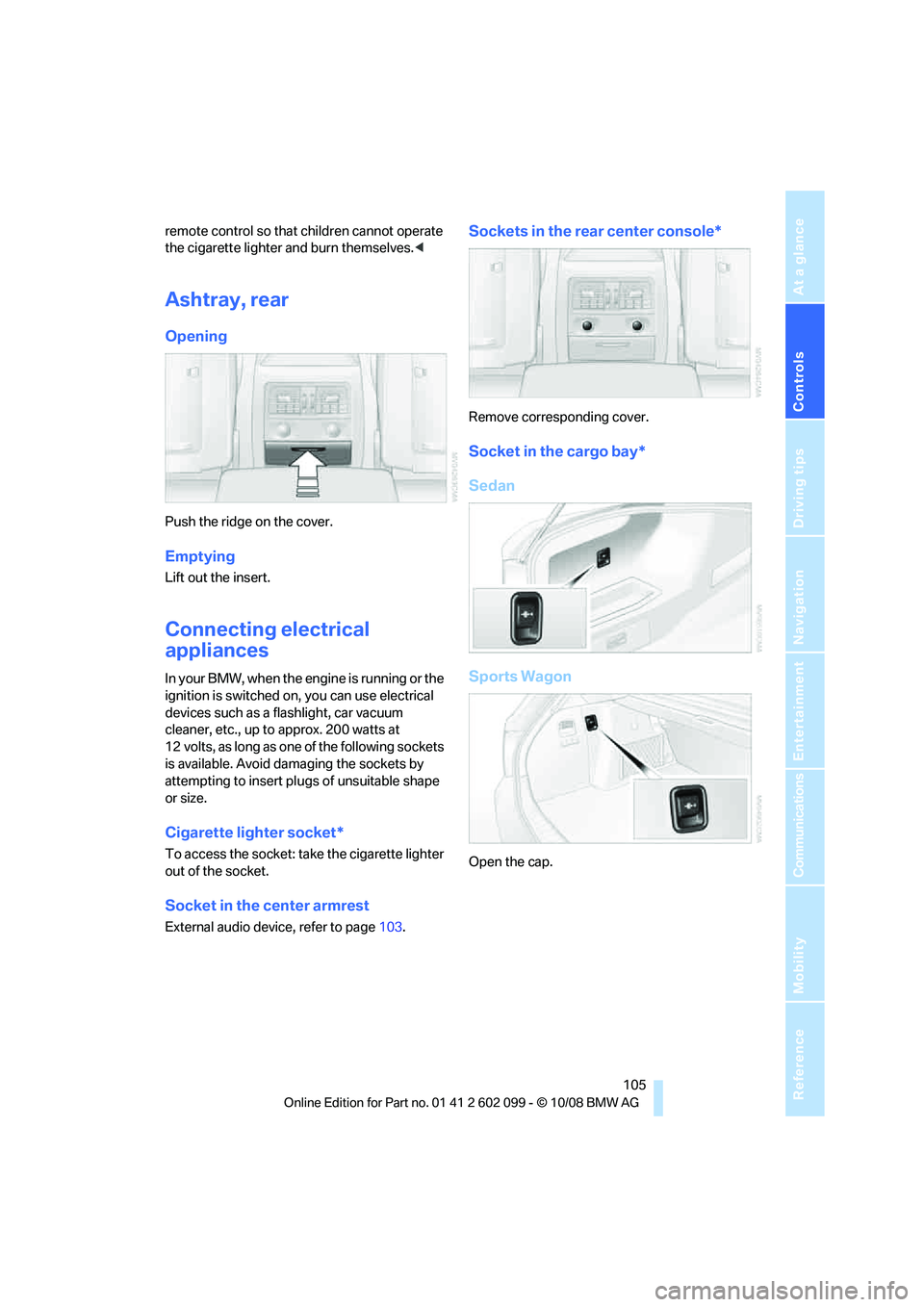

remote control so that children cannot operate
the cigarette lighter and burn themselves.<
Ashtray, rear
Opening
Push the ridge on the cover.
Emptying
Lift out the insert.
Connecting electrical
appliances
In your BMW, when the engine is running or the
ignition is switched on, you can use electrical
devices such as a flashlight, car vacuum
cleaner, etc., up to approx. 200 watts at
12 volts, as long as one of the following sockets
is available. Avoid damaging the sockets by
attempting to insert plugs of unsuitable shape
or size.
Cigarette lighter socket*
To access the socket: ta ke the cigarette lighter
out of the socket.
Socket in the center armrest
External audio device, refer to page 103.
Sockets in the rear center console*
Remove corresponding cover.
Socket in the cargo bay*
Sedan
Sports Wagon
Open the cap.
ba8_E9091_cic.book Seite 105 Mittwoch, 29. Oktober 2008 2:59 14

Practical interior accessories
106

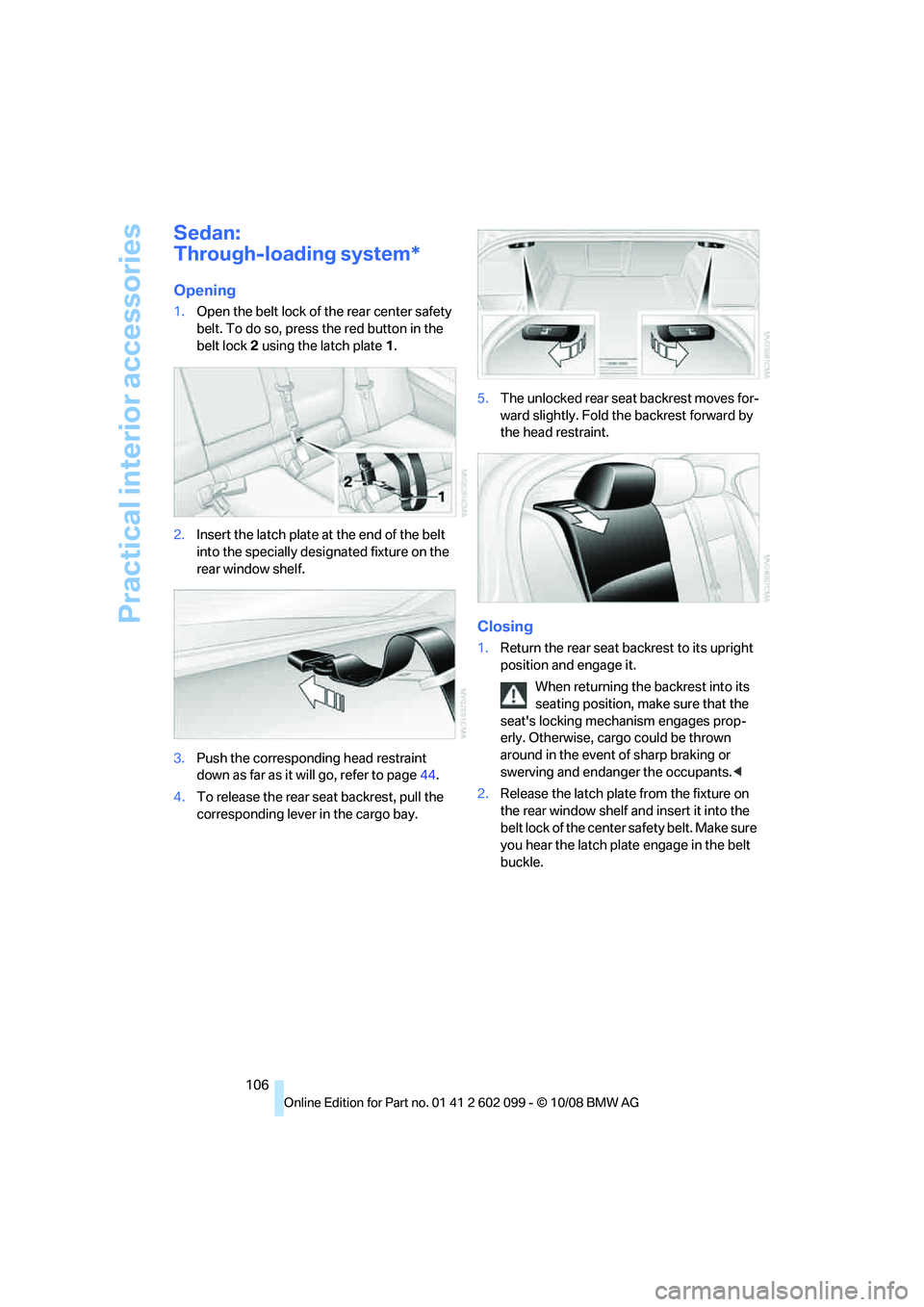

Sedan:
Through-loading system*
Opening
1.Open the belt lock of the rear center safety
belt. To do so, press the red button in the
belt lock 2 using the latch plate 1.
2. Insert the latch plate at the end of the belt
into the specially designated fixture on the
rear window shelf.
3. Push the corresponding head restraint
down as far as it will go, refer to page 44.
4. To release the rear seat backrest, pull the
corresponding lever in the cargo bay. 5.
The unlocked rear seat backrest moves for-
ward slightly. Fold th e backrest forward by
the head restraint.
Closing
1. Return the rear seat backrest to its upright
position and engage it.
When returning the backrest into its
seating position, make sure that the
seat's locking mechanism engages prop-
erly. Otherwise, cargo could be thrown
around in the event of sharp braking or
swerving and endanger the occupants. <
2. Release the latch plate from the fixture on
the rear window shelf and insert it into the
belt lock of the center safety belt. Make sure
you hear the latch plate engage in the belt
buckle.
ba8_E9091_cic.book Seite 106 Mittwoch, 29. Oktober 2008 2:59 14

Controls
107Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility

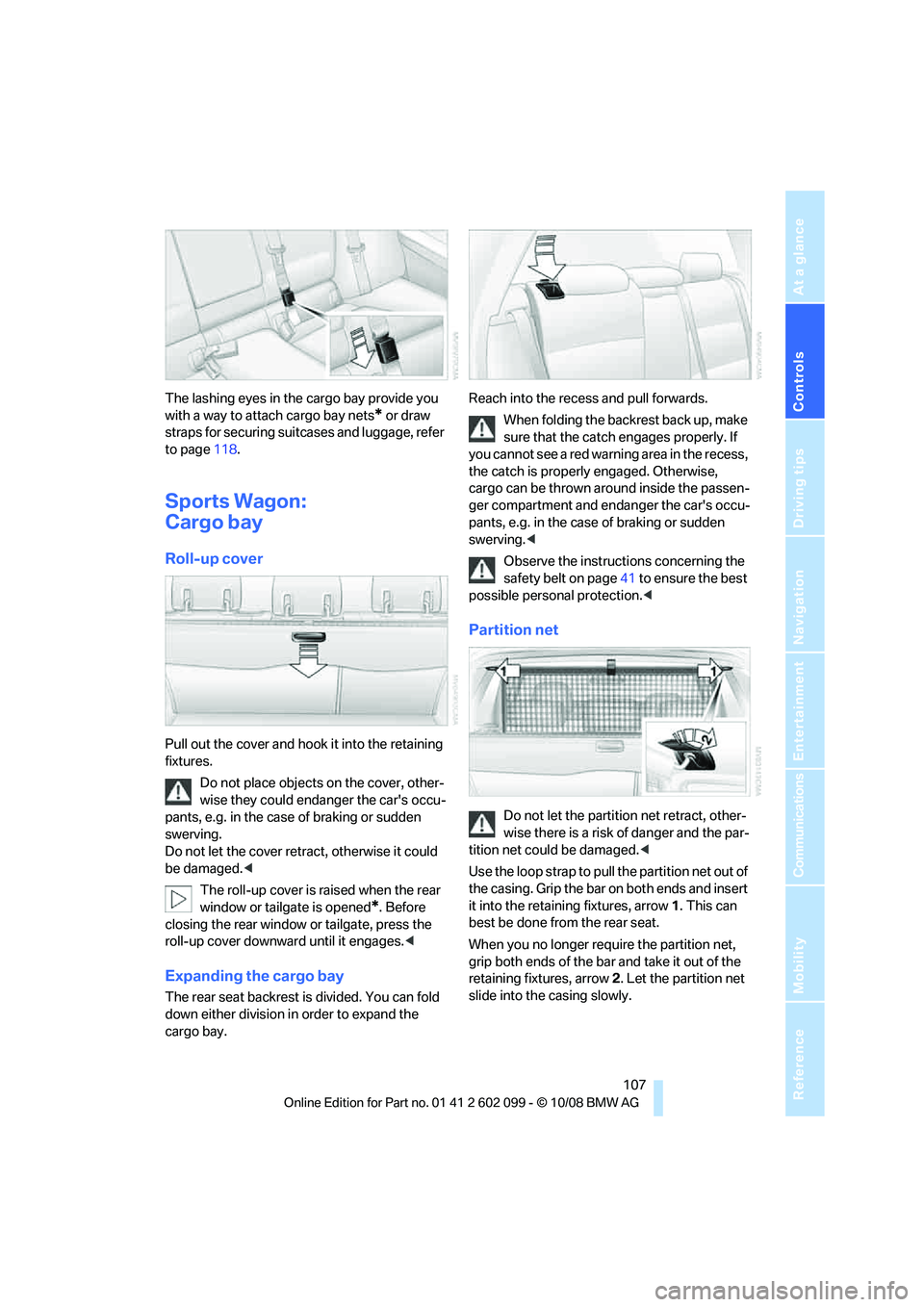

The lashing eyes in the cargo bay provide you
with a way to attach cargo bay nets
* or draw
straps for securing suitcases and luggage, refer
to page 118.
Sports Wagon:
Cargo bay
Roll-up cover
Pull out the cover and hook it into the retaining
fixtures.
Do not place objects on the cover, other-
wise they could endanger the car's occu-
pants, e.g. in the case of braking or sudden
swerving.
Do not let the cover retr act, otherwise it could
be damaged. <
The roll-up cover is raised when the rear
window or tailgate is opened
*. Before
closing the rear window or tailgate, press the
roll-up cover downward until it engages. <
Expanding the cargo bay
The rear seat backrest is divided. You can fold
down either division in order to expand the
cargo bay. Reach into the recess
and pull forwards.
When folding the backrest back up, make
sure that the catch engages properly. If
you cannot see a red warning area in the recess,
the catch is properly engaged. Otherwise,
cargo can be thrown around inside the passen-
ger compartment and enda nger the car's occu-
pants, e.g. in the case of braking or sudden
swerving. <
Observe the instructions concerning the
safety belt on page 41 to ensure the best
possible personal protection. <
Partition net
Do not let the partition net retract, other-
wise there is a risk of danger and the par-
tition net could be damaged. <
Use the loop strap to pull the partition net out of
the casing. Grip the bar on both ends and insert
it into the retaining fixtures, arrow 1. This can
best be done from the rear seat.
When you no longer require the partition net,
grip both ends of the ba r and take it out of the
retaining fixtures, arrow 2. Let the partition net
slide into the casing slowly.
ba8_E9091_cic.book Seite 107 Mittwoch, 29. Oktober 2008 2:59 14

Practical interior accessories
108

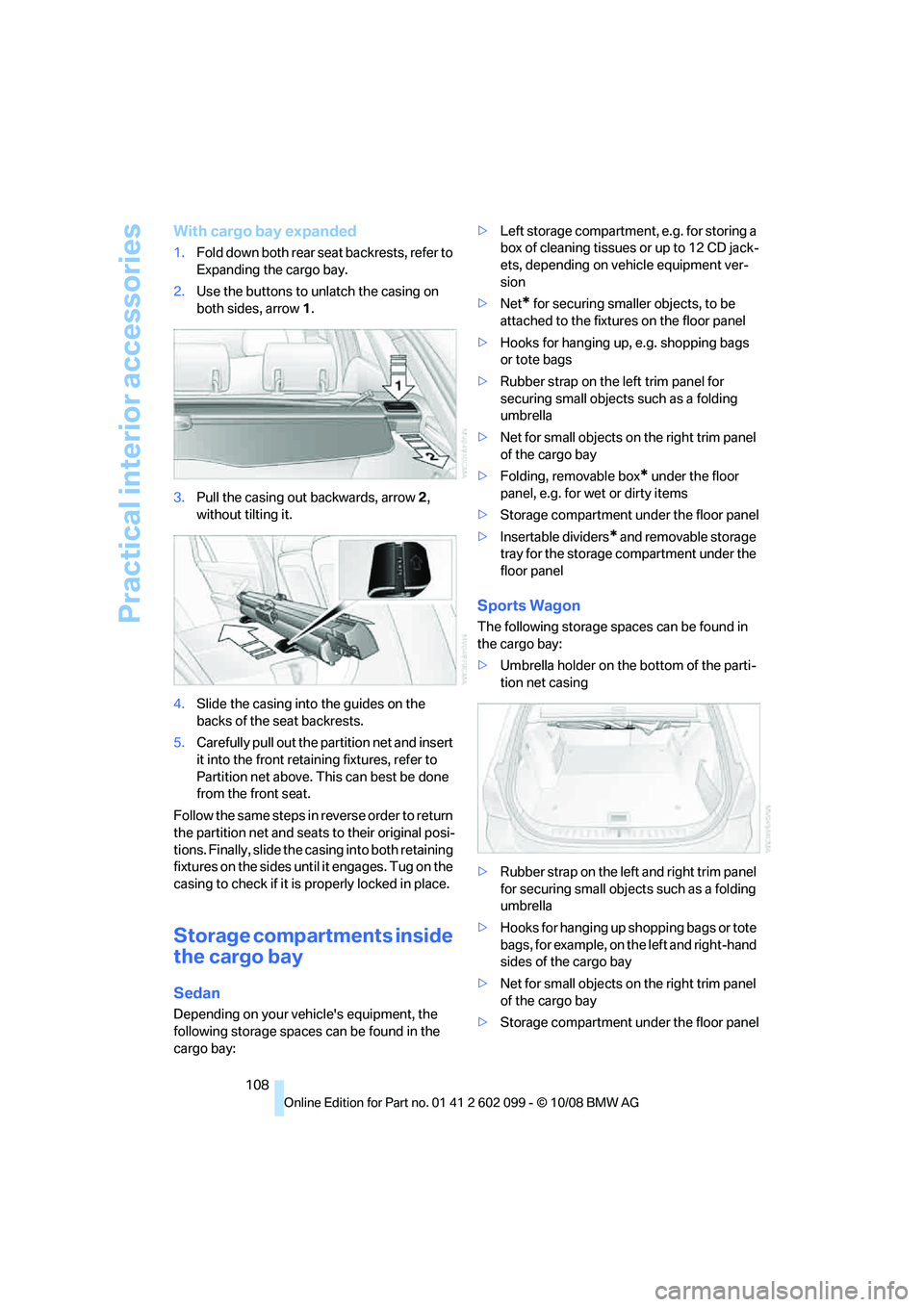

With cargo bay expanded
1.Fold down both rear seat backrests, refer to
Expanding the cargo bay.
2. Use the buttons to unlatch the casing on
both sides, arrow 1.
3. Pull the casing out backwards, arrow 2,
without tilting it.
4. Slide the casing into the guides on the
backs of the seat backrests.
5. Carefully pull out the pa rtition net and insert
it into the front retain ing fixtures, refer to
Partition net above. This can best be done
from the front seat.
Follow the same steps in reverse order to return
the partition net and seats to their original posi-
tions. Finally, slide the ca sing into both retaining
fixtures on the sides until it engages. Tug on the
casing to check if it is properly locked in place.
Storage compartments inside
the cargo bay
Sedan
Depending on your vehicle's equipment, the
following storage spaces can be found in the
cargo bay: >
Left storage compartment, e.g. for storing a
box of cleaning tissues or up to 12 CD jack-
ets, depending on vehicle equipment ver-
sion
> Net
* for securing smaller objects, to be
attached to the fixtur es on the floor panel
> Hooks for hanging up, e.g. shopping bags
or tote bags
> Rubber strap on the left trim panel for
securing small objects such as a folding
umbrella
> Net for small objects on the right trim panel
of the cargo bay
> Folding, removable box
* under the floor
panel, e.g. for wet or dirty items
> Storage compartment under the floor panel
> Insertable dividers
* and removable storage
tray for the storage compartment under the
floor panel
Sports Wagon
The following storage spaces can be found in
the cargo bay:
> Umbrella holder on th e bottom of the parti-
tion net casing
> Rubber strap on the left and right trim panel
for securing small objects such as a folding
umbrella
> Hooks for hanging up shopping bags or tote
bags, for example, on the left and right-hand
sides of the cargo bay
> Net for small objects on the right trim panel
of the cargo bay
> Storage compartment under the floor panel
ba8_E9091_cic.book Seite 108 Mittwoch, 29. Oktober 2008 2:59 14

Controls
109Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility

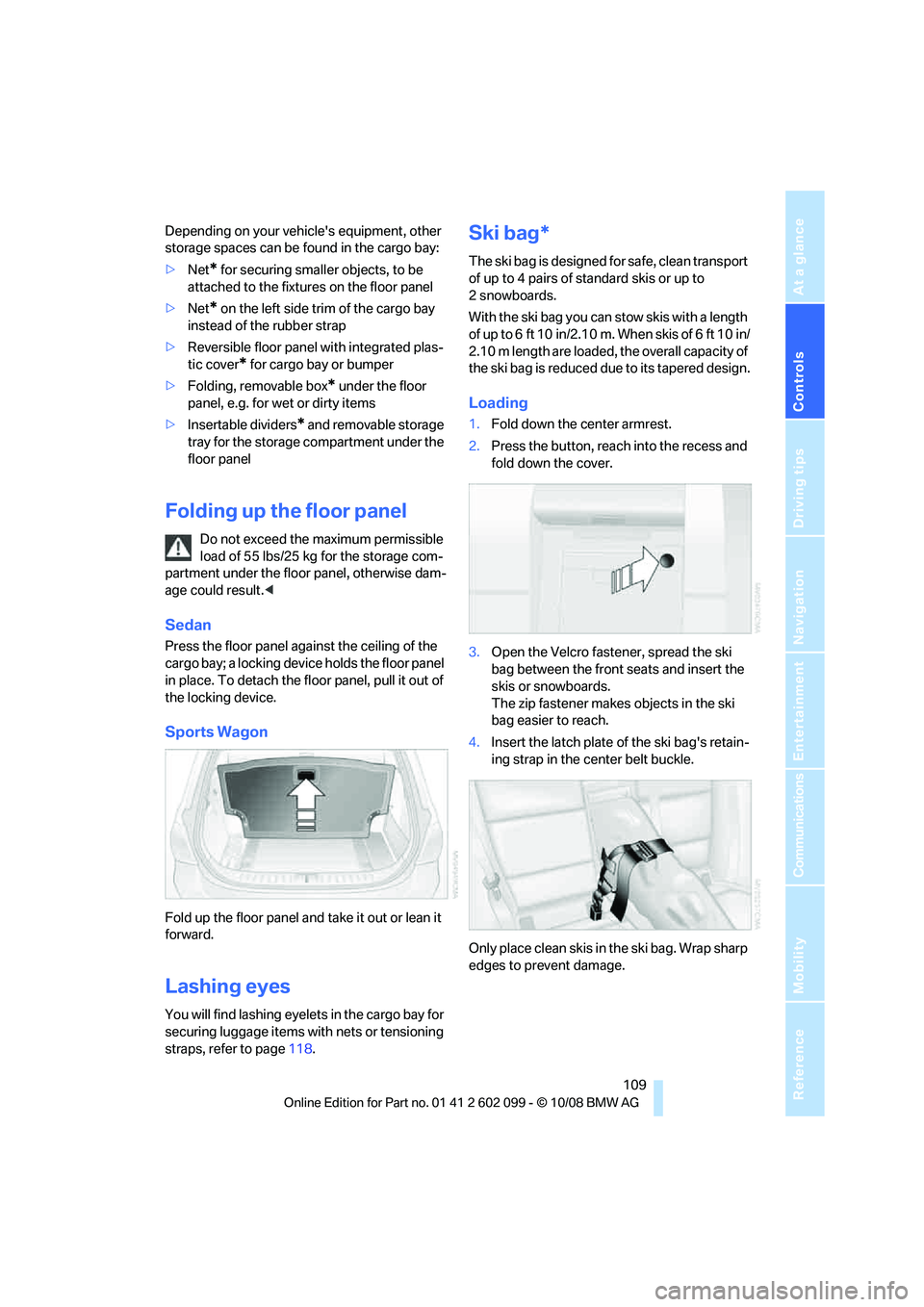

Depending on your vehicle's equipment, other
storage spaces can be found in the cargo bay:
> Net
* for securing smaller objects, to be
attached to the fixtures on the floor panel
> Net
* on the left side trim of the cargo bay
instead of the rubber strap
> Reversible floor panel with integrated plas-
tic cover
* for cargo bay or bumper
> Folding, removable box
* under the floor
panel, e.g. for wet or dirty items
> Insertable dividers
* and removable storage
tray for the storage compartment under the
floor panel
Folding up the floor panel
Do not exceed the maximum permissible
load of 55 lbs/25 kg for the storage com-
partment under the floor panel, otherwise dam-
age could result. <
Sedan
Press the floor panel against the ceiling of the
cargo bay; a locking device holds the floor panel
in place. To detach the fl oor panel, pull it out of
the locking device.
Sports Wagon
Fold up the floor panel and take it out or lean it
forward.
Lashing eyes
You will find lashing eyel ets in the cargo bay for
securing luggage items with nets or tensioning
straps, refer to page 118.
Ski bag*
The ski bag is designed for safe, clean transport
of up to 4 pairs of standard skis or up to
2snowboards.
With the ski bag you can st ow skis with a length
of up to 6ft 10in/2.10m. When skis of 6ft 10in/
2.10 m length are loaded, the overall capacity of
the ski bag is reduced due to its tapered design.
Loading
1. Fold down the center armrest.
2. Press the button, reac h into the recess and
fold down the cover.
3. Open the Velcro fastener, spread the ski
bag between the front seats and insert the
skis or snowboards.
The zip fastener makes objects in the ski
bag easier to reach.
4. Insert the latch plate of the ski bag's retain-
ing strap in the center belt buckle.
Only place clean skis in the ski bag. Wrap sharp
edges to prevent damage.
ba8_E9091_cic.book Seite 109 Mittwoch, 29. Oktober 2008 2:59 14

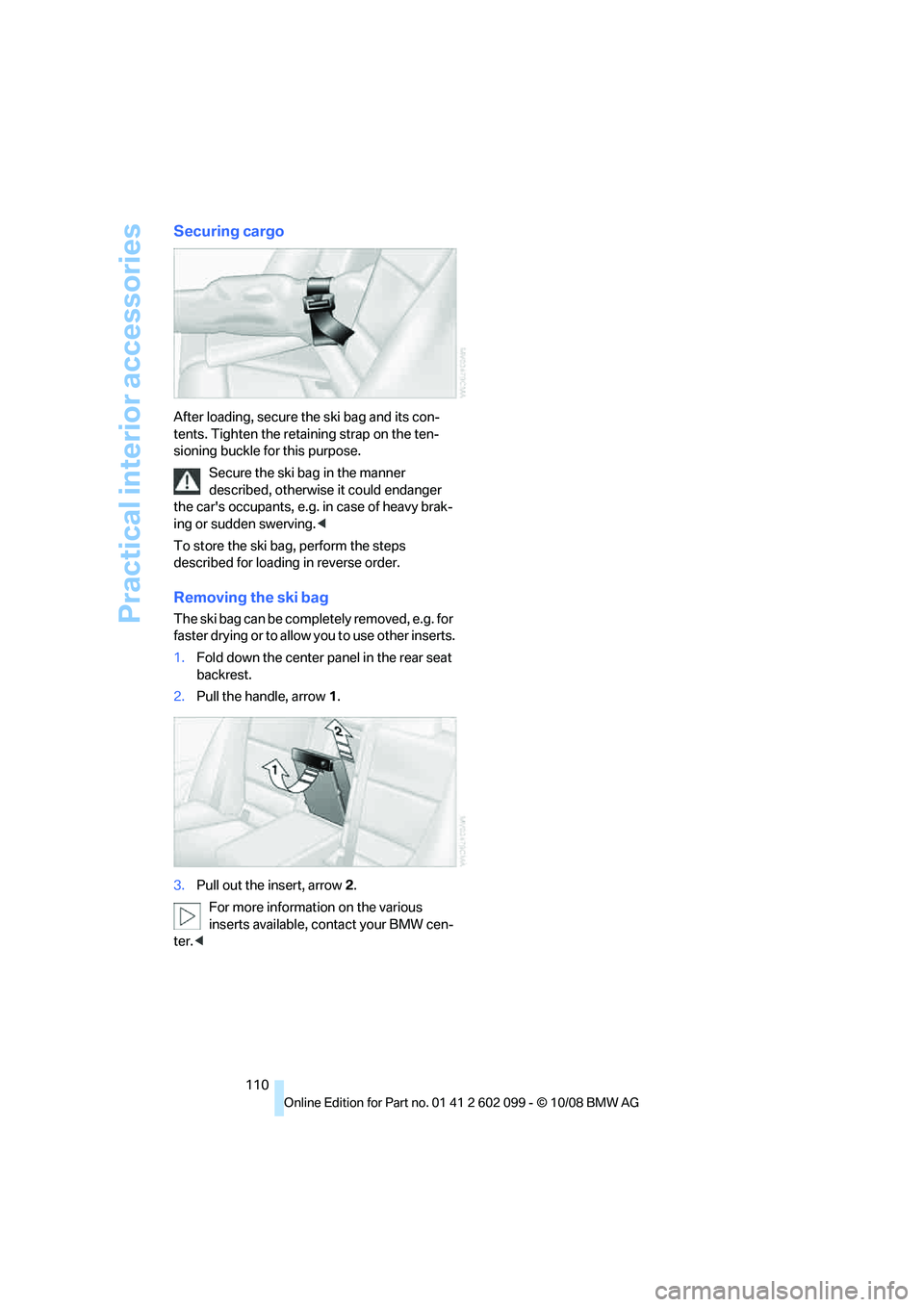

Practical interior accessories
110
Securing cargo
After loading, secure the ski bag and its con-
tents. Tighten the retaining strap on the ten-
sioning buckle for this purpose.
Secure the ski bag in the manner
described, otherwise it could endanger
the car's occupants, e.g. in case of heavy brak-
ing or sudden swerving. <
To store the ski bag, perform the steps
described for loading in reverse order.
Removing the ski bag
The ski bag can be comple tely removed, e.g. for
faste r drying or to allo w you to use other inserts.
1. Fold down the center pa nel in the rear seat
backrest.
2. Pull the handle, arrow 1.
3. Pull out the insert, arrow 2.
For more information on the various
inserts available, contact your BMW cen-
ter. <
ba8_E9091_cic.book Seite 110 Mittwoch, 29. Oktober 2008 2:59 14
