-Pull the cover© out of the brackets 0 => fig. 69 in the
direction of the arrow.
Replacing the luggage compartment cover
-Push the cover up into the brackets 0-
- Press the buttons G) onto the ball heads.
& WARNING
Never store or place heavy objects on the luggage compartment
cover. If you leave something heavy on the cover and then open the
cover, the object could slide forward and injure anyone sitting in
the rear. Also, in the case of sudden braking or a crash, a heavy
object on the cover could fly forward and injure any passengers. •
Roof rack
First things first
A roof rack can be fitted to carry additional luggage on
the roof.
-Always read and follow the instructions provided by the
roof rack manufacturer when the roof rack system must
be installed.
If you are transporting luggage or other objects on the roof, please
note the following:
• Your vehicle has specially designed aerodynamic roof rails . Only
install a roof rack specifically designed for your model. Contact the
nearest Audi dealer for information on approved modular roof racks
for your vehicle.
• These approved roof racks are the basis for a complete roof rack
system. Additional attachments for the basic roof rack are neces-
Controls and equip ­
ment
Seats and storage
sary to safely transport luggage, bicycles, surf boards, skis or small
boats. All necessary hardware for these systems is available at your
authorized Audi dealer.
• We recommend that you keep the installation instructions for
your roof rack system together with your Owner's literature in the
vehicle.
When should the roof rack be removed?
• Before going through an automatic car wash (it is best to ask the
car wash operator for advice).
• When not in use , to reduce fuel consumption, wind noise and to
guard against theft.
& WARNING
• Use of an unapproved roof rack or incorrect mounting of an
approved roof rack can cause the roof rack or the items attached
to it to fall off the roof onto the road.
• Objects falling from the roof of a vehicle can cause a crash and
personal injury.
• Only mount the system between the markings shown in
~ page 80, fig. 70.
• The roof rack system must be installed exactly according to the
instructions provided.
0 Note
• Your vehicle warranty does not cover any damages to the vehicle
caused by using roof racks or mounting structures not approved by
Audi for your vehicle. The same applies to damage resulting from
incorrect roof rack installation .
• Always check the roof rack mountings and hardware before each
trip and during a trip to make sure everything is securely tightened.
If necessary, retighten the mountings and check the entire system
from time to time . .,,
I • •

Seats and stor ag e
• After mounting a roof rack system, or when you transport
objects on the roof of your vehicle, the height of the vehicle is natu ­
rally increased . Be careful when driving under low bridges or in
parking garages for example. This cou ld cause damage to the load
and even the vehicle itself. •
Mounting locations
The roof rack must be attached only at the positioning
bolts.
Inst allati on
Fig . 7 0 M ounti ng l oca­
tion s for roo f ra ck
When installing the feet make sure that they are positioned exactly
on the position ing bolts provided @ between the side panel and
the upper roof frame=> fig. 70. The positioning bolt is visible as
soon as the lip of the sealing strip is pushed back from the roof
frame with the tool provided. •
Loading the roof rack
Always distribute the loads evenly . M ake sure anything on
the roof rack is securely tied down.
- Always distr ibute the loads on the roo f rac k evenly . Always attach items t
o the roof rack sec urely bef ore you
d rive of f.
The maximum permiss ible roof weigh t is 16 5 lb (75 kgl. The roof
weight is made up of the weight of the roof rack system and the
we ight of the object being transported.
When using a roof rack system which has a lower load carrying
capacity, you must not use up the total maximum permissible load
carrying capacity specified above. Instead, you should load the roof
rack system only to the maximum capacity specified by the manu ­
facturer of the roof rack system .
& WARNING
Weak, d ama ged or imp rop er strap s used to se cure item s to the
roof ra ck c an f ail during hard braking or in a colli sion and cau se
s eriou s per sonal injury.
• Make sure the roof rack is installed e xactly a s specified abov e
=> page B O.
• Always use suitabl e mounting straps for securing i tems to the
roof ra ck to he lp prevent ite ms from s hifting or fly ing f orward .
• Items on the roof rack must alwa ys be securely mounted.
• The use of a roof rack can negatively affect the wa y a ve hicle
h andle s. Ca rgo that i s la rg e, heavy , bulky , long or fl at will hav e a
gr eater negative influen ce on th e vehicle' s aerodynamics , center
of gravity and overall handling . Al ways drive slowly , avo id sudden
br aking and man euver s when transport ing cargo on the roof of
y our vehicle.
• Never e xceed the ma ximu m permi ssible lo ad carr ying capac ity
of the roof of your vehic le , the permissible axle weights and the
perm is sible t ota l weight of your vehicle:::;,
page 289 , "Weight s".
• Alway s drive slowly , avoid sudden braking and maneuver s
when transport ing carg o on t he ro of of your vehi cle .

....... _H _o_ m _ e _L_i_n _k _ ® ____________________________________________________ _
- Press the appropriate programmed button
(0, ® or @
to activate the desired remote control function
~ & in
"General information" on
page 107. •
Applies to v ehic les : wit h Home link® univers al rem ote con tro l
Reprogramming a single button
A Homelink® button can be reprogrammed individually without affecting the other button a/locations.
Programming the overhead keypad
- Press the appropriate Homelink® button until the indi ­
cator light begins flashing slowly.
Programming the bumper mounted transmitter 1. Hold the
original remote control at a distance between 0-
5 in. (0-13 cm) from the bumper below the appropriate
headlight for your vehicle (use the shortest distance
possible) .
2. Aim the remote control just below the driver side head­
light.
3. Press and hold the act ivation button on the remote
control.
4. The emergency flashers w ill flash three times (after
about
15-60 seconds) when the programming is
successful. Now release the button on the remote
control.
- If the device ut ilizes a rolling code, please follow phase 3
of ~
page 108, "Programming the Homelink® trans ­
mitter" for rolling code programming.
This procedure will cause the existing programming on the
Homelink ® button to be erased! •
App lies to ve hicl es: wit h Homeli nk® uni versal remote cont rol
Erasing the programming of the Homelink ®
transmitter
When you erase the programming, the programming on
all three of the transmitter channels with be lost!
- Perform steps 1 to 4 as described on~ page 108, "Phase
1: programming the overhead keypad".
When completed , the Homelink ® system will be in the p rog ram­
ming mode and is then ready to learn the codes for remote
controlled devices.
[I) Tips
• Programmed buttons cannot be erased individually.
• For security reasons you are advised to erase the programming
of the Homelink ® system befo re you sell your vehicle. •

Driving Safely 1111
----------------
-Make sure that all lights and signals are operating
correctly.
- Make sure that the tire pressure is correct.
- Make sure that all windows are clean and afford good
visibility to the outside.
- Secure all luggage and other items carefully =>
page 83.
-Make sure that nothing can interfere with the pedals.
- Adjust front seat, head restraint and mirrors correctly for
your height.
- Instruct passengers to adjust the head restraints
according to their height.
- Make sure to use the right child restraint correctly to
protect children =>
page 157, "Child Safety".
- Sit properly in your seat and make sure that your passen­
gers do the same=>
page 69, "General recommenda­
tions".
- Fasten your safety belt and wear it properly. Also instruct
your passengers to fasten their safety belts properly
=>
page 125. •
What impairs driving safety?
Safe driving is directly related to the condition of the
vehicle, the driver as well as the driver's ability to concen­
trate on the road without being distracted.
The driver is responsible for the safety of the vehicle and all
of its occupants. If your ability to drive is impaired, safety risks for everybody in the vehicle increase and you also
Controls and equip­ ment Safety first Vehicle operation
become a
hazard to everyone else on the road =>&, .There ­
fore:
- Do not let yourself be distracted by passengers or by
using a cellular telephone.
- NEVER drive when your driving ability is impaired (by
medications, alcohol, drugs, etc .).
- Observe all traffic laws, rules of the road and speed limits
and plain common sense.
- ALWAYS adjust your speed to road, traffic and weather
conditions.
- Take frequent breaks on long trips. Do not drive for more
than two hours at a stretch.
- Do NOT drive when you are tired, under pressure or when
you are stressed.
in. WARNING
Impaired driving safety increases the risk of serious personal
injury and death whenever a vehicle is being used. •
Vehicle care Do-it-yourself service Technical data

........ _o_ r_iv _i_ n""' g::;._ S_ a_f _e _ly =---------------------------------------------------

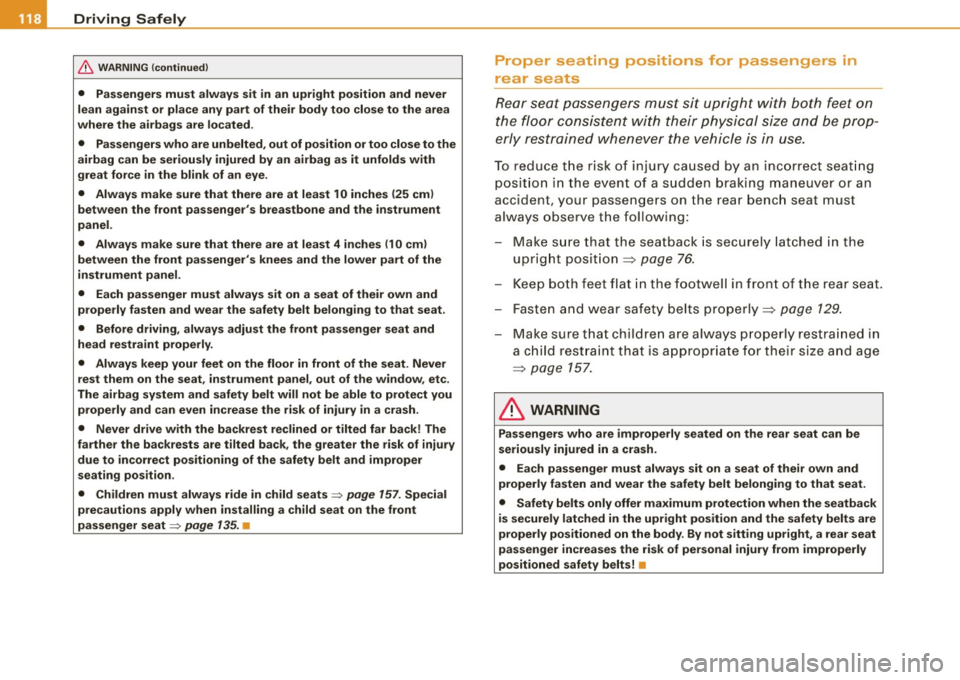

& WARNING (continued)
• Passengers must always sit in an upright position and never
lean against or place any part of their body too close to the area
where the airbags are located.
• Passengers who are unbelted, out of position or too close to the
airbag can be seriously injured by an airbag as it unfolds with
great force in the blink of an eye .
• Always make sure that there are at least 10 inches (25 cm)
between the front passenger's breastbone and the instrument
panel.
• Always make sure that there are at least 4 inches (10 cm)
between the front passenger's knees and the lower part of the
instrument panel .
• Each passenger must always sit on a seat of their own and
properly fasten and wear the safety belt belonging to that seat .
• Before driving, always adjust the front passenger seat and
head restraint properly.
• Always keep your feet on the floor in front of the seat. Never
rest them on the seat, instrument panel, out of the window, etc .
The airbag system and safety belt will not be able to protect you properly and can even increase the risk of injury in a crash .
• Never drive with the backrest reclined or tilted far back! The
farther the backrests are tilted back, the greater the risk of injury
due to incorrect positioning of the safety belt and improper
seating position.
• Children must always ride in child seats:::::,
page 157. Special
precautions apply when installing a child seat on the front
passenger seat
=:> page 135. •
Proper seating positions for passengers in
rear seats
Rear seat passengers must sit upright with both feet on
the floor consistent with their physical size and be prop­
erly restrained whenever the vehicle is in use.
To reduce the risk of injury caused by an incorrect seating
position in the event of a sudden braking maneuver or an
accident, your passengers on the rear bench seat must
always observe the following:
- Make sure that the seatback is securely latched in the
upright position~
page 76.
Keep both feet flat in the footwell in front of the rear seat.
Fasten and wear safety belts properly ~
page 129.
-Make sure that children are always properly restrained in
a child restraint that is appropriate for their size and age
~ page 157.
& WARNING
Passengers who are improperly seated on the rear seat can be
seriously injured in a crash.
• Each passenger must always sit on a seat of their own and
properly fasten and wear the safety belt belonging to that seat.
• Safety belts only offer maximum protection when the seatback
is securely latched in the upright position and the safety belts are
properly positioned on the body . By not sitting upright, a rear seat
passenger increases the risk of personal injury from improperly
positioned safety belts! •

---------------------------------------------------=D..:.r..:..iv .:....:..: in..:. 9 ::!-- S .=..::a:..:f...:e :..: l~y ---
& WARNING
Pedals that cannot move freely can cause loss of vehicle control
and increase the risk of serious injury.
• Never place any objects in the driver's footwell . An object could
get into the pedal area and interfere with pedal function. In case
of sudden braking or an accident, you would not be able to brake
or accelerate!
• Always make sure that nothing can fall or move into the
driver's footwell. •
Floor mats on the driver side
Always use floor mats that can be securely attached to
the floor mat fasteners and do not interfere with the free
movement of the pedals.
- Make sure that the floor mats are properly secured and
cannot move and interfere with the pedals =>& .
Use only floor mats that leave the pedal area unobstructed and that
are firmly secured so that they cannot slip out of position . You can
obtain suitable floor mats from your authorized Audi Dealer.
Floor mat fasteners are installed in your Audi.
Floor mats used in your vehicle must be attached to these fasteners .
Properly securing the floor mats will prevent them from sliding into
positions that could interfere with the pedals or impair safe opera­
tion of your vehicle in other ways.
& WARNING
Pedals that cannot move freely can result in a loss of vehicle
control and increase the risk of serious personal injury.
• Always make sure that floor mats are properly secured.
Controls and equip­ ment Safety first
Vehicle operation
& WARNING (continued)
• Never place or install floor mats or other floor coverings in the
vehicle that cannot be properly secured in place to prevent them
from slipping and interfering with the pedals or the ability to
control the vehicle.
• Never place or install floor mats or other floor coverings on top
of already installed floor mats. Additional floor mats and other
coverings will reduce the size of the pedal area and interfere with
the pedals.
• Always properly reinstall and secure floor mats that have been
taken out for cleaning.
• Always make sure that objects cannot fall into the driver foot­
well while the vehicle is moving. Objects can become trapped
under the brake pedal and accelerator pedal causing a loss of
vehicle control. •
Stowing luggage
Loading the luggage compartment
All luggage and other objects must be properly stowed
and secured in the luggage compartment.
Vehicle care
co N
9
g!
Fig. 99 Safe load posi­
tioning: heavy cargo
positioned as far
forward as possible. ..
Do-it-yourself service Technical data

-Driving Safely at'f:I..,____--=-------=----------------
Loose items in the luggage compartment can shift
suddenly, changing vehicle handling characteristics. Loose
items can also increase the risk of serious personal injury in
a sudden vehicle maneuver or in a collision.
- Distribute the load evenly in the luggage compartment.
- Always place and properly secure heavy items in the
luggage compartment as far forward as possible
~ page 121, fig. 99.
Secure luggage using the tie-downs provided~
page 77.
- Make sure that the rear seat back is securely latched in
place.
& WARNING
Improperly stored luggage or other items can fly through the
vehicle causing serious personal injury in the event of hard braking or an accident. To help reduce the risk of serious personal injury:
• Always put objects , for example, luggage or other heavy items
in the luggage compartment.
• Always secure objects in the luggage compartment using the
tie-down eyelets and suitable straps.
& WARNING
Heavy loads will influence the way your vehicle handles. To help
reduce the risk of a loss of control leading to serious personal
injury:
• Always keep in mind when transporting heavy objects, that a
change in the center of gravity can also cause changes in vehicle
handling:
-Always distribute the load as evenly as possible.
& WARNING (continued)
-Place heavy objects as far forward in the luggage compart­
ment as possible.
• Never exceed the Gross Axle Weight Rating or the Gross
Vehicle Weight Rating specified on the safety compliance sticker
on the left door jamb. Exceeding permissible weight standards
can cause the vehicle to slide and handle differently.
• Please observe information on safe driving~
page 114.
& WARNING
To help prevent poisonous exhaust gas from being drawn into the
vehicle, always keep the rear lid closed while driving.
• Never transport objects larger than those fitting completely
into the luggage area because the rear lid cannot be fully closed.
• If you absolutely must drive with the rear lid open, observe the
following notes to reduce the risk of poisoning:
-Close all windows,
- Open all air outlets in the instrument panel,
- Switch off the air recirculation,
- Set the fresh air fan to the highest speed.
& WARNING
Always make sure that the doors, all windows and the rear lid are
securely closed and locked to reduce the risk of injury when the
vehicle is not being used.
• After closing the rear lid, always make sure that it is properly
closed and locked .
• Never leave your vehicle unattended especially with the rear lid
left open. A child could crawl into the vehicle through the luggage
compartment and close the rear lid becoming trapped and unable
~

Driving Safely -
----------------
& WARNIN G (continu ed )
to get out . Being tr apped in a vehi cle can lead to serious personal
injury.
• Never let children play in or around the vehicle .
• Never let pa ssengers ride in the lugg age compartment . Vehicle
occupants must always be properly restrained in one of the
vehicle 's seating po sitions.
[ i ] Tips
• Air circu lation helps to reduce window fogging. Stale air escapes
to the outside through vents in the trim pane l, on the left side of the
luggage compa rtme nt. Be sure t o keep t hese s lo ts free a nd ope n.
• T he tire pressure must correspond to the load -see the tire pres ­
sure sticker on driver's side B-pillar. •
Tie-downs
The lu ggag e com part men t is eq uipp ed wit h four tie­
d o wns to se cu re l uggag e and other it e ms .
Use the tie -downs to secure your car go properly=> page 121,
"Lo ad in g the luggage com partme nt".
I n a col lision, the laws o f physics mea n tha t even smaller items tha t
are loose in the vehic le will become heavy missiles that can cause
se rious i nju ry . It em s i n t he vehicl e possess e nergy w hich vary with
vehic le speed and the weight of the item. Vehic le speed is the most
s igni ficant factor .
For example, in a frontal co llision at a speed of 30 mph (48 km/h),
the forces acting on a 10 -lb ( 4.5 kg) object are about 20 times the
normal weight of the item. This means that the weight of t he item
would suddenly be about 2 00 lbs. (90 kg). You can imagine the inju ­
ries that a 200 lbs. (90 kg) item fl ying free ly t hrou gh th e passe nge r
compartment could cause in a co llision like this .
Controls and equip­
ment Safety first Vehicle operation
& WARNING
Weak
, damaged or imp roper straps used to secure items to tie ­
downs can fail during hard braking or in a collision and cause
serious personal injury .
• Always use suitable mounting straps and properly secure
items to the tie -downs in the luggage compartment to help
prevent items from shifting or flying forward as dangerous
missiles .
• When the rear seat backrest is folded down , always use suit ­
able mounting straps and properly secure items to the tie -downs
in the luggage compartment to help prevent items from flying
forward as dangerous missiles into the passenger compartment .
• Never attach a child safety seat tether strap to a tie -down. •
Reporting Safety Defects
Applicable to U.S.A. If you believe that your vehicle has a defect
which could cause a crash or could cause injury or death , you should immediately inform
the National Highway Traffic Safety Adminis­
tration (NHTSA) in addition to notifying Audi of
America , Inc.
If NHTSA receives similar complaints , it may
open an investigation, and if it finds that a
safety defects exists in a group of vehicles , it
may order a recall and remedy campaign.
However, NHTSA cannot become involved in ..,
Vehicle care Do-it-yourself service Technical data
