DASHBOARD
A0F0188mfig. 1
1.Adjustable and swivel side air vents - 2.Front side window demisting/defrosting vents - 3.Passenger’s air bag -
4.Fuel level gauge/engine coolant temperature gauge/engine oil temperature gauge (petrol versions) or turbocharger pres-
sure gauge (diesel versions) - 5.Adjustable swivel centre air vents - 6.Upper central vent - 7.External lights control lever -
8.Driver’s air bag and horn - 9.Instrument panel - 10.Windscreen wiper control lever - 11.Front side window demist-
ing/defrosting vents - 12.Adjustable swivel side air vents - 13.Switches for external lights, trip meter reset and headlamp
aiming device - 14.Dashboard fusebox lid - 15.Bonnet opening lever - 16.Sound system controls on the steering wheel
(where provided) - 17.Driver’s knees air bag - 18.Cruise Control lever (where provided) - 19.Ignition device - 20.En-
gineSTART/STOPbutton - 21.Heating/ventilation/climate controls - 22.Sound system (where provided) -
23.Glove box - 24.Passenger’s knees air bag (where provided)
263
RIGHT HAND DRIVE VERSION
259-268 Alfa BRERA gb 28-08-2008 11:49 Pagina 263
Page 266 of 271

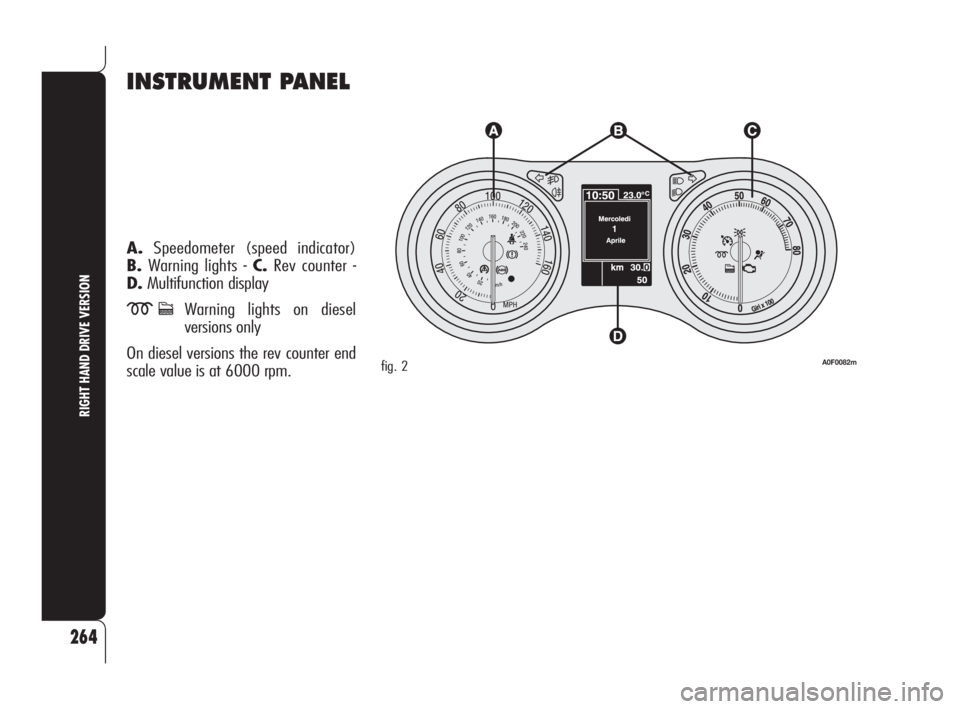

INSTRUMENT PANEL
A0F0082mfig. 2
A.Speedometer (speed indicator)
B.Warning lights - C.Rev counter -
D.Multifunction display
mcWarning lights on diesel
versions only
On diesel versions the rev counter end
scale value is at 6000 rpm.
264
RIGHT HAND DRIVE VERSION
