Engage a low gear when driving down-
hill, rather than constantly using the
brake.
The weight the trailer exerts on the car
tow hook reduces by the same amount
the actual car loading capacity. To make
sure the maximum towable weight is
not exceeded (given in the log book)
account should be taken of the fully
laden trailer, including accessories and
personal belongings.
Do not exceed the speed limits of the
country you are driving in. In any case
do not exceed 100 km/h.TOWING TRAILERS
IMPORTANT NOTES
For towing caravans or trailers the car
must be fitted with a certified tow hook
and an adequate electric system. In-
stallation should be carried out by spe-
cialised personnel who release a special
document for circulation on the road.
Install any specific and/or additional
rear-view mirrors as specified by law.
Remember that when towing a trailer,
steep hills are harder to climb, the brak-
ing spaces increase and overtaking takes
longer depending on the overall weight.
The ABS system with
which the car may be
fitted does not control the
trailer braking system. Drive
with extreme care on slippery
roadbeds.
WARNING
Under no circumstances
should the car brake
system be altered to control
the trailer brake. The trailer
braking system must be fully
independent of the car hy-
draulic system.
WARNING
137-150 Alfa BRERA gb 28-08-2008 11:20 Pagina 147

UNDERSTANDING
TYRE MARKING fig. 5
Example: 215/55 R 16 93 V
215= Nominal width (S, distance be-
tween sidewalls in mm).
55= Percentage height/width ratio
(H/S).
R= Radial tyre.
16= Rim diameter in inches. (Ø).
93= Load rating (capacity).
V= Maximum speed index.
WHEELS
RIMS AND TYRES
Alloy rims. Tubeless tyres with radial car-
cass. The homologated tyres are listed
in the Log book.
WARNINGIn the event of discrep-
ancies between the information provid-
ed on this “Owner’s Manual” and the
“Log book”, consider the specifications
shown in the log book only.
On cars fitted with four-wheel drive, all
four tyres should be the same (brand
and track) to prevent damaging the 4-
WD system. The efficiency of the 4-WD
system however, is not jeopardized if
tyres with different wear conditions are
fitted.
242
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
AA0F0186mfig. 5
Attaining to the prescribed size, to en-
sure safety of the car in movement, it
must be fitted with tyres of the same
make and type on all wheels.
WARNINGDo not use inner tubes
with Tubeless tyres.
SPACE-SAVER SPARE WHEEL
Pressed steel rim. Tubeless tyre.
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 242

Load rating (capacity)
60= 250 kg 84= 500 kg
61= 257 kg 85= 515 kg
62= 265 kg 86= 530 kg
63= 272 kg 87= 545 kg
64= 280 kg 88= 560 kg
65= 290 kg 89= 580 kg
66= 300 kg 90= 600 kg
67= 307 kg 91= 615 kg
68= 315 kg 92= 630 kg
69= 325 kg 93= 650 kg
70= 335 kg94= 670 kg
71= 345 kg 95= 690 kg
72= 355 kg 96= 710 kg
73= 365 kg 97= 730 kg
74= 375 kg98= 750 kg
75= 387 kg 99= 775 kg
76= 400 kg 100= 800 kg
77= 412 kg 101= 825 kg
78= 425 kg 102= 850 kg
79= 437 kg 103= 875 kg
80= 450 kg 104= 900 kg
81= 462 kg 105= 925 kg
82= 475 kg 106= 950 kg
83= 487 kgUNDERSTANDING RIM
MARKING
Example: 7 J x 16 H2 ET 43
7= rim width in inches 1.
J= rim drop center outline (side
projection where the tyre bead
rests)2.
16= rim nominal diameter in inch-
es (corresponds to diameter of
the tyre to be mounted) (3=
Ø).
H2= “hump” shape and number (re-
lief on the circumference hold-
ing the Tubeless tyre bead on
the rim).
43= wheel camber angle (distance
between the disc/rim support-
ing plane and the wheel rim
centre line). Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.
Maximum speed rating
for snow tyres
Q M + S= up to 160 km/h.
T M + S= up to 190 km/h.
H M + S= up to 210 km/h.
243
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 243

249
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

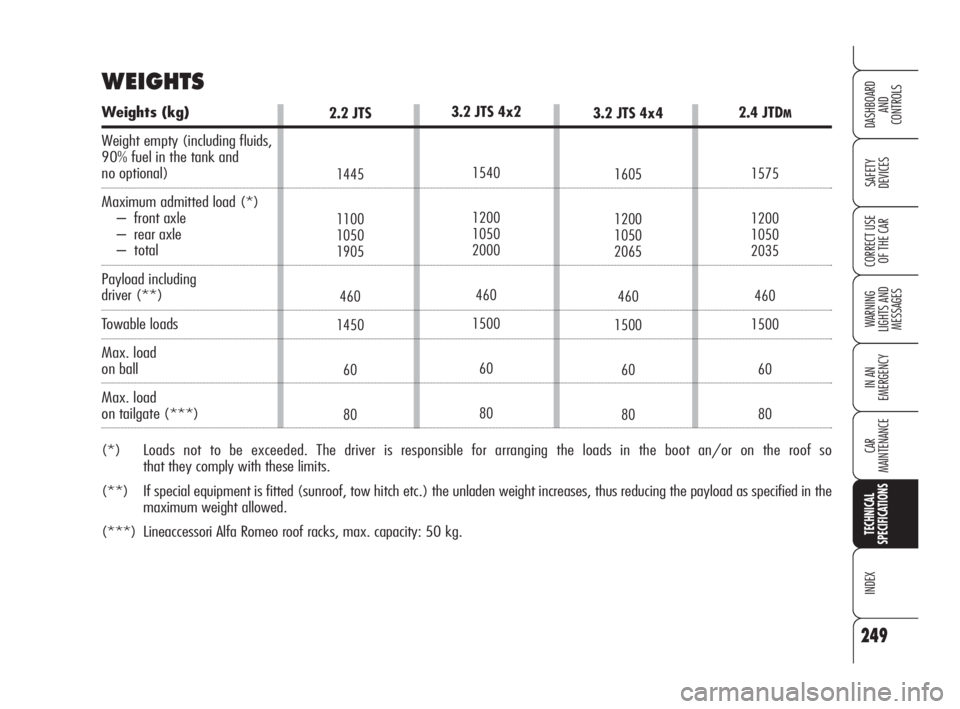

WEIGHTS
2.4 JTDM
1575
1200
1050
2035
460
1500
60
80
2.2 JTS
1445
1100
1050
1905
460
1450
60
80
3.2 JTS 4x4
1605
1200
1050
2065
460
1500
60
80
3.2 JTS 4x2
1540
1200
1050
2000
460
1500
60
80
Weights (kg)
Weight empty (including fluids,
90% fuel in the tank and
no optional)
Maximum admitted load (*)
– front axle
– rear axle
– total
Payload including
driver (**)
Towable loads
Max. load
on ball
Max. load
on tailgate (***)
(*) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot an/or on the roof so
that they comply with these limits.
(**) If special equipment is fitted (sunroof, tow hitch etc.) the unladen weight increases, thus reducing the payload as specified in the
maximum weight allowed.
(***) Lineaccessori Alfa Romeo roof racks, max. capacity: 50 kg.
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 249

ENGINE OIL CHANGE (litres)
REFUELLING (litres)
CUSTOMER SERVICESTECHNICAL SERVICES - SERVICE ENGINEERING
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Fiat Group Automobiles S.p.A.
Publication no. 60431902 - 1
stEdition - 08/2008All rights reserved. Reproduction, even in part is prohibited without written permission
from Fiat Group Automobiles S.p.A.
SERVICE
2.2 JTS - 3.2 JTS 2.4 JTDM
Engine oil circuit 5.4 6.4
Do not discard used oil in the environment.

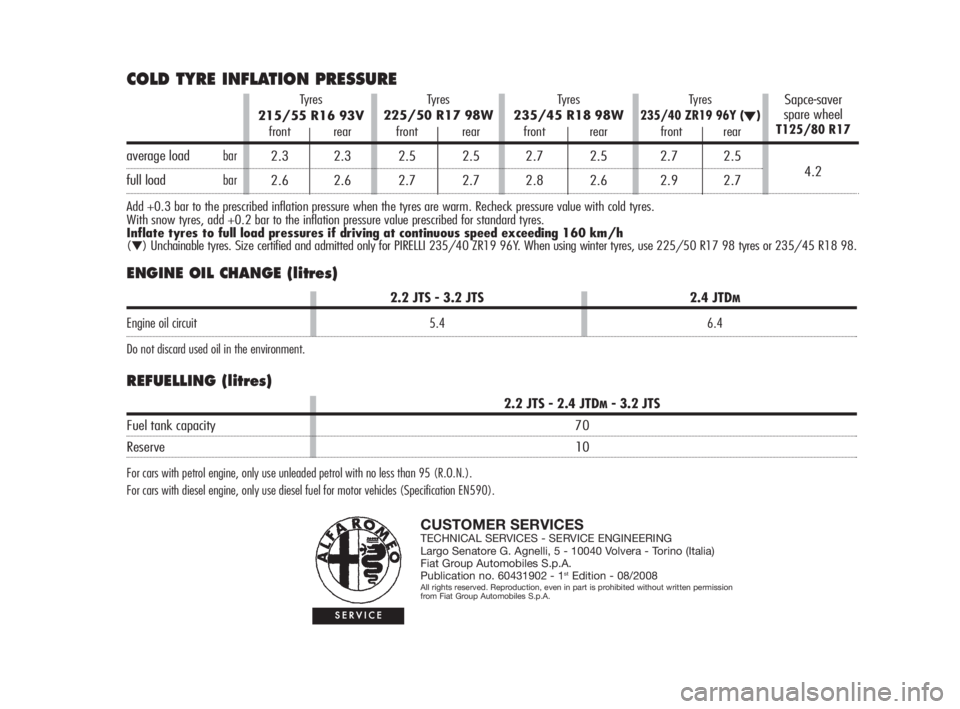

COLD TYRE INFLATION PRESSURE
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
Inflate tyres to full load pressures if driving at continuous speed exceeding 160 km/h
(
▼) Unchainable tyres. Size certified and admitted only for PIRELLI 235/40 ZR19 96Y. When using winter tyres, use 225/50 R17 98 tyres or 235/45 R18 98.
2.2 JTS - 2.4 JTDM- 3.2 JTS
Fuel tank capacity 70
Reserve 10
For cars with petrol engine, only use unleaded petrol with no less than 95 (R.O.N.).
For cars with diesel engine, only use diesel fuel for motor vehicles (Specification EN590).
average loadbar
full loadbar
Tyres
215/55 R16 93V
front rear
2.3 2.3
2.6 2.6Sapce-saver
spare wheel
T125/80 R17
4.2
Tyres
225/50 R17 98W
front rear
2.5 2.5
2.7 2.7
Tyres
235/45 R18 98W
front rear
2.7 2.5
2.8 2.6
Tyres
235/40 ZR19 96Y (O)
front rear
2.7 2.5
2.9 2.7
