2009 Alfa Romeo Brera/Spider technical data

55
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
I- OFF button to disable climate control;
L- air recirculation on/off button;
M- climate control compressor on/off button;
N- passenger’s compartment temperature sensor Controls fig. 43
A- air distribution buttons (on driver and
passenger side);
B- knob for adjusting temperature on
the left side;
C- automatic operation button (AUTO);
D- climate control data display;
E- knob for adjusting temperature on
the right side;
F- rear window/door mirrors heating
on/off button;
G- MAX-DEF function button (fast de-
frosting/demisting function for wind-
screen, heated rear window and door
mirrors);
H- buttons for adjusting the fan speed;
fig. 43 A0F0155m
041-079 Alfa BRERA gb 28-08-2008 11:02 Pagina 55

114
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
PROTECTING THE
ENVIRONMENT
The devices for curtailing petrol engine
emissions are the following:
❒three-way catalytic converter;
❒Lambda sensors;
❒fuel evaporation system.
In addition, do not let the engine run,
even for a test, with one or more spark
plugs disconnected.
The devices for curtailing diesel fuel en-
gine emissions are the following:
❒oxidising catalytic converter;
❒exhaust gas recirculation system
(E.G.R.);
❒diesel particulate filter (DPF).
During normal service
the diesel particulate
filter (DPF) reaches high tem-
peratures. Do not therefore
park the car over inflammable
materials (grass, dry leaves,
pine needles, etc.): fire hazard.
WARNING
DIESEL PARTICULATE FILTER
(DPF)
The Diesel Particulate Filter is a me-
chanical filter, integral with the exhaust
system, that physically traps particulate
present in the exhaust gases of Diesel
engines.
The diesel particular filter has been
adopted to eliminate almost totally par-
ticulates in compliance with current /
future law regulations.
During normal use of the car, the engine
control unit records a set of data (e.g.:
travel time, type of route, temperatures,
etc.) and it will then calculate how much
particulates has been trapped by the fil-
ter.Since this filter physically traps particu-
lates, it shall be cleaned (reclaimed) at
regular intervals by burning carbon par-
ticles. Reclaiming procedure is controlled
automatically by the engine control unit
according to the filter conditions and the
conditions of use of the car. During re-
claiming the following phenomena could
take place: idling slight increase, fan ac-
tivation, slight smoke increase, high ex-
haust temperatures. These situations
shall not be considered as faults and they
do not affect car performance and envi-
ronment.
Diesel particulate filter
clogged
When the Diesel particulate filter is
clogged, the display will show symbol
hand the dedicated message. In
this case keep the car running until sym-
bol
h+ and message turn off.
080-114 Alfa BRERA gb 28-08-2008 11:06 Pagina 114

121
Ù
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
The results of research on the best child
restraint systems are contained in the
European Standard ECE-R44. This Stan-
dard enforces the use of restraint sys-
tems classified in five groups:
Group 0 - 0-10 kg in weight
Group 0+ - 0-13 kg in weight
Group 1 9-18 kg in weight
Group 2 15-25 kg in weight
Group 3 22-36 kg in weight
As it may be noted, the groups overlap
partly and in fact, in commerce it is pos-
sible to find devices that cover more
than one weight group.
All restraint devices must bear the cer-
tification data, together with the control
brand, on a solidly fixed label which
must absolutely never be removed.
Over 1.50 m in height, from the point
of view of restraint systems, children are
considered as adults and wear the seat
belts normally.Lineaccessori Alfa Romeo offers seats for
each weight group, which are the rec-
ommended choice, as they have been
designed and experimented specifical-
ly for Alfa Romeo cars.CARRYING
CHILDREN SAFELY
For optimal protection in the event of
a crash, all passengers must be seated
and wearing adequate restraint systems.
This is even more important for children.
This prescription is compulsory in all EC
countries according to EC Directive
2003/20/EC.
Compared with adults, a child’s head is
proportionately larger and heavier than
the rest of the body, while muscles and
bone structure are not completely de-
veloped. Therefore, in order to restraint
them correctly in the event of a crash,
different systems are needed than adult
seat belts.
With passenger’s air
bag active, never place
child’s seats with the cradle
facing backwards since the air
bag activation could cause to
the child serious injuries, even
mortal, regardless of the seri-
ousness of the crash that trig-
gered it. You are advised to
carry children always with
proper restraint systems on
the rear seats, as this is the
most protected position in the
case of a crash.
WARNING
115-136 Alfa BRERA gb 28-08-2008 11:10 Pagina 121

235
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S

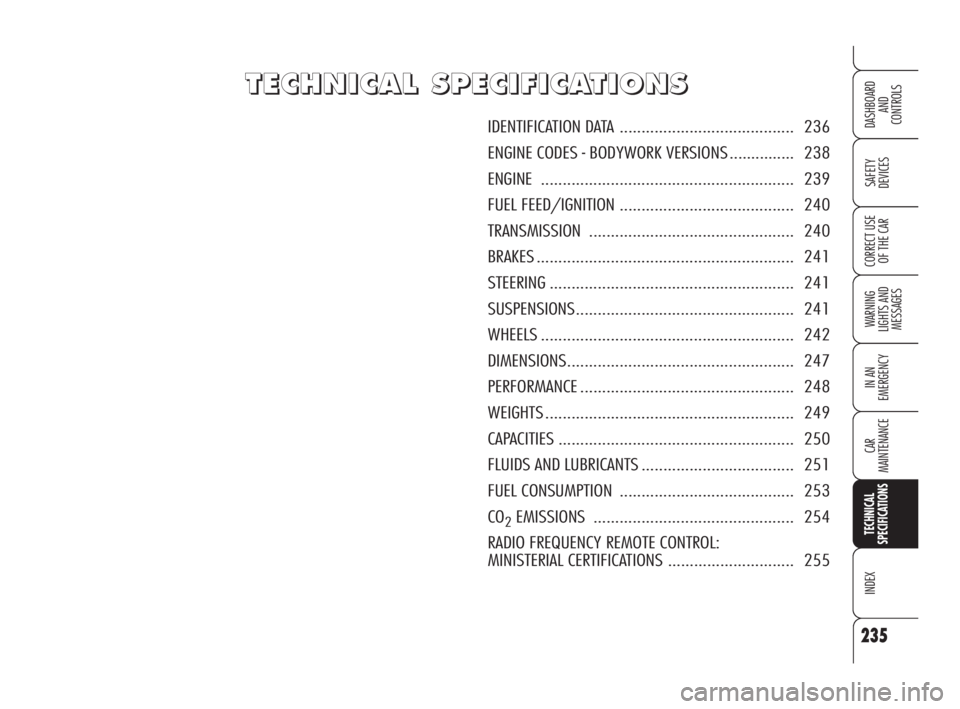

IDENTIFICATION DATA ........................................ 236
ENGINE CODES - BODYWORK VERSIONS ............... 238
ENGINE.......................................................... 239
FUEL FEED/IGNITION ........................................ 240
TRANSMISSION............................................... 240
BRAKES........................................................... 241
STEERING........................................................ 241
SUSPENSIONS.................................................. 241
WHEELS.......................................................... 242
DIMENSIONS.................................................... 247
PERFORMANCE................................................. 248
WEIGHTS......................................................... 249
CAPACITIES...................................................... 250
FLUIDS AND LUBRICANTS................................... 251
FUEL CONSUMPTION ........................................ 253
CO
2EMISSIONS.............................................. 254
RADIO FREQUENCY REMOTE CONTROL:
MINISTERIAL CERTIFICATIONS ............................. 255
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 235

236
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARIDENTIFICATION LABEL
This is to be found in the engine com-
partment, aside the upper right shock-
absorber connection and it bears the fol-
lowing identification data:
A.Space for details of national ho-
mologation
B.Space for punching the consecutive
chassis number
IDENTIFICATION
DATA
You are advised to note the identifica-
tion codes. The identification data
stamped and given on the plates and
their position are the following
fig. 1:
1- Identification label
2- Body label
3- Bodywork paint identification label
4- Engine label.C.Space available for maximum
weights authorised by various national
regulations
D.Space for version and any supple-
mentary indications to those specified
E.Space for smoke coefficient (diesel
versions only)
F.Space for punching the Manufactur-
er’s name.
A0F0045mfig. 1A0F0013mfig. 2
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 236

255
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Certification number
T939 NTR939
European Union and
Countries applying
EC directive
Argentina
Australia
Brazil
Bulgaria
China
❒Data unavailable at the time of printing.
N15278
HHHH-AA-FFFFHHHH-AA-FFFF
CMII ID : 2006DJ0352CMII ID : 2006DJ0351
RADIO FREQUENCY REMOTE CONTROL: Ministerial Certifications
05230523
❒
❒
–
❒
❒
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 255

256
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Certification number
T939 NTR939
Malaysia
Mexico
Morocco
Singapore
South Africa
Taiwan
❒Data unavailable at the time of printing.
AGREE PAR L’ANRT MAROC
Numéro d’agrément : MR 2395 ANRT 2006
Date d’agrément : 13/01/2006AGREE PAR L’ANRT MAROC
Numéro d’agrément : MR 2394 ANRT 2006
Date d’agrément : 13/01/2006
Complies with
IDA Standards
DA 104022Complies with
IDA Standards
DA 104022
TA-2005/701
APPROVEDTA-2005/702
APPROVED
XXXXXXXXXXXXXXXXXX YYYYXXXX-XXXYYYYXXXX-XXX
AA 000000 EAA 000000 E❒
❒
❒
❒
❒
❒
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 256

260
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
INDEX
Engine oil temperature gauge .... 24
Engine starting ........................ 138
Environment protection ............. 114
EOBD system .......................... 104
External lights ......................... 65
Fix&Go automatic (device) ....... 176
Flashing the headlights ............. 65
Fluid level checks ..................... 214
Fluids and lubricants ................. 251
Follow me home (device) ......... 66
Front air bags .......................... 128
Front ceiling lights
– bulb replacement ................ 191
– control .............................. 75
Front fog lights
– bulb replacement ................ 188
– control .............................. 67
Front headlights (washed) ........ 232
Fuel
– consumption ...................... 253
– fuel cut-off switch ............... 77
– fuel gauge ......................... 22Fuel cut-off and power
supply switches ..................... 77
Fuel feed ................................ 240
Fuel filler cap .......................... 113
Fuses (replacement) ................ 194
Gearbox (use) ........................ 144
Glove compartment .................. 81
Glove compartment light
– bulb replacement ................ 192
Handbrake............................. 143
Hazard lights ........................... 67
Head restraints ........................ 44
Headlight washer
– control .............................. 71
– fluid level .......................... 219
Headlights
– adjusting headlight beam ..... 97
– headlight adjustment abroad .. 98
– headlight aiming device ....... 97
– front fog light adjustment ..... 98
Hill Holder system . ................... 102 Dashboard buttons ................... 67
DPF (Diesel Particulate Filter) .... 114
Diesel fuel filter ....................... 222
Dimensions............................. 247
Dipped beam headlights
– bulb replacement ................ 186
– control .............................. 65
Direction indicators
– bulb replacement 186-187-188
– control .............................. 65
Doors ..................................... 86
Electronic key .......................... 11
Engine
– identification code ............... 238
– marking ............................ 237
– technical data .................... 239
Engine compartment (washed) .. 233
Entine coolant
temperature gauge ................. 23
Engine oil
– consumption ...................... 217
– level check ........................ 216
– specifications ..................... 251
259-268 Alfa BRERA gb 28-08-2008 11:49 Pagina 260
