Climate Control System
214
AIR CONDITIONING BUTTONRECIRCULATION BUTTONREAR WINDOW DEFOGGER/
HEATED MIRROR BUTTONPASSENGER’S SIDE MODE
CONTROL BUTTON
WINDSHIELD DEFROST
BUTTON
ON/OFF BUTTON
SYNC BUTTON DISPLAY PASSENGER’S SIDE DISPLAY
DRIVER’S SIDE DISPLAY
FAN CONTROL BUTTONS
DRIVER’S SIDE TEMPERATURE
CONTROL SWITCH
PASSENGER’S SIDE
TEMPERATURE CONTROL
SWITCH
Models without navigation system
DRIVER’S SIDE AUTO BUTTON PASSENGER’S SIDE AUTO
BUTTON
U.S. model is shown. DRIVER’S SIDE MODE
CONTROL BUTTON
\f—
—y\f
\fy
) \f\fy\f
y
2009 TL

Climate Control System
Features
215

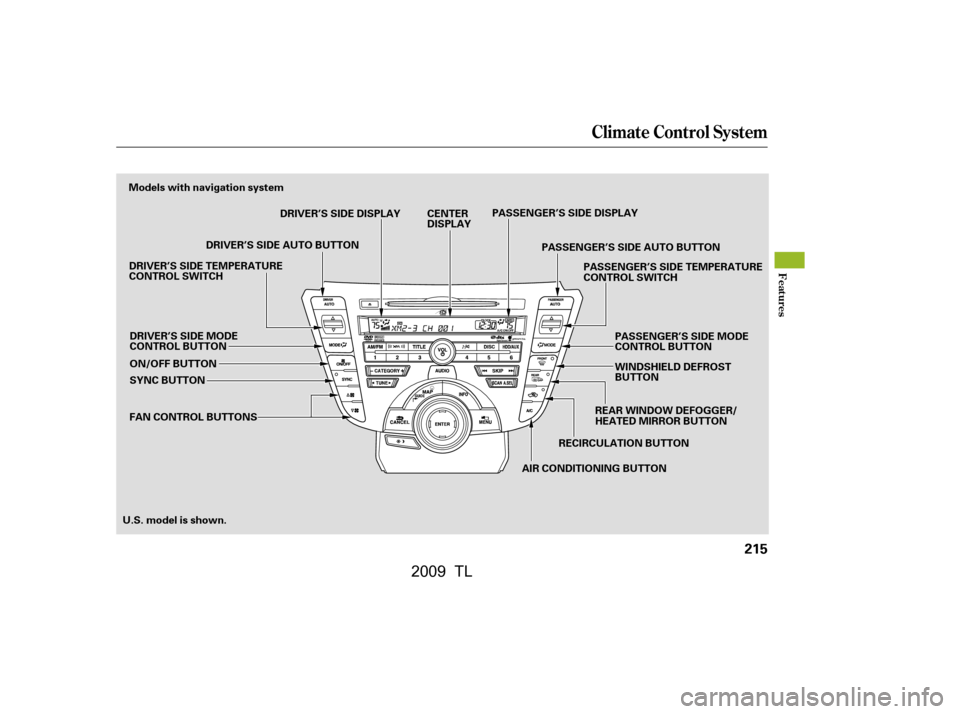

AIR CONDITIONING BUTTONRECIRCULATION BUTTONREAR WINDOW DEFOGGER/
HEATED MIRROR BUTTONPASSENGER’S SIDE MODE
CONTROL BUTTON
WINDSHIELD DEFROST
BUTTON
ON/OFF BUTTON
SYNC BUTTON PASSENGER’S SIDE DISPLAY
FAN CONTROL BUTTONS DRIVER’S SIDE MODE
CONTROL BUTTON CENTER
DISPLAY
DRIVER’S SIDE DISPLAY
DRIVER’S SIDE TEMPERATURE
CONTROL SWITCH PASSENGER’S SIDE TEMPERATURE
CONTROL SWITCH
DRIVER’S SIDE AUTO BUTTON
PASSENGER’S SIDE AUTO BUTTON
Models with navigation system
U.S. model is shown.
\f—\f—y
\fy
) \f\fy\f\fy
2009 TL

On models with navigation system
The climate control system can also
be operated by voice control. See the
Navigation section in your quick
start guide f or an overview of this
system, and the navigation system
manual f or complete details.The automatic climate control
system in your vehicle picks the
proper combination of air
conditioning, heating, and ventilation
to maintain the interior temperature
you select, and to remove moisture
from the air and make the interior
dry. The system also adjusts the f an
speed and airf low levels. The system automatically selects
the proper mix of conditioned
and/or heated air that will, as
quickly as possible, raise or lower
the interior temperature to your
pref erence. The system also
dehumidif y the interior.
The driver’s side temperature and
the passenger’s side temperature can
be set separately. Push up the switch
of the appropriate temperature
control to increase the temperature
of airflow. Push down the switch to
decrease it. Each set temperature is
showninthedisplay(inthecenter
display on models with navigation
system).
Set the desired temperature with
the temperature control switch.
You can set the driver’s side
temperature and the passenger’s
side temperature separately.
Press the Driver’s or Passenger’s
AUTO button. You will see AUTO
and the selected temperature on
the appropriate side of the display
(in the center display on models
with navigation system).
When you unlock the doors with
your remote transmitter (keyless
access remote on models with
navigation system), the driver’s ID
(Driver 1 or Driver 2) is detected,
and the climate control settings are
turned to the respective mode
automatically with the ignition
switch in the ON (II) position, or the
power mode ON. 1.
2.
Using A utomatic Climate Control
Voice Control System
Personalization Setting
Climate Control System
T emperat ure Cont rol
216
\f—\f—\fy
\fy
) \f\fy\f
y
2009 TL

When you set the temperature to its
lower limit ( ) or its upper limit
( ), the system runs at f ull
cooling or heating only. It does not
regulate the interior temperature.
When you adjust a f an control, the
f an is taken out of AUTO mode.To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
Keep the system completely of f
f or short periods only.
To turn the system completely of f ,
press the ON/OFF button.
Each time you press this button, the
climate control system switches
between on and of f . Turning on the
system with this button selects your
last climate control selection.
You can also select the appropriate
mode on the driver’s side and the
passenger’s side separately. To
change a mode, press and release
the appropriate side mode control
button. This will take the mode
control out of AUTO mode.
In AUTO mode, the vehicle’s interior
temperature is independently
regulated f or the driver and f ront
passenger according to each
adjusted temperature. The system
also regulates each temperature
basedontheinformationof thesun
light sensor and the sun’s position which is updated automatically by
the navigation’s global positioning
system (GPS). If one side of the
vehicle is getting too much sun, the
system lowers the temperature only
on that side.
When you press this button, the
indicator in the button comes on, and
the passenger’s side temperature
and mode control is synchronized to
thedriver’ssidesettemperatureand
mode control. Changing the
passenger’s side temperature or
mode control makes the indicator go
of f and takes the system out of
SYNC mode.
On models with navigation system
Climate Control System
To Turn Everything Off
ON/OFF Button
SYNC Button
Features
217
\f—\f—y
\f
y
) \f\fy\fy
2009 TL

When the indicator in the button is
on, air f rom the vehicle’s interior is
sent through the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
The outside air intakes f or the
climate control system are at the
base of the windshield. Keep this
area clear of leaves and other debris.
You can manually select various
f unctions of the climate control
system when it is in f ully automatic
mode. All other f eatures remain
automatically controlled. Making any
manual selection causes the word
AUTO in the display to go out. When you turn the A/C off, the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature.
This button turns the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display
(in the center display on models with
navigation system).
Press the button to increase the
fanspeedandairflow.Pressthe button to decrease it.
Recirculat ion But t on
A ir Condit ioning (A /C) But t onSemi-automatic Operation
Fan Control
Climate Control System
218
\f—\f—y
\fy
) \f\fy\fy
2009 TL

For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
When the indicator in thebutton is on, the SYNC
indicator also comes on. The f ront
passenger’s temperature cannot be
set separately f rom the driver’s.
The climate control system adjusts
the interior humidity and selects the
def roster mode automatically if you
select the driver’s side AUTO mode.
Thedriver’ssideandthepassenger’s
side temperature and mode can be
controlled independently.
Your vehicle has two temperature
control switches and two mode
control buttons, one f or the driver,
and one f or the f ront passenger.
Dual Temperature and Mode
Control
Climate Control System
220
DRIVER’S SIDE
TEMPERATURE
CONTROL SWITCH
SYNC BUTTON PASSENGER’S SIDE
TEMPERATURE
CONTROL SWITCH
U.S. model with navigation system is shown. DRIVER’S SIDE
MODE CONTROL
BUTTON
PASSENGER’S
SIDE MODE
CONTROL
BUTTON
\f—
—y
\f\fy
) \f\fy\fy
2009 TL

When you set the temperature to its
lower or upper limit, it is displayed asor .
The selected temperatures and
mode appear in the display (in the
center display on models with
navigation system). When the
indicator in the SYNC button is on,
you can adjust both sides to the
same temperature and mode by
pushing the driver’s side
temperature control switch up or
down.
Synchronized Cont rol
Climate Control System
Features
221
Passenger’s Side
Driver’s Side
REAR FLOOR AIR DUCTS
\f—\f—y
\fy
) \f\fy\fy
2009 TL

An audio system is standard on all
models. Read the appropriate pages
(as shown below) to use your
vehicle’s audio system.
For vehicles without navigation
system, see pages through .
For vehicles with navigation system,
see pages through .224276
277371
Audio System
Features
223
Models Without navigation system Models With navigation system
\f—
—y
\f\fy
) \f\fy\fy
