2009.5 Peugeot 308 SW BL key

Remote control key

A. Unfolding/Folding of the key.
Normal locking
(press once; fi xed lighting of
the direction indicators). Fuel tank

1. Opening the fuel fi ller fl ap.

2. Opening and hooking the fuel fi ller
cap.
Unlocking and partial opening
of the rear screen (SW)
(press for more than two se-
conds)
When a sensor detects a low level of
light, remote switching on of the dipped
beam headlamps and sidelamps makes
your approach to the vehicle easier.
In the same way, the passenger com-
partment lighting, such as the courtesy
lamps, the front door sill lamps and the
footwell lamps, comes on.
or
Deadlocking of the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).

 78  102  91
Capacity of the tank: approximately
60 litres.

 96 Complete unlocking of the ve-
hicle
(rapid fl ashing of the direction
indicators).

Passenger's front airbag Electric child lock

1. Insert the key.

2. Select the position:
"OFF" (deactivation), with "rear
facing" child seat,
"ON" (activation), with front
passenger or "forwards facing"
child seat.

3. Remove the key keeping the switch
in the new position. Lighting of the indicator lamp indicates
the status of the corresponding function.

A. Activation of the electric child lock.

A. Front and/or rear seat belts not
fastened/unfastened warning lamp.

B. Front left seat belt warning lamp.

C. Front right seat belt warning lamp.

D. Rear right seat belt warning lamp * .

E. Rear centre seat belt warning
lamp * .

F. Rear left seat belt warning lamp * .

G. Passenger's front airbag
deactivated warning lamp.

H. Passenger's front airbag activated
warning lamp.
Seat belts and passenger's
front airbag

 133, 138

 137
 127
* Only on SW panoramic sunroof.

i!
66
COMFORT

Storing driving positions
System which takes into account the
electrical settings of the driver's seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver's seat and
two further driving positions using the
two remote control keys.
Recalling a stored position
When the vehicle is unlocked, the driv-
er's seat and the door mirrors return to
the position stored by the remote control
key.
Storing a position Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using the remote control keys
When the vehicle is locked, the remote
control key stores the position of the
driver's seat and door mirrors.
Each remote control key can store one
specifi c setting.
Ignition on

 Briefl y press button 1 or 2 to recall
the corresponding position.
An audible signal is heard indicating the end of the adjustment. Vehicle moving

 Press and hold button 1 or 2 until
the audible signal is heard indicating
the end of the adjustment.
Using buttons M/1/2

 Switch on the ignition.

 Adjust your seat and the door
mirrors.

 Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the position has been stored.

!
i
i
75
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or parking.
They can also be folded for parking in
confi ned spaces. Folding

 From outside: lock the vehicle using
the remote control or the key.

 From inside: with the ignition on, pull
control A rearwards.
The folding and unfolding of the door
mirrors using the remote control
can be deactivated by a PEUGEOT
dealer.
Never fold or unfold the electric
folding mirrors manually.
Adjustment
Unfolding

 From outside: unlock the vehicle
using the remote control or the key.

 From inside: with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .

 Move control A to the right or to
the left to select the corresponding
mirror.

 Move control B in all four directions
to adjust.

 Return control A to the central
position.
Demisting - Defrosting If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (refer to the
"Rear screen demist-defrost" page).

ii

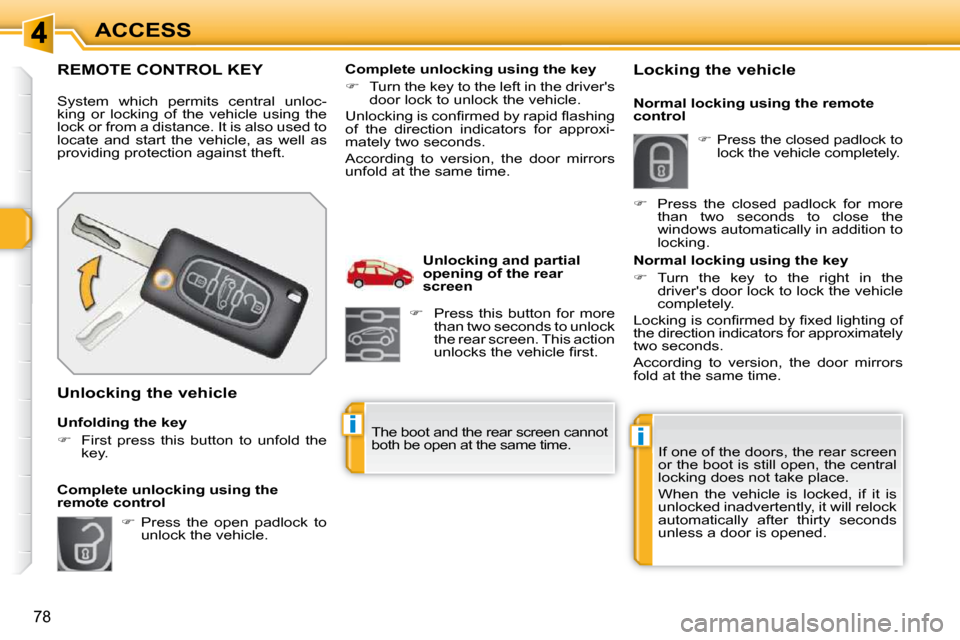

78
ACCESS
REMOTE CONTROL KEY
System which permits central unloc-
king or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key

 First press this button to unfold the
key.
Unlocking the vehicle

 Press the open padlock to
unlock the vehicle. Complete unlocking using the key

 Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Complete unlocking using the
remote control Unlocking and partial
opening of the rear
screen
If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
Normal locking using the key

 Turn the key to the right in the
driver's door lock to lock the vehicle
completely.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
Locking the vehicle

 Press the closed padlock to
lock the vehicle completely.

 Press the closed padlock for more
than two seconds to close the
windows automatically in addition to
locking.
Normal locking using the remote
control

 Press this button for more
than two seconds to unlock
the rear screen. This action
unlocks the vehicle fi rst.
The boot and the rear screen cannot
both be open at the same time.

!
i
79
ACCESS
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone in-
side the vehicle when it is dead-
locked.
Deadlocking using the remote
control
Deadlocking using the key The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.

 Press the closed padlock
to lock the vehicle com-
pletely or press the closed
padlock for more than two
seconds to close the win-
dows automatically in ad-
dition to locking (according
to version).

 Press the closed padlock again
within fi ve seconds to deadlock the
vehicle. Deadlocking is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.

 Turn the key to the right in the
driver's door lock to lock the vehicle
completely and hold it in this
position for more than two seconds
to close the windows automatically
in addition to locking (according to
version).

 Turn the key to the right again
within fi ve seconds to deadlock the
vehicle. Folding the key

 First press button A to fold the key. Locating your vehicle
This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.

 Press the closed padlock on the
remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.

i
!
80
ACCESS
Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the
dashboard to position 3 (Starting) .

 When the engine starts, release the
key.
Switching the vehicle off

 Immobilise the vehicle.

 Turn the key fully towards you to
position 1 (Stop) .

 Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.

 First of all, use the key in the lock to
unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation

 Switch off the ignition.

 Turn the key to position 2 (Ignition) .

 Press the closed padlock immedi-
ately for a few seconds.

 Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. If the battery is fl at, you are in-
formed by lighting of this war-
ning lamp, an audible signal
and a message on the multi-
function screen.
This replacement battery is available
from PEUGEOT dealers.
Key left in the "Ignition"
position
If the key has been left in the ignition
switch, the ignition will be switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position
1 (Stop) , then
back to position 2 (Ignition) .

 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its
location.

 Slide the new battery into its location
observing the original direction.

 Clip the casing.

 Reinitialise the remote control.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.

!
81
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration docume nt and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the ke y code and the transponder
code required to order a replacement key. Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
by the emergency services more diffi cult in an emer gency.
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
