11
!
i
193
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
e l e c t r o n i c g e a r c o n t r o l g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if problems are en-
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the panoramic sunroof blind,
- the GPS satellite navigation
system.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the negative
t e r m i n a l ( - ) .
Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
g r e e n i s h d e p o s i t ) , r e m o v e t h e m a n d
clean them.
Connect one end of the green
or black cable to the negative
t e r m i n a l ( - ) o f t h e s l a v e b a t t e r y B .
Connect the other end of the green
or black cable to the earth point C
on the broken down vehicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Page 245 of 329
232
0 1
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
1 0
2
3
4
6 1 2
9
7
8
1 1 5
TU
PQRS
0
*

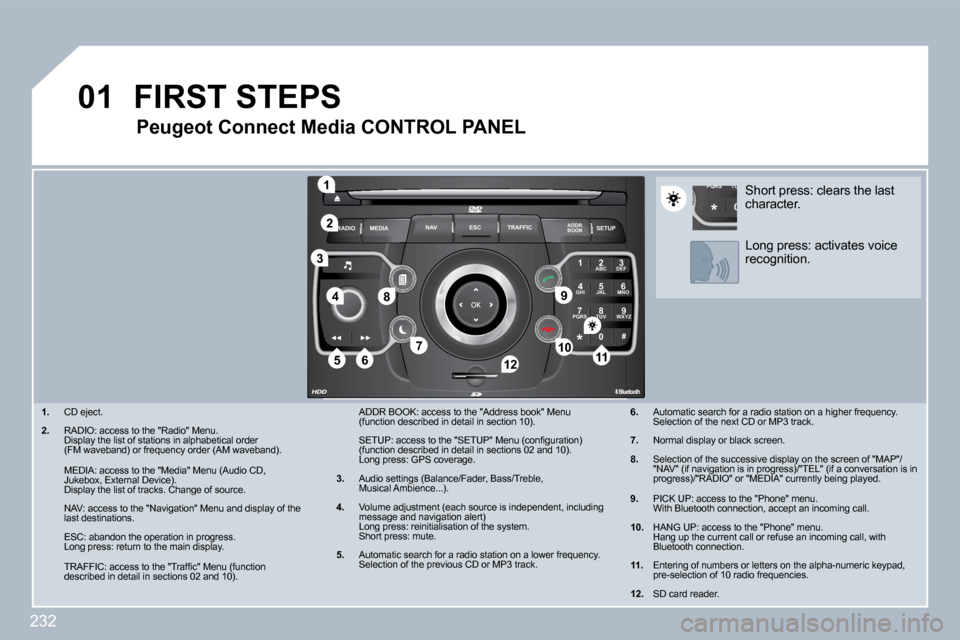

1 . CD eject.
2 . R A D I O : a c c e s s t o t h e " R a d i o " M e n u . Display the list of stations in alphabetical order ( F M w a v e b a n d ) o r f r e q u e n c y o r d e r ( A M w a v e b a n d ) .
M E D I A : a c c e s s t o t h e " M e d i a " M e n u ( A u d i o C D , J u k e b o x , E x t e r n a l D e v i c e ) . Display the list of tracks. Change of source.
N A V : a c c e s s t o t h e " N a v i g a t i o n " M e n u a n d d i s p l a y o f t h e last destinations.
E S C : a b a n d o n t h e o p e r a t i o n i n p r o g r e s s . L o n g p r e s s : r e t u r n t o t h e m a i n d i s p l a y .
T R A F F I C : a c c e s s t o t h e " T r a f fi c " M e n u ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n s 0 2 a n d 1 0 ) .
A D D R B O O K : a c c e s s t o t h e " A d d r e s s b o o k " M e n u ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n 1 0 ) .
S E T U P : a c c e s s t o t h e " S E T U P " M e n u ( c o n fi g u r a t i o n ) ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n s 0 2 a n d 1 0 ) . L o n g p r e s s : G P S c o v e r a g e .
3 . A u d i o s e t t i n g s ( B a l a n c e / F a d e r , B a s s / T r e b l e , M u s i c a l A m b i e n c e . . . ) .
4 . Volume adjustment (each source is independent, inc luding m e s s a g e a n d n a v i g a t i o n a l e r t ) L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m . S h o r t p r e s s : m u t e .
5 . Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
FIRST STEPS
Peugeot Connect Media CONTROL PANEL
6 . Automatic search for a radio station on a higher f requency. Selection of the next CD or MP3 track.
7 . Normal display or black screen.
8 . S e l e c t i o n o f t h e s u c c e s s i v e d i s p l a y o n t h e s c r e e n o f " M A P " / " N A V " ( i f n a v i g a t i o n i s i n p r o g r e s s ) / " T E L " ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) / " R A D I O " o r " M E D I A " c u r r e n t l y b e i n g p l a y e d .
9 . P I C K U P : a c c e s s t o t h e " P h o n e " m e n u . With Bluetooth connection, accept an incoming call .
1 0 . H A N G U P : a c c e s s t o t h e " P h o n e " m e n u . Hang up the current call or refuse an incoming call, with Bluetooth connection.
1 1 . Entering of numbers or letters on the alpha-numeric keypad, pre-selection of 10 radio frequencies.
1 2 . SD card reader.
S h o r t p r e s s : c l e a r s t h e l a s t character.
L o n g p r e s s : a c t i v a t e s v o i c e recognition.
Page 246 of 329
233
0 1
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
1 3
1 4

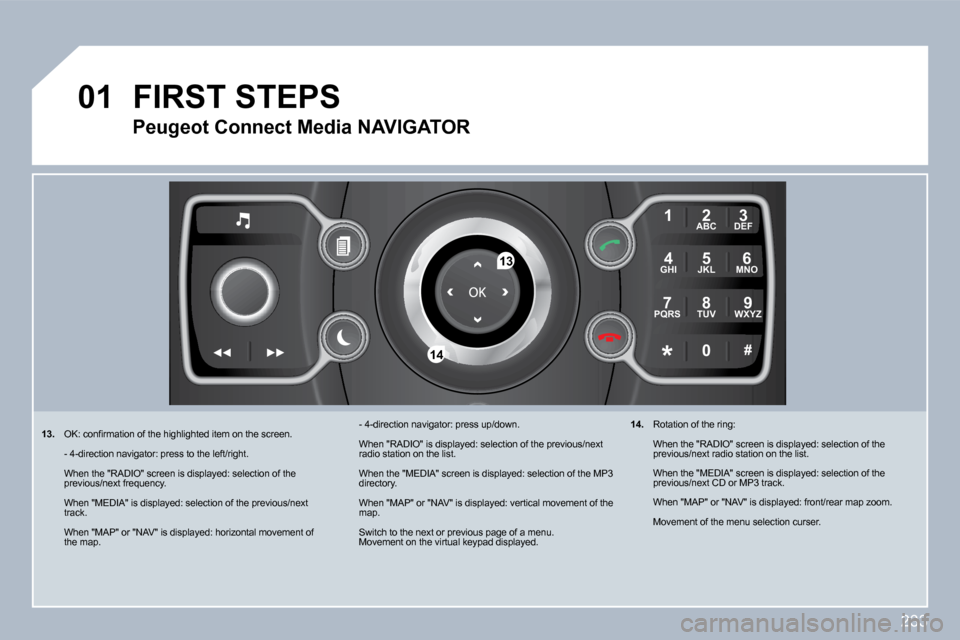

1 3 . O K : c o n fi r m a t i o n o f t h e h i g h l i g h t e d i t e m o n t h e s
c r e e n .
- 4 - d i r e c t i o n n a v i g a t o r : p r e s s t o t h e l e f t / r i g h t .
W h e n t h e " R A D I O " s c r e e n i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t f r e q u e n c y .
W h e n " M E D I A " i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t track.
W h e n " M A P " o r " N A V " i s d i s p l a y e d : h o r i z o n t a l m o v e m e n t o f the map.
- 4 - d i r e c t i o n n a v i g a t o r : p r e s s u p / d o w n .
W h e n " R A D I O " i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t radio station on the list.
W h e n t h e " M E D I A " s c r e e n i s d i s p l a y e d : s e l e c t i o n o f t h e M P 3 directory.
W h e n " M A P " o r " N A V " i s d i s p l a y e d : v e r t i c a l m o v e m e n t o f t h e map.
Switch to the next or previous page of a menu. Movement on the virtual keypad displayed.
FIRST STEPS
Peugeot Connect Media NAVIGATOR
1 4 . R o t a t i o n o f t h e r i n g :
W h e n t h e " R A D I O " s c r e e n i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t r a d i o s t a t i o n o n t h e l i s t .
W h e n t h e " M E D I A " s c r e e n i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t C D o r M P 3 t r a c k .
W h e n " M A P " o r " N A V " i s d i s p l a y e d : f r o n t / r e a r m a p z o o m .
Movement of the menu selection curser.
Page 251 of 329
238
NAV
0 3
1
2
3
6
5
4

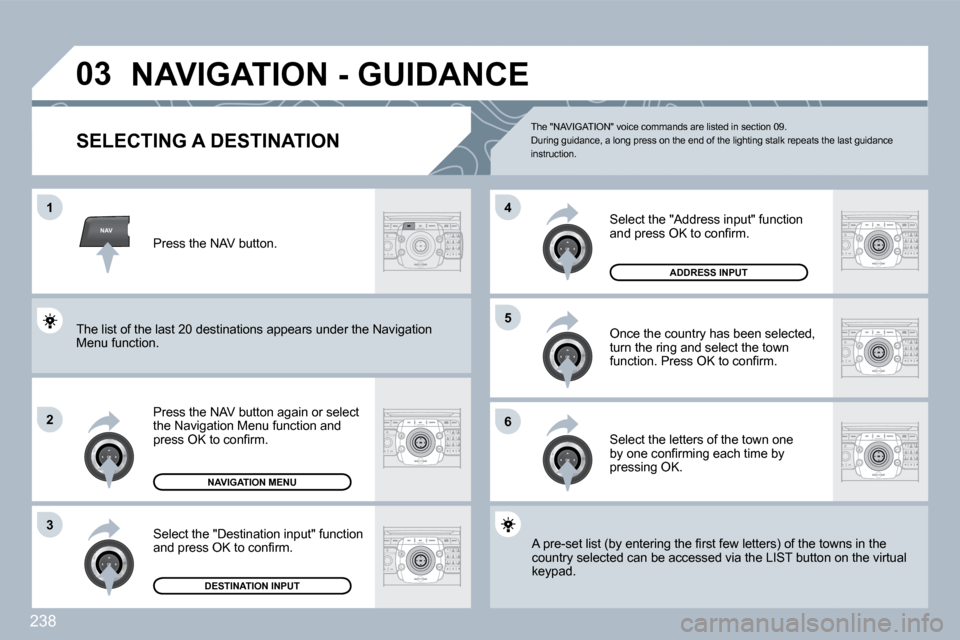

N A V I G A T I O N - G U I D A N C E
SELECTING A DESTINATION
Press the NAV button again or select the Navigation Menu function and p r e s s O K t o c o n fi r m .
Select the "Destination input" function a n d p r e s s O K t o c o n fi r m .
Press the NAV button.
Select the letters of the town one b y o n e c o n fi r m i n g e a c h t i m e b y pressing OK.
Once the country has been selected, turn the ring and select the town f u n c t i o n . P r e s s O K t o c o n fi r m .
NAVIGATION MENU
DESTINATION INPUT
A p r e - s e t l i s t ( b y e n t e r i n g t h e fi r s t f e w l e t t e r s ) o f t h e t o w n s i n t h e A p r e - s e t l i s t ( b y e n t e r i n g t h e fi r s t f e w l e t t e r s ) o f t h e t o w n s i n t h e country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the "Address input" function a n d p r e s s O K t o c o n fi r m .
ADDRESS INPUT
The list of the last 20 destinations appears under the Nathe Navigation Menu function.
The "NAVIGATION" voice commands are listed in section 09. During guidance, a long press on the end of the lighting stalk repeats the last guidance instruction.
Page 252 of 329
239
7
8
1 0
9
1 1
0 3

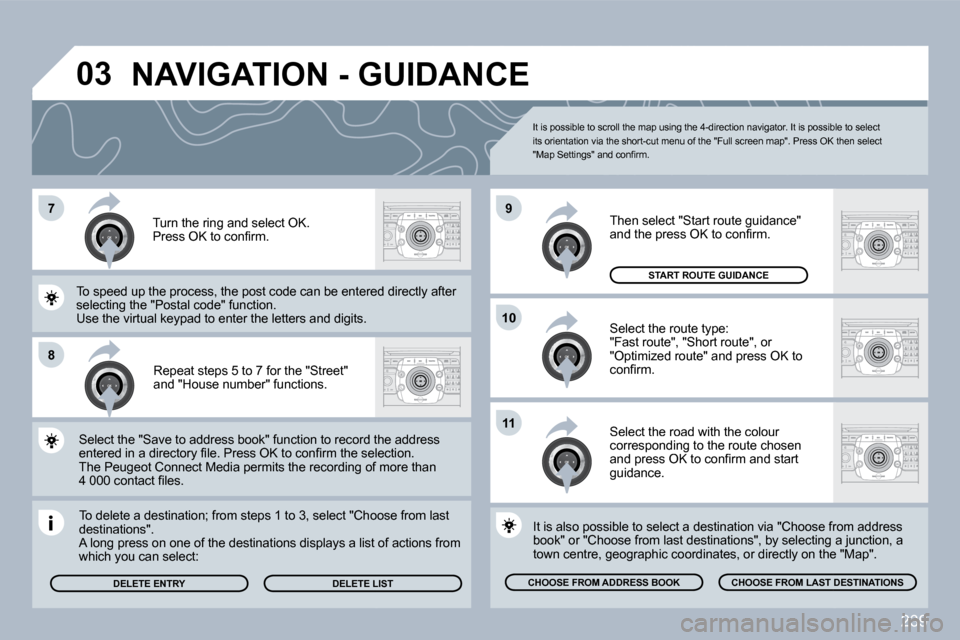

Repeat steps 5 to 7 for the "Street" and "House number" functions.
To delete a destination; from steps 1 to 3, select "ChooChoose from last destinations". A long press on one of the destinations displays a list o list of actions from w h i c h y o u c a n s e l e c t :
Select the "Save to address book" function to record thord the address e n t e r e d i n a d i r e c t o r y fi l e . P r e s s O K t o c o n fi r m t h e s e l e c t i o n . e n t e r e d i n a d i r e c t o r y fi l e . P r e s s O K t o c o n fi r m t h e s e l e c t i o n . The Peugeot Connect Media permits the recording of mg of more than 4 0 0 0 c o n t a c t fi l e s .
To speed up the process, the post code can be enteredtered directly after selecting the "Postal code" function. Use the virtual keypad to enter the letters and digits. S e l e c t t h e r o u t e t y p e : "Fast route", "Short route", or " O p t i m i z e d r o u t e " a n d p r e s s O K t o c o n fi r m .
Then select "Start route guidance" a n d t h e p r e s s O K t o c o n fi r m .
It is also possible to select a destination via "Choose frose from address book" or "Choose from last destinations", by select ing ating a junction, a town centre, geographic coordinates, or directly on the "n the "Map".
CHOOSE FROM ADDRESS BOOK CHOOSE FROM LAST DST DESTINATIONS
START ROUTE GUIDANCE
It is possible to scroll the map using the 4-direction navigator. It is possible to select its orientation via the short-cut menu of the "Full screen map". Press OK then select " M a p S e t t i n g s " a n d c o n fi r m .
Select the road with the colour corresponding to the route chosen a n d p r e s s O K t o c o n fi r m a n d s t a r t guidance.
Turn the ring and select OK. P r e s s O K t o c o n fi r m .
DELETE ENTRY DELETE LISTE LIST
N A V I G A T I O N - G U I D A N C E
Page 255 of 329
242
NAV
0 3
1
2
3
4
7
8 5
6

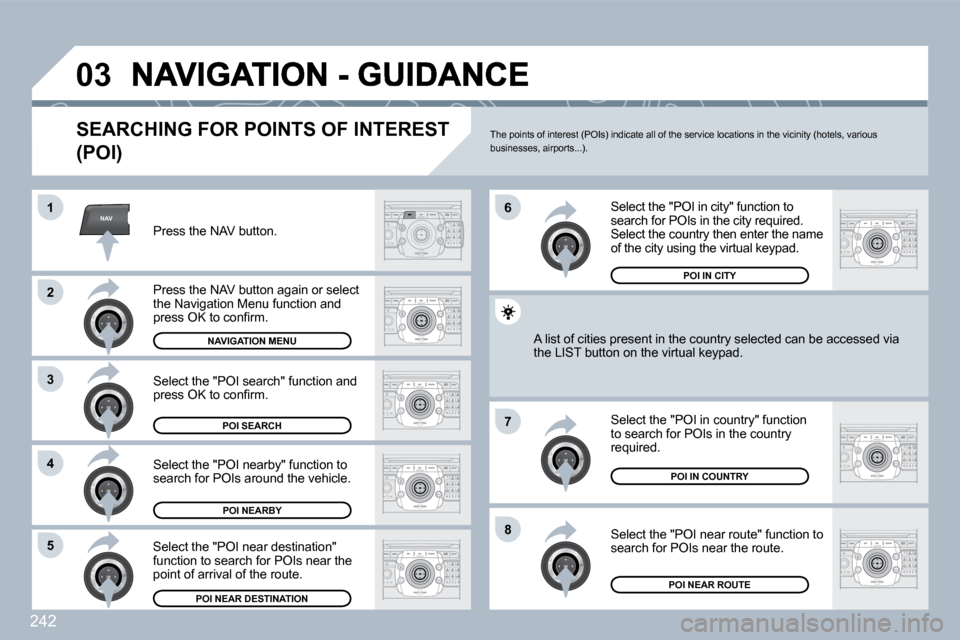

SEARCHING FOR POINTS OF INTEREST
(POI)
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and p r e s s O K t o c o n fi r m .
Select the "POI nearby" function to search for POIs around the vehicle.
Select the "POI search" function and p r e s s O K t o c o n fi r m .
NAVIGATION MENU
POI SEARCH
POI NEARBY
Select the "POI in city" function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the "POI near route" function to search for POIs near the route.
Select the "POI in country" function to search for POIs in the country required.
Select the "POI near destination" function to search for POIs near the point of arrival of the route.
POI NEAR DESTINATION
POI IN COUNTRY
POI NEAR ROUTE
A list of cities present in the country selected can be accbe accessed via the LIST button on the virtual keypad.
POI IN CITY
T h e p o i n t s o f i n t e r e s t ( P O I s ) i n d i c a t e a l l o f t h e s e r v i c e l o c a t i o n s i n t h e v i c i n i t y ( h o t e l s , v a r i o u s b u s i n e s s e s , a i r p o r t s . . . ) .
Page 261 of 329
248
RADIO
1 1
2
3
0 5

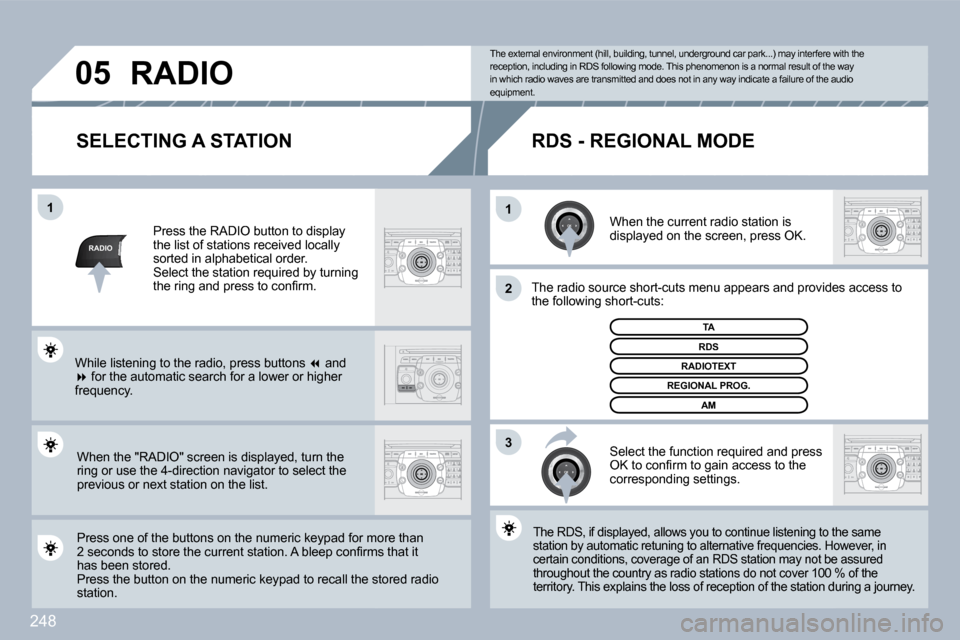

SELECTING A STATION
When the current radio station is displayed on the screen, press OK.
The radio source short-cuts menu appears and providesovides access to t h e f o l l o w i n g s h o r t - c u t s :
Select the function required and press O K t o c o n fi r m t o g a i n a c c e s s t o t h e corresponding settings.
TA
The RDS, if displayed, allows you to continue listening to thg to the same station by automatic retuning to alternative freque ncies. Hows. However, in certain conditions, coverage of an RDS station may not be aot be assured throughout the country as radio stations do not cover 100 % 100 % of the territory. This explains the loss of reception of the station durion during a journey.
T h e e x t e r n a l e n v i r o n m e n t ( h i l l , b u i l d i n g , t u n n e l , u n d e r g r o u n d c a r p a r k . . . ) m a y i n t e r f e r e w i t h t h e reception, including in RDS following mode. This ph enomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a failure of the audio equipment.
R D S - R E G I O N A L M O D E
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning t h e r i n g a n d p r e s s t o c o n fi r m .
Press one of the buttons on the numeric keypad fo r moor more than 2 s e c o n d s t o s t o r e t h e c u r r e n t s t a t i o n . A b l e e p c o n fi r m s t h a t i t 2 s e c o n d s t o s t o r e t h e c u r r e n t s t a t i o n . A b l e e p c o n fi r m s t h a t i t has been stored. Press the button on the numeric keypad to recall the stothe stored radio station.
RDS
RADIOTEXT
R E G I O N A L P R O G .
AM
RADIO
When the "RADIO" screen is displayed, turn the ring or use the 4-direction navigator to select the previous or next station on the list.
While listening to the radio, press buttons and for the automatic search for a lower or higher frequency.
Page 269 of 329
256
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
0 7
1
2 2
3 3
1 1
2 2

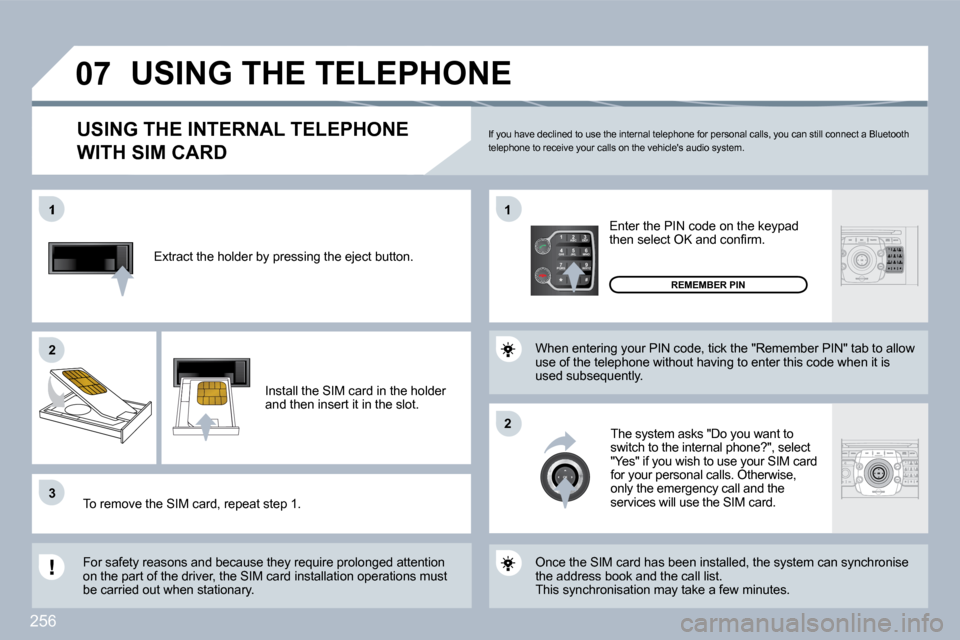

Extract the holder by pressing the eject button.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
For safety reasons and because they require prolo nged attention on the part of the driver, the SIM card installation operations must be carried out when stationary.
Enter the PIN code on the keypad t h e n s e l e c t O K a n d c o n fi r m .
The system asks "Do you want to s w i t c h t o t h e i n t e r n a l p h o n e ? " , s e l e c t "Yes" if you wish to use your SIM card for your personal calls. Otherwise, only the emergency call and the services will use the SIM card.
REMEMBER PIN
When entering your PIN code, tick the "Remember P IN" tab to allow use of the telephone without having to enter this code when it is used subsequently.
USING THE INTERNAL TELEPHONE
WITH SIM CARD
USING THE TELEPHONE
Once the SIM card has been installed, the system can synchronise the address book and the call list. This synchronisation may take a few minutes.
If you have declined to use the internal telephone for personal calls, you can still connect a Bluetooth telephone to receive your calls on the vehicle's au dio system.
